Product Overview
Description
Product Description

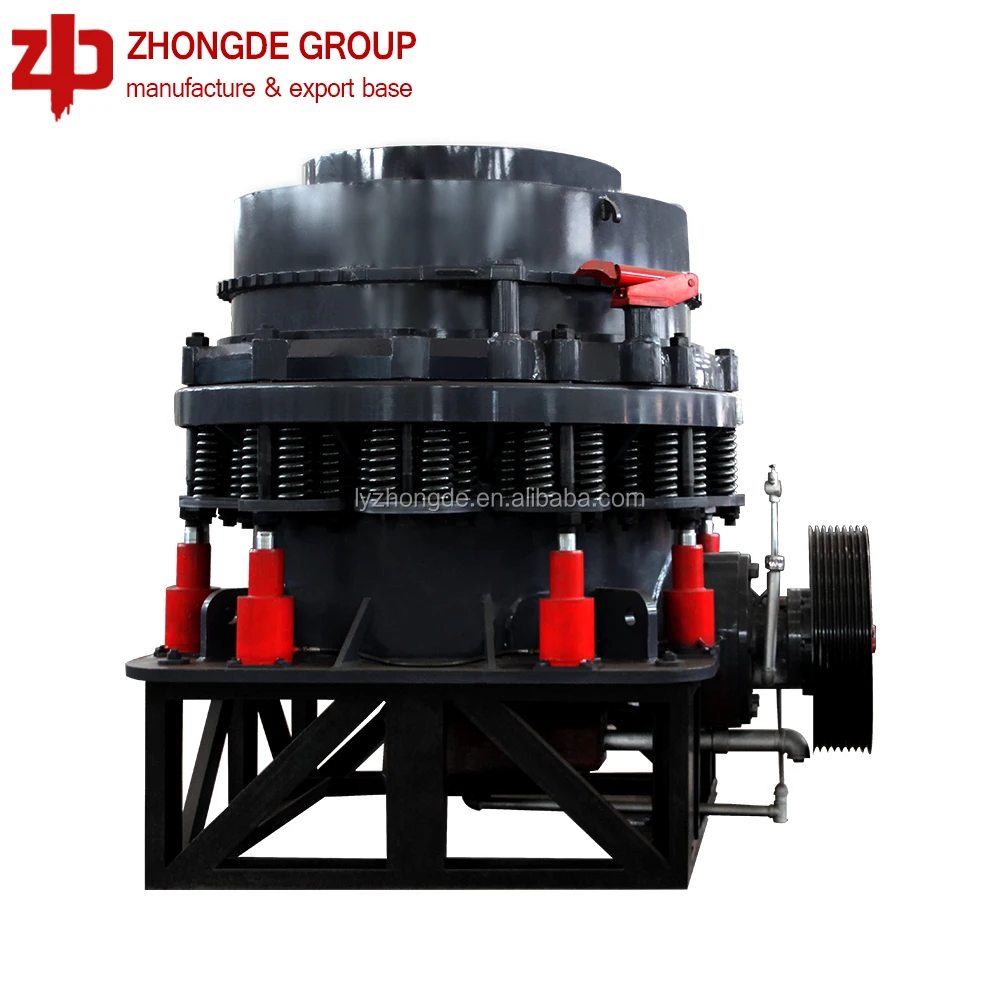

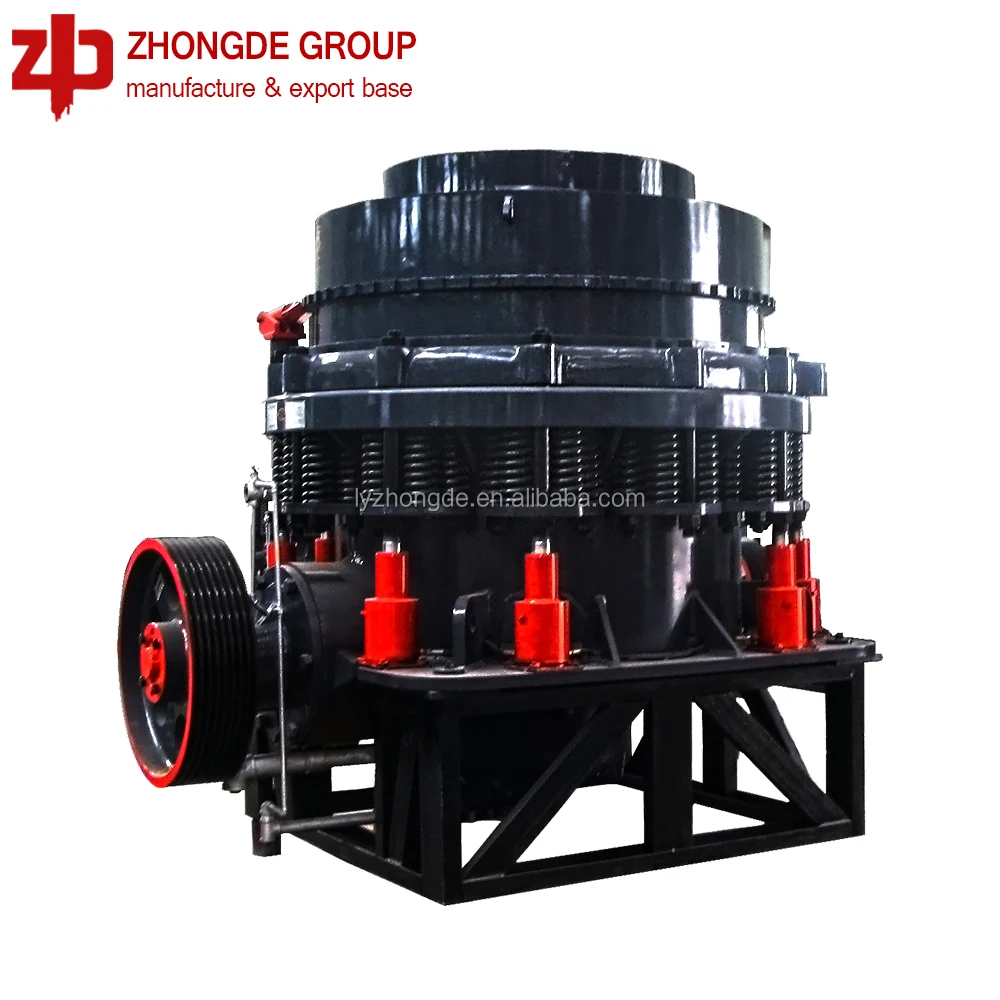

PSG900-symons cone crusher/symons cone crusher instruction manual
1. PSG series cone crusher is the new type product which is researched by absorbing the symons cone crusher technology of Nordberg company.
2. It's widely used in metallurgy, construction, road building, chemical industries and etc. Besides, it's suitable for crushing many kinds of ores and rocks with medium hardness and above.
The Advantages of symons cone crusher:
A.The product is featured by high crushing ratio, high efficiency, large processing capacity, low operation cost, easyadjustment, etc.
B. It has long life span because of the components material and reasonable structure.
C. The evenly particle size of finished product reduces the circulation load.
D. The hydraulic chamber-cleaning system in medium and large sized crusher reduces the machine's stop time.
cone crusher capacity chart
| Type | Model | Diameter of large end of crushing cone (mm) | Discharging opening (mm) | Max. feeding size (mm) | Processing capacity (t/h) | Motor power (kw) | Dimension (mm) |
| PSG900 | 0910 | 914mm (3') | 9-22 | 85 | 45-91 | 6P 75kw | 2656×1636×2241 |
| 0917 | 13-38 | 150 | 59-163 | ||||
| 0904 | 3-13 | 35 | 27-90 | ||||
| 0906 | 3-16 | 76 | 65 | ||||
| PSG1300 | 1313 | 1295(4.25') | 13-31 | 115 | 109-181 | 6P 160kw | 2983×1866×3156 |
| 1321 | 16-38 | 178 | 132-253 | ||||
| 1324 | 19-51 | 205 | 172-349 | ||||
| 1306 | 3-16 | 54 | 36-163 | ||||
| 1308 | 6-16 | 76 | 82-163 | ||||
| 1310 | 8-25 | 89 | 109-227 | ||||
| PSG1600 | 1620 | 1676(5.5') | 16-38 | 178 | 181-327 | 6P 250kw | 3641×2954×3771 |
| 1624 | 22-51 | 205 | 258-417 | ||||
| 1626 | 25-64 | 228 | 299-635 | ||||
| 1607 | 5-13 | 60 | 90-209 | ||||
| 1608 | 6-19 | 76 | 136-281 | ||||
| 1613 | 10-25 | 113 | 190-336 | ||||
| PSG2100 | 2127 | 2134(7') | 19-38 | 236 | 544-1034 | 6P 400kw | 4631×3302×4638 |
| 2133 | 25-51 | 284 | 862-1424 | ||||
| 2136 | 31-64 | 314 | 1125-1814 | ||||
| 2110 | 5-16 | 89 | 218-463 | ||||
| 2113 | 10-19 | 113 | 404-580 | ||||
| 2117 | 13-25 | 151 | 517-680 |
Advantages
- Hydraulic clearing
- Hydraulic adjustment
- Heavy duty design
- Long life
- Standard replacement parts
- Cost effective
Zhongde adopt first class raw material to guarantee crushers' superior quality and high performance, long life with minimum maintenance.
Cone crushers are suitable for secondary and tertiary crushing in direct feed applications, to provide high volumes of excellently shaped product.
Cone crusher provides an excellent reduction and product cubicity for the production of high quality aggregates and sub-case material...Its hydraulic release capabilities ensure that any un-crushable material entering the chamber is safely discharged.
Packaging & Shipping
Zhongde supply timely, safely shipping service, including multiple shipping method according to delivery region. We protect your order with extreme care based on rich export experience.
- Streamlined production allows for prompt delivery times of 6-8 weeks on most products.
- Bare machine is shipped in export container.
- Motors and small parts is packaged with attention in hand-made wooden boxes.
Company Information
Luoyang Zhongde Heavy Industries Co., Ltd
Luoyang Zhongde Heavy Industries Co., Ltd,whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past 50 years, Zhongde has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which had brought a rapid development to the company. In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park, Luoyang city, the middle of China.
We are a professional manufacturer of mining equipments, such as crusher, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine, thickener, etc. Our machines are widely used in the fields of mine, smelting, chemicals, building materials, coal, refractory materials, ceramics, etc. Moreover, technological designs on program, process flow, standard& non-standard parts are also provided from the beginning to the end for clients.
Zhongde offers ISO and CE certification's quality.
• China Top 10 Famous Stone Crusher Brand
• China Well-Known Trademark of Ball Mill
and many other honors by local authorites such as
• Henan Quality & Integrity Company
• Henan Famous Quality Brand
Among China thousands of suppliers. these honors granted by China authorities for quality and business credit, it means a lot.
Pre-sale services: enthusiasm
We provide you with the pro-purchase plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Welcome you and your engineer team come to visit our factory, welcome the opportunity to assist you on a higher productivity. long life, and cost effective crushing plant.
Zhongde personnel are committed to quality and guarantee the highest level in all their finished products.
Zhongde offers bare crusher units, modular and portable jaw crusher assemblies and entire crushing plants to meet your particular crushing needs.
Contact Zhongde for your crushing needs. Wirte your requirements in textbox here as belows ⇓⇓⇓ or call me directly. (whatsapp +86-136-7336-6011)
If you need quality machinery with the latest technology, the best price, and the quickest delivery then Zhongde is your answer. Contact Zhongde today, they would be pleased to discuss your requirements.
