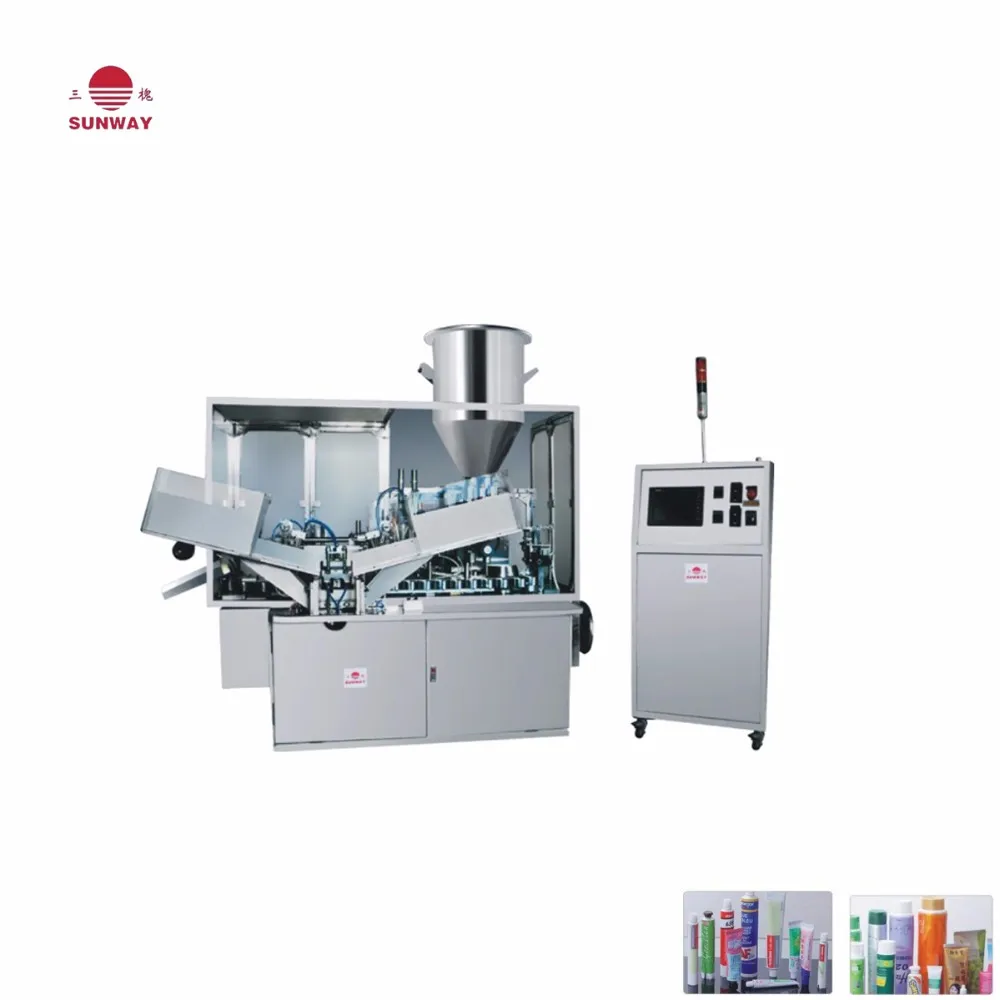

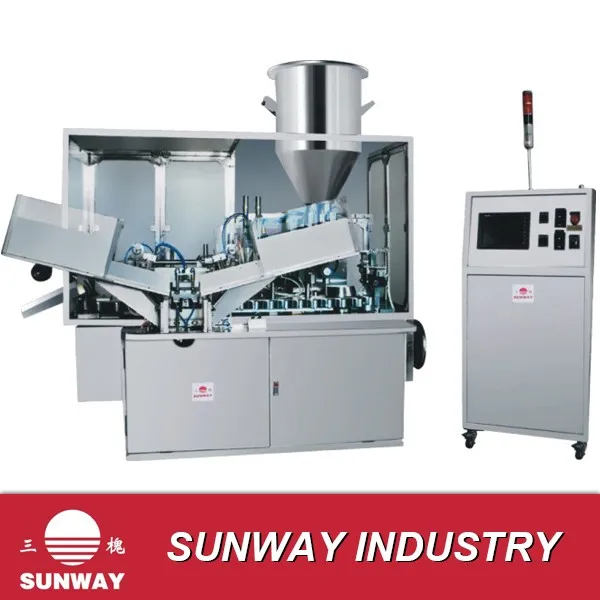

Automatic Toothpaste Tube Filling Machine

Share on (60762794377):


Price:$24,000.00

Quantity:


Product Overview

Description





Product Description

Product Description

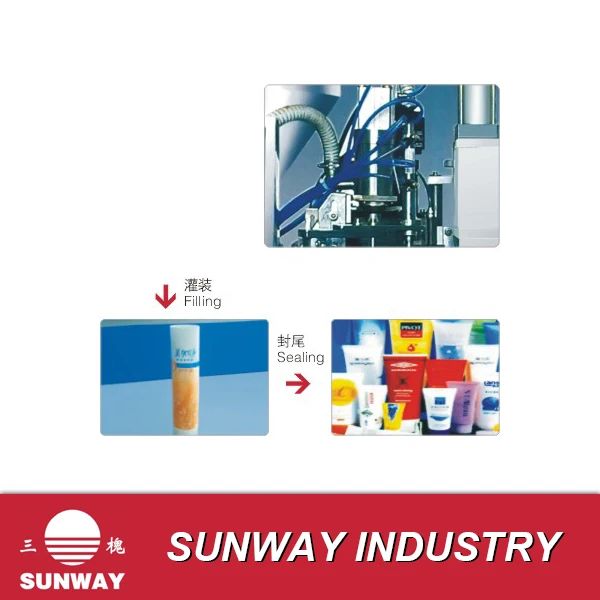

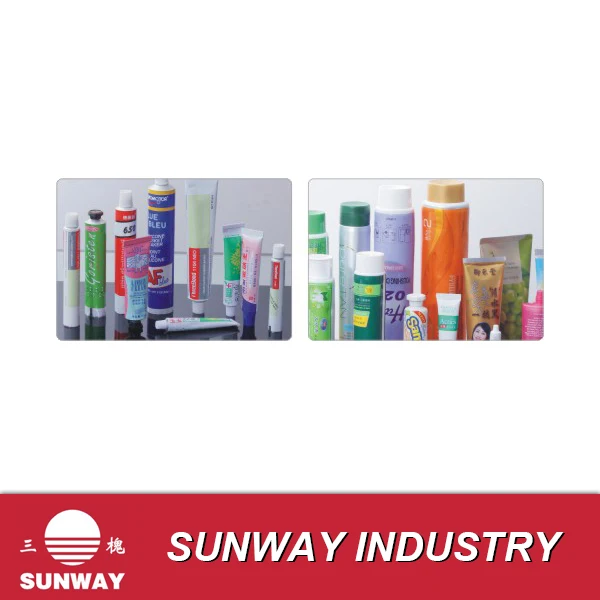

This B.GFN-100 machine is widely used for filling,sealing and batch No.printing of products packaged by aluminum-plastic and full-plastic tubes in cosmetics,toothpastes,medical ointments,food,shoe polishes,adhesives,etc.According to customer requirements,the machine can realize dual-use filling of liquid and ointment materials through special design and special filling device.The machine can be used independently and can also form a production flow line with other equipment such as the automatic packaging machine and etc.








Features


1) The main driving adopts full mechanical structure with stable running, low noise, and convenient operation and maintenance.
2) Equipped with automatic tube dropping box, automatic tube feeding, double-head filling, automatic color code aligning, automatic tube discharging.
3)Hot air inner heating, hot air heating from tube inner wall, no damage to tube surface tissues, beautiful sealing, especially suitable for sealing full-plastic packaging tubes.

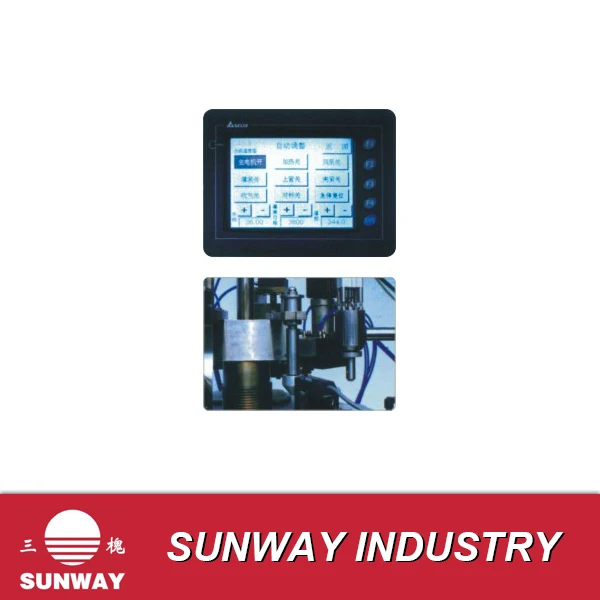

4) Automatically adjusted filling volume, no filling in case of no tube, PLC control, electrical buttons operation.
5) Equipped with organic glass dust cover.
6) Irregular shape sealing(optional).
7) Wire drawing preventing or leakage preventing filling head(optional).
8) Storage barrel liquid level control and alarming system, automatic feeding(optional).
9) Provided with mixing storage barrel(optional).
10) Provided with heating storage barrel(optional).





























































Main Technical Parameters



Type


B.GFN-100


Power Supply


380(220)V/50Hz


Power


9kw


Air Consumption


<0.2m3/min


Filling volume


10-180ml


Metering precision


1%


Filling at one time


2pcs


Max production capaticy


80-100pcs/min


Tube size


ø19-ø35mm


Dimension


2480x1200x2190mm


Weight


1300KG

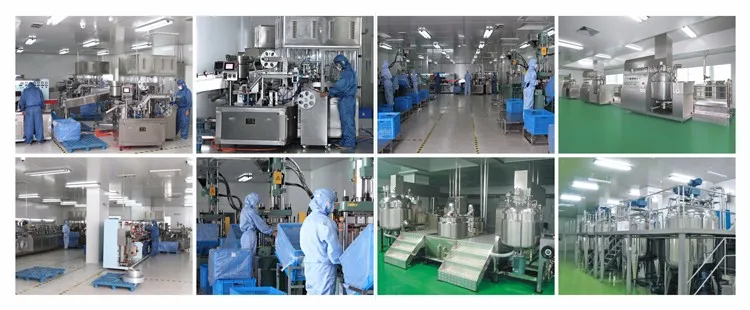

Our Factory

Our Factory

















Company information


Established in 1984, the main products of Nantong Sunway Machinery Manufacturing Co.,LTD cover laminated tube making line, PE Extrusion tube making line, toothpaste & cosmetic cream-like production and packing equipment, homogenizing mixer, tube filling & sealing machines, conveyors and so on. We are sure that our high quality products and excellent service will attract more and more customers' appreciation. Contacting us is the first step to build up a successful business relationship with us. If you are interested in any of our products, please feel free to contact us directly for more information. We look forward to cooperating with you for the mutual in the near future.









Certifications

Certifications


















Packing & Delivery

Packing & Delivery








Packaging Details:be packed in wooden cases
Delivery Time:40 days after the order be confirmed





Our Service

Our Service








1. After-sale-service
2. Engineer will go to customer factory to install and test machines
3. Help customer change the semi-automatic line to be automatic line
4. Design the machines connection according with the area of factory


5. Help to train the worker to let them can produce qualified tube
