Spin chiller slaughtering abattoir chicken poultry equipment
Products Description

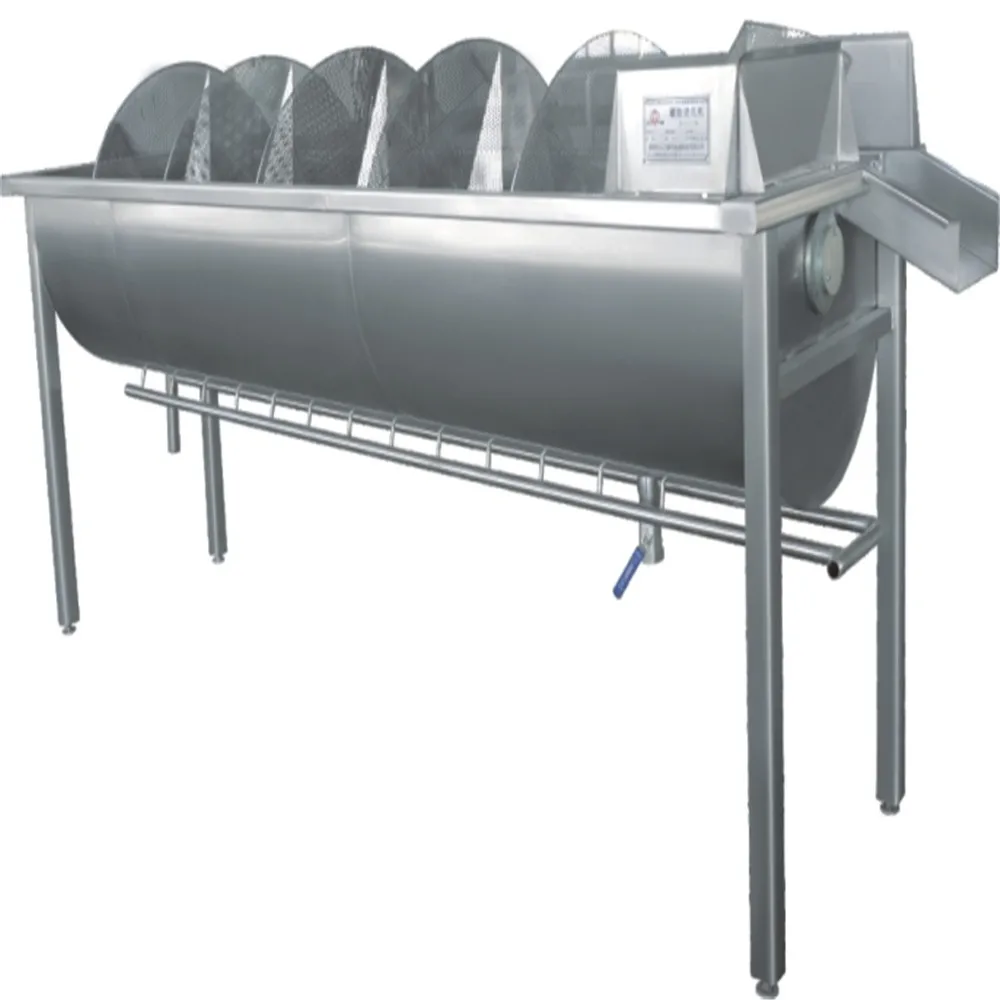

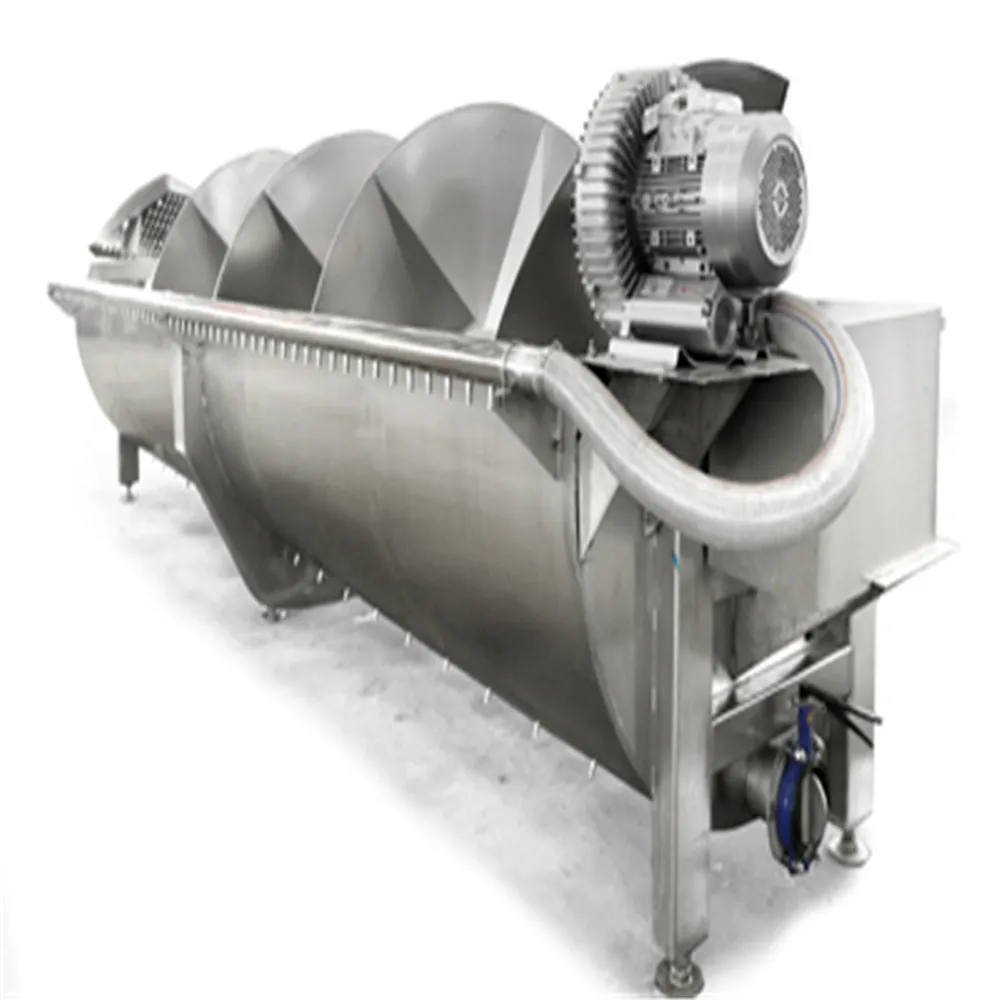

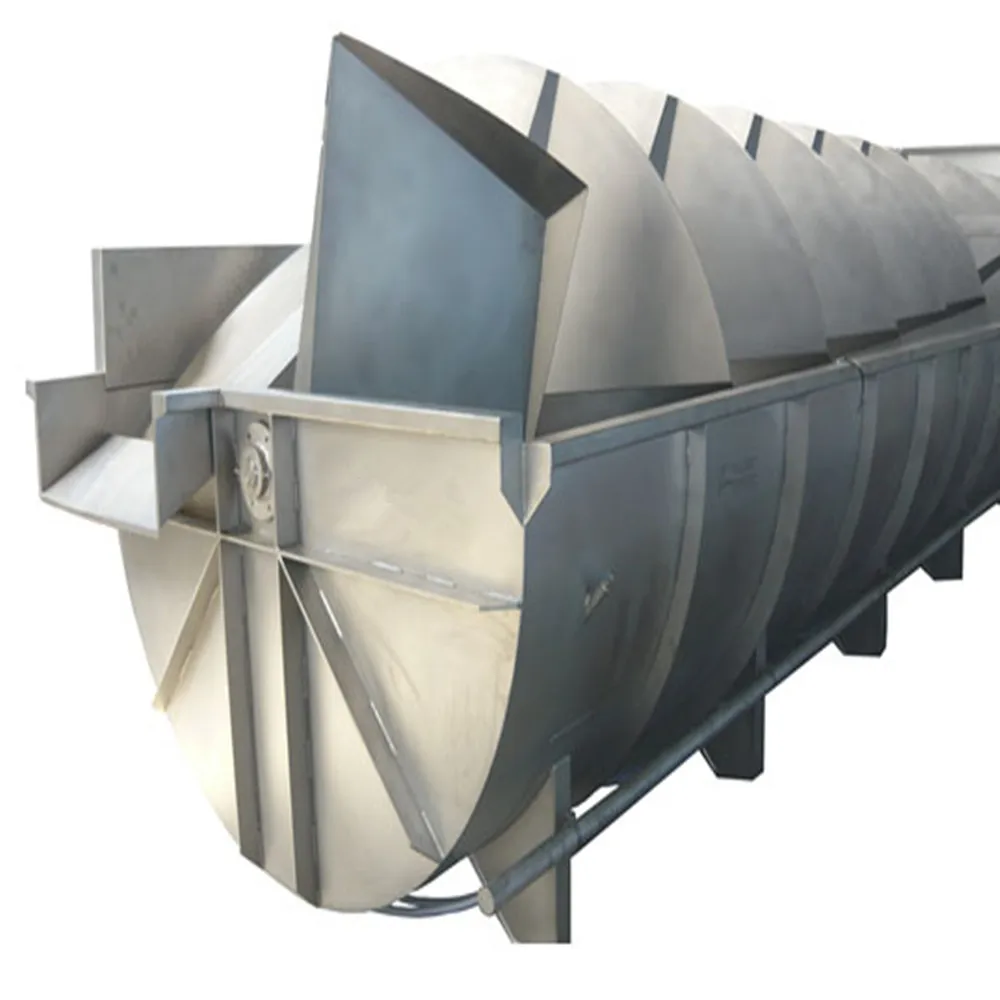

Spin chiller/Screw chiller
The Screw Chiller / Spin Chiller offers poultry processing plants the possibility of cooling down the eviscerated birds continuously and in a time-saving manner to the core temperatures required.
On the drive side of the screw chiller, the birds are fed into the tub, filled with chilled water. A screw with adjustable speed transports the birds gently through the water bath.
By constantly blowing air into the bottom area, good mixing of the water and even cooling of the birds is ensured.
The cooling water temperature is kept at the required level by means of cooling media to be provided at site, such as ice or cold water heat exchanger.
After their passage through the water bath, the birds are removed by an unloader from the container that feeds them e.g. to the drying drum, where adhering water is removed.
The screw chiller is available in different lengths and widths which depend on the required capacity.
The scope of delivery includes the air blower as well as the control board with a frequency converter for speed adjustment of the screw.
On the drive side of the screw chiller, the birds are fed into the tub, filled with chilled water. A screw with adjustable speed transports the birds gently through the water bath.
By constantly blowing air into the bottom area, good mixing of the water and even cooling of the birds is ensured.
The cooling water temperature is kept at the required level by means of cooling media to be provided at site, such as ice or cold water heat exchanger.
After their passage through the water bath, the birds are removed by an unloader from the container that feeds them e.g. to the drying drum, where adhering water is removed.
The screw chiller is available in different lengths and widths which depend on the required capacity.
The scope of delivery includes the air blower as well as the control board with a frequency converter for speed adjustment of the screw.
chiller 1800mm wide x 9 meters long with separate ejector
Technical specifications:
Utility connections: installed by the customer according to manufacturer’s guidelines.
L - standard – 1.5m repeatability (the shortest chiller: 3m)Ø - standard : 800,1,200, 1,300, 1,600, 1,800, 2,100,2400mm
The length and width of the poultry chiller depends on the capacity and processed bird size.
we can supply chillers with the ejector attached to the auger. Our 800mm diameter range comes standard with this. Our 800mm wide series are mainly used for the chilling of liver, giblets, necks and feet.
Product Paramenters
Capacity(chickens/hour) | chiller length (m) |
500 | 4 |
1000 | 5 |
2000 | 9 |
3000 | 6m+6m |
4000 | 6m+9m |
5000 | 6m+12m |
6000 | 10m+12m |
10000 | 12m*3sets |
Company Profile
Shandong Osaint is an innovative group company, focusing on designing, manufacturing and supplying food machinery. Its main
products consist of meat bone separators, slaughterhouse equipment, sausage machines and other meat food processing machines.
We have cooperated with more than 50 agents or distributors for providing the most convenient purchasing and after-sales service.
Our headquarter is located in Jinan city, Shandong province. We have three central factories in China. With more than 20 years'
experience and advanced technology of food machinery, we supply food machines with high quality and high efficiency for global
customers. Its products have been exported to more than 100 countries such as USA, Poland, India, Thailand, Indonesia, Argentina,
Chile, Paraguay, Bulgaria and so on.
products consist of meat bone separators, slaughterhouse equipment, sausage machines and other meat food processing machines.
We have cooperated with more than 50 agents or distributors for providing the most convenient purchasing and after-sales service.
Our headquarter is located in Jinan city, Shandong province. We have three central factories in China. With more than 20 years'
experience and advanced technology of food machinery, we supply food machines with high quality and high efficiency for global
customers. Its products have been exported to more than 100 countries such as USA, Poland, India, Thailand, Indonesia, Argentina,
Chile, Paraguay, Bulgaria and so on.
Customer Photos
FAQ
1. Q: Will you supply customer machine manual/operation Instruction?
A: Yes, We will supply the machine manual/operation Instruction In English to customer.
2. Q: Does the accessories of machine come with equipment?
A: Yes, the accessories of the machine will come with equipment and send to customer.
3. Q: Can the machine be washed down?
A: Yes, you can wash the machine by water.But please pay attentions that don't wash the electric parts. And shut off the power
before washing.
4. Q: If we need your technical service, how do you solve?
A:If the machine works failure, please contact me first. Email me and send picture or video to show the problems. I will give
customer solutions. If that still doesn't work, we will send technician to customer site for machine check. (Maintenance and
repair)
A: Yes, We will supply the machine manual/operation Instruction In English to customer.
2. Q: Does the accessories of machine come with equipment?
A: Yes, the accessories of the machine will come with equipment and send to customer.
3. Q: Can the machine be washed down?
A: Yes, you can wash the machine by water.But please pay attentions that don't wash the electric parts. And shut off the power
before washing.
4. Q: If we need your technical service, how do you solve?
A:If the machine works failure, please contact me first. Email me and send picture or video to show the problems. I will give
customer solutions. If that still doesn't work, we will send technician to customer site for machine check. (Maintenance and
repair)
