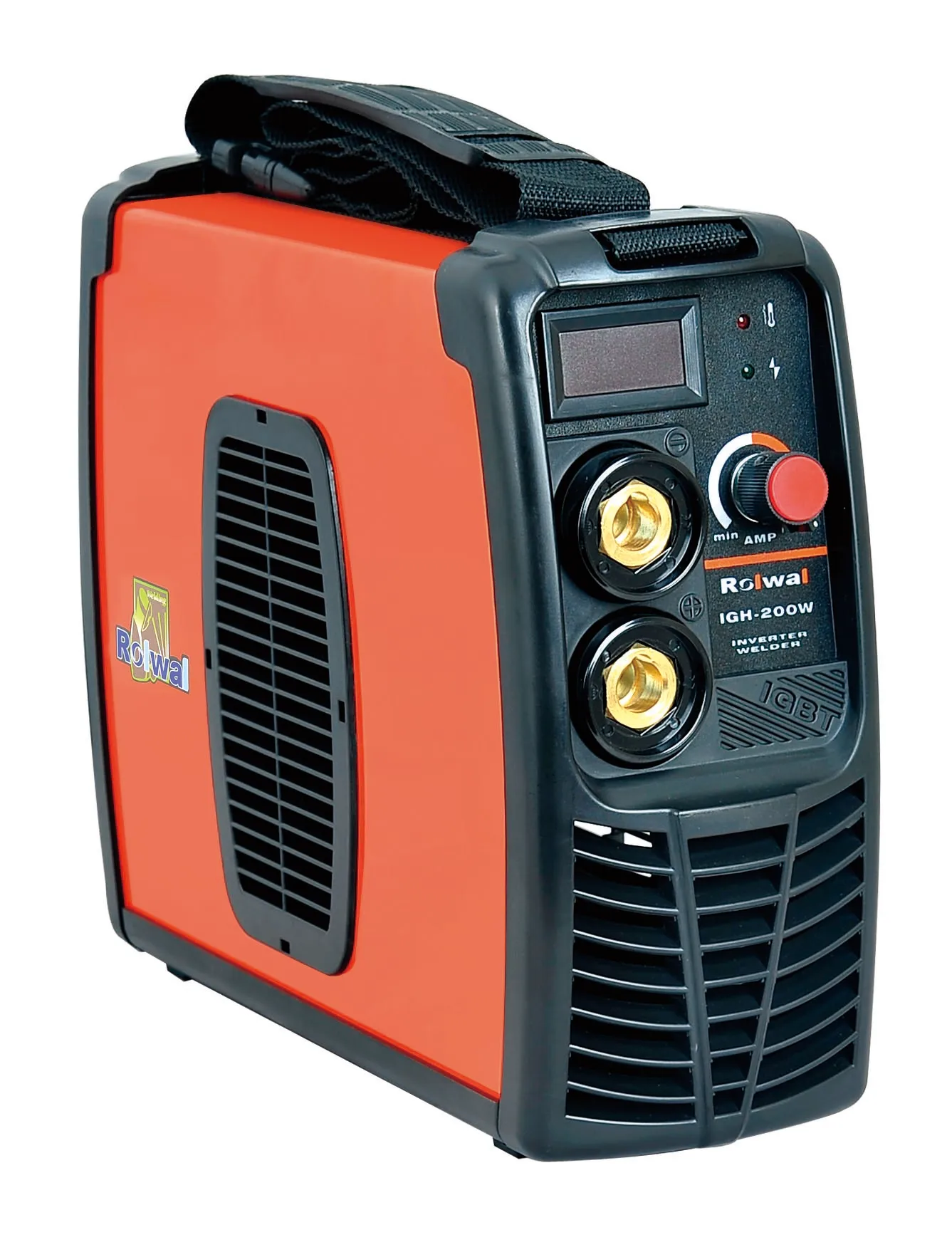

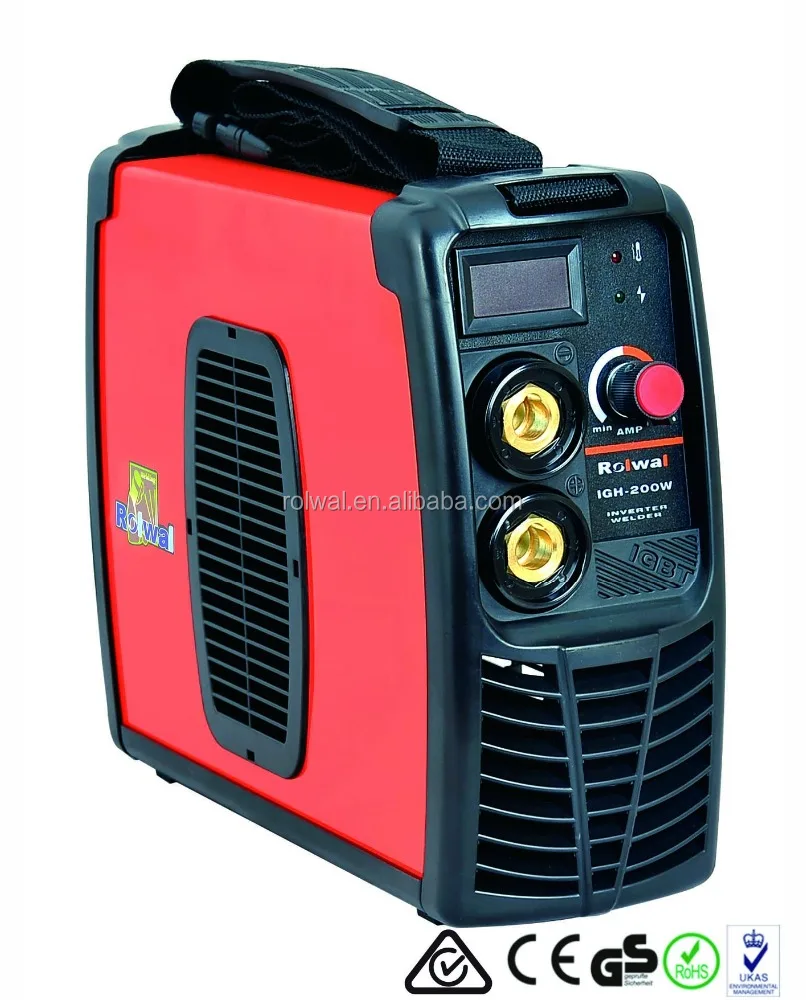

Rolwal IGBT MMA/ARC/LIFT TIG 200Amp 160Amp dc Inversor Soldador Electrico Maquina de Solda Dual voltage 110V 220V welding

Product Overview

Description

FUNCTION&FEATURES:



1.Single phase,portable,fan-cooled,thermostatic protection,movable welding cable.



2.Adopt with advanced IGBT inverter technology,lightweight,according with EMC standard.



3.Compact,portable,highly efficience,low consumption,energy saving.



4.With strong compensation capability,resistant to voltage fluctuation,stable welding current.



5.Waterproof,anti-static,anti-corrosion.



6.Hot start,arc force,overload protection.



7.With complete accessories electrode holder,earth clamp,welding cable,brush/hammer,protective mask,manual,carton box.



8.Can weld for long time without stop.





Model Number	IGH-160W	IGH-180W	IGH-200W
Input Power (V):	AC220V±15%	AC220V±15%	AC220V±15%
Input Power Frequency (Hz):	50/60	50/60	50/60
No-load Voltage (V):	70	70	70
Rated Input Current(KVA):	4.5	5	7
Welding Amperage Range (A):	10~140	10-160	10-200
Duty Cycle (%):	60%@140A	60%@160A	60%@200
Efficiency (%):	85	85	85
Insulation Grade:	F	F	F
Protection Grade:	IP21	IP21	IP21
Net Weight (kg):	6.3	6.8	8.5
Dimensions (mm):	310*185*230	310*185*230	330*200*230
