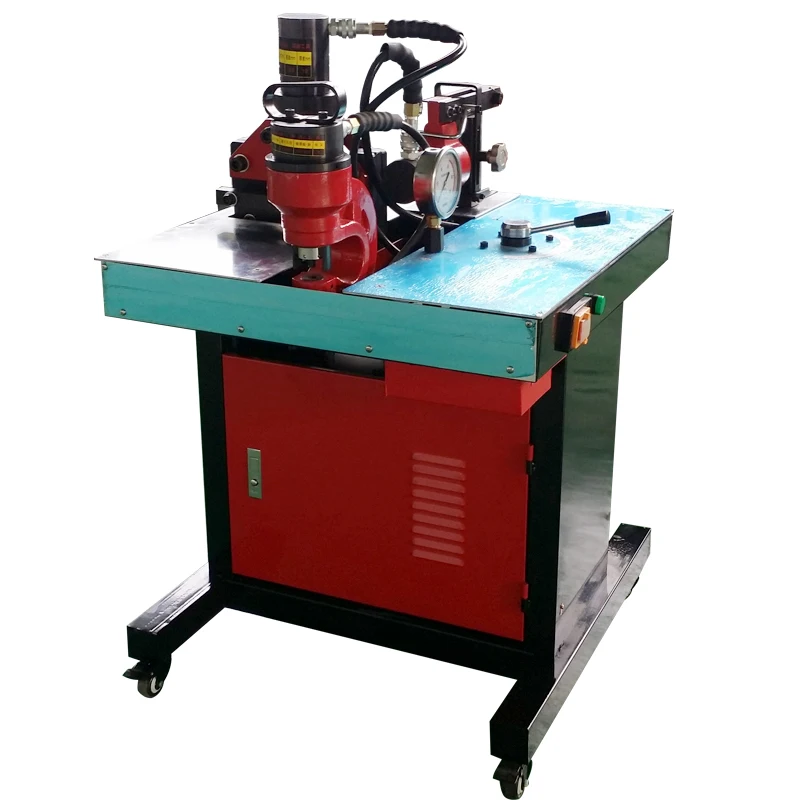

Popular Hydraulic Combined 3 in 1 Busbar Bending Machine For Switchpower System With 1 Year Warranty

Product Overview

Description

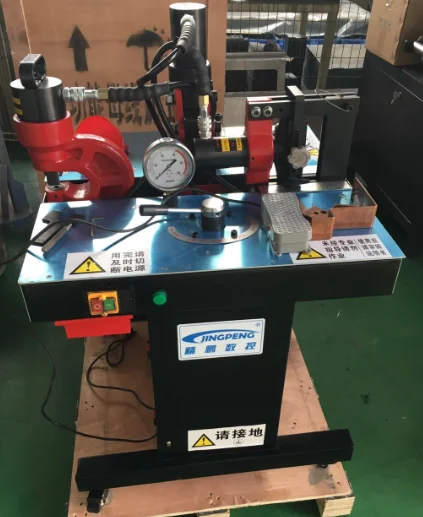

Popular Hydraulic Combined 3-in-1 Busbar Bending Machine For Switchpower System With 1 Year Warranty

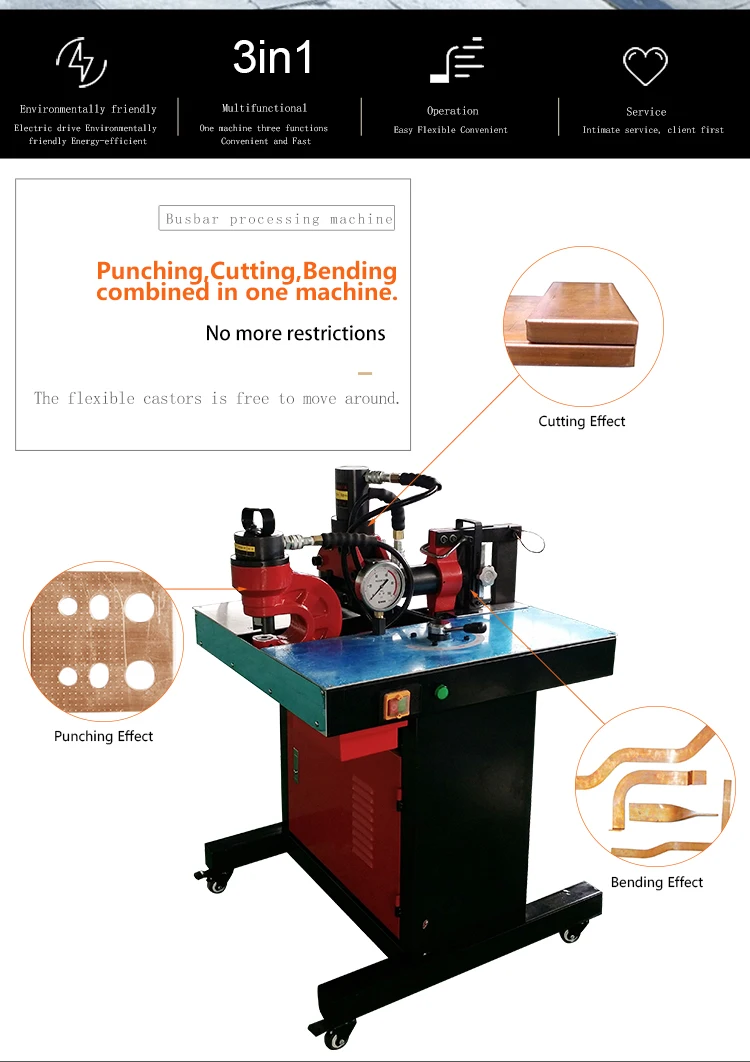

The combined busbar processing machine is mainly for bending,shearing and punching copper and aluminium busbars with high speed and high bending precision.It can finish these work such as:horizontal bending,shearing and punching.The machine can be smoothly operated,no pollution,low noise,high bending precision.



Main Features of busbar bending machine:

1.Based on the most advanced foreign products and Chinese reality,it is designed to improve working efficiency and save time.

2.It is for PTD (power transmission and  distribution) and workshop filed operation and electric equipment manufacturing such as power distribution cabinet and switch cabinet.

3.The machine is portable,there are 4 casters,so it is easy to be moved everywhere.

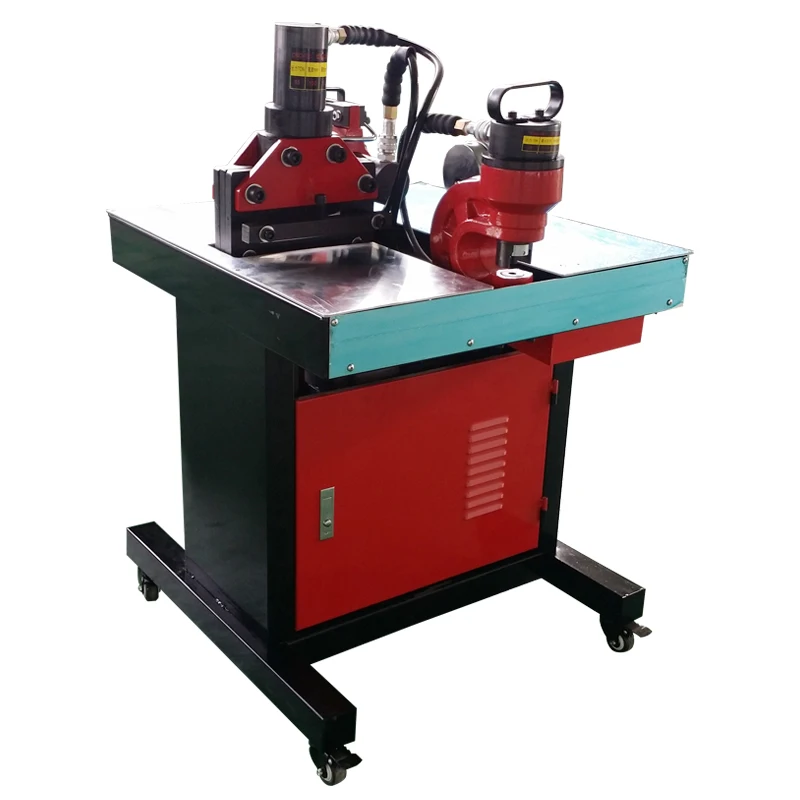

The Three Working Units Busbar Bending  Machine:

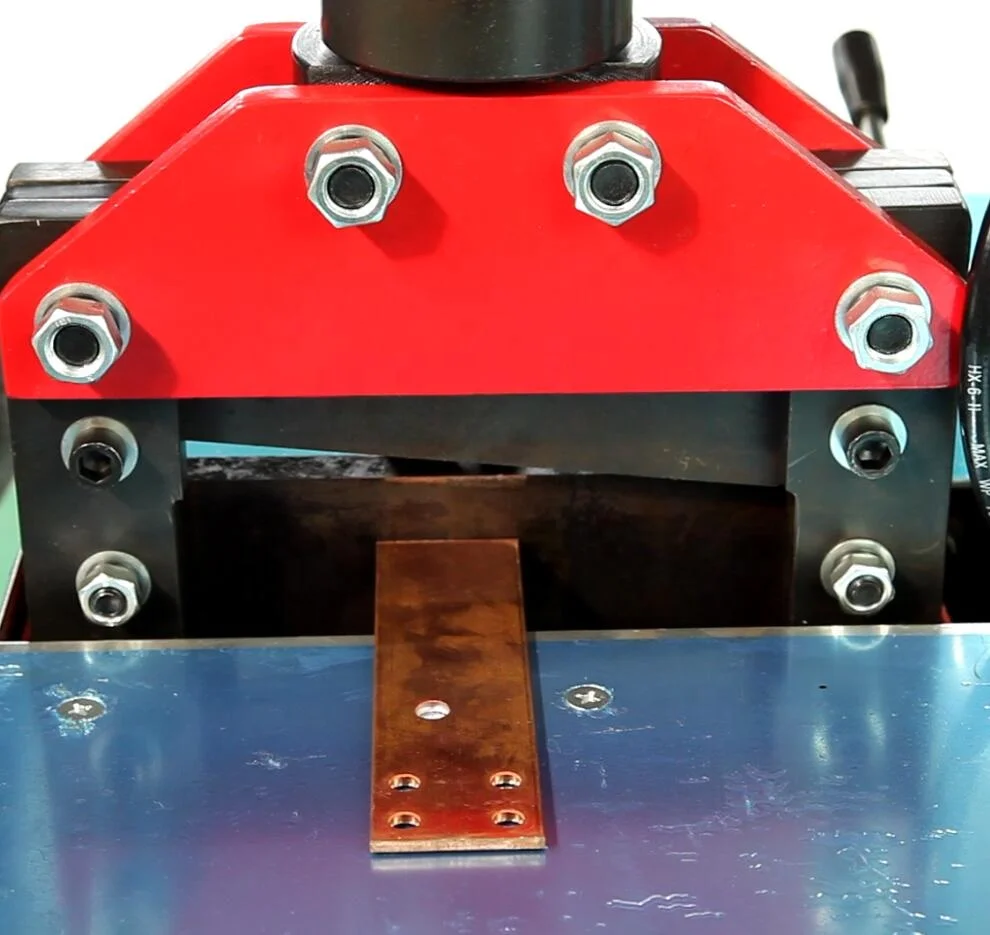

1.shearing unit:

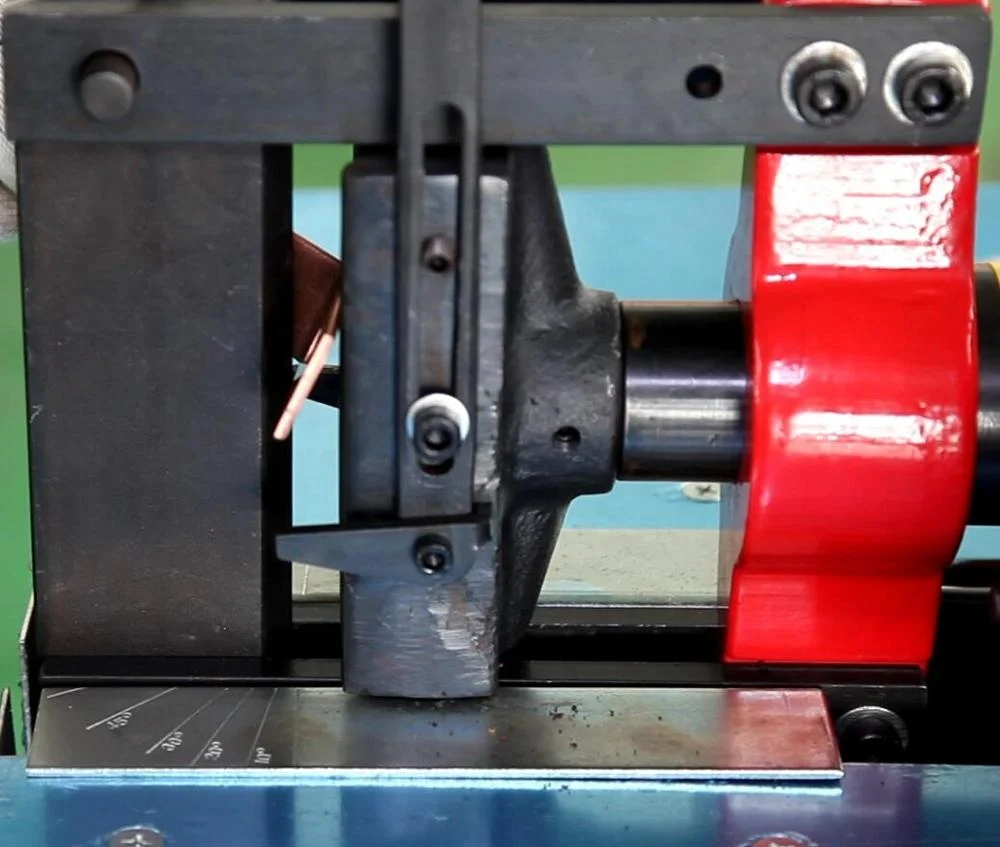

2.bending unit:





3.punching unit:



Detailed parameters of busbar bending machine:



SPECIFICATIONS FOR Combined Busbar Processing Machine
Model	JPMX-301A	JPMX-301B
Workpiece	Coper/Aluminum Bar,Busbar	Coper/Aluminum Bar,Busbar
Input voltage	220V	220V
Rated oil pressure	630kn	630kn
Max.cut size	150*10mm	200*12mm
Max.punch size	150*10mm	200*12mm
Max.bend size	150*10mm	200*12mm
Table size	700(L)*700(W)*1000(H)mm	730(L)*900(W)*1150(H)mm
Diameter of standard dies	10.5mm	10.5mm
	13.8mm	13.8mm
	17mm	17mm
	20.5mm	20.5mm
Machine weight	170kg	195kg

1.Firstly the machine must be paked with  plastic sheet for cleaning.

 2.Fasten it into the wood case for safety.

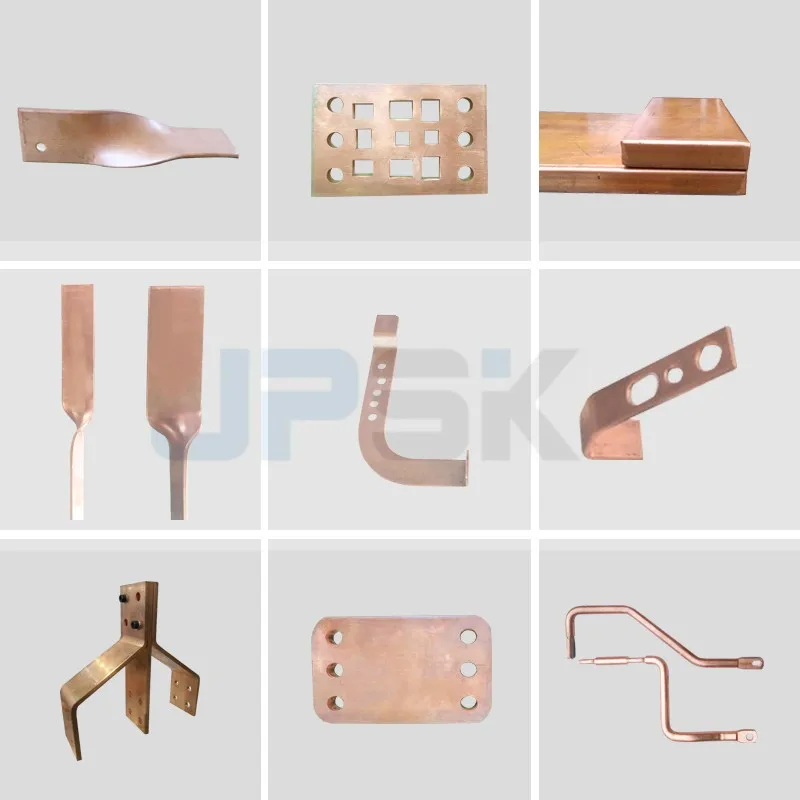

 Samples of busbar processing machine:









40% deposit by TT,the balance must be paid when the goods are ready for loading before shippment.

2.  What is your delivery time?

Usually within 7-15 days after the deposit.

3.  What is your power supply?

We will adjust according to your countries power supply. No problem.

4.  What is your Min. order quantity?

One set. Our customers can be end users, retailers and wholesalers.

5. Are all the Labels and instuctions of the machine in English?

Yes. the labels on the machine and the manuel books are all made in english version.

6.What's your company ablity of this machine?

About 100 sets for a month.



Should you have any questions,please do not hesitate to contact us.More details will be sent you soon.
