8mm(OD) x 5mm(ID) PU Air Tubing Pipe Hose 5 Meter Red Color

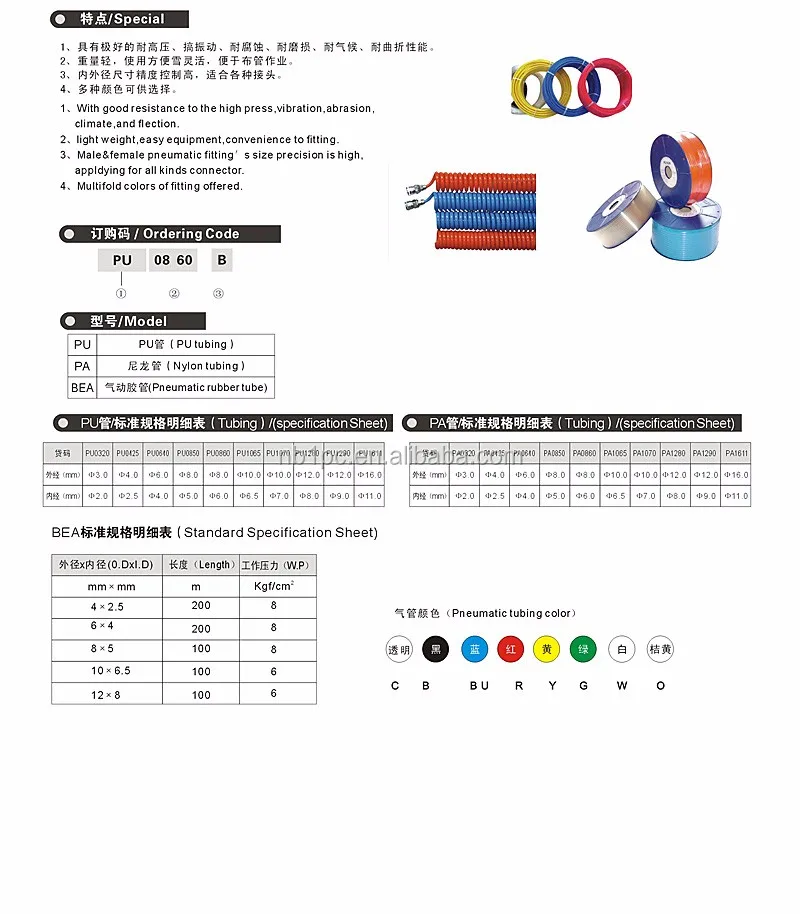

CODE\t3020\t0425\t0530\t0640\t0850\t0860\t1065\t1070\t1280\t1295\t1410\t1612

OD(mm)\t3\t4\t5\t6\t8\t8\t10\t10\t12\t12\t14\t16

ID(mm)\t2\t2.5\t3\t4\t5\t6\t6.5\t7.5\t8\t9.5\t10\t12

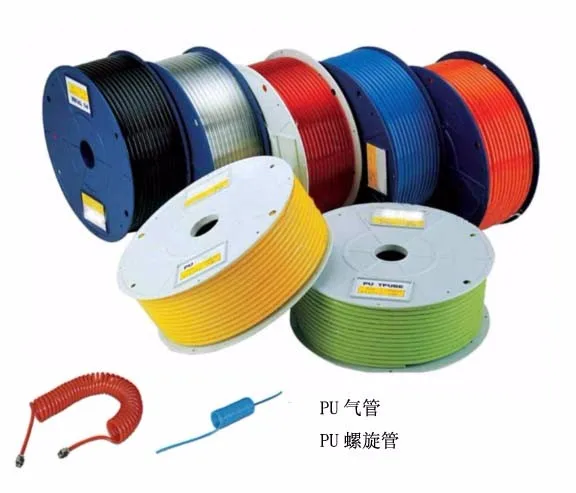

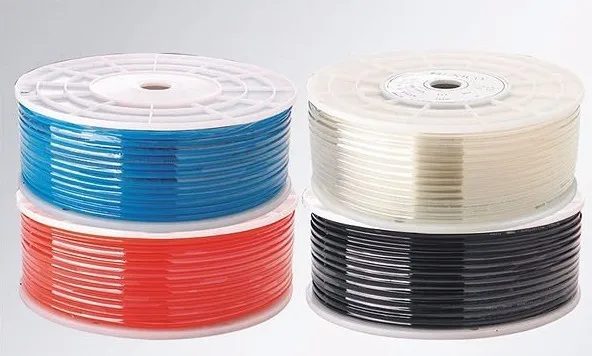

PU PLATE HOSE

Model\tO.D. (mm)\tI.D. (mm)\tWorking Pressure\tLength

PU 4*2.5\t4mm\t2.5mm\t10 kgf/cm 2\t180m/set

PU 6*4\t6mm\t4mm\t10 kgf/cm 2\t180m/set

PU 8*5\t8mm\t5mm\t10 kgf/cm 2\t90m/set

PU 8*6\t8mm\t6mm\t10 kgf/cm 2\t90m/set

PU 10*6.5\t10mm\t6.5mm\t10 kgf/cm 2\t90m/set

PU 10*7.5\t10mm\t7.5mm\t10 kgf/cm 2\t90m/set

PU 12*8\t12mm\t8mm\t10 kgf/cm 2\t90m/set

PU 12*9\t12mm\t9mm\t10 kgf/cm 2\t90m/set

PU 16*12\t16mm\t12mm\t10 kgf/cm 2\t90m/set

Description:

Tubes risk burst if they work under such conditions: high temperature (>60‘C),corrosive fluid (strong acid, alkaline, or solvent).

High temperature (>60‘C) causes softening of tube and the reduced burst pressure limitations. Also, chemical gas in air might speed up the aging and cracking of tube.

Please do not put tubes under humid environment or store them for a long period (>180 days), otherwise,cracking due to hydrolysis may occur.
