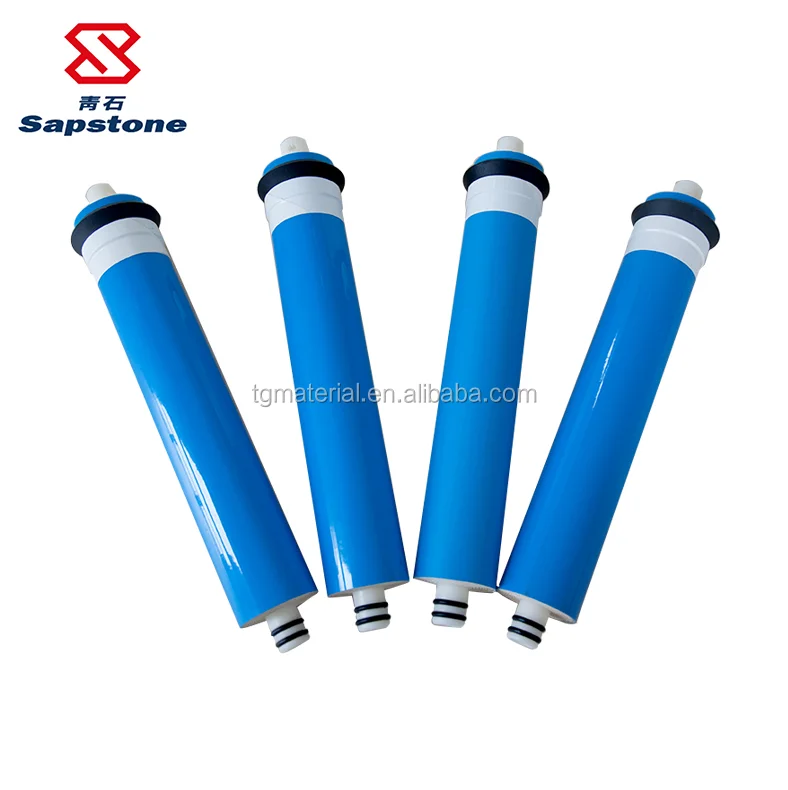

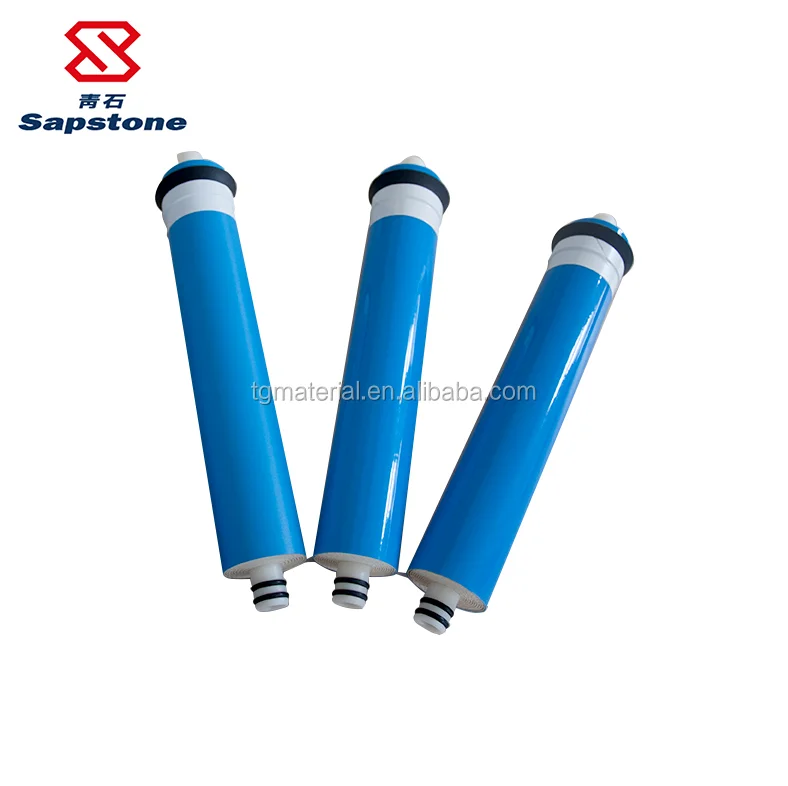

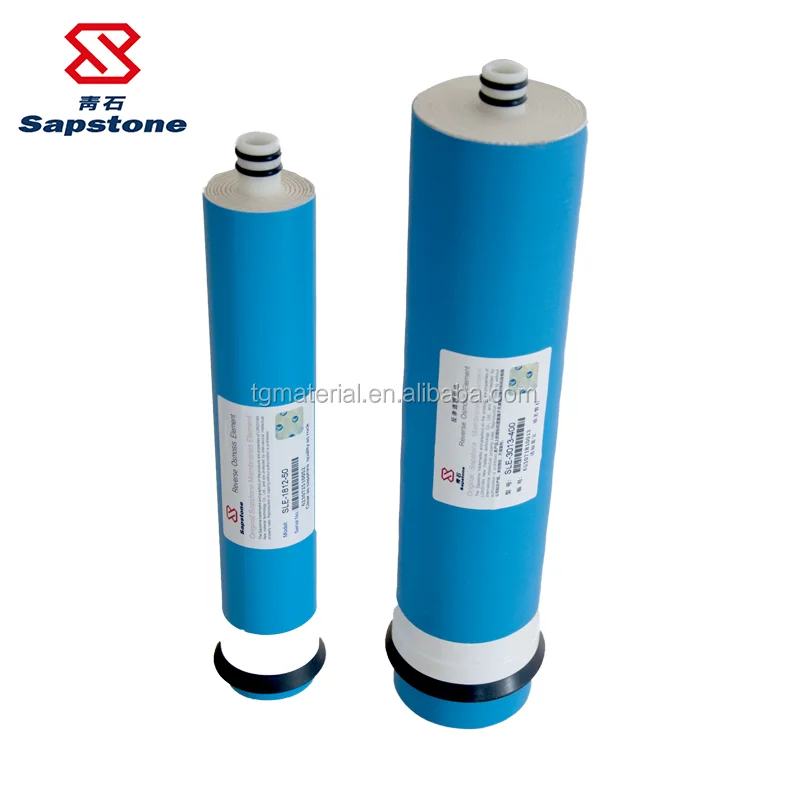

sourcing and wholesales of RO spares/parts/componets 100gpd RO membrane

Share on (60762986314):


Price:RUB 265.37 - RUB 417.00

Quantity:


Product Overview

Description

Product Description

sourcing and wholesales of RO spares/parts/componets 100gpd RO membrane

4




Product advantage

1. SLE Series Product Performance Stability.

2. SLE Series is dry membrane elements, so it is easy to transport and storage time extend.

3. SLE Series be used for Rural and Urban tap-water or low salinity water due to its High Stable rejection and low pressure Advantage.



RO Membrane Performance



Type

Model

Performace

Stable Rejection

 /%

Average permeate flux

 /gpd(m3/d)

Recovery

/%

(Sapstone)

Low Pressure domestic/commercial membrane element

SLE-1810-50

97.0

50(0.20)

20

SLE-1812-50

97.0

50(0.20)

SLE-1812-75

96.5

75(0.28)

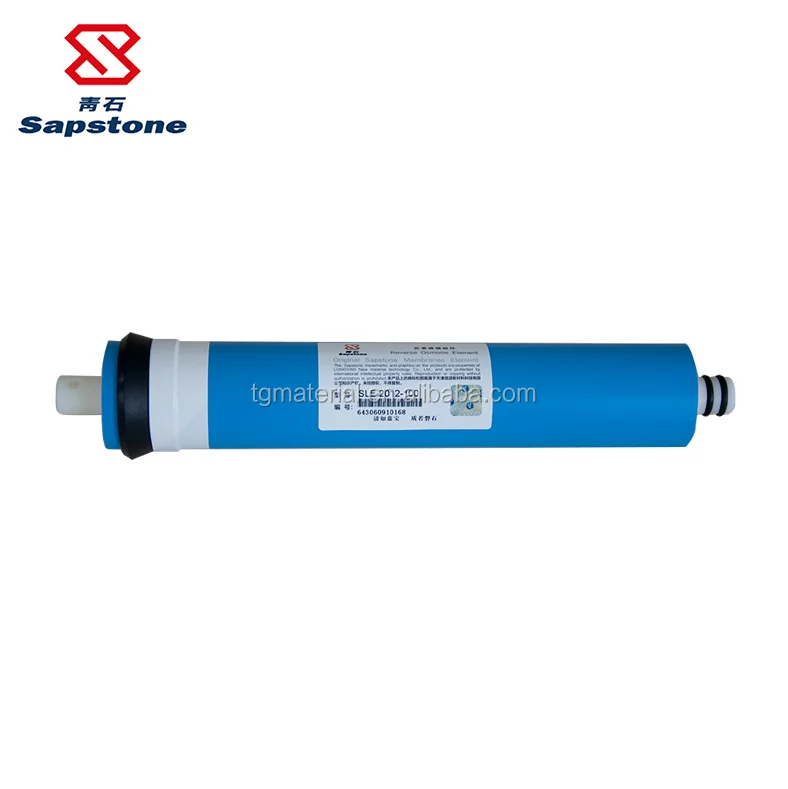

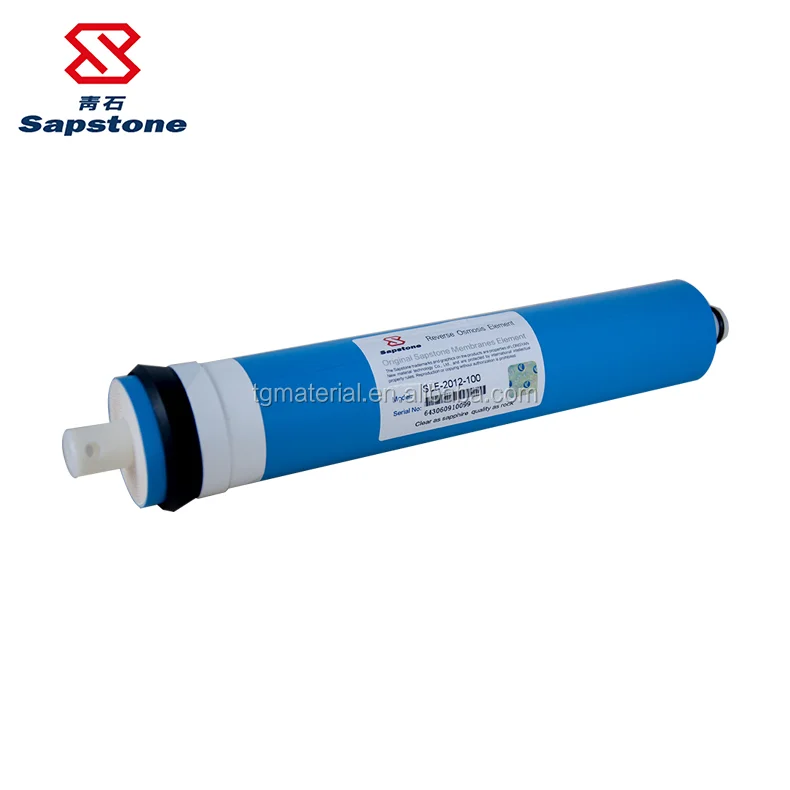

SLE-2012-100

96.0

100(0.40)



Testing Conditions:



Testing Concentration(NaCl)

250 mg/L

Testing Pressure

60 psi(0.4 MPa)

Temperature of Testing Solution

25

pH value of testing solution

7.5

Operation Limits and Conditions:

Membrane Type

Polyamide Thin-film Composite

Max. Working Pressure

300 psi(2.07 MPa)

Max. Inflow Temperature

45

Max. Inflow SDI15

5

Residual Chlorine Concentration of Feed Water

<0.1 mg/L

PH Range of Feed Water During Continuous Operation

3~10

PH Range of Feed Water During Chemical Cleaning

2~12

Max. Pressure Drop of Single Membrane Element

10 psi(0.07 MPa)









Measurement of membrane element





Model

Size/mm(inch)

A

B

C

D

E

1810

256.0(10.1)

44.5(1.75)

17.0(0.67)

25.0(0.98)

15.0(0.59)

1812

298.0(11.7)

44.5(1.75)

17.0(0.67)

21.0(0.83)

21.0(0.83)

2012

298.0(11.7)

48.2(1.9)

17.0(0.67)

21.0(0.83)

21.0(0.83)




Use Tips For Household RO Membrane

1)The water production rat in the form is Average value,The more or less will within 15% For one membrane unit.

2)Once the membrane elements is wetted, keep it wet.

3)The Water produced in the first hour should be discharged, undrinkable or used as a cooking water.

4)If the system in a state of shutdown for a long time, to prevent the inner part breeding of microorganism, it is recommended to soak the membrane components in protection liquid, clean the protection liquid before use.





Packaging & Shipping



--01_02--01_07

Company Information



Tianjin Kung ta new material technology Co.ltd is leading manufacturer of ro membrane with more than 8+ experience in China. Sapstone is our own brand.



We have developed full automatic rolling machine, so our stable annual output is 5 million pieces. The Models from 50/75/80/100GPD to 200/300/400/600GPD upto 4021/4040/8040.



Our main advantage:

1. ISO9001:2015 standard

2. Long service life

3. Cost effective

4. Stable supply

5. Customized Service  Producing your own brand ro membrane.



We will go to 2018 ASIAWATER Malaysia, booth No: Hall, 6. P631. welcome to visit us.

With advance production equipment of ro membrane and sheet, we will provide strictly quality control and competitive products.

--01_03--01_05--01_04

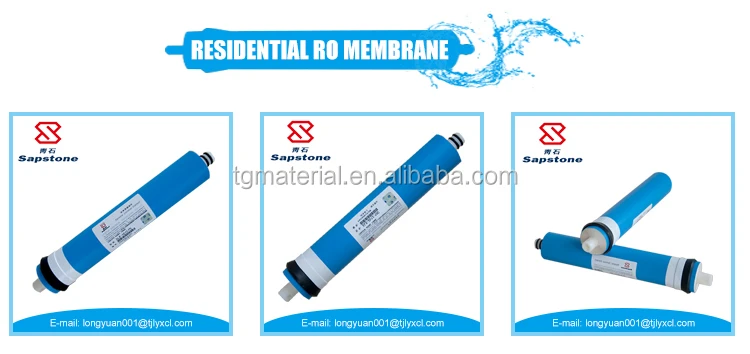

home ro memrbrane


Why choose us

1. Adanvced Automatic production line.

2. Stable and large-scale produce capacity.

3. Strong R&D Team.

4. customize service provided as customer's required.
