Course Sea Salt Grinding Drying Machine
- Category: >>>
- Supplier: Jiangyin City Xuan Tai Machinery Equipment Co. Ltd.
Share on (60763096346):
Product Overview
Description
Product Description
Application

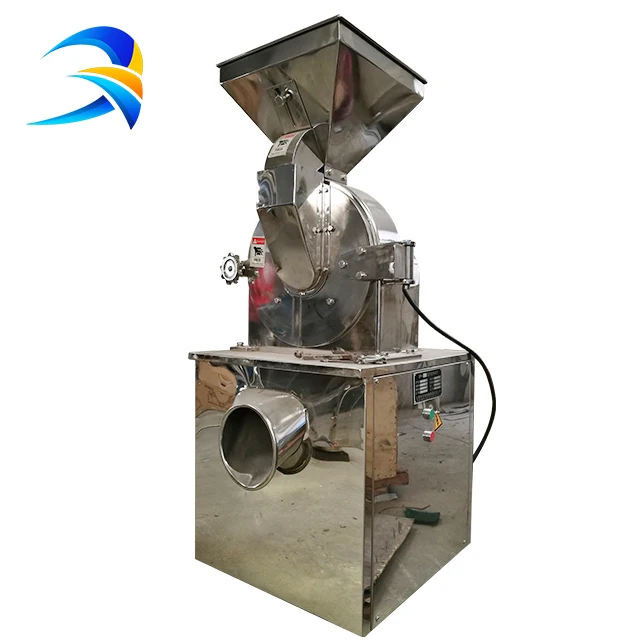

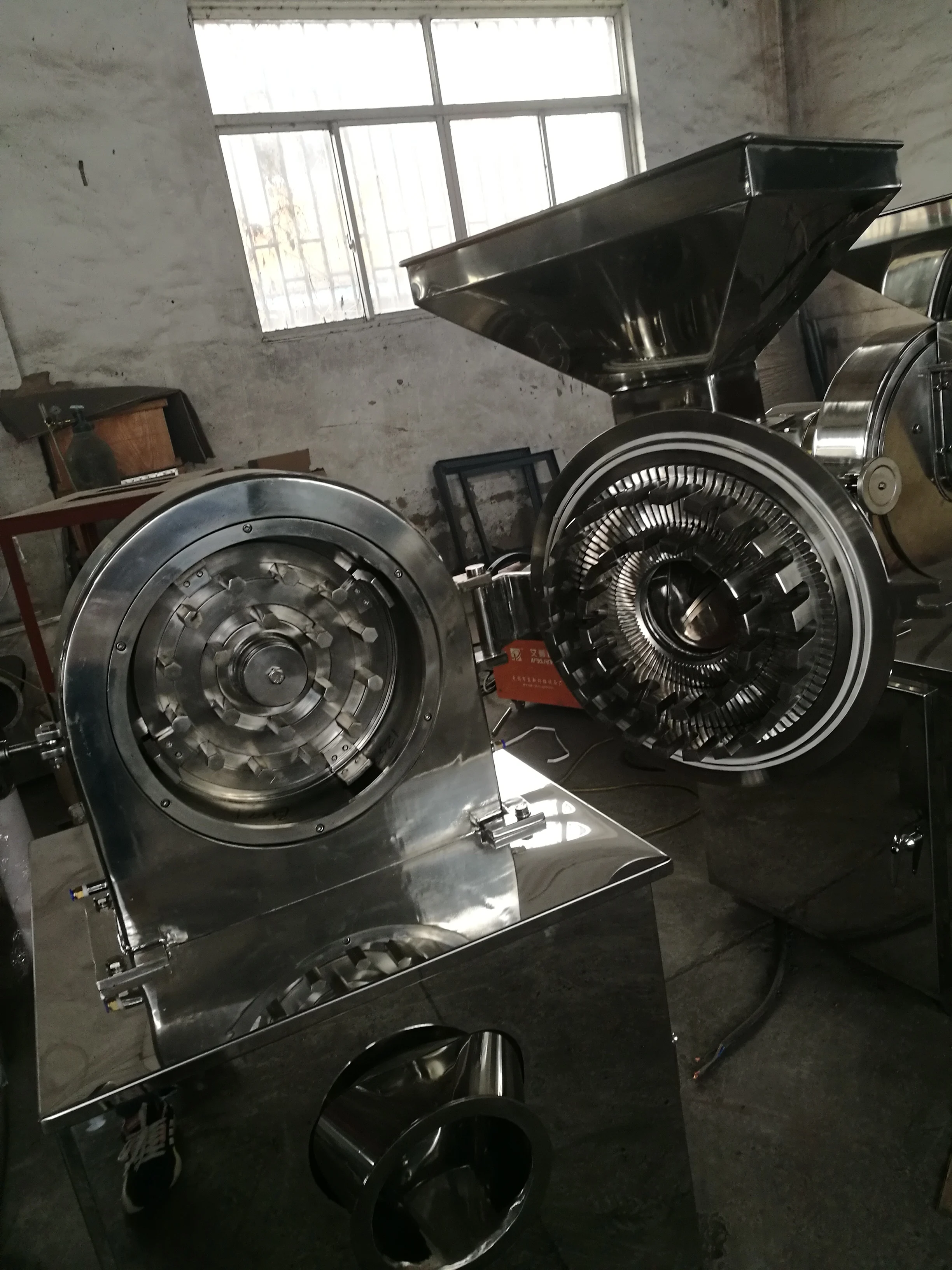

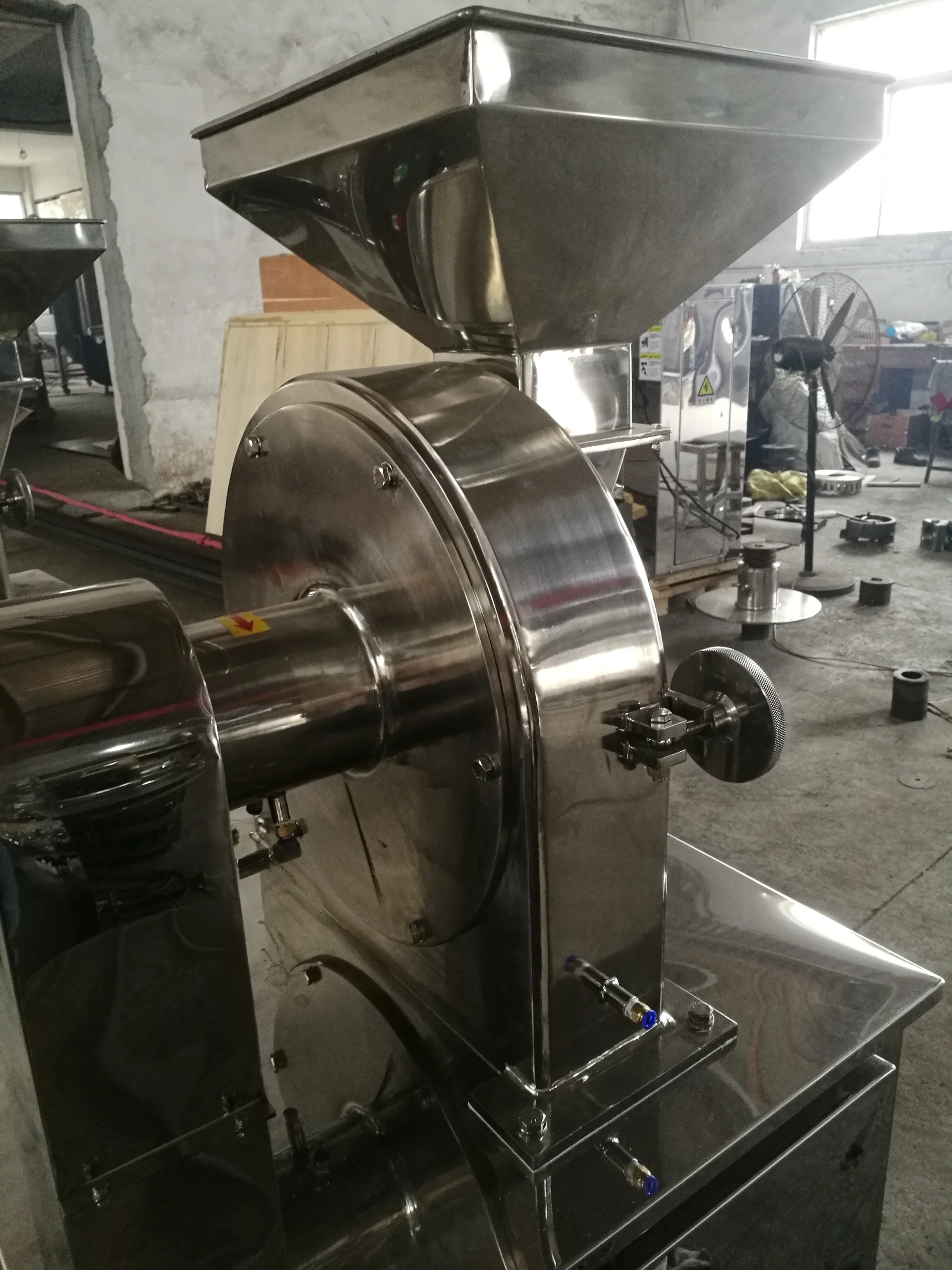

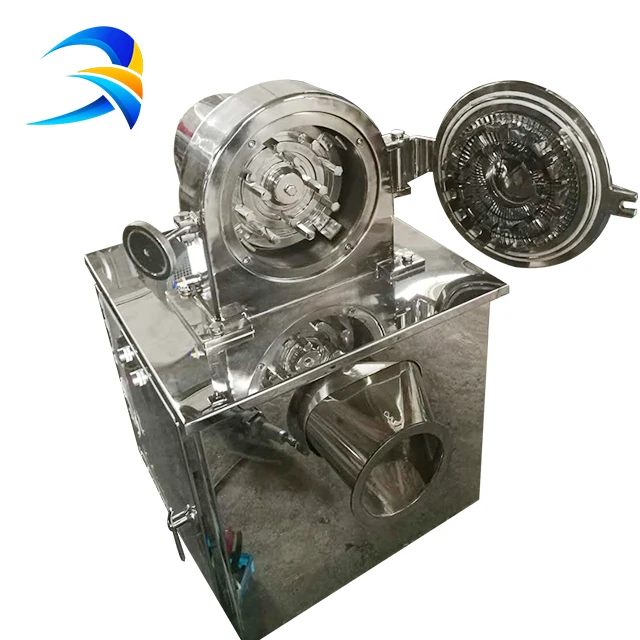

The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials. The size of granules can be achieved by changing of the screen. The machine has the features of easystructure,solid, stable running and good efficiency.
Working method
The crushed material is discharged directly from the grinding chamberof the main frame. In addition, the whole machine is made ofstainless steel, with smooth inside walls to avoid powder accumulation on the inside walls. Those harmaceutical, chemical and food stuff products from the machine are in accordance with national requirement, achieving GMP standard..
The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials. The size of granules can be achieved by changing of the screen. The machine has the features of easystructure,solid, stable running and good efficiency.
Working method
The crushed material is discharged directly from the grinding chamberof the main frame. In addition, the whole machine is made ofstainless steel, with smooth inside walls to avoid powder accumulation on the inside walls. Those harmaceutical, chemical and food stuff products from the machine are in accordance with national requirement, achieving GMP standard..
Specification
WF Series Universal Crusher | ||||||||||
Model | 180 | 200 | 300 | 400 | 600 | |||||
Capacity (kg/h) | 5-30 | 20-150 | 30-300 | 40-800 | 60-1200 | |||||
Speed of principal axis (r/min) | 5200 | 4500 | 3800 | 3400 | 2600 | |||||
Size of input granules (mm) | <5 | <6 | <10 | <12 | <15 | |||||
Fineness of products (Mesh) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 | |||||
Power (kw) | 2.2 | 4 | 7.5 | 11 | 22 | |||||
Weight (kg) | 80 | 200 | 320 | 550 | 960 | |||||
Overall Size(L×W×H) mm | 400*400*800 | 650*500*1250 | 750*600*1450 | 900*750*1650 | 1000*950*1800 | |||||
Packing & Delivery
Wooden case packing
Company Profile
Our company specializes in producing pharmaceutical machinery,food machinery,chemical machinery.We are a professional manufacturing factory with research,development and sales of medicine machinery.Through the rigorous testing system to ensure 100% qualified.
Main Five series products:Pulverzier,sifting machine,mixer,granulator and dryer machine.
Our company products in the market are welcomed and praised by customers.
The enterprise sticks to the business purposes of "to the quality of survival,to the efficiency of development".Being pioneers,creative and striving to improve product quality.We will provide our customers with better service.
Main Five series products:Pulverzier,sifting machine,mixer,granulator and dryer machine.
Our company products in the market are welcomed and praised by customers.
The enterprise sticks to the business purposes of "to the quality of survival,to the efficiency of development".Being pioneers,creative and striving to improve product quality.We will provide our customers with better service.
