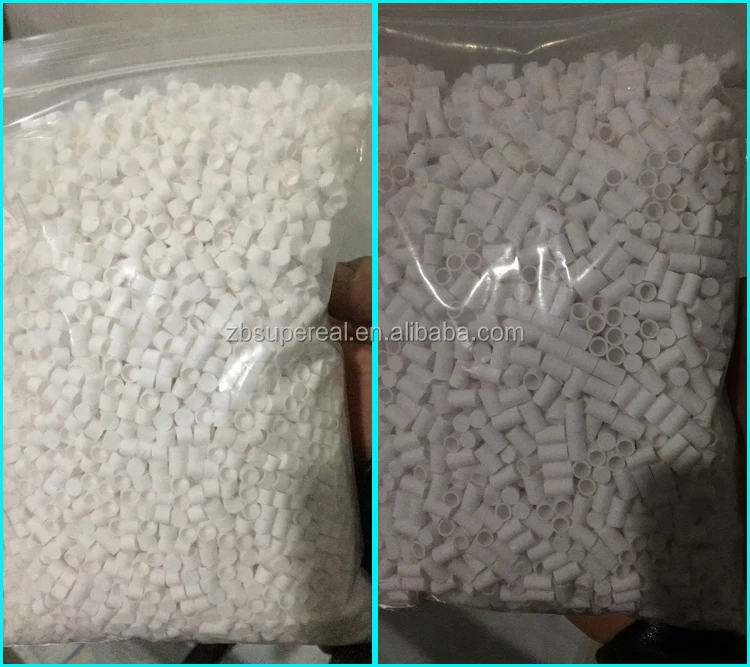

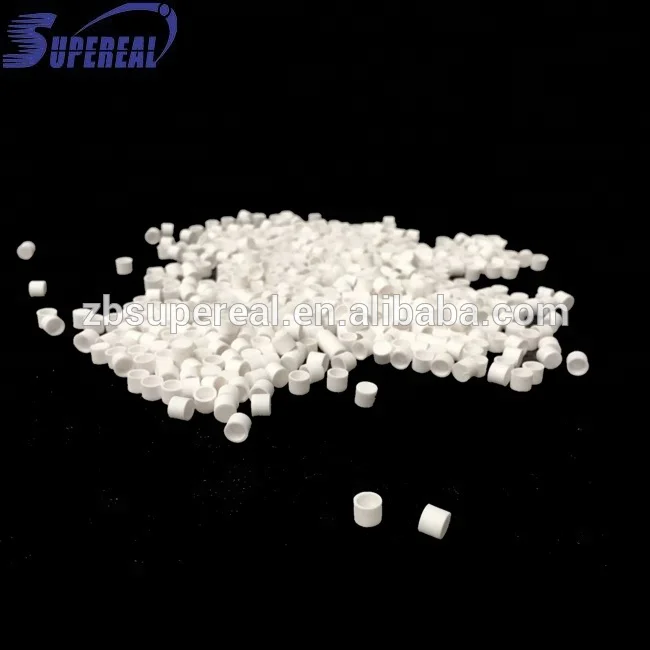

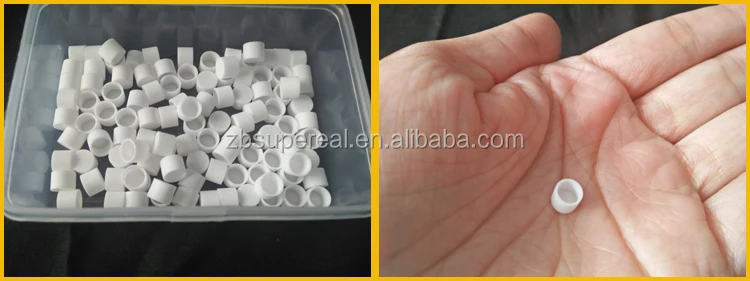

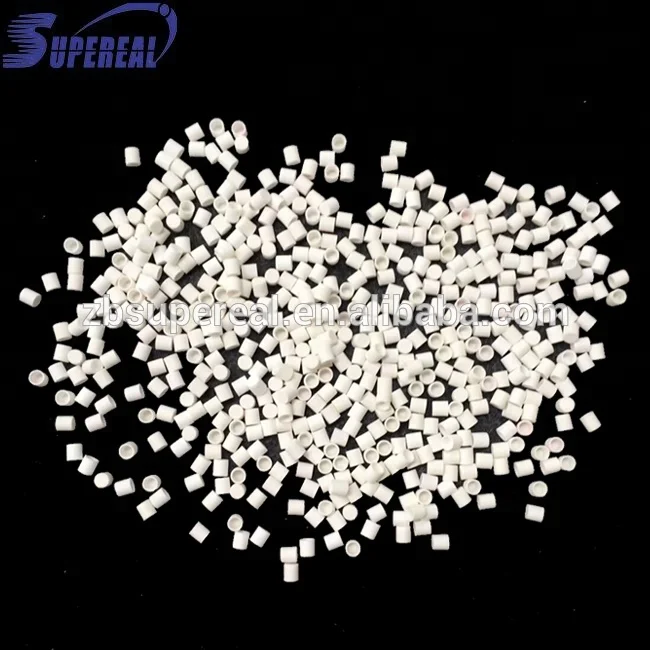

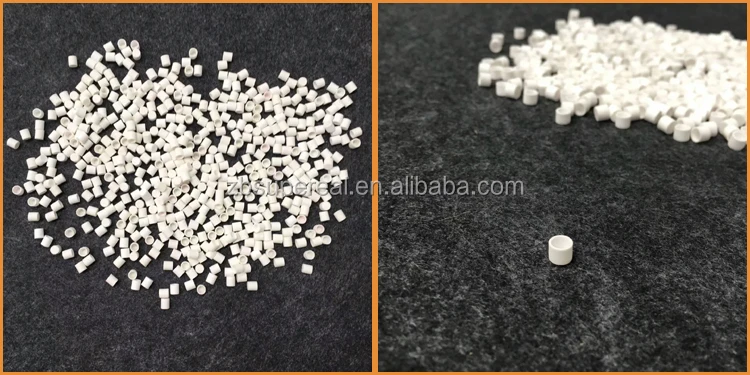

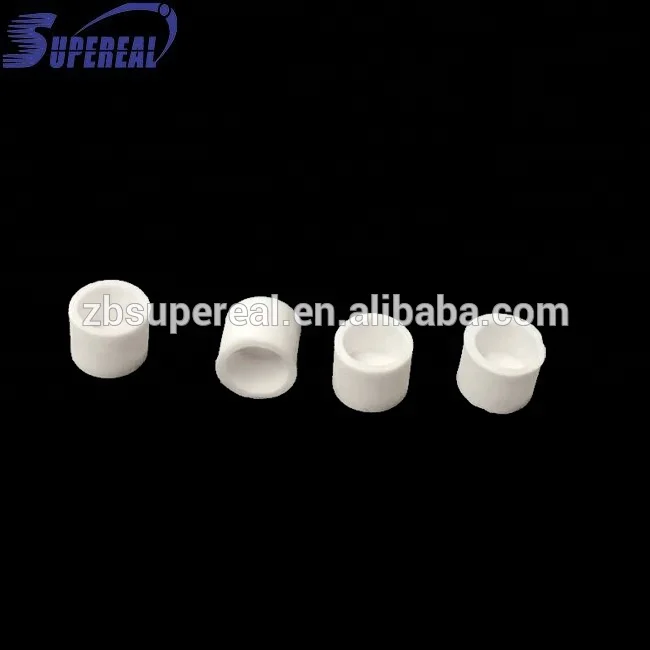

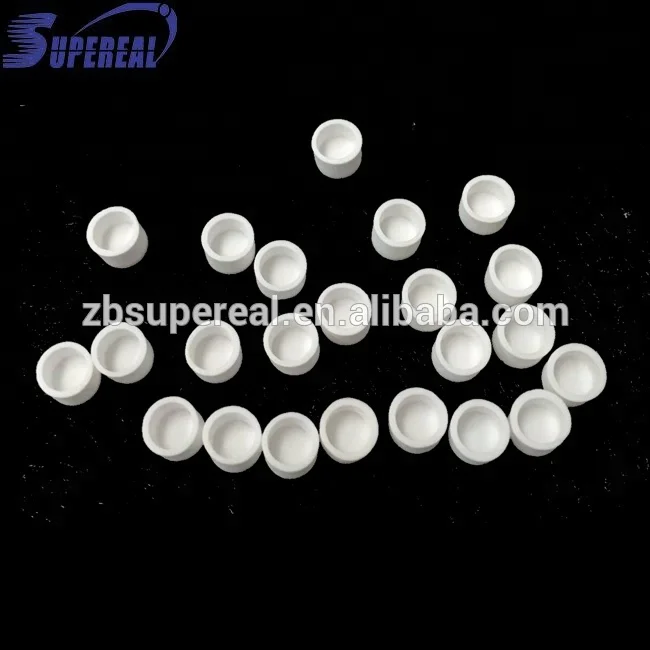

High purity alumina ceramic TGA / DSC / DTA crucibles sample pan 10*10mm
Product Description
1.Introduction
Using high purity alumina powder as raw material and combined with modern advanced sintering technology, we produce High purity alumina ceramic TGA / DSC / DTA crucibles sample pan 10*10mm have the following properties so as to meet various laboratory requirements.
- High thermal conductivity: quick heat transfer between samples and crucible so as to ensure a small temperature difference and uniform temperature distribution.
- Stable structure performance: high purity materials comibined with precisely controlled hightemperature sintering technology form compact and homogeneous microcrystalline phase structure so that is not likely to react with the analytical samples chemically or physically.
- High temperature stability: the temperature range of excellent thermal conductive TGA alumina crucibles is very wide and the maximum working temperature is up to 1750℃.
- High reuse rate: the used TGA alumina crucibles should be processed by water washing or 10% hydrochloric acid washing, and then they can be used repeatedly and not influence the result of the experiment.
2.Main Technical Index:
| Name | High purity alumina ceramic TGA / DSC / DTA crucibles sample pan 10*10mm | |
| Chemical Composition | Al2O3 | 99% |
| R2O | ≤0.2 | |
| Fe2O3 | ≤0.1 | |
| SiO2 | ≤0.2 | |
| Bulk Density | ≥3.80 g/cm³ | |
| Apparant Porosity | ≤1% | |
| Water Absorption | <0.1% | |
| Bending Strength | ≥350 MPa | |
Coefficient of Thermal Expansion (25-1000℃) | ≥7.6×10-6/℃ | |
| Long Time Working Temperature | ≥1600 | |
| Max Working Temperature | 1800 | |
| Mohs Hardness | 9 | |
3. Specifications
5*2.5mm, 5*4mm, 5*5mm, 5*8mm, 6*4mm, 6*4.5mm, 6.4*8mm, 6.5*4mm, 7*4mm,
9*4mm, 10*10mm
4. Attention
High purity alumina ceramic TGA / DSC / DTA crucibles sample pan 10*10mm can be reused. After mechanical cleaning, lay them up, if necessary, in water (or in 10% hydrochloric acid if necessary) because many salts are soluble in water. Oxides form chlorides in hydrochloric acid, then can be removed by rinsing. After drying, heat the crucibles to red heat so as to ensure that no weight loss when they are used next time.
5. Appication:
6. Packing and Shipping:

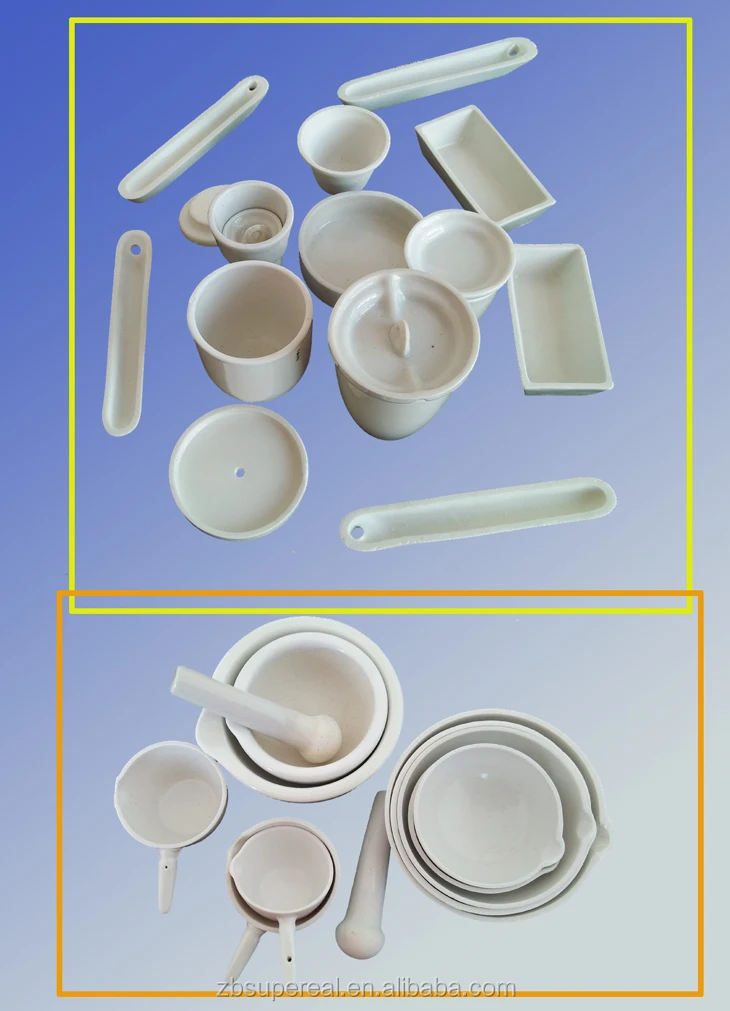

Other alumina labware crucibles for your choice
Other porcelain labware crucibles for your choice
Our Services
◊ Professional: More than ten years of experience in production, more than 5 years of experience in foreign trade export, we will supply prompt technical support on pre- and after sales.
◊ High Quality:Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our inspection engineers carry out full course tracking in the whole production.
◊ Focus on Details: No matter how small questions or problems shall be replied and help to solve by our members, even for the small orders.
◊ Price &Discount: We can provide competitive price and discount for large quantity.
◊ OEM : Customized designs, sizes and logos are acceptable.
