Product Overview
Description
Our Company supplies 2kw-3mw diesel generator/gas generator/dual fuel generator and synchronization. Please contact me Freely!!------>
Product Description

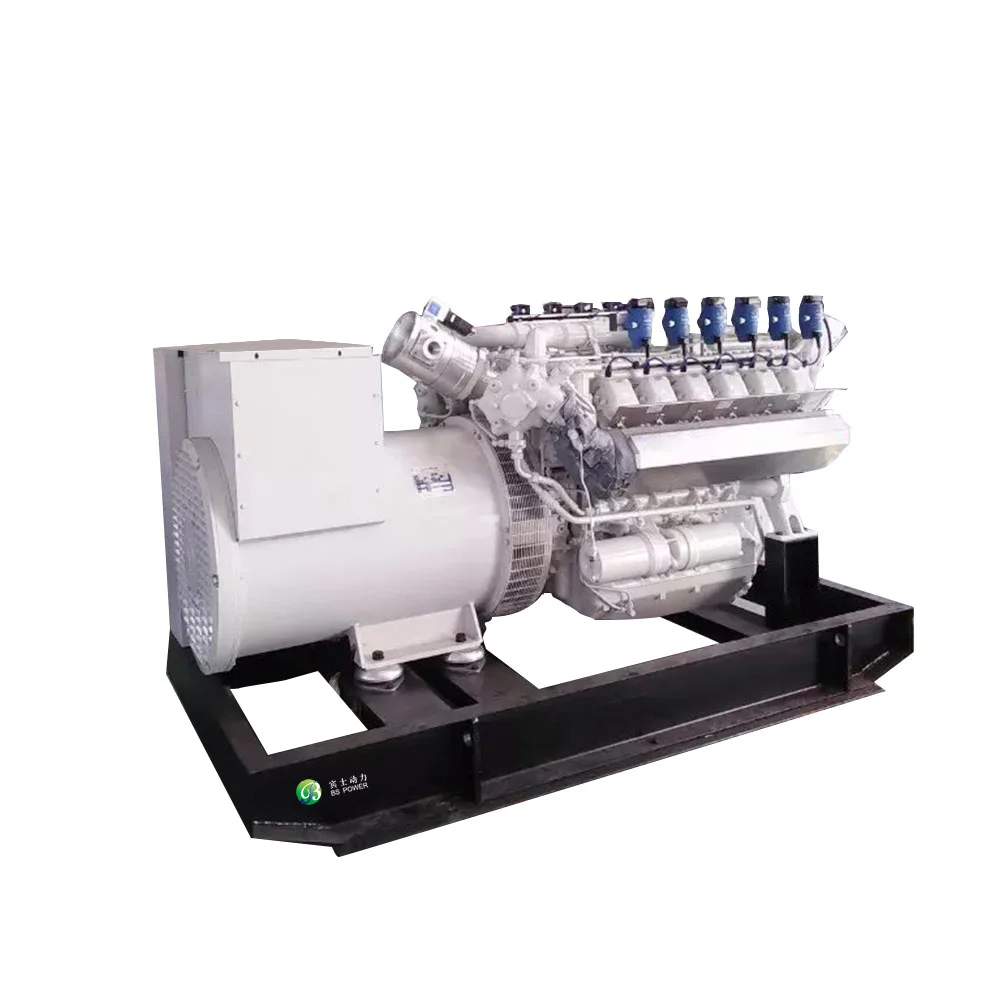

520kw 3 Phase With CHP LPG Natural Gas Methane Biogas Generator BDMM520-B
Advantages of BDM520-B
* Top quality, imported engine from Germany.
* Good trulyelectrical efficiency.
* Long life time: 30 years in standard condition (8000hrs per year)
* Reliable performance.
* Low oil consumptionand low operating costs.
* Stable and reliable operation.
* Silent type low noisewithin 69dB@1meter
* Top quality, imported engine from Germany.
* Good trulyelectrical efficiency.
* Long life time: 30 years in standard condition (8000hrs per year)
* Reliable performance.
* Low oil consumptionand low operating costs.
* Stable and reliable operation.
* Silent type low noisewithin 69dB@1meter
Specification
Genset Data | ||
Genset Model: | BDMM520-B | |
Prime Power: | 520KW | |
Frequency/Speed: | 50Hz/1500rpm | |
Rated Voltage: | 400V | |
Power Factor: | 0.8 | |
Phase: | three-phases, four-wires | |
Electrical efficiency： | 39.4% | |
Heat efficiency： | 48.1% | |
Air Ratio | 1.55λ | |
Gas consumption for one hour: | 219.97m³ | |
Gas requirement: | Biogas with a calorific value ≥6 kWh/Nm³ and a methane no. > 50% | |
Engine: | Man E3262 LE202 | |
Alternator: | Marathon MX-560-4 | |
Controller: | Deep Sea DSE7320 | |
Dimensions (LxWxH): | 3120x1243x1500mm | |
Net Weight: | 3500kg | |
Engine Data | ||
Cylinders no. & Type: | 12 cylinders in V type, 4 strokes | |
Aspiration: | Turbocharged | |
Bore × Stroke: | 132×157（mm） | |
Displacement: | 25.8L | |
Ignition control system: | Motortech | |
Speed regulation system: | Motortech | |
Fuel Gas type: | Biogas Gas | |
Gas requirement: | The technical data are based on Biogas with a calorific value ≥6 kWh/Nm³ and a methane no. > 50% | |
Gas consumption for one hour | 219.97 Nm³ | |
Gas Pressure : | 15-40mbar | |
Alternator Data | ||
Design: | Brushless single bearing, revolving field | |
Insulation Level: | H | |
Efficiency: | 93.8% | |
Stator: | 2/3 pitch | |
Exciter Type: | Brushless excitation | |
Windings: | 100% copper | |
Our Company supplies 2kw-3mw diesel generator/gas generator/dual fuel generator and synchronization. Please contact me Freely!!------>
You may interest

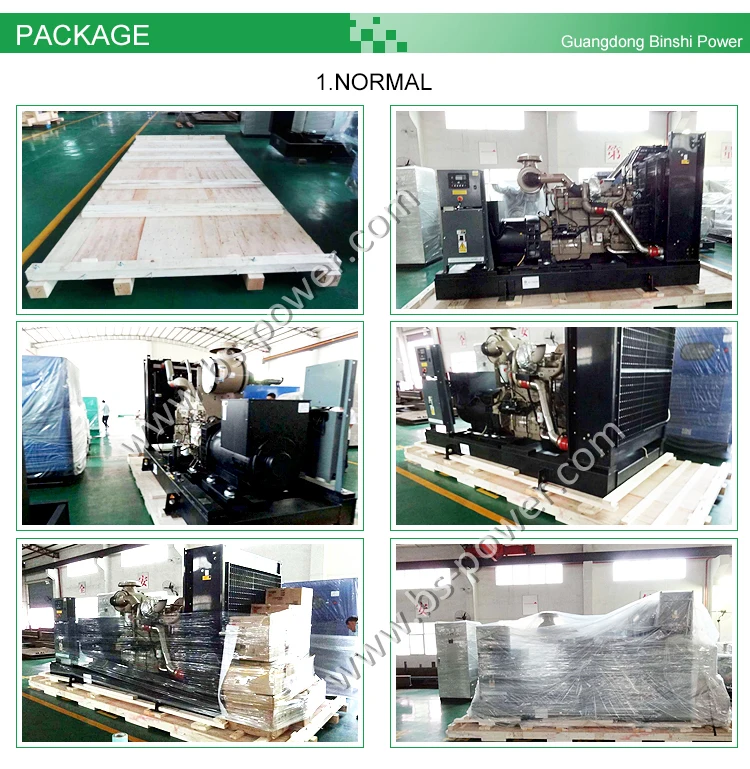

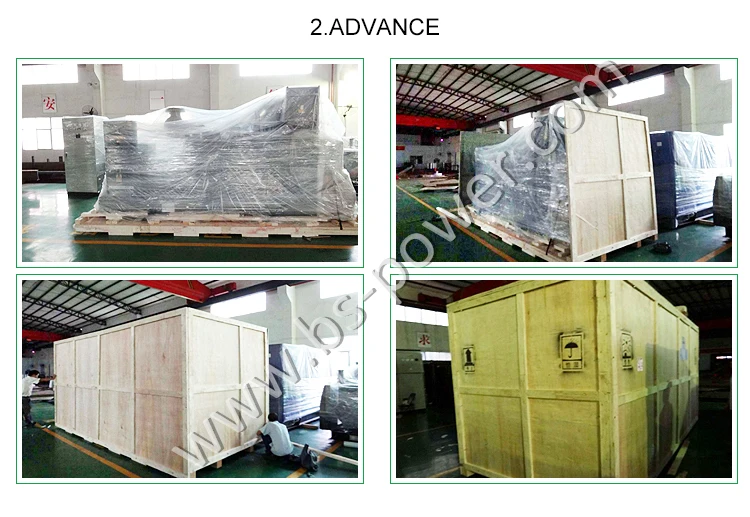

Packing & Delivery
Best Seller
OUR COMPANY
Binshi Power Technology Co., LTD is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation).
Our enterprise have established long-term close partnership with the world famous generator manufactures, such as MTU and Deutz in Germany, Perkins in U. K., Cummins in U. S. A, and Cummins from DCEC AND CCEC, Joint venture companies in China.
Our gensets are equipped with the famous alternator, such as Marathon and Stamford. We sincerely wish to cooperate with the generator set distributors worldwide to distribute our high-quality products in your market to reach the win-win goal in the future. We will do as we did before to serve our distributors and customers well with our good products and competitive prices, and best after sale services.
Our enterprise have established long-term close partnership with the world famous generator manufactures, such as MTU and Deutz in Germany, Perkins in U. K., Cummins in U. S. A, and Cummins from DCEC AND CCEC, Joint venture companies in China.
Our gensets are equipped with the famous alternator, such as Marathon and Stamford. We sincerely wish to cooperate with the generator set distributors worldwide to distribute our high-quality products in your market to reach the win-win goal in the future. We will do as we did before to serve our distributors and customers well with our good products and competitive prices, and best after sale services.
Supply Scope
PROJECTS
Kyrguzastan Copper Gold Mine--Diesel
4 units Perkins, Standby 1320KW
Philippines Citymall--Diesel
4 Units Cummins, standby 750KVA*2, standby 1000KVA*2
Djibouti Logistics Park Project--Diesel
6 Units high voltage 11KV Weichai, standby 1760KW
Skypark Cyberjaya
3 units 850KVA sdec generator operating in parallel and synchronously
China Qingdao Jiaodong international airport-- Natural Gas
2 units CAT, rated 2500KW
