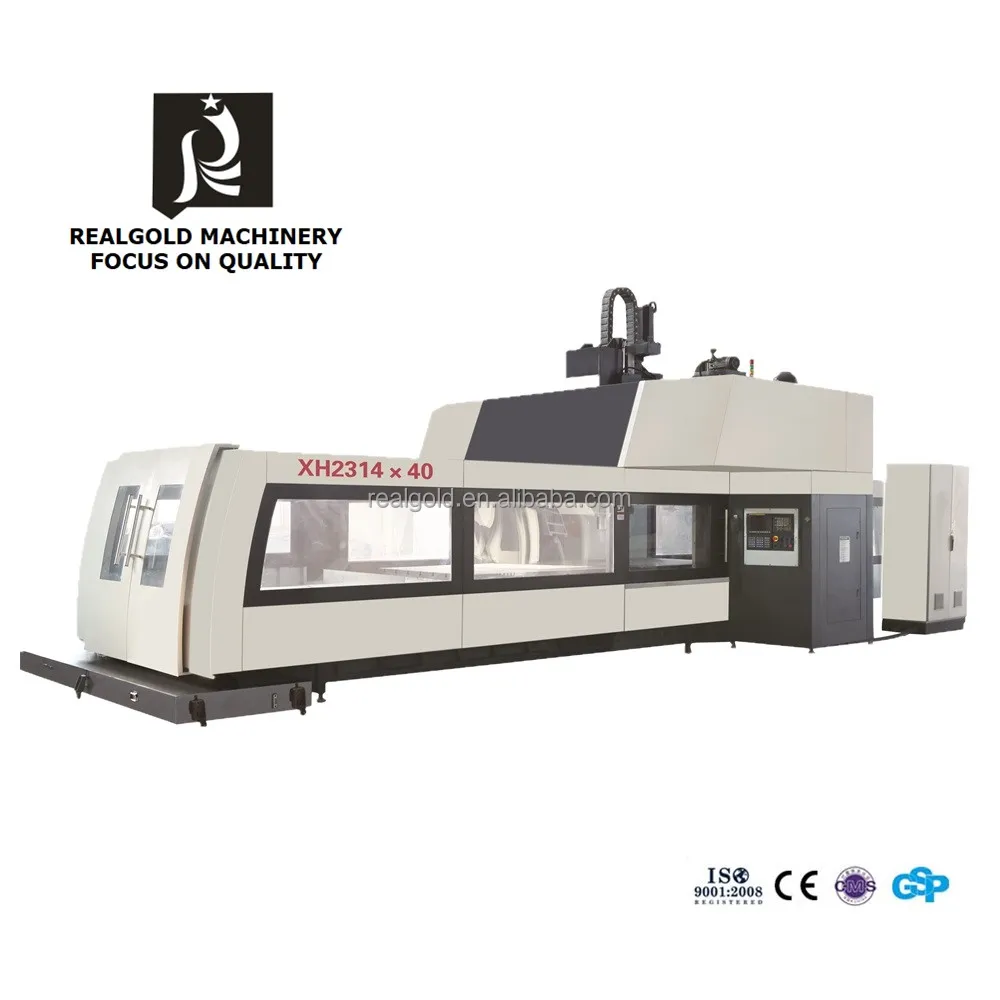

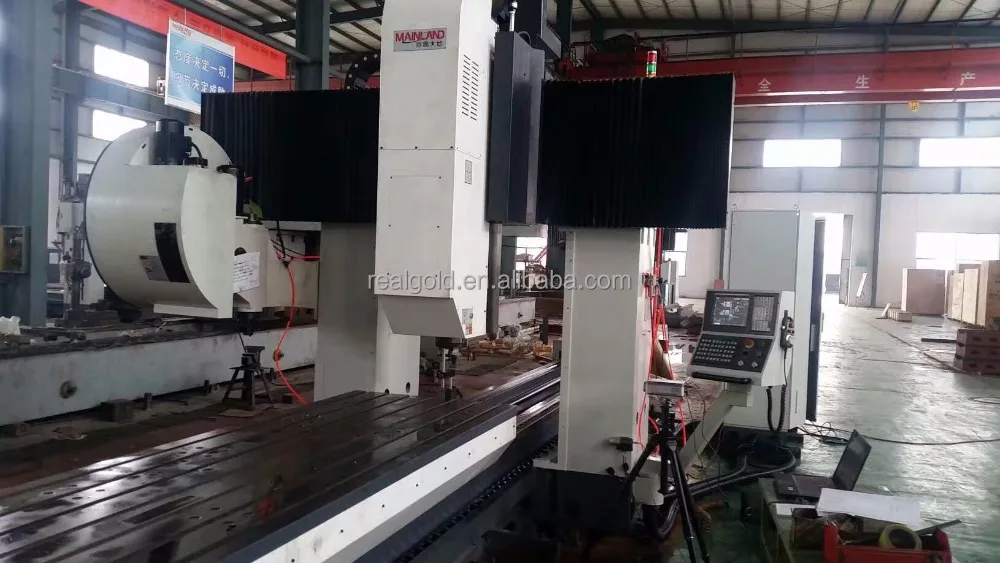

XH series gantry machining center adopts the closed gantry frame structure consisting of bed, column and beam, with features of high rigidity and high stability. The machine tool can finish the processing of milling, boring, drilling, tapping and sinking. It is mainly designed for the processing of automobile sheet metal mold, plastic mold, precision machinery parts and aerospace and shipbuilding. Equipped with the accessory milling head, it can realize the five-face processing at one time of clamping, serving several purposes. It can effectively enhance the processing precision and processing efficiency.
The casting of the machine tool is made of high strength inoculated cast iron and high quality resin bonded sand, which is treated by multiple aging techniques to ensure the rigidity and stability of the machine tool.
Three axes are all equipped with the sliding guide treated by the high-frequency quenching to enhance the whole bearing capacity and durability.
Specifications
XH2314
Table size(W×L)
1400×2000mm
Max table load
2500kg
Diameter between two column
1600mm
T-slot (No-width×pitch)
7-22×180mm
Movement travel of work table
2100mm
Movement travel of Spindle slide
1600mm
Vertical travel of spindle
800mm
Spindle nose to table surface
250-1250mm
Spindle specifications (Model/Dia.)
BT50/Φ190mm
Spindle speed
40-6000r/min
X/Y axis Rapid feed speed
10m/min
Z axis Rapid feed speed
5m/min
X/Y/Z axis rapid traverse
5-5000 mm/min
Main motor power
22kw
X/Y positioning accuracy
0.02mm
Z positioning accuracy
0.015mm
X/Y/Z repeatability accuracy
0.01mm
Tool magazine capacity
16pcs
All pockets full
Φ125×300mm
No tool nearby
Φ200mm
Max. tool weight
15kg
Standard accessories:
Spindle taper hole cleaning system;
Fanuc 0i-MF controller
Cooling system;
Automatic Lubrication Systems;
Pneumatic system;
Ring type splash guard;
Lighting;
Stainless steel protection plate;
Tri-color alarm lamp;
Air gun;
Fixed sizing block;
Cool-heat exchanger.
Taiwan Royal or POSA spindle;
Taiwan PMI or HIWIN ball-screw;
Taiwan PMI Linear;
Taiwan Cylinder;
Japan lubrication;
NSK Bearing
Optional accessories:
BT50-16T Umbrella Tool Magazine
BT50-24T Arm type Magazine
Spindle ZF or BF gearbox
Spindle Oil Cooler
Spindle water outlet
Chip conveyor

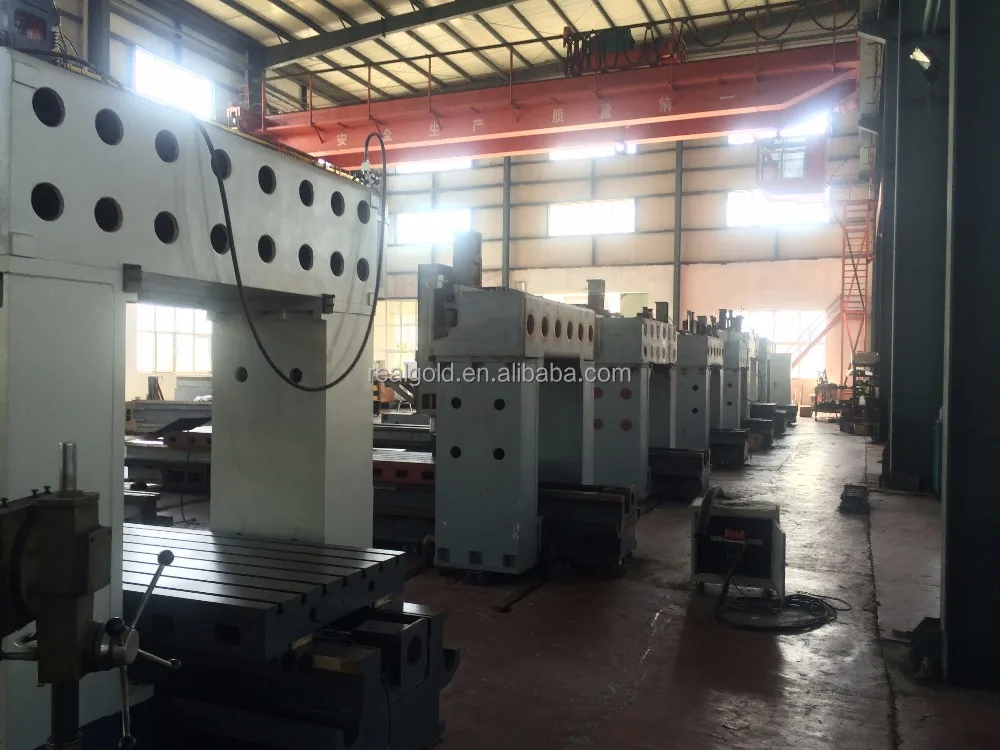

Our workshop
