2019 high temperature digital viscometer DHJ 9S price rotational brookfield manual viscometer of resin lab

Product Overview

Description

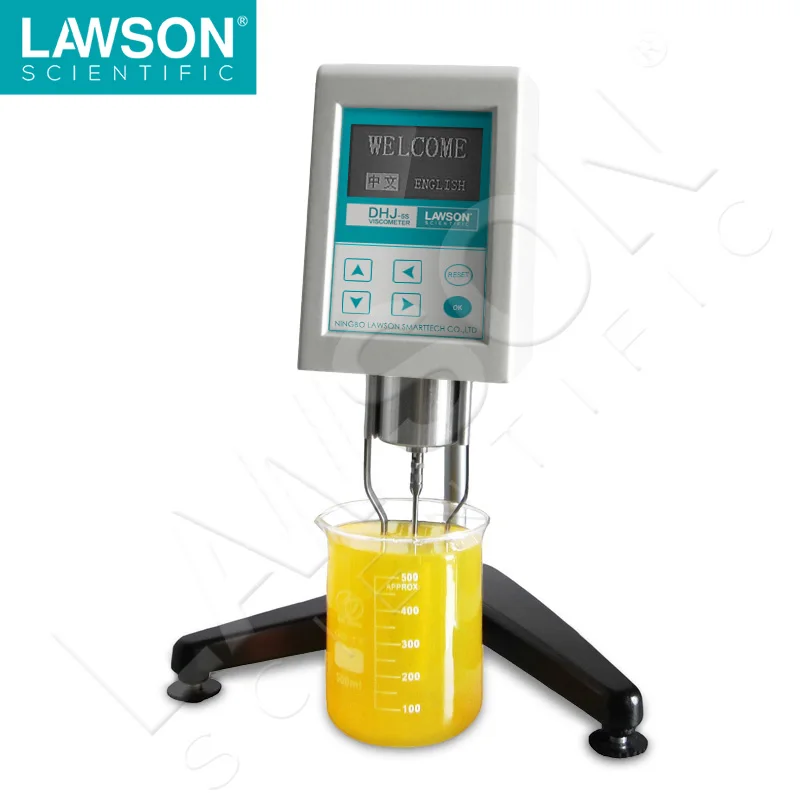

The Digital Viscometer DHJ-9S has the characteristics of high sensitivity, reliable test results, convenient operation and beautiful appearance. It is used to measure the apparent viscosity of Newtonian liquid and the apparent viscosity of non Newtonian liquid. It can be widely used in oil, paint, plastics, drugs, ornaments, coatings, detergents and so on. Measurement of the viscosity of various objects.



This instrument is a digital viscometer. The motor drives the rotor at a constant speed by changing the speed. When the rotor rotates in the liquid, the liquid will produce a viscosity torque acting on the rotor, and the viscous torque will also be greater; conversely, the smaller the viscosity of the liquid, the smaller the viscous torque. The viscous moment acting on the rotor is The sensor is detected and processed by the computer to obtain the viscosity of the measured liquid.



The instrument adopts microcomputer technology and can conveniently set the range (rotor number and rotation speed), digitally process the data detected by the sensor, and clearly display the rotor number, rotation speed, and measured value set on the display. The liquid viscosity and its full-scale percentage value.



The DHJ-9S is equipped with 4 rotors (1, 2, 3, and 4) and 4 speeds (3,6,12,30,60rpm). The 16 combinations thus formed can measure the measurement range. The viscosity of various liquids.



model(viscometer)	DHJ-9S
Measurement Range(mPa·s)	1~1*105
Rotor Specification	1, 2, 3, 4#  (0# selective)
Rotating Speed of Rotor(rpm)	3 / 6 / 12 / 30 / 60 rpm
Interface(Extra configuration)	1. Printer Interface 2. PC Interface 3. Temperature Sensor Interface
Automatic Switch	free selection of proper rotating speed or rotor number.
Stable Cursor	Strip-type cursor fully charged displayed when reading basically stable
Measurement Tolerance	±2%(newtonian liquid)
Voltage (V)	AC(220-240V 50HZ / 110-120V 60HZ)
Working Condition	Temperature 5-35°C,Relative humidity no more than 80%
Outline Dimension(mm)	370*325*280
Packaging size(mm)	400*360*310
Net Weight(kg)	6.8
Gross Weight(kg)	9

digital viscosity meter	1 pce
ascending and falling rack	1 set

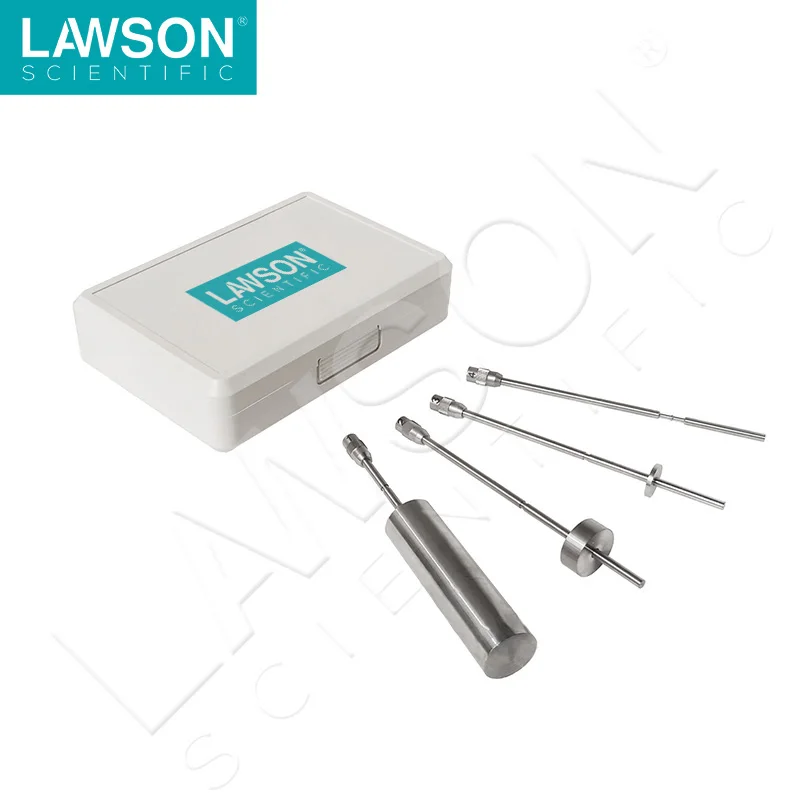

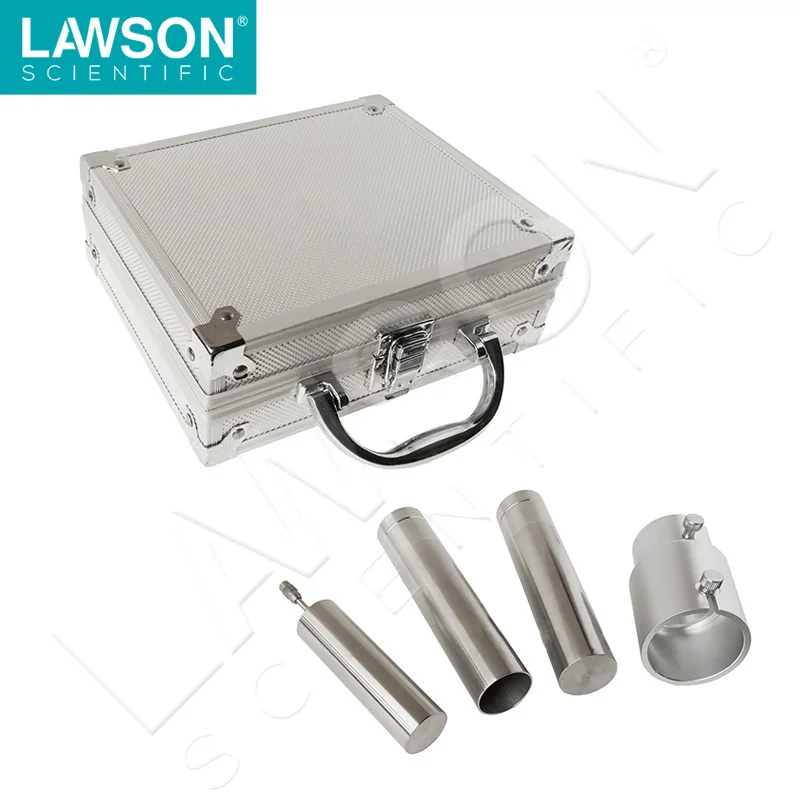

standard spindle	1 set
power adapter	1 pce
protective frame of spindle	1 pce
spanner	1 pce
Seat and leveling feet	1 set

1. one year warranty

2. don't have MOQ limit, you can order any quantity as need. if need specification, packing etc.contact me.

3. delivery time: 5 days for sample, 10 days for 100pcs, for more quantity, let's talk and confirm.
