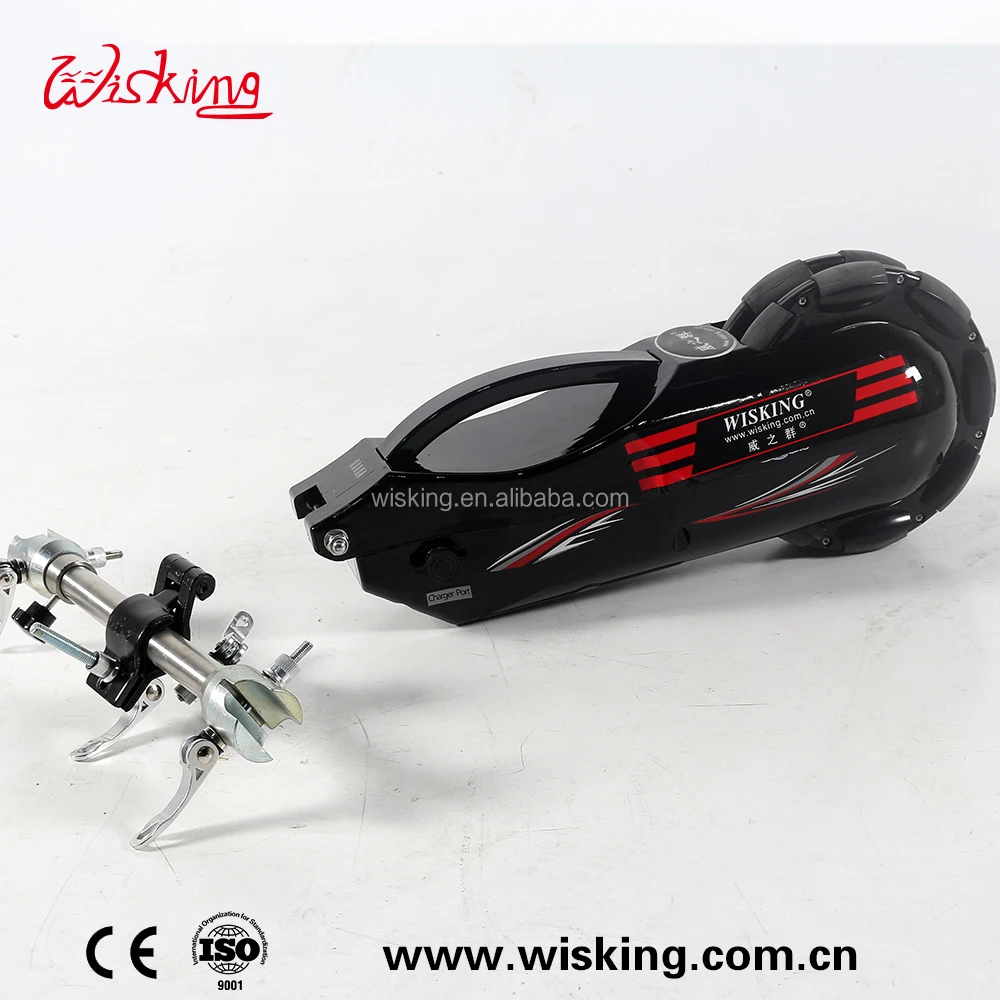

Professional Manufacturer wheelchair trailer rear SMART spare part for disabaled persons

Share on (60763210891):


Price:

Quantity:


Product Overview

Description

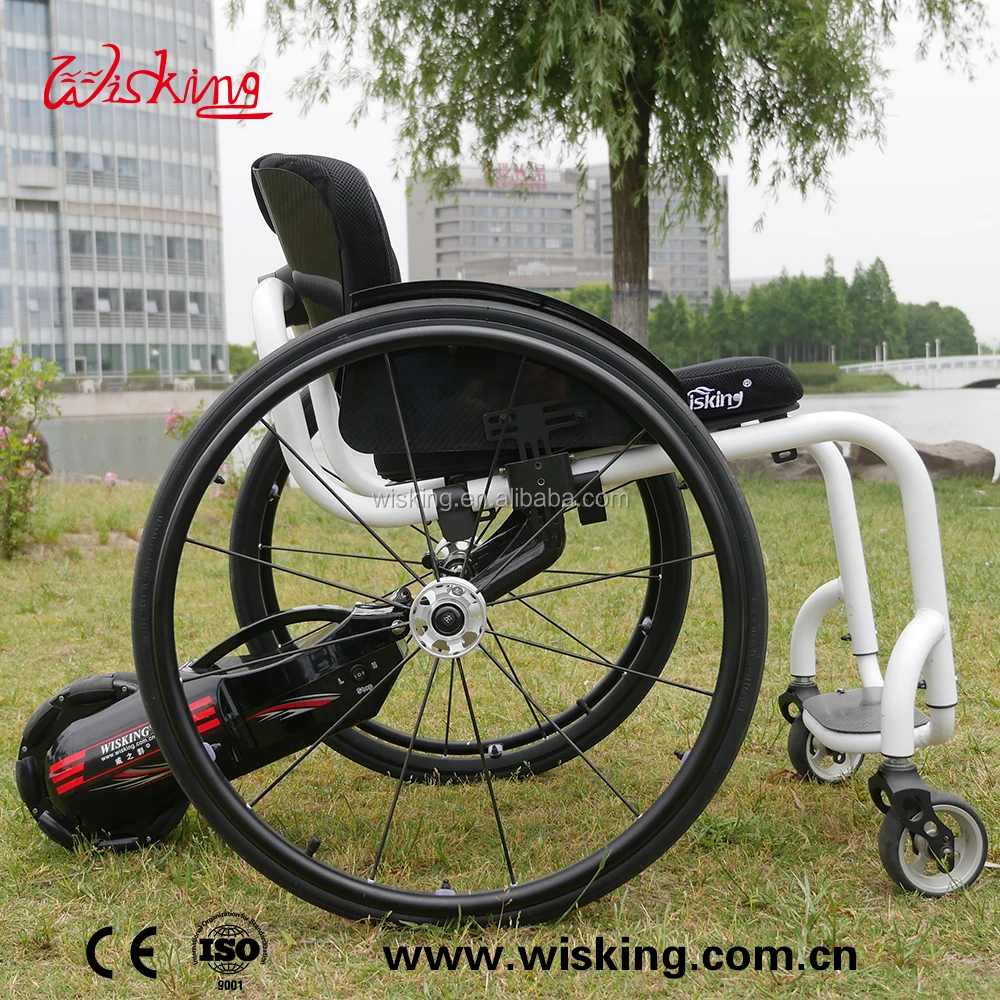

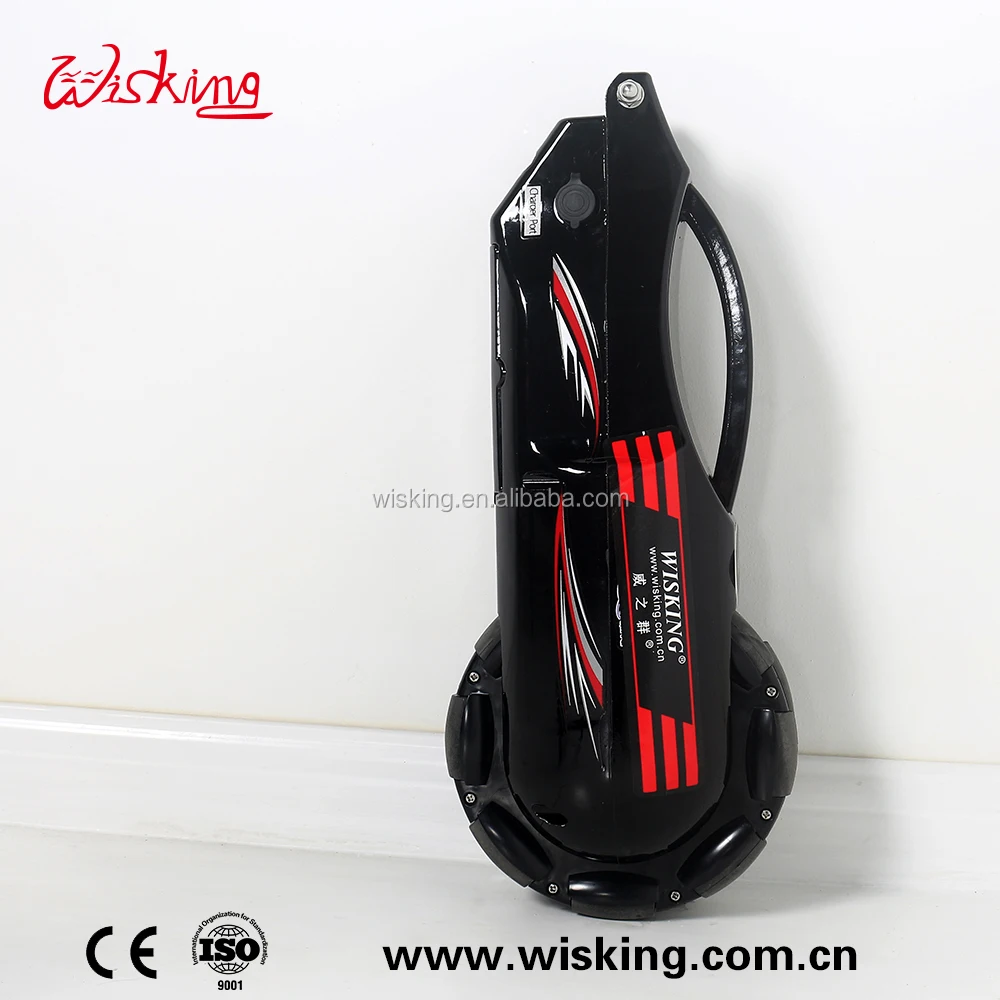

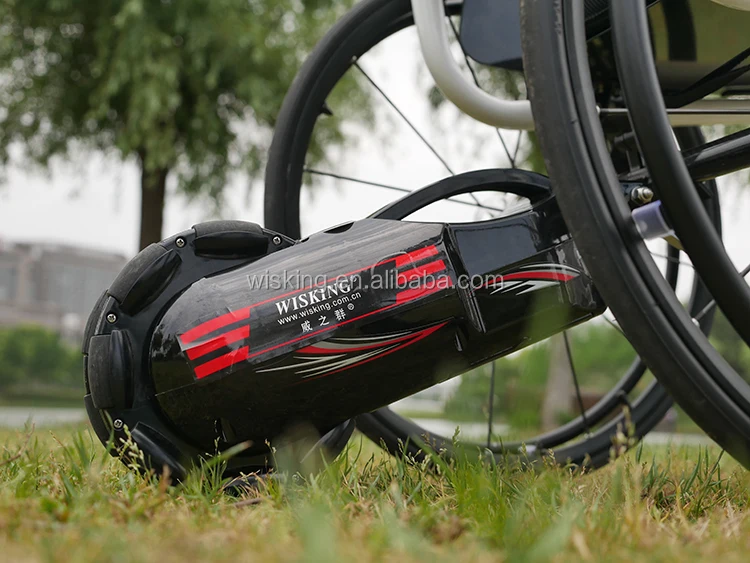

Professional Manufacturer wheelchair trailer-rear SMART spare part for disabaled persons





 Using informations:



1.The Maximum carrying capacity is 100kg.

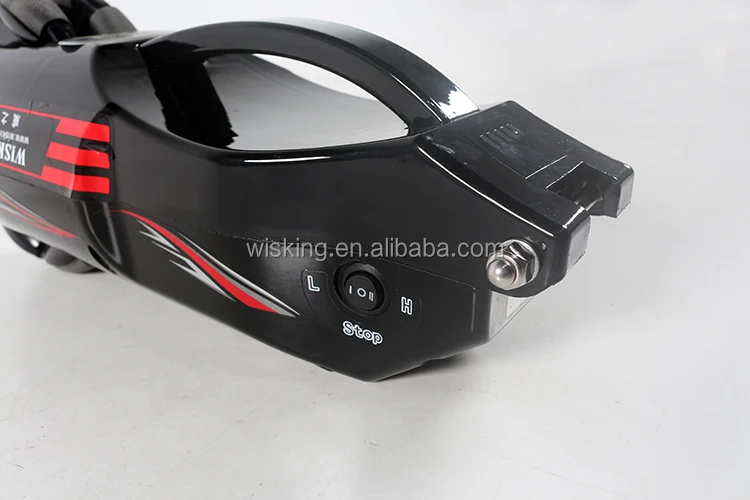

2.Set into the wheelchair and turn on the switch and turn the auxiliary wheels by hand. When the hub turns a half circle,Q7 starts working.
Ⅰ.speed:2.5-5.0km/h
Ⅱ.speed:2.5-8.0km/h
PS:When you go down a hill and your speed is faster than the max speed. Q7 will enter hibernation. When your speed is between the speed range, the system will be resumed from hibernation and will work again.



3.Ideally, when Q7 works, you don’t need to turn the auxiliary wheels any more, and the wheelchair will run in a straight-line. But in pratice you should adjust the direction all the time according to traffic conditions and pavement conditions.



4. Q7 don’t have the climbing ability. In order to climb hills, you should turn the auxiliary wheels by hand.






Product Description


Specification

























































Tire  8" air tire
Motor  100W
Battery  4.4Ah/8.8Ah lithium optional

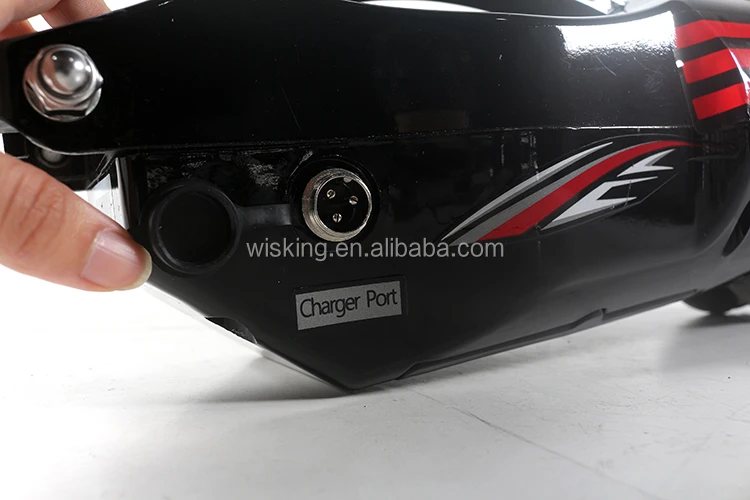

Charger  2A
Rechargr time  2-4hrs
Incline capability  4 degree
Gross weight  9kg with package
Net weight(with batteries)  6.3kg
Package
Package size
Range  up to 15 / 30km per battery charge
Max.forward speed  2.5±1 Km / 8±1 Km
MOQ 10pcs









1 (2).jpg5 (2).jpgIMG_5644.JPGIMG_5645.JPGIMG_5654.JPGP1340600.JPG

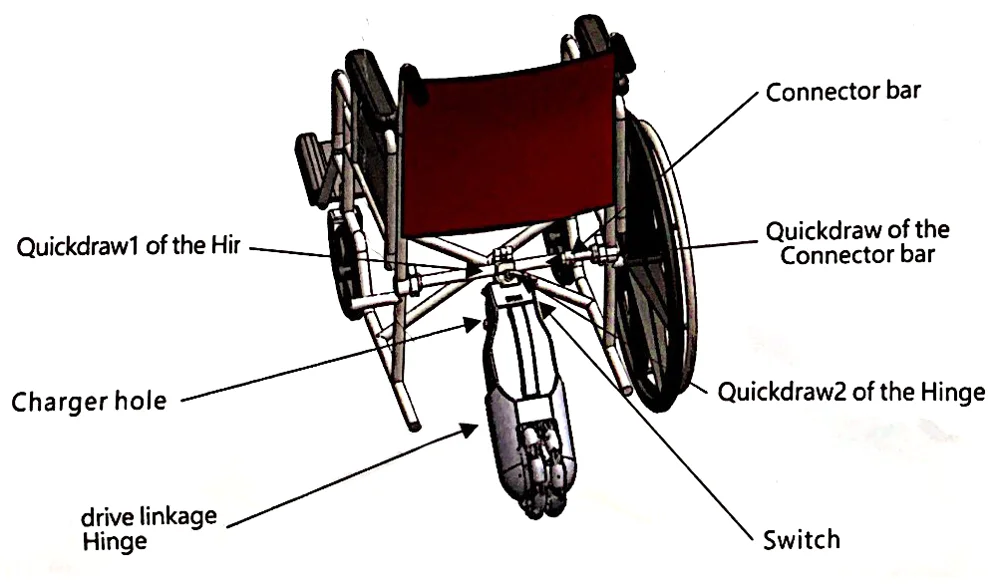

 Installation instructions

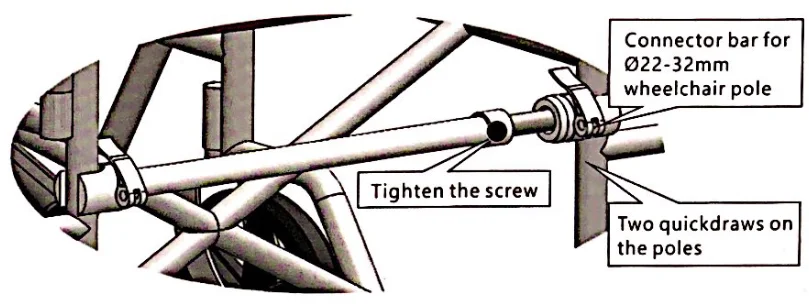

1.Fix the connector bar


a.Unfold the wheelchair,fix the connector bar to the wheelchair poles.

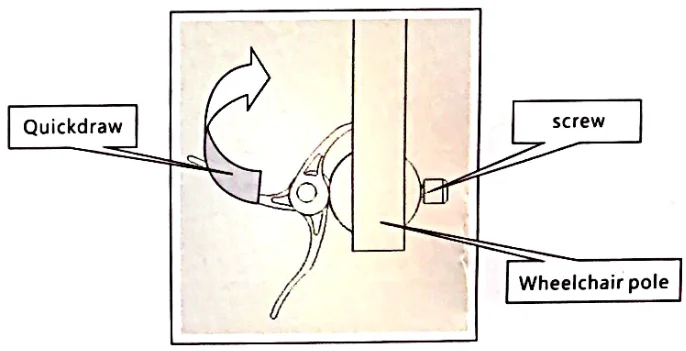

b.Tighten the quickdraws:


Ⅰ.tighten the screws of the quickdraws;


Ⅱ.tighten the quickdraws.

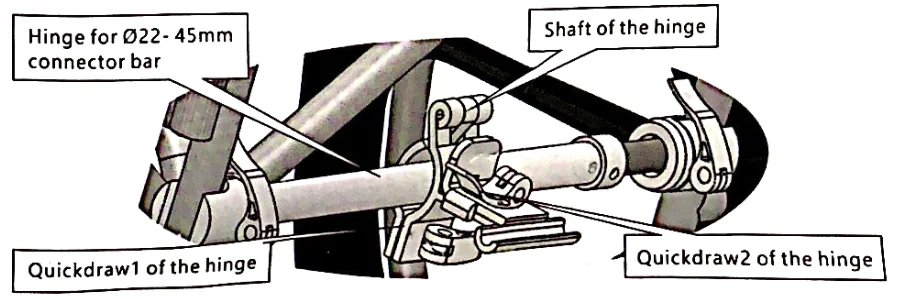

2.Fix the hinge


Fix the Hinge to the middle of the connector bar,and the shaft of the hinge should be above the connector bar.Tighten the quickdraw1 of the hinge.

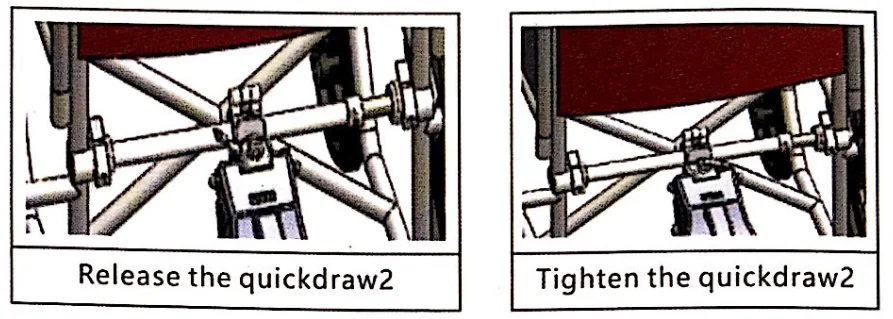

3.Assemble and disassemble the drive linkage


a.Assemble the drive linkage:


Fix the drive linkage to the ginge and tighten the quickdraw2.



b.Disassemble the drive linkage:


Release the quickdraw2 and take away the drive linkage.






Our Services


After Sale Service


ONE-YEARS LIMITED WARRANTY
One years on all structural frame components





ONE-YEAR LIMITED WARRANTY
For one (1) year from the date of purchase, Wisking will repair or replace at our option to tile original purchaser, free of charge, any part or electronic component found upon examination by an authorized representative of Wisking to be defective in material and/or workmanship,
The battery is warranted by the battery manufacturer, The battery is not warranted by Wisking, Warranty service can be performed by Wisking or by an authorized Wisking Provider, Do not return faulty parts to Wisking without prior consent, All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the original purchaser.





ONE-YEAR WARRANTY EXCEPTIONS
TRANSAXLE: In cases where there is an increase in the operational noise level, the warranty does not apply,(The increase in operational noise level usually occurs due to abusive and excessive strain on the scooter,)
MOTOR BRAKE: one-year warranty for the electrical function of the motor brake, Brake pads are a wearitem and are not warranted,





WARRANTY EXCLUSIONS
ABS plastic shrouds and footrest covers (wear items and not warranted)
Batteries (the battery manufacturer provides a limited warranty)
Tires and tire tubes (wear items and not warranted)
Upholstery and seating (wear items and not warranted)
Repairs and/or modifications made to any part of the scooter without specific and prior consent from Wisking
Circumstances beyond the control of Wisking
Damage caused by: battery fluid spillage or leakage, abuse, misuse, accident, or negligence, improper
operation, maintenance, or storage, commercial use or use other than normal
Labor, service calls, shipping, and other charges incurred for repair of the product





THERE IS NO OTHER EXPRESS WARRANTY
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of original purchase and to the extent permitted by law. Any and all implied warranties are excluded, This is the exclusive remedy, Liabilities for consequential damages under any and all warranties are excluded,
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of limitation of incidental or consequential damages, So, the above limitation or exclusion may not apply to you.





Service Network


In this market the disabled and the elderly in the domestic, the quality of Wisking's products has the higher reputation and good customer service. We export our products all over the world, and every year, export around 10,000pcs mobility scooters and power wheelchairs. We are also capable of providing OEM and ODM high quality products with the most competitive prices.
