dc 24v 1000w high torque worm gear dc servo motor

Product Overview

Description

high precision dc 24v 1000w high torque worm gear servo motor



Model: KY110AS02010-RV63-25



Product Description

*High Torque to inertia ratio&up to 25000Nm/kgm²

*Fast dynamic response, time constant <20ms

*Wide speed adjusting&feedback up to 1000:1

*Steady speed precision up to 0.5%

*High overload, 2N.m/30s, 3.5N.m/10s

*Small volume and light weight

*Silent, the lowest noise is only 45dB(A)

*Protected with IP65, Class F insulation





Work Environment:

1. Altitude less than 1000M. 2. Environment temperature: +5℃~+40℃ 3. The most moist month average relative humidity should less than 90%, and this month's average lowest temperature should less than 25℃.





Specification for KY8AS0102-15RV40-25
Rated voltage	DC24V
Rated power	1000w
Rated speed	60rpm
Rated current	55A
Rated touque	79N.m
Peak Torque	200N.m
Line Resistance	0.05Ω (20℃)
Rotor Inductance	0.56mH
Torque Constant	0.06N.m/A
Rotor Inertia	281kg.m2*106
Mechanical Time Constant	0.6ms
Electrical Time Constant	0.5ms
Weight	10kg
Gear ratio	1:7.5/10/15/20/25/30/40/50/60/80/100

Product Overview

high precision dc 24v 400w high torque worm gear servo motor

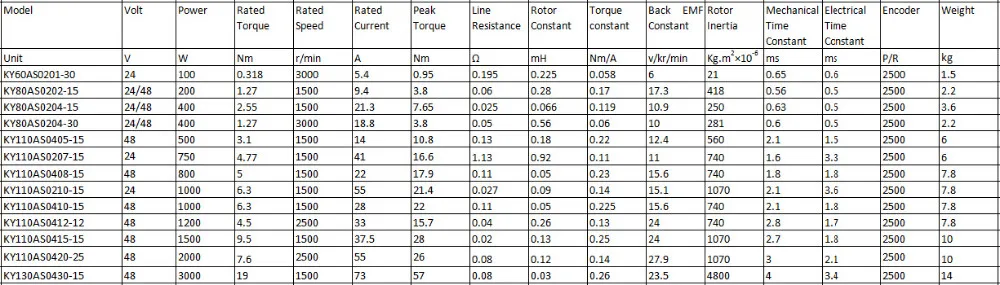

Model	Rated power/Kw	Rated volt/V	Rated speed/rpm	Rated Current/A	Rated Torque/N.m
KY110AS0202-15	200W	24V/48V	1500rpm	9.4A/4.7A	1.27N.m
KY110AS0204-15	400W	24V/48V	1500RPM	21.3A/15.6A	2.55N.m
KY110AS0204-30	400W	24V/48V	3000RPM	18.8A/9.4A	3.8N.m
KY110AS0405-15	500w	48V	1500rpm	14A	3.1N.m
KY110AS0408-15	800w	48V	1500rpm	22A	5.0N.m
KY110AS0410-15	1000w	48V	1500rpm	28A	6.3N.m
KY110AS0412-25	1200w	48V	2500rpm	33A	4.5N.m
KY110AS0415-15	1500w	48V	1500rpm	37.5A	9.5N.m
KY110AS0415-30	1500w	48V	3000rpm	37.5A	4.7N.m
KY110AS0420-25	2000w	48V	2500rpm	55A	7.6N.M

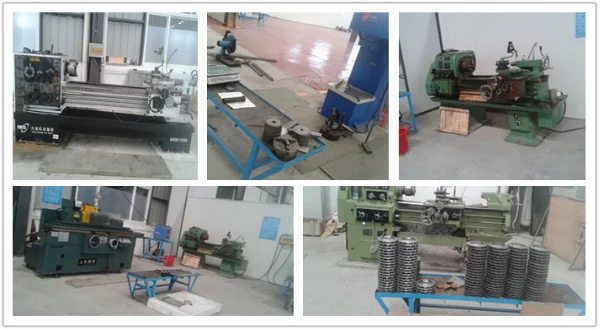

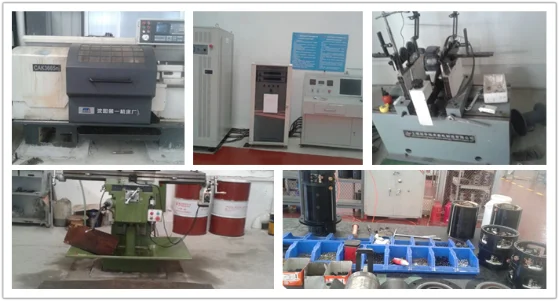

Producing





high precision dc 24v 400w high torque worm gear servo motor

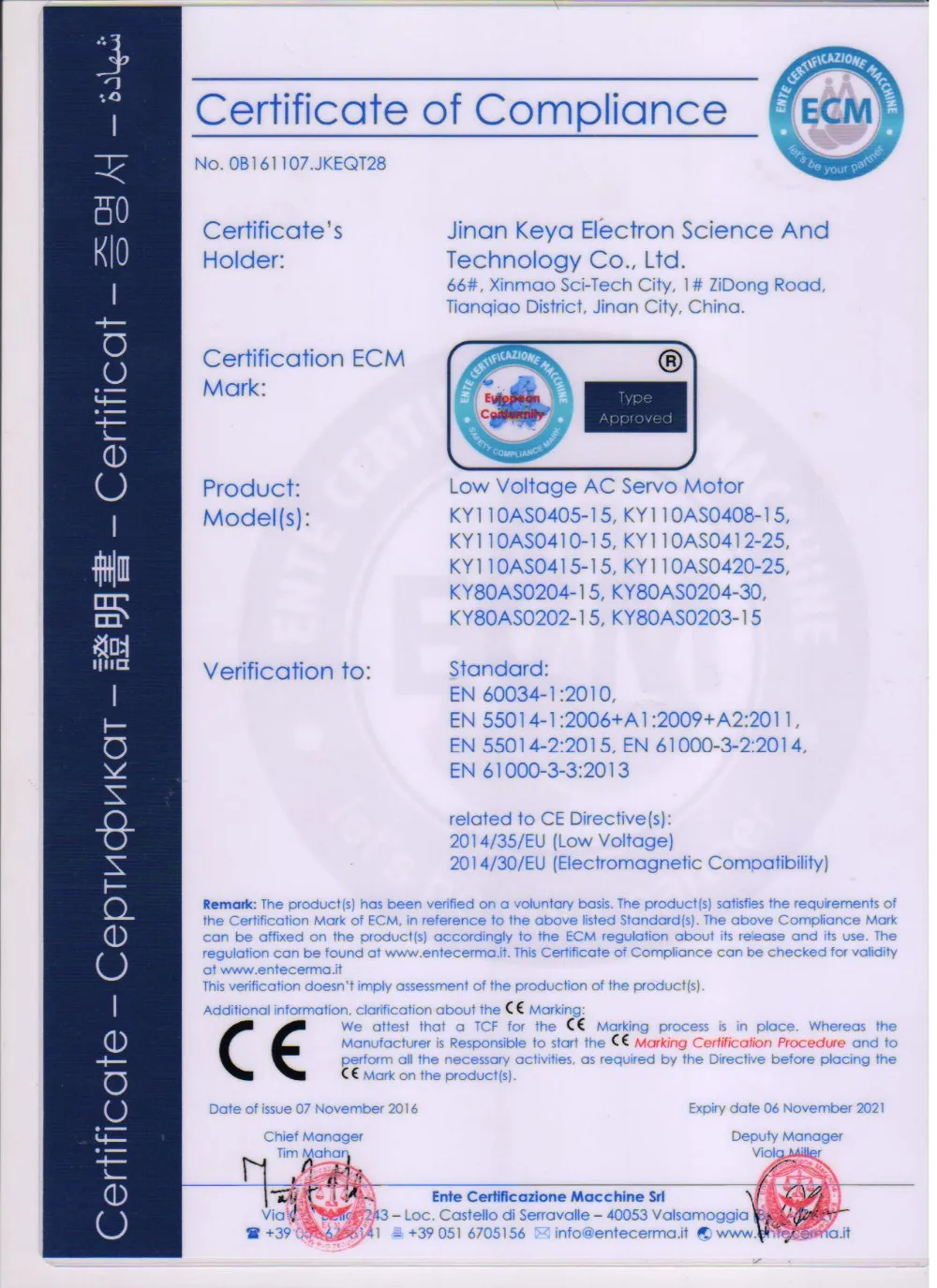

Certification



Company information



Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years.

Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth.



The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.



Our Service



We devote ourself to Research & Development, welcome Costom-made products, if you need some unusual products, let's have further communication.

 high precision dc 24v 400w high torque worm gear servo motor

Delivery time: 5-7 working days after receive the payment

Packaging

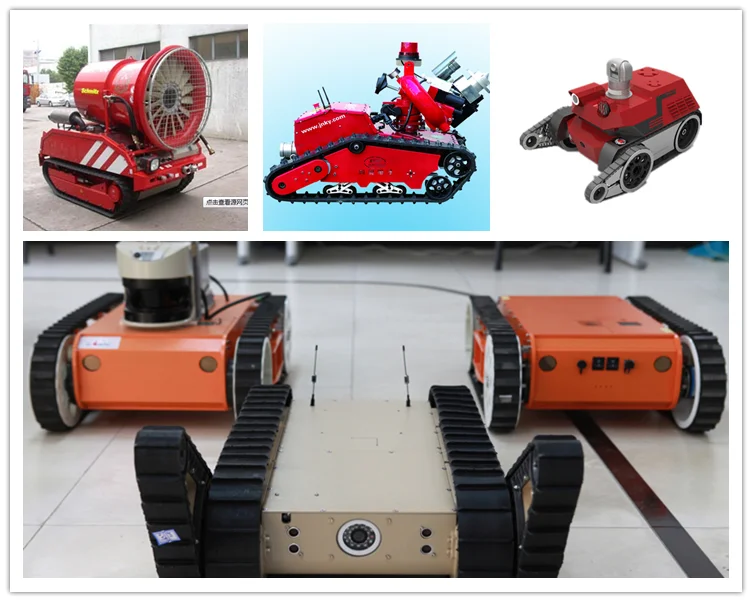

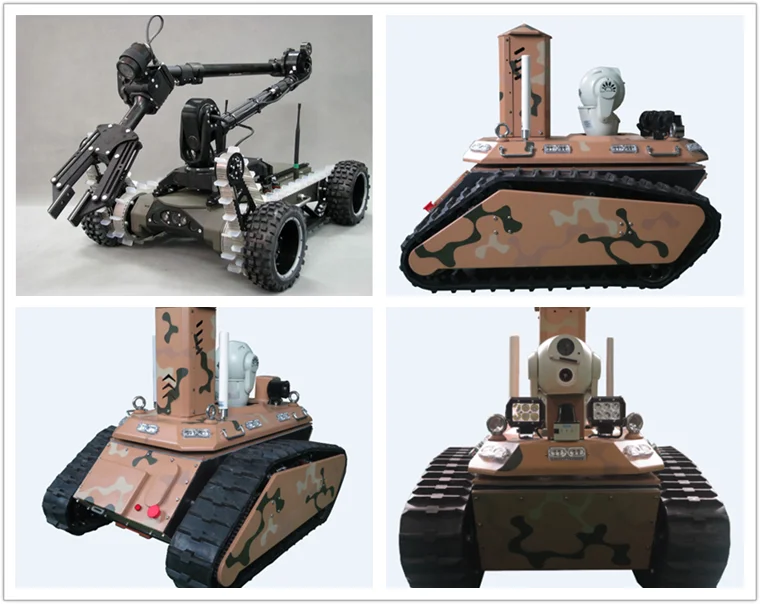

Products Application Cases Display









FAQ

 1.    Q: What are your main products?

      A: We produce various kinds of dc motor & controller.

2.    Q: How long have you been in this field?

      A: More than 15 years in this field.

3.    Q: Do you have your own R&D team?

      A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all       the time. Some of our engineers have more than 20years experience in the industry, and we also         cooperate with colleges, scientific research institutions and large enterprises.

4.    Q: How soon can you deliver the goods?

      A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.

5.    Q: Can you make the product according to customer’s requirements?

      A: Yes, welcome costom-made products.

6.    Q: What is your payment term?

      A: You can pay by TT, Paypal, Western Union.
