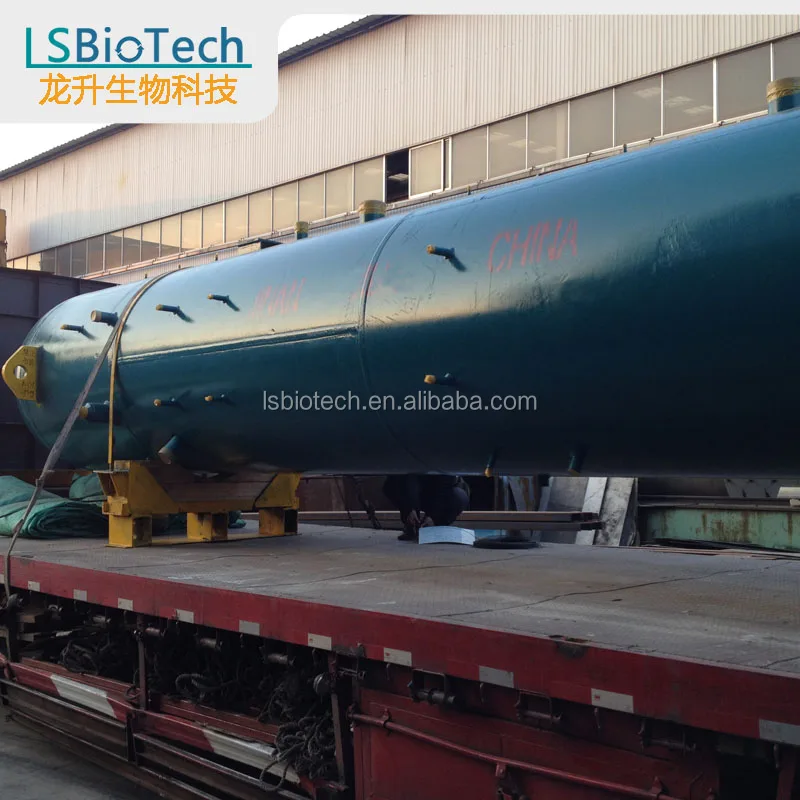

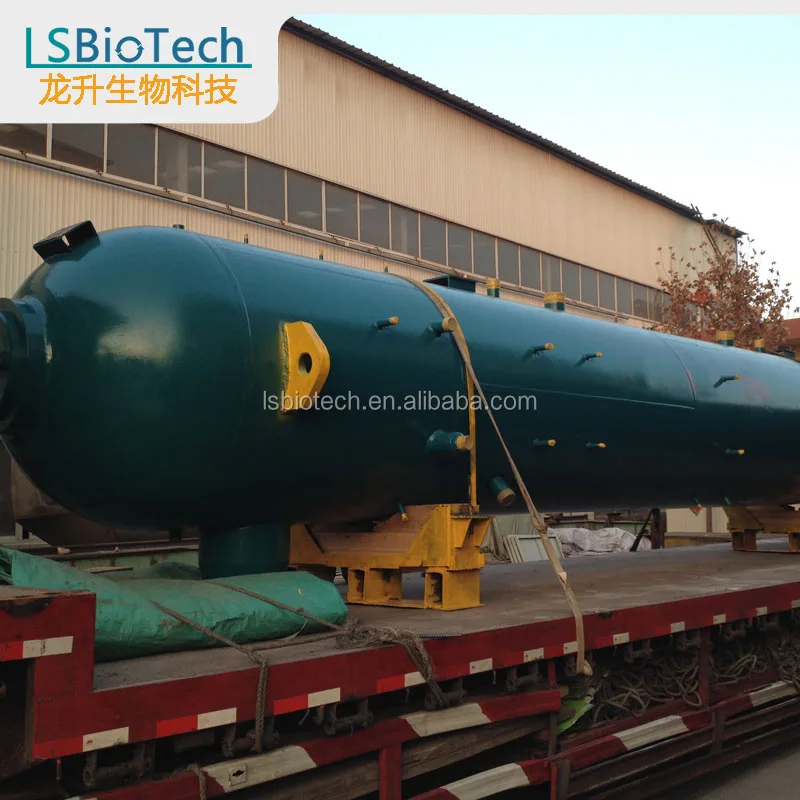

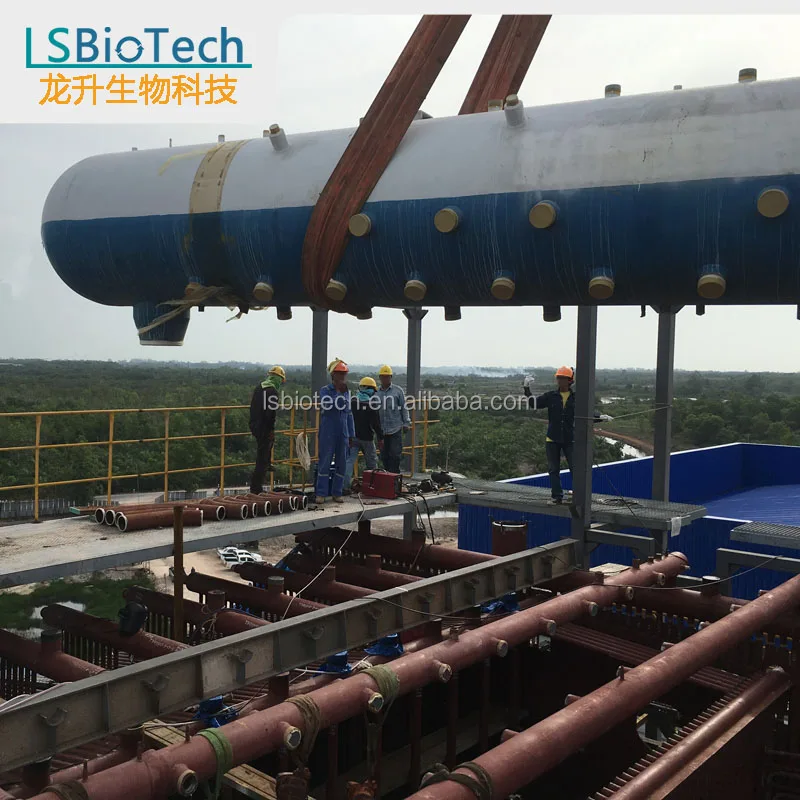

Power Plant Boiler Steam Drum Water Drum
- Category: >>>
- Supplier: Shandong Longsheng Biotechnology Co. Ltd.
Share on (60763226558):
Product Overview
Description
Product Parameter
Product Name | Power Plan Boiler Steam Drum Water Drum |
Applied Area | Natural circulation boiler |
Drum Shell Plate Material | - Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70 - Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353 |
Drum Head Material | Same as shell |
Nozzle Tube Material | As per design |
Standard | China GB, ASME, EN |
Manufacturer Grade | China A Grade, ABS Certificated, TUV Certificated |
Working Temperature | Saturation Temperature at rated pressure |
Working Pressure | 1.6 MPa ~ 22.5 MPa |
Shell Plate Thickness (Drum Wall Thickness) | ≤150 mm |
Drum Diameter | ≤3,200 mm |
Drum Length | ≤25,000 mm |
Welding | - Shell : SMAW, SAW - Nozzle tube : GTAW (TIG), SMAW |
Welding NDT | - Shell longitudinal seam : 100% RT, 100% UT - Shell circumferential seam : 100% RT, 15% UT - Nozzle tube angle seam : 100% UT, 100% MT |

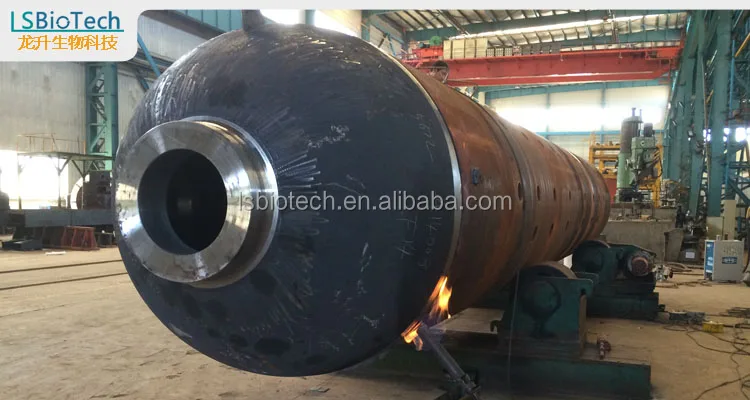

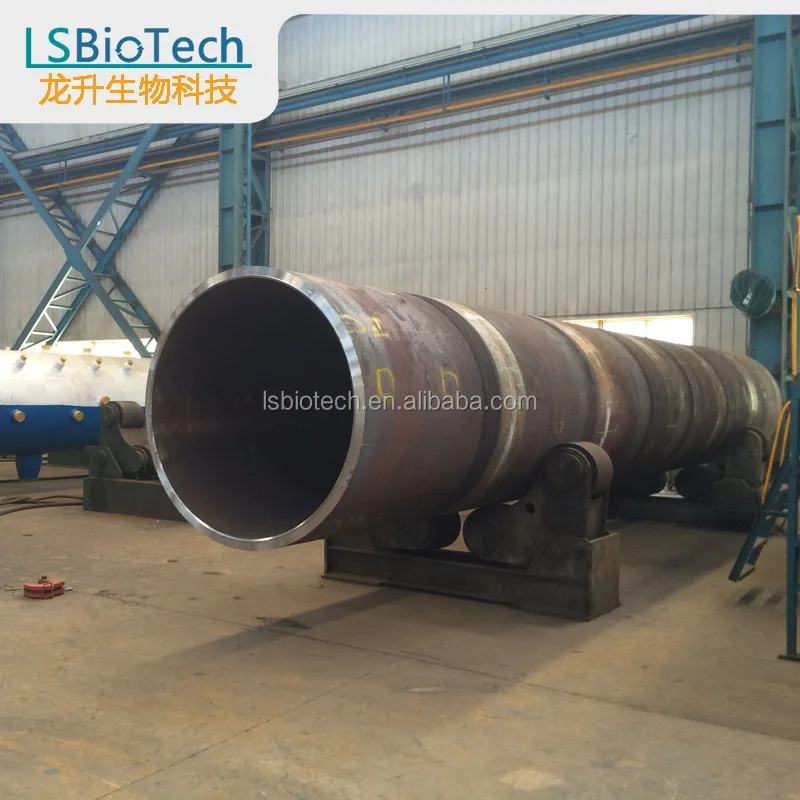

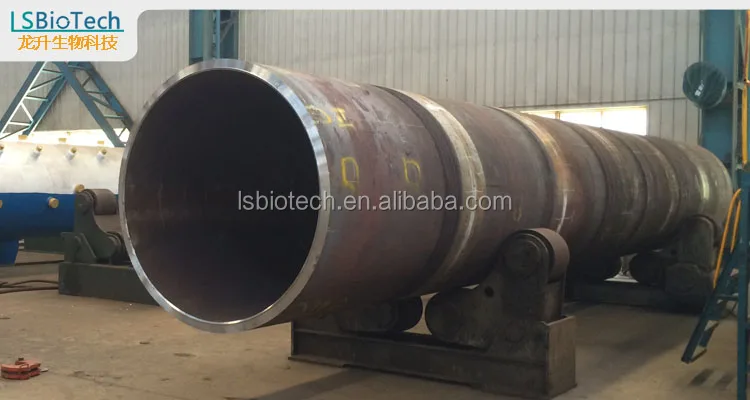

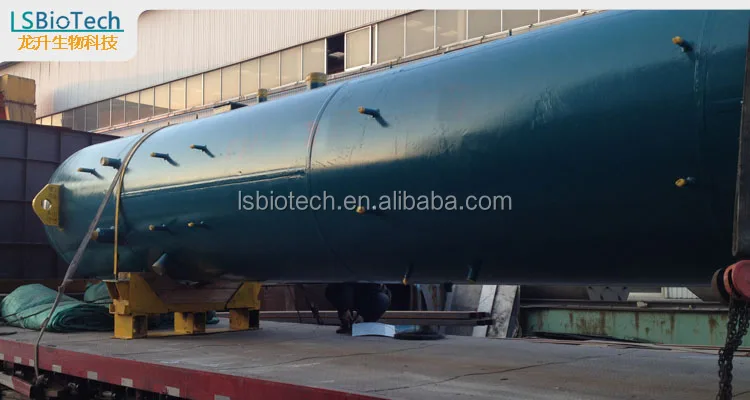

Products Show

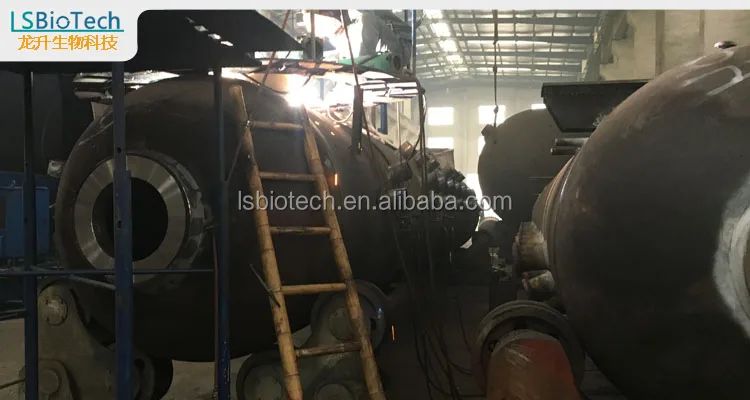

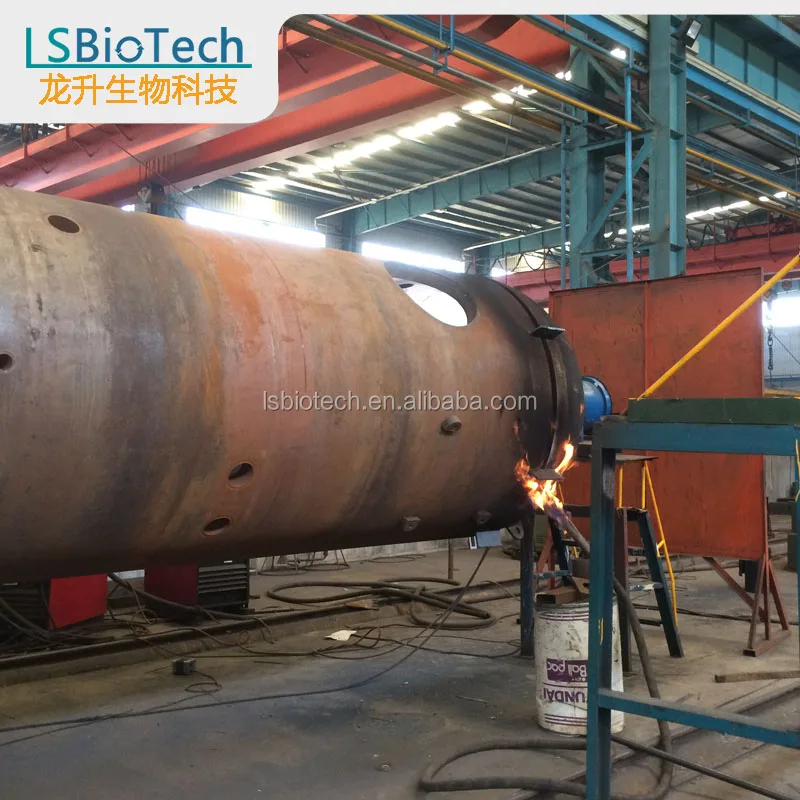

Factory Show & QA
Packing & Delivery
Packing
Different packing methods are chosen depend on transportation type.
1. Plywood Protection
for special material protection
2. Plywood Box Packing
for small and high value product
3. Steel Frame Packing
for general product
4. Steel Frame Packing
for general product
5. Steel Frame Packing
for general product
6. Steel Frame Packing
for general product
FAQ
Q: How long is your delivery time?
A: General small equipment will be ready for shipment in 20-25 days if the materials are in stock, or in 35-40 days if the materials are not in stock.
Large equipment delivery time should be determined after technical discussion. Please contact our sales.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample tube or sample materials for free charge, but the cost of freight should be paid by Customer.
Q: What is your terms of payment ?
A: General small equipment, the 100% of contract price should be paid after signing. Alibaba third party guarantee is available.
Large equipment payment schedule, please contact our sales.
Q: How long is the warranty period?
A: General small equipment we guarantee 12 months from the date of shipment departure.
Large equipment warranty period is 12 months from the date of commissioning or 18 months from the date of shipment departure which occurs earlier.
