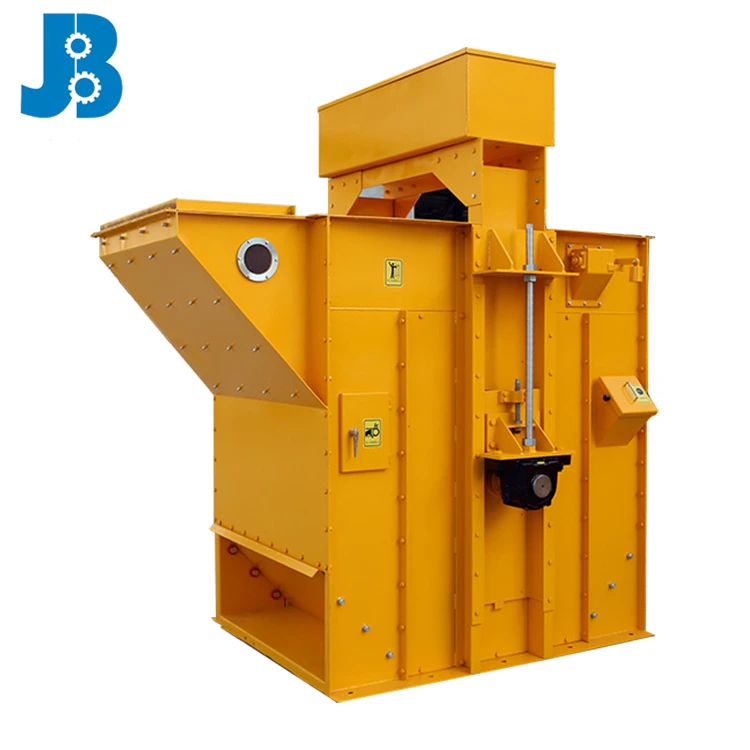

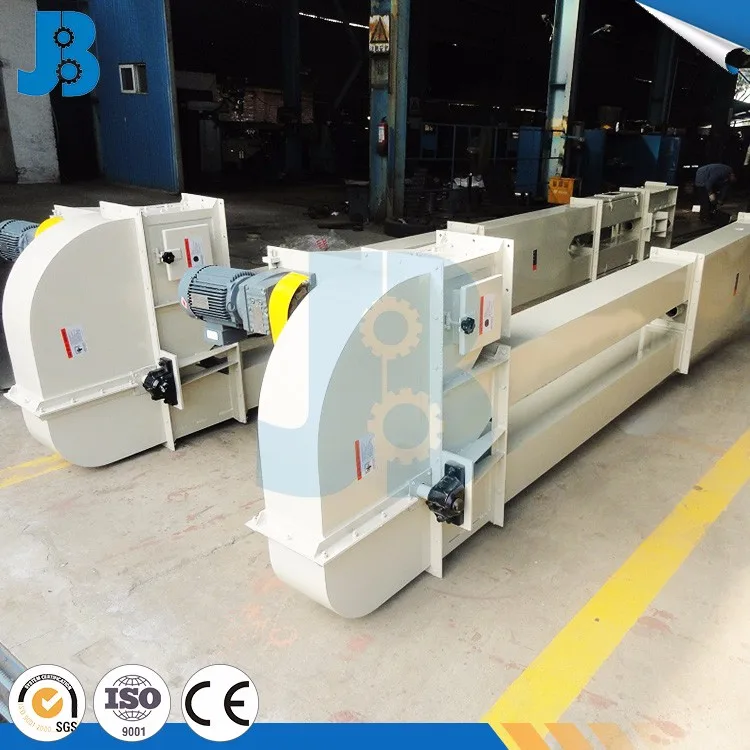

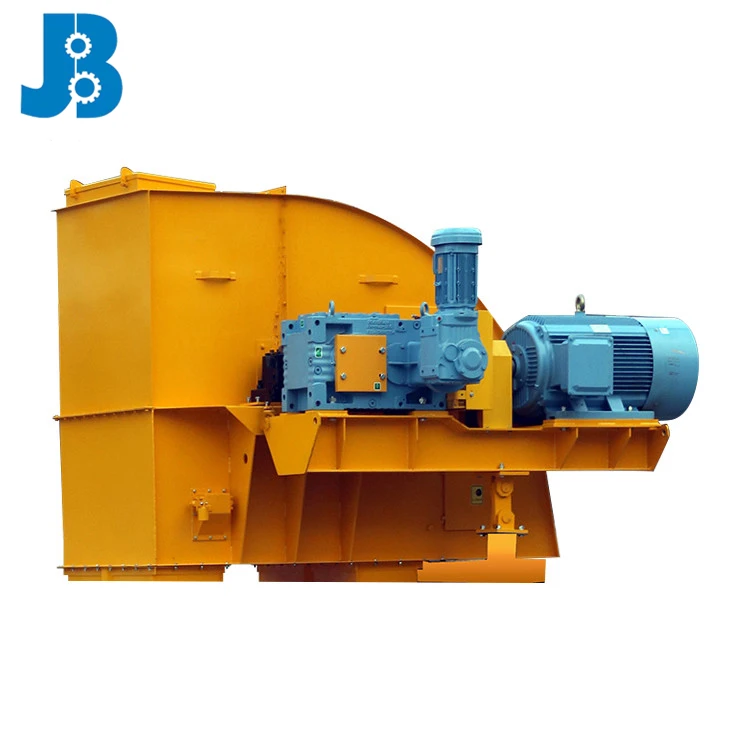

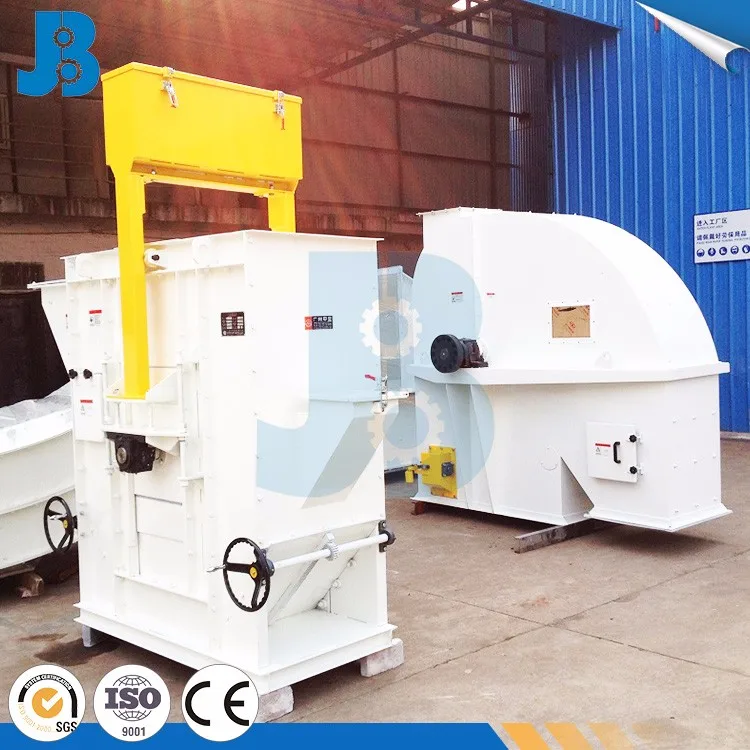

OEM custom rice milling agricultural elevator buckets/rice mill elevator/rice machine elevator
- Category: >>>
- Supplier: Guangdong Jiabao Conveying Machinery Co. Ltd. [Guangdong China]Guangdong
Share on (60763257836):
Product Overview
Description
OEM custom rice milling agricultural elevator buckets/rice mill elevator
| Main technical parameters | ||||||||||
| Machine type | TDTG | TDTG | TDTG | TDTG | TDTG | TDTG | TDTG | TDTG | TDTG | |
| 26x15 | 40X19 | 40X23 | 61X29 | 70X33 | 80X47 | 80X51 | 100X47X2 | 110X51X2 | ||
| Conveying capacity(T/H) | 8~15 | 20~35 | 20~35 | 35~50 | 60~100 | 120~200 | 150~250 | 350~550 | 400~650 | |
| Bucket | Speed(m/s) | 1~2 | 1.6~2.5 | 1.6~2.5 | 2.0~3.2 | 2.0~3.2 | 2.0~3.2 | 2.0~3.2 | 2.5~4 | 2.5~4 |
| Capacity(L) | 0.62 | 1.26 | 1.31 | 1.59 | 3.9 | 8.5 | 9.46 | 8.5X2 | 9.46X2 | |
| Distance(MM) | 150~200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 | |
| Width(MM) | 150 | 190 | 235 | 285 | 337 | 475 | 519 | 475 | 519 | |
| Bend width(MM) | 175 | 220 | 250 | 350 | 380 | 500 | 550 | 1000 | 1200 | |
| Head drum diameter(MM) | 260 | 400 | 400 | 610 | 700 | 800 | 800 | 1000 | 1140 | |
