ZL 6280A, 400C, 16A, PT100, Temperature Controller, PT100 Thermostat, Lilytech
- Category: >>>
- Supplier: Suzhou Lily Tech. Co. Ltd.
Share on (60763320089):
Product Overview
Description
Product Description
Manual link (copy and paste to browser to view and download):
cdn.shopify.com/s/files/1/0028/5032/4545/files/ZL-6280A_en_A1.0_170628_180823.pdf?16719664167714752897

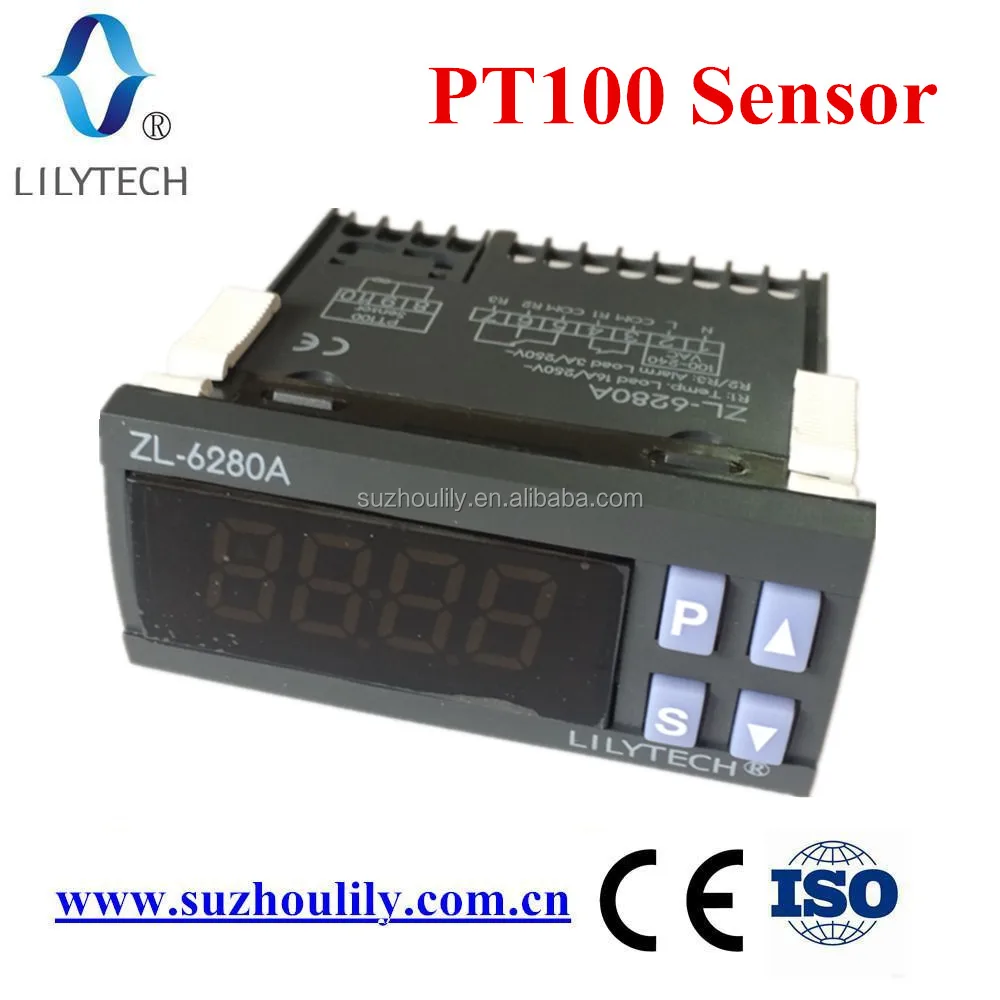

ZL-6280A, PT100 sensor, Temperature Controller
! Sensor not provided
Introduction
ZL-6280A makes use of PT100 sensor for heating control of high temperature, with front panel water proof level IP65.
It is suitable to control oven, water heater, and other objects between 2~400℃.
Main Function
Sense and display temperature to 490℃
Temperature control to 400℃
Temperature output (R1) delay protection for load
Warning output (R2, R3)
Over temperature and sensor failure warning
Buzzing warning
Specification

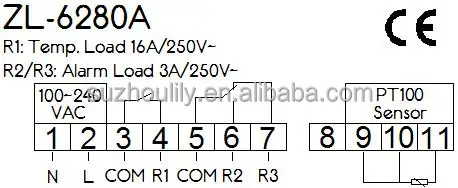

Temperature output, R1: 16A, 250Vac; R2/R3, 3A, 250Vac.
(the parameters are under pure resistance loads)
Sensor: PT100 (excluded in package of selling)
Set / control range: 2 ~ 400℃, resolution: 1℃
Display range: -10 ~ 490℃, resolution: 1℃
Accuracy: 1.5℃
Working: -20 ~ 45℃, 5 ~ 90%RH without dew
Dimension: W78 x H34.5 x D71 (mm)
Installation drilling: W71 x H29 (mm)
Case materials: PC + ABS fire proof
Protection level: IP65 (Front side only)
Power supply: 100 ~ 240Vac, 50/60Hz
CE
CE
Packaging & Shipping
One piece packing: 11 * 9 * 7.5 cm, 0.18 kg
One carton packing: 33 * 37 * 47 cm, 12.5 kg, 64 pcs
