Korea Original DIO Digital Portable Dental X ray System
- Category: >>>
- Supplier: Xrdent Technology Co. Ltd.
Share on (60763334122):
Product Overview
Description
Korea Original DIO Digital Portable Dental X-ray System
Product Description
Technical Data
| Grade | ClassⅡ b |
| Classification: | Type B applied part X-ray generator |
| Tube voltage | 60kV (Fixed) |
| Tube current | 2mA (Fixed) |
| High voltage generating circuit | High frequency Inverter method |
| X-ray control method | Controlled by the micro processor |
| Time setting range | 0.01~1.60 second (0.01 sec step) X-ray tube |
| Type | Stationary anode X-ray tube |
| X-ray tube model | D-081BS(Toshiba) |
*X-ray tube focal size: 0.8mm
*Target angle: 20°
*Total filtration: 1.6mm Al
(Inherent filtration: 0.8mmAl, Fixed added filtration: 0.8mmAl)
Display method: LCD Display

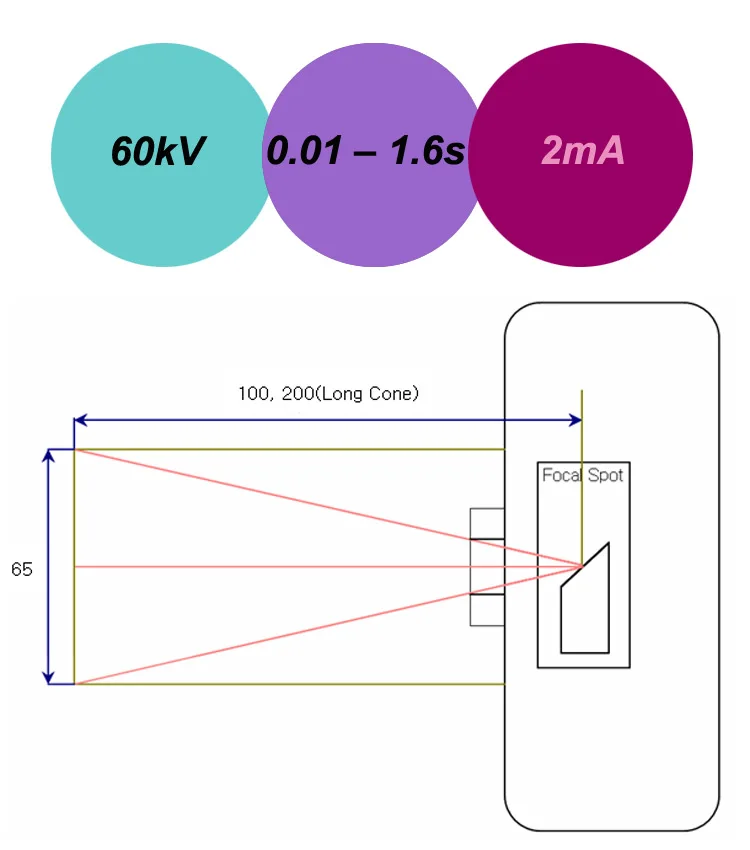

SSD: 100/200mm
X-ray field: 55mm (Round style)
Weight: 1.8kg
Size of main body: 135(W)×150(D)×175(H)mm
Voltage to use
*Battery: Lithium polymer battery (DC24V)
*Charger: JBL7451250750100FJ
(Input: 100-240V~, 50~60Hz, 1.0A, Output: DC25.2V, 0.75A)
Instruction
1. Power On/Off switch:
2. X-ray tube current and voltage display:
3. Device operating condition or status display: READY, EXPOSURE, WAIT and ERROR
4. Indicates remaining battery charge: X-ray cannot be generated while charging or displaying battery information
5. Adult and child display
6. Anatomical teeth icon display: Incisor, canine and molar teeth of the upper and lower jaw (Maxilla and Mandible)
7. Exposure mode display: Film, sensor, and manual mode
8. Exposure time display: From 0.01sec. up to 1.60sec., 0.01sec. step time set.
9. Up and down control buttons: time set change (0.01sec. step)
10. Mode and Select button: Use to change and select the exposure mode.
