21 hole Manual Binding Machines double Wire Binding Machine Comb Binding Machine SD 2011B

Share on (60763347333):


Price:

Quantity:


Product Overview

Description



Product Description

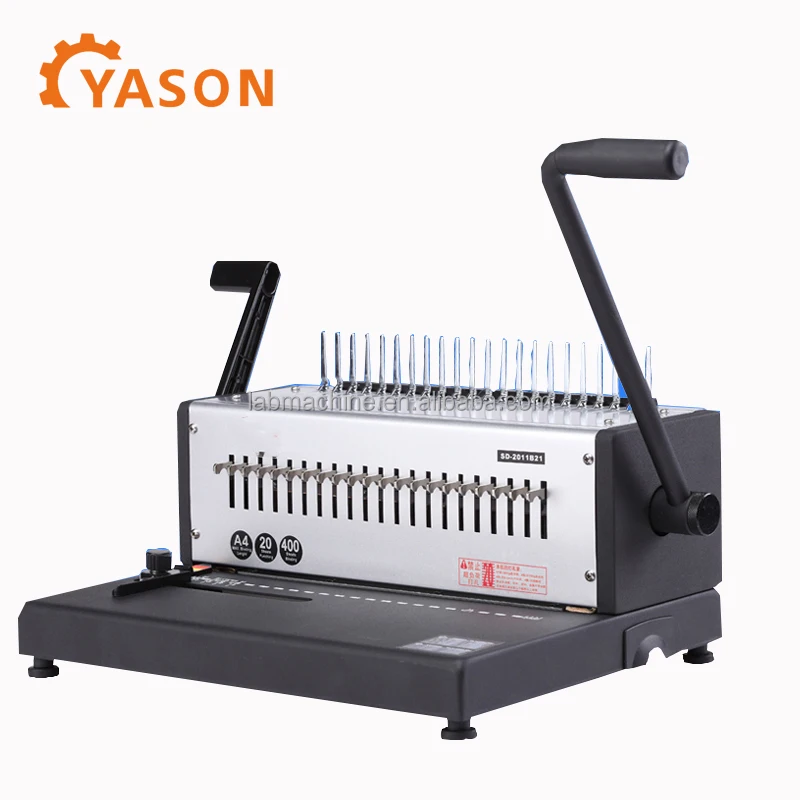

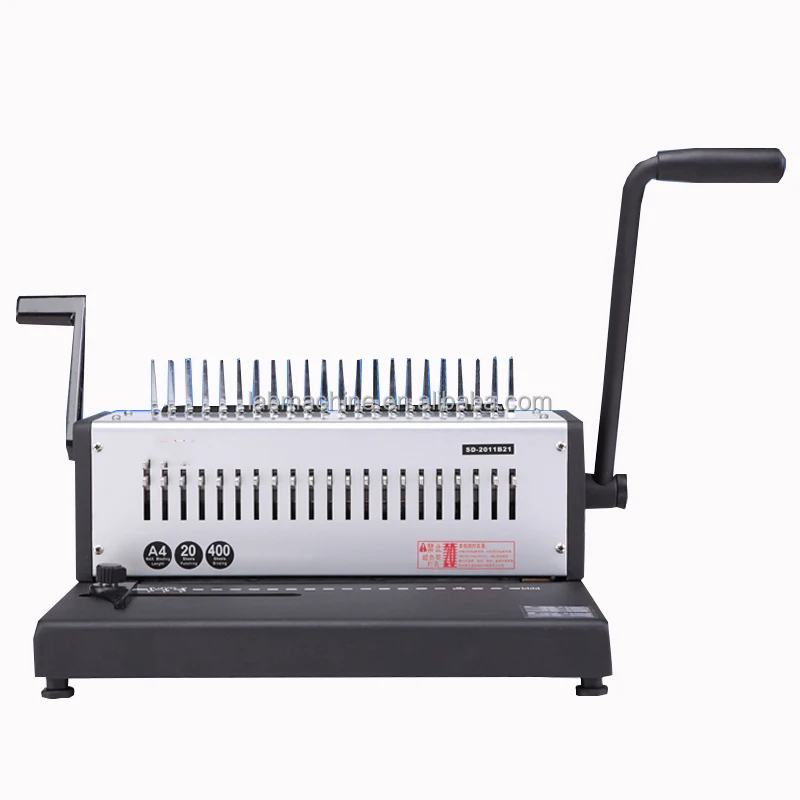

21-hole Manual Binding Machine SD-2011B

2l hole rubber ring clip dual-use manual binding machine
Factory direct quality assurance
Apron, clip and dual-use machine
All steel inner and outer structure, solid round steel handle
21 handles for a variety of sizes
Punches 20 sheets of 80 grams at a time, and 400 sheets of bookbinding thickness




All steel structure. Durable
All-steel machine inside and outside structure, unique technology, durable, beautiful, easy to damage

Solid round steel handle design
Right-handed solid round steel punch handle, labor-saving and durable, left pressure ring small handle, beautiful and convenient



21 all steel knife
High-grade steel-alloyed steel knife, strong punching, dual-use aprons, simple binding, 21 pumping tools, suitable for various sizes

Twist lock positioner
Using the locator to fix the position of the paper, so that the holes that are punched out are symmetric and beautifully bound.



Margin adjustment torque converter _
Machine front margin adjustment screw, pull back and forth to adjust the size of the margins, margins can be 3MM, 6MM, 9MM adjustment

Pull-out confetti box
Left-pull type paper scrap box, easy to clean, more humane



Rubber anti-slip mat
Base with 6 rubber feet, non-slip, stable

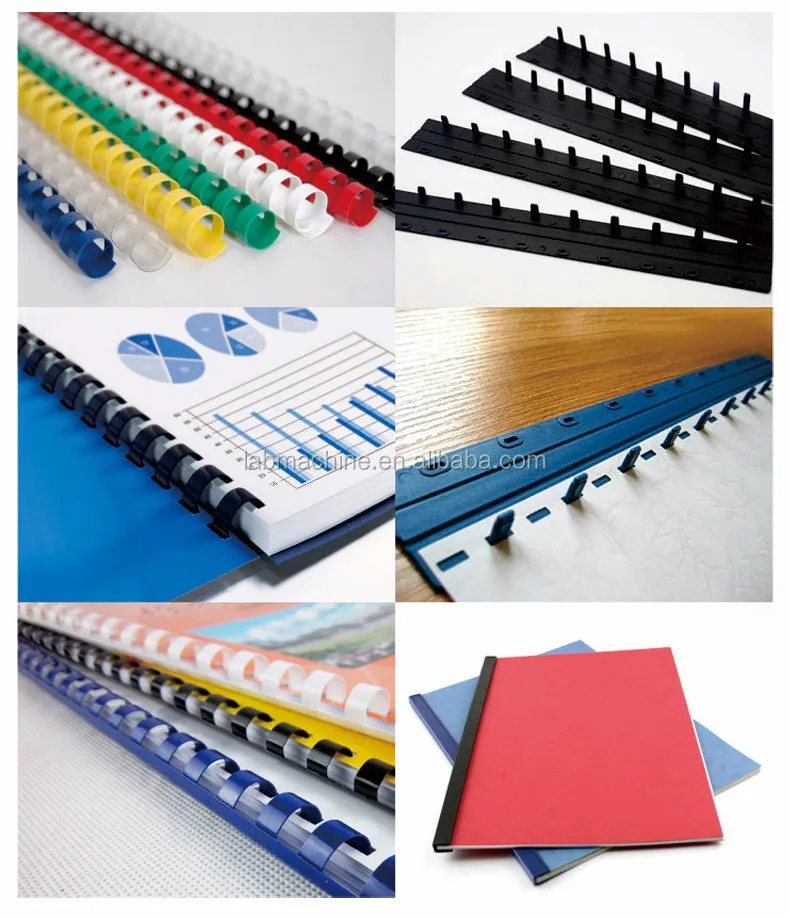

Rubber ring specifications
The base of the machine has its own specification data sheet to facilitate the selection of materials and fast binding.

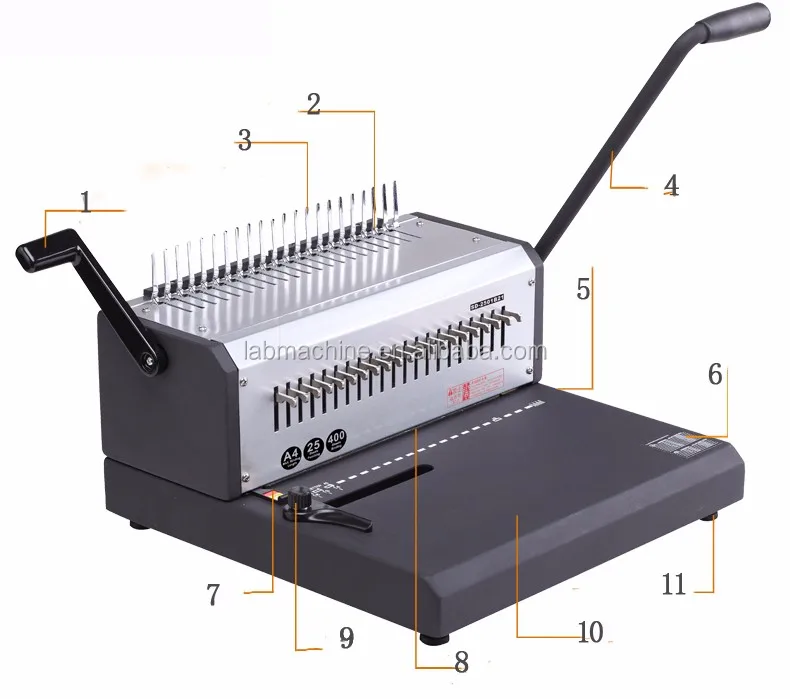

Specifications




1
Pressure ring handle
7
Margin adjuster
2
Hook plate
8
Paper inlet
3
Comb
9
Adjuster
4
Punching handle
10
Base
5
Confetti box
11
Anti-slip mat

6
Rubber ring specifications




Brand Model
SD One 2011B21
Place Of Origin
Foshan
Machine Name
21-hole manual binding machine
Applicable Consumables
Aprons, clips
Handle Type
solid round steel handle
Applicable Paper
A4
Punching Capacity
20 sheets 80 grams
Binding Ability
400 sheets (45MM)
Punching Size
3*8mm
Number Of Holes
21 holes
Number Of Knife Extraction
none
Margins
3MM 6mm 9MM
Pressure Ring Size Range
aprons 6 51mm clip bar 3-35MM
Machine Size
495MM*315mm*390mm
Packing Size
460MM*250MM*380mm
Net Weight Of Machine
10.4KG
Gross Weight Of The Machine
11.8KG


Detailed Images


1. Place the machine's work bench on a reliable work bench

2. Set the margin adjuster and adjuster, put a proper amount of paper into the paper inlet, and press the handle to punch



3. Place the apron on the comb teeth, press the handle backwards, open the apron, put the file of the hole into the circle, reset the handle forward, and finish the binding.

4. Apron binding effect is simple and beautiful

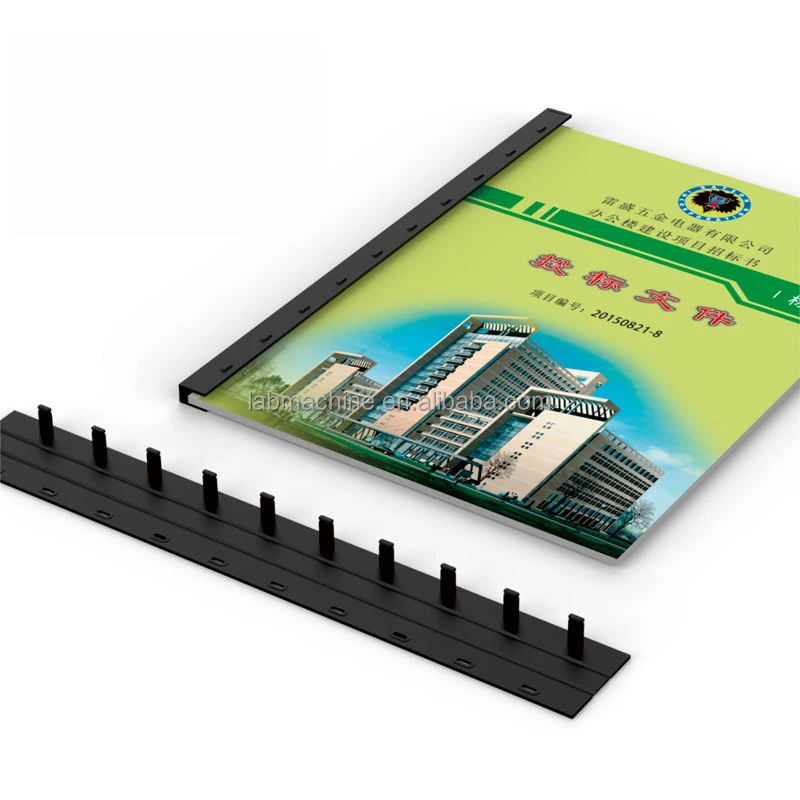

5. Insert the well-drilled file into the clip, fold the clip in half, and finish the binding.

6. Clip binding effect
