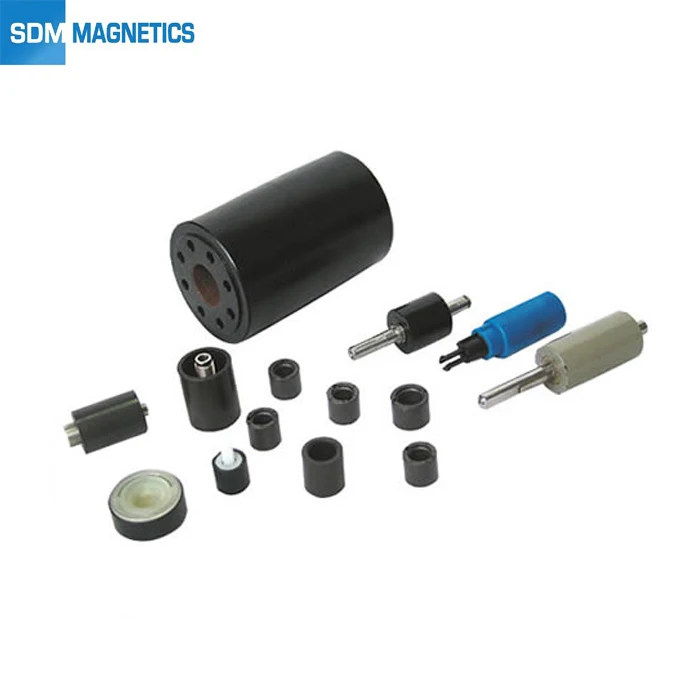

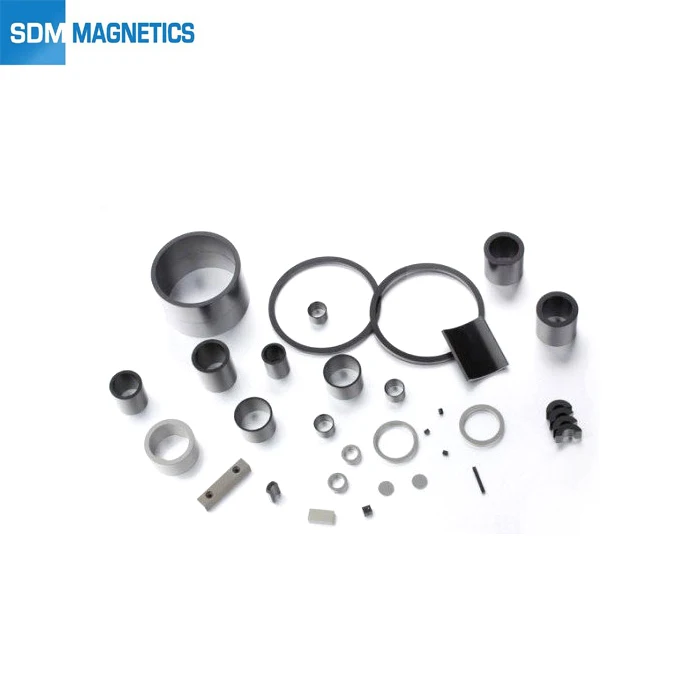

Plastic Injection Molded Magnet

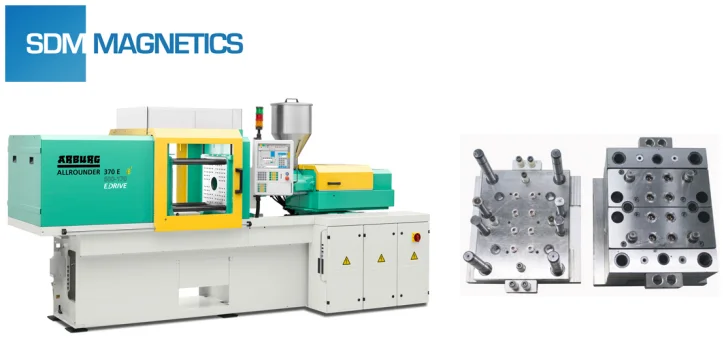

Injection molded magnets are produced by injecting the special pellets into the mold. This kind of magnet covers a wide range of characteristics as bonded magnets, including heat resistance and higher magnetic properties. Injection molding technique offers flexible shape design as well as over-molding and insert-molding with other parts for easy assemblies.

The advantage of injection molded magnets

• For this kind of isotropic magnets, any magnetization direction can be applied. This is a congenital advantage to manufacture the multi-polar magnets.


• Injection molded magnets have excellent dimensional accuracy and serial productivity.


• Thin wall thickness and complex shape can be manufactured.

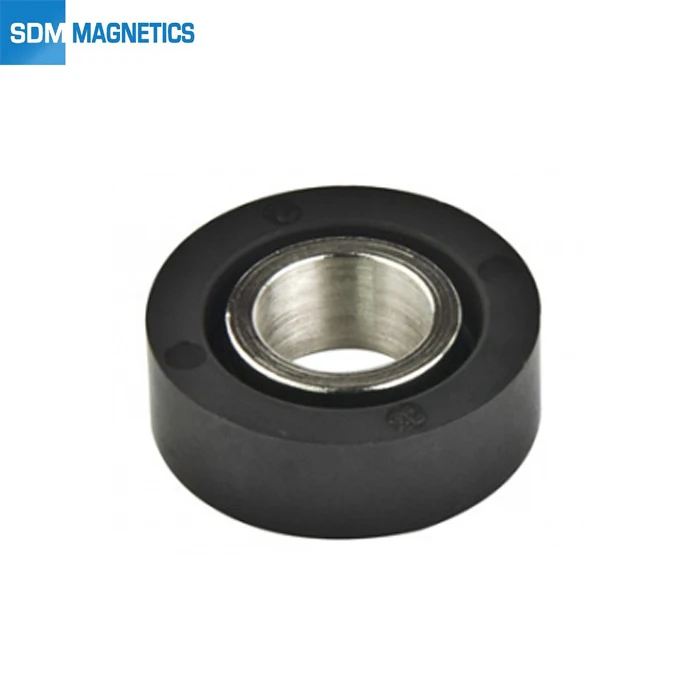

• Over-molding and insert-molding with other parts, like back yoke, hub, shaft is readily available, as well as injection other polymer parts can be incorporated.


• The polyer binders’s volume fraction of injection molded magnets higher than the compression molded magnets. It will provide adequate protection against corrosion without coating in most applications.

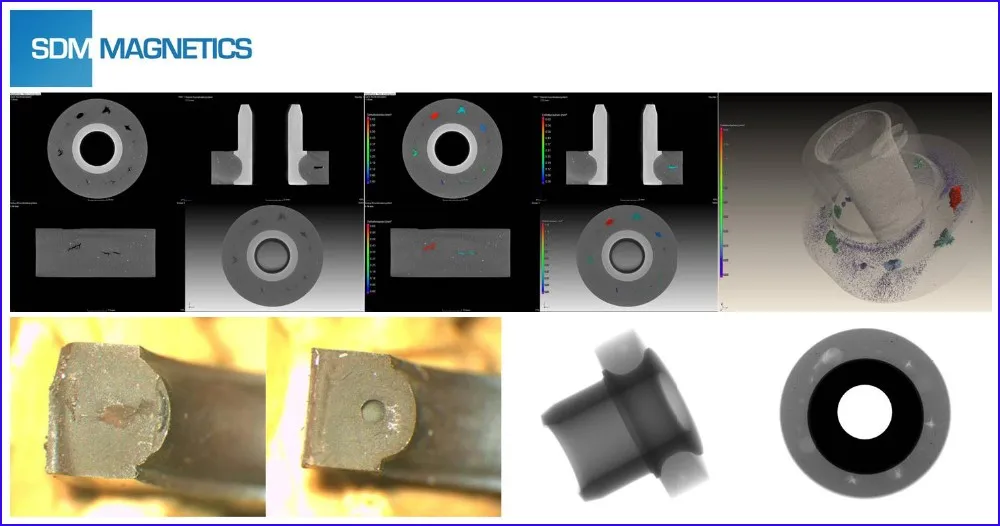

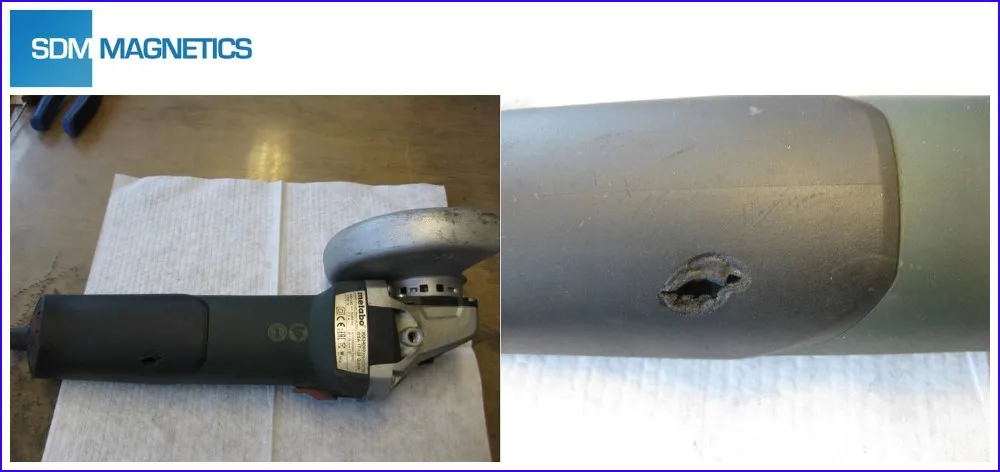

Abnormal analysis of injection ferrite magnet for high speed application

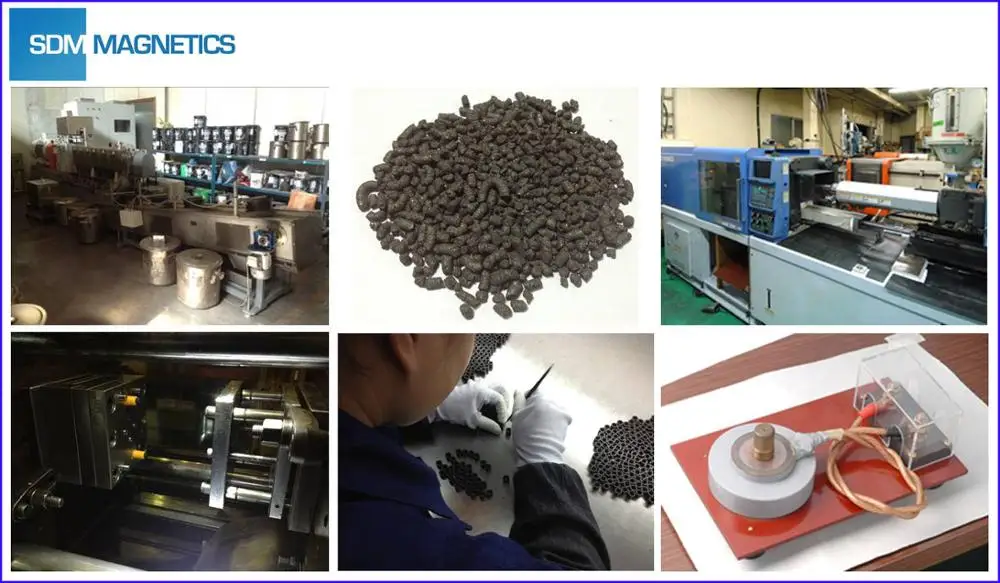

Professional manufactures of injection ferrite magnet

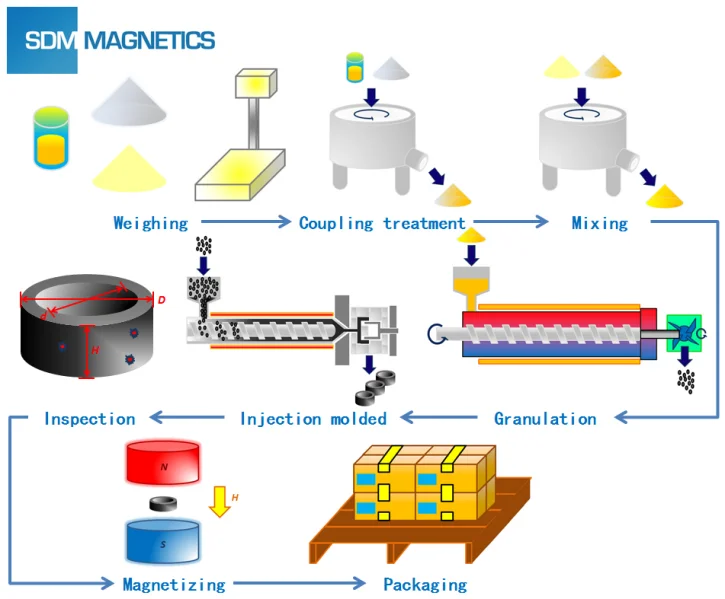

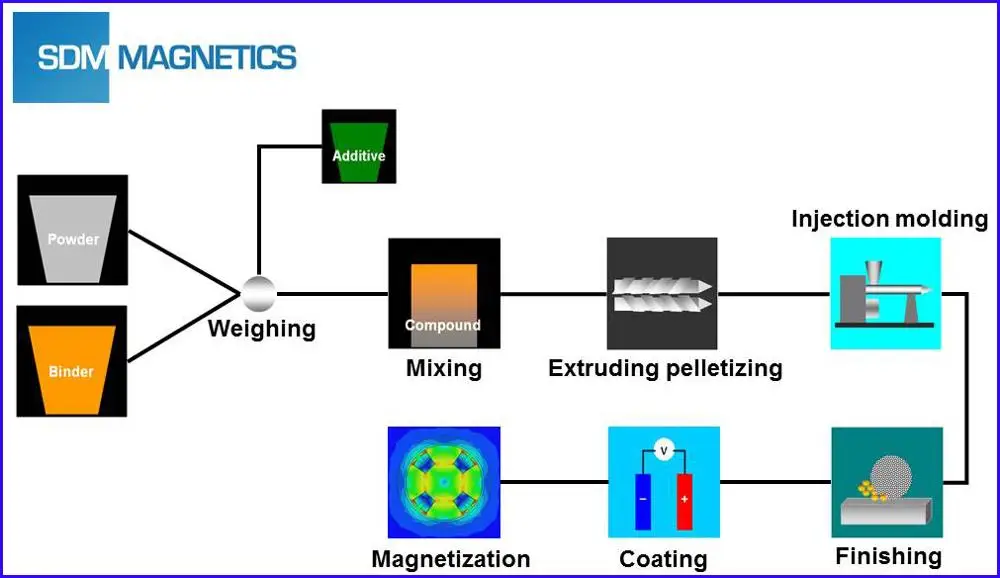

The process chart of injection ferrite magnet



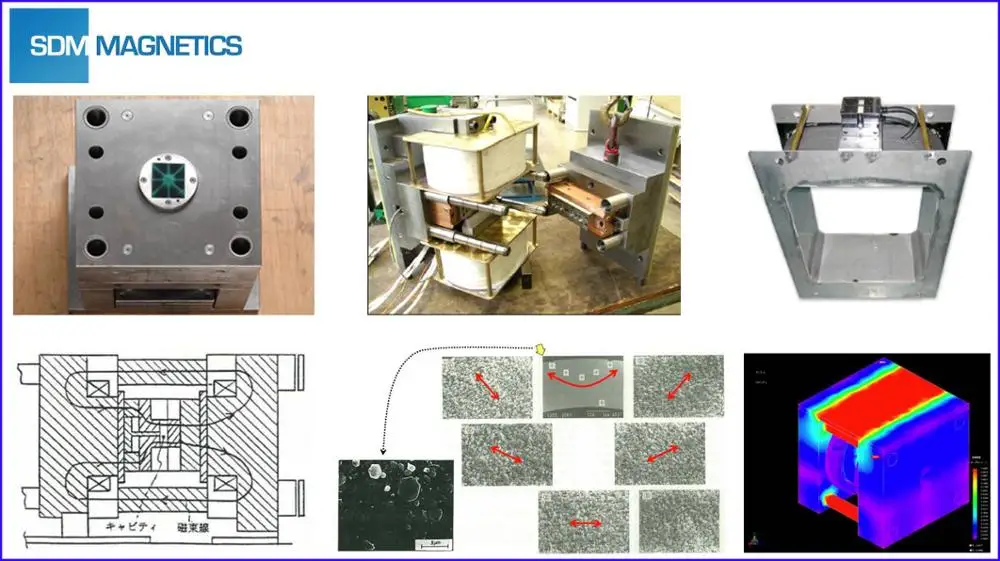

Orientation technology of injection ferrite magnet



Magnetic properties of injection ferrite magnet

		BZ-0606 (PA6,Iso)	BZ-1106 (PA6, Aniso)	BZ- 1206 (PA6, Aniso)	BZ-1306 (PA6,Aniso)	BZ-1406 (PA6,Aniso)	BZ-1506 (PA6,Aniso)	BZ-1606 (PA6,Aniso)
Residual Induction Br	mT Gs	185 1850	240 2450	250 2500	255 2550	270 2700	275 2750	285 2850
Coercivity Hcb	kA/m Oe	127 1600	167 2100	183 2300	187 2350	191 2400	195 2450	200 2500
Intrinsic Coercivity Hcj	kA/m Oe	231 2900	226 2850	223 2800	230 2900	238 3000	238 3000	235 2950
Max. Energy Product (BH)max	kJ/m3 MGOe	6.4 0.80	11.6 1.45	12.4 1.55	13.2 1.65	14.0 1.75	15.2 1.90	16.4 2.05



		BZ-0212 (PA12,Iso)	BZ-1212 (PA12, Aniso)	BZ- 1512 (PA12, Aniso)	BZ-1612 (PA12,Aniso)
Residual Induction Br	mT Gs	115 1150	250 2500	265 2650	285 2850
Coercivity Hcb	kA/m Oe	79 1000	187 2350	191 2400	195 2450
Intrinsic Coercivity Hcj	kA/m Oe	203 2550	223 2800	239 3000	239 3000
Max. Energy Product (BH)max	kJ/m3 MGOe	2.4 0.30	12.4 1.55	14.8 1.85	16.4 2.05



		BZ-13PPS (Aniso)	BZ-34PPS (Iso)
Residual Induction Br	mT Gs	2600 260	250 2500
Coercivity Hcb	kA/m Oe	179 2250	187 2350
Intrinsic Coercivity Hcj	kA/m Oe	227 2850	223 2800
Max. Energy Product (BH)max	kJ/m3 MGOe	13.2 1.65	33.6 4.2

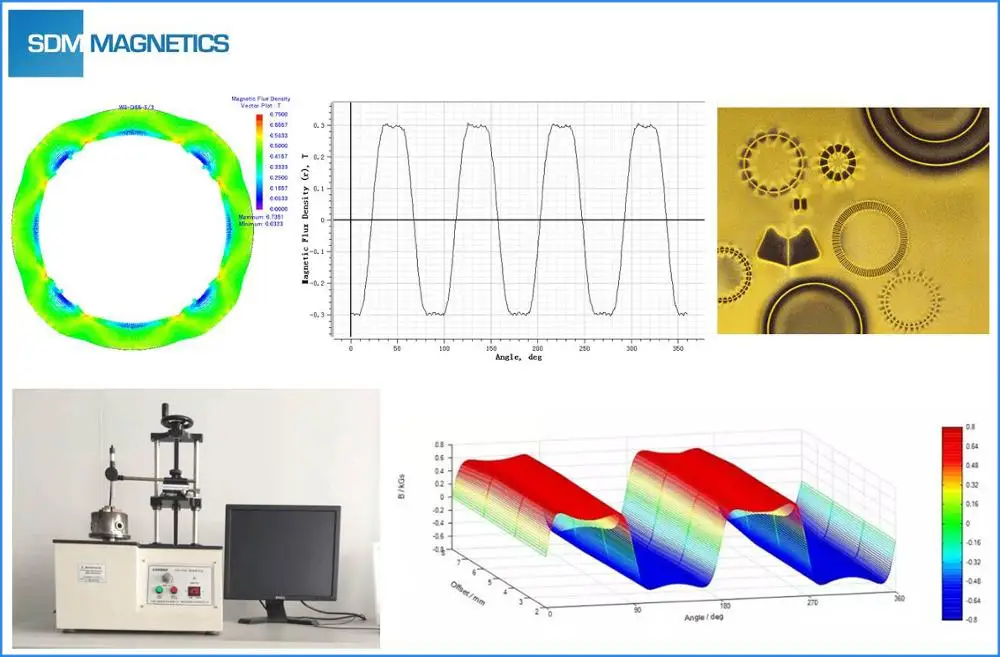

Magnetic circuit simulation & measurement of injection ferrite magnet







Package:

Plastic box/ Plastic bag—White box—Carton —Pallet

By Air: Magnetic pin will be degaussed with shield iron sheet.

By Sea: Magnetic pin holder will be placed in pallet.







Express (TNT, DHL, FedEx, UPS, etc), Air, Ocean.
a: The weight is under 40Kgs, we recommend to send them in shielding boxes to you by Express.
b: The weight is between 40Kgs-100Kgs, it can be sent by Express or Air.
c: The weight is over 100Kgs, we recommend to send them by Ocean.









Customer Visit for SDM Magnetics (Magnetic Pin Holder)
