Product Overview
Description
Introduction

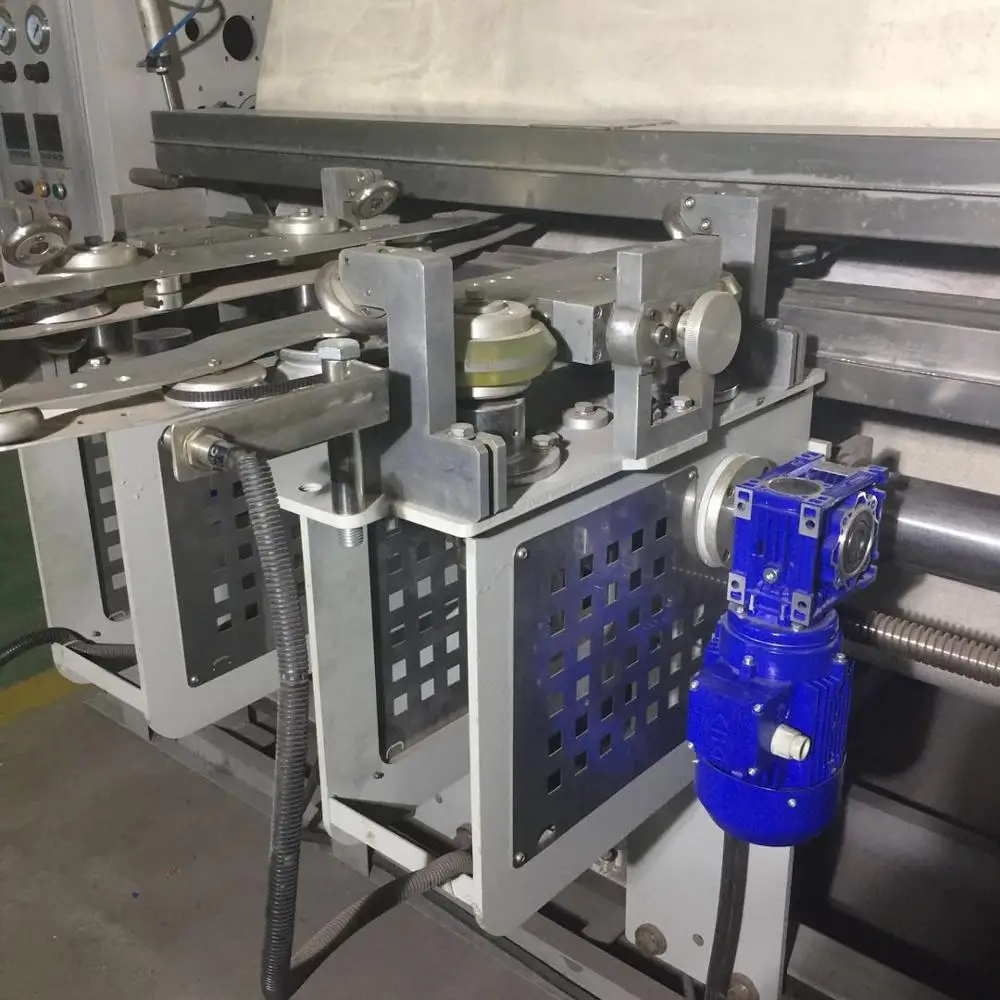

The Tubular Compactor machine is used for preshrinking and ironed tubular fabric, and equipped with magnetic separating shuttle, hydraulic lifting platform, 20mm NOMEX carpet. The fabric could keep in a stable size during this process after drying machine. Less than 5% shrinkage and excellent softness could be reached.
Based on different sources, we could offer the following four models:
Steam/Electricity+Conducting Oil (Internal loop)/Electricity+Conducting Oil (External Circulation) /Conducting Oil Supply
The temperature of steam drying model could reach 130°C, other models’ temperature are more than 180°C.
Our machine blanket of Tubular Compactor is 20mm thickness, containing NOMEX material, which could resist high temperature and not pollute the fabric.
*The width of fabric: 1500 mm Max.
**Standard diameter of Cylinder is 450mm.
Basic Info & Technical Data
| Model | GHYS450 |
| Name | Tubular Fabric Sanforizer |
| Application | Textile-finishing(shrinkage rate:2-5%) |
| Suitable Fabric | Tubular knitted Fabric Pure cotton,wool,blended fabric(cotton content>65%) |
| Main Matching Fabric | tubular fabric of above 65% cotton content |
| heat source | natural gas / circulating conduct oil / steam |
| pre-shrinking type | 20mm Nomex compacting |
| supporting plate type | maglev separeted shuttle |
| fabric outfeed type | auto precisely plaiter |
| Max working width of supporting plate | 1450mm |
| Max working width of felt | 1500mm |
| working speed | 5-30m/min |
| drum temperature control type | up & down separatly control |
| drum drive type | up & down separatly drive |
| Max temperature of drum | electricity,conduct oil <190℃,steam<140℃ |
| breadth adjustment type | manual and electromotion |
| capacity of machine | 10kw |
| standard machine power supply | 380V/3P/50HZ |
| control power supply | 220V/24V |
| steam specification of steam box | 3-6Kg/cm² saturated steam |
| steam comsuption of steam box | 50~100 kg/h |
| compressed air | 0.35-0.6MPa |
| dimension | L*W*H=6500mm*2740*2250mm |
| total weight | 4.55T |
