Advanced SOUTH S86 OLED screen RTK GPS receiver rtk gnss receiver
- Category: >>>
- Supplier: Suzhou Super Gis Technology Co. Ltd.
Share on (60763421771):
Product Overview
Description
Product Description
KEY FEATURES
1.Outstanding Waterproof Capability
2.Extremely Rugged Housing
3.Advanced OLED Screen
4.Inbuilt Radio Transmitter
5.Inbuilt Double Batteries
6.Inbuilt GPRS/GSM Module
2.Extremely Rugged Housing
3.Advanced OLED Screen
4.Inbuilt Radio Transmitter
5.Inbuilt Double Batteries
6.Inbuilt GPRS/GSM Module

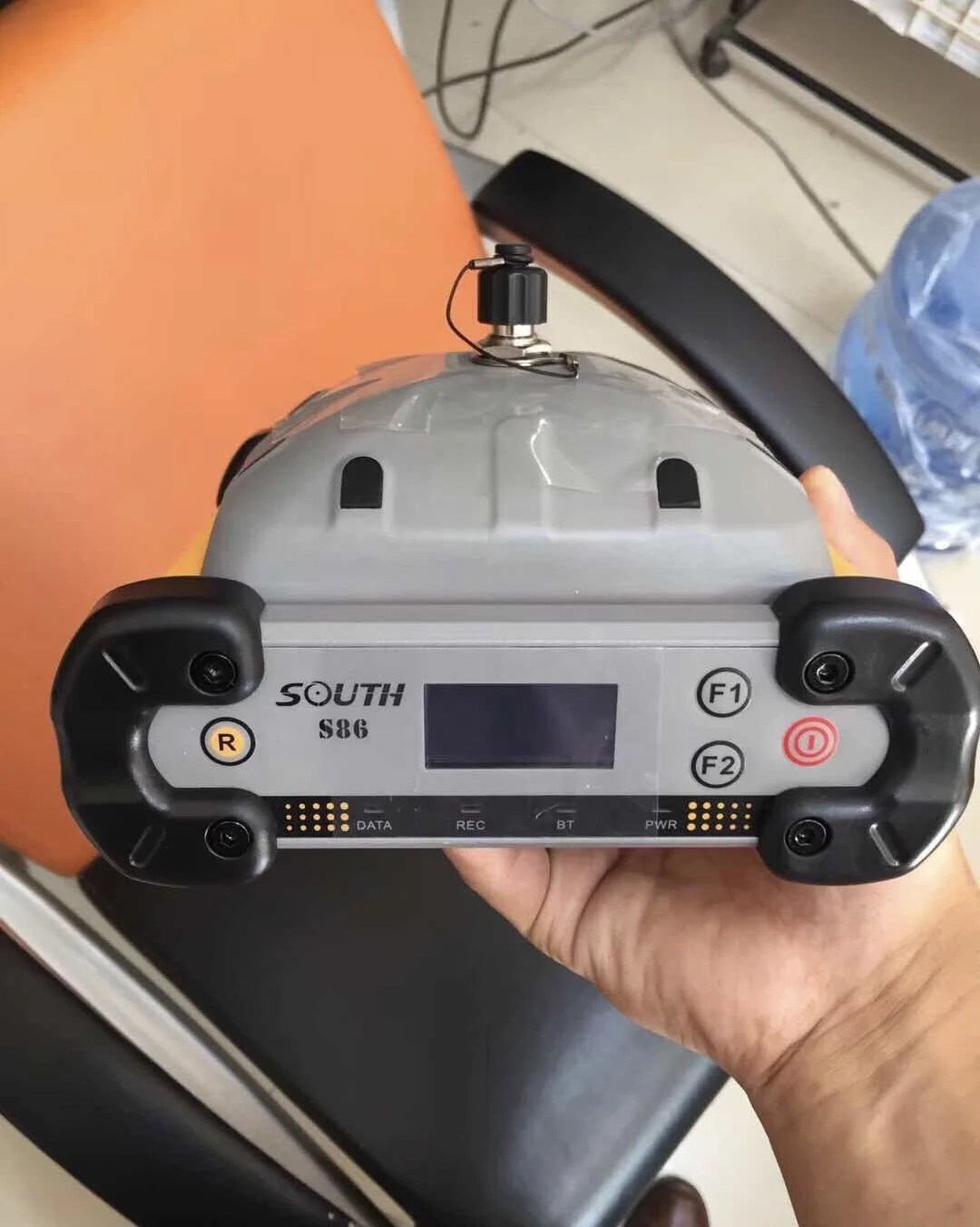

Upgraded from the LCD screen of the former model, this receiver is installed with a more attractive one, 1.54' OLED. Mode settings and status display are easily acknowledged from the screen, yet it features largely in high brightness and low power consumption,which is just tailored to the tough fieldwork.
The compact unit is built to IP67 standard and protected from long time immersion to depth of 1m. It's ideal to work in extremely tough conditions like heavy rain, or even dropping into water for long time.
This tough receiver, well edged with hard plastics, is designed to survive a 2.5m pole drop onto the concrete, ideal for working in severe condition.
With the outstanding built-in radio transmitter feature and interchangeability, base and rover can be switched very easily by just moving the tripod and controller or even preparing another set of tripod, carbon fiber pole and controller for fast and simple setup. It brings you more convenience that most of other regular RTK receivers cannot.
To maximize the working range, the base station is highly recommended to set up in an elevated area with little obstruction.
To maximize the working range, the base station is highly recommended to set up in an elevated area with little obstruction.
Specification
General Info |
220 channels, by advanced Pacific Crest Maxwell 6 Custom Survey GNSS technology |
High precision multiple correlator for GNSS pseudo range measurements |
Unfiltered, unsmoothed pseudo range measurements data for low noise, |
low mulipath error, low time domain correlation and high dynamic response |
Very low noise GNSS carrier phase measurements with 1mm precision in a 1Hz bandwidth |
Signal-to-Nosie ratios reported in dB-Hz |
Proven Pacific Crest low elevation tracking technology |
Satellite signals tracked simultaneously |
GPS: Simultaneous L1 C/A, L2E, L2C, L5 |
GLONASS: Simultaneous L1 C/A, L1 P, L2 C/A |
(GLONASS M Only), L2 P |
SBAS: Simultaneous L1 C/A, L5 |
Galileo: Simultaneous L1 BOC, E5A, E5B, E5AltBOC |
Compass: B1, B2 |
QZSS: L1 C/A, L1 SAIF, L2C, L5 |
Code differential GNSS positioning |
Horizontal: 25mm+1ppm RMS |
Vertical: 50mm+1ppm RMS |
SBAS differential positioning accuracy:typically<5m 3DRMS |
Static and FastStatic GNSS positioning |
Horizontal: 3mm+0.5ppm RMS |
Vertical: 5mm+0.5ppm RMS |
Realtime Kinematic surveying |
Horizontal: 8mm+1ppm RMS |
Vertical: 15mm+1ppm RMS |
Initialization time: typically <8s |
Initialization reliability: typically >99.9% |
Hardware |
Physical |
Dimension (LxWxH): 165mm x 168mm x 122mm |
(6.5in x 6.6in x 4.8in) |
Weight: 1.85kg (including inbuilt radio module and installed radio battery) |
Environmental |
Operating: -45°C ~ +60°C (-49F ~ +140F) |
Storage: -55°C ~ +85°C (-67F ~ +185F) |
Humidity: 100%, condensing |
Water/Dustproof: IP67 standard immersion to depth of maximum 1m(3.28f)and against blowing rain or blowing dust |
Shock and vibration: designed to survive a 2.5m (8.2ft) pole drop onto concrete |
Electrical |
Power 12-15V DC external power input |
Rechargeable,7.4V, 3000mAh Lithium-Ion battery units built in receiver |
Battery life: 20 hours for built in battery(varies with temperature and working mode) |
Communications and Data Storage |
Standard USB2.0 port |
RS-232 port: baud rates up to 115200 |
Stollmann's BlueMod+B20 inside for Bluetooth function |
Fully sealed and integrated 2.4GHz communication Bluetooth port |
UHF receiving antenna port |
Fully sealed and integrated radio receiver/transmitter:standard module: |
0.5-2w adjustment, 410-430/430-450/450-470MHz optional (default 0.5W,450-470MHz) |
UHF Range(varies with terrain/temperature):3-5km typical,8-10km optimal |
Mini GDL5 Radio(optional):2/5W |
UHF Range(varies with terrain/temperature):4-6km typical,8-10km optimal |
Standard GDL20(optional):25W |
UHF Range(varies with terrain/temperature):8-10km typical,15-20km optimal |
Fully sealed and integrated internal GPRS/GSM module |
External cellphone support for GPRS/GSM (2G default, |
3G optional)module for network RTK (CORS) operations |
Network RTK (via CORS) range:(varies with temperature/GPRS |
data rate):20-50km |
Data storage: internal flash memory 4GB (extendable up to 32GB) |
Recording Rate: 1Hz, 2Hz, 5Hz, 10Hz, 20Hz & up to 50HZ raw |
measurement&positioning outputs(depends on installed option, default 1Hz) |
Reference outputs: CMR, CMR+, RTCM 2.1, RTCM 2.2, RTCM 2.3,RTCM 3.0, RTCM 3.1 |
Operating System |
Windows Mobile 6.5 |
User Interface |
3.5in VGA (480x640 pixel) |
600 nits sunlight readable display |
Pressure sensitive touchscreen |
Nuance XT9 Soft input panel (SIP) |
Transcriber handwriting recognition |
Alpha/Numeric keypad |
Communications |
WLAN 802.11 b/g/n |
Bluetooth (v2.1+EDR Class 2) |
I/O Interfaces |
DC, USB OTG, RS232 |
Office docking port, FlexiConnTM port |
Power Management |
Battery : 3.7V, 5600mAh |
Li-lon battery pack |
Environmental |
MIL-STD 810G certified |
IP68 certified, drop resistant (26 drops from 6ft/1.82m) |
Tumble resistant (1000 cycles; 0.5m/1.6ft) |
Optional ATEX zone 2/22 |
Operating temperature: 22° F to 140° F (-30° C to 60° C) |
Storage temp temperature: 40° F to 158° F (-40° C to 70° C) |
95% RH, Non-condensing |
Physical |
Dimensions(LxWxH): 178mmx89mmx30mm (7inx3.5inx1.18in) |
Weight: 0.53kg |
