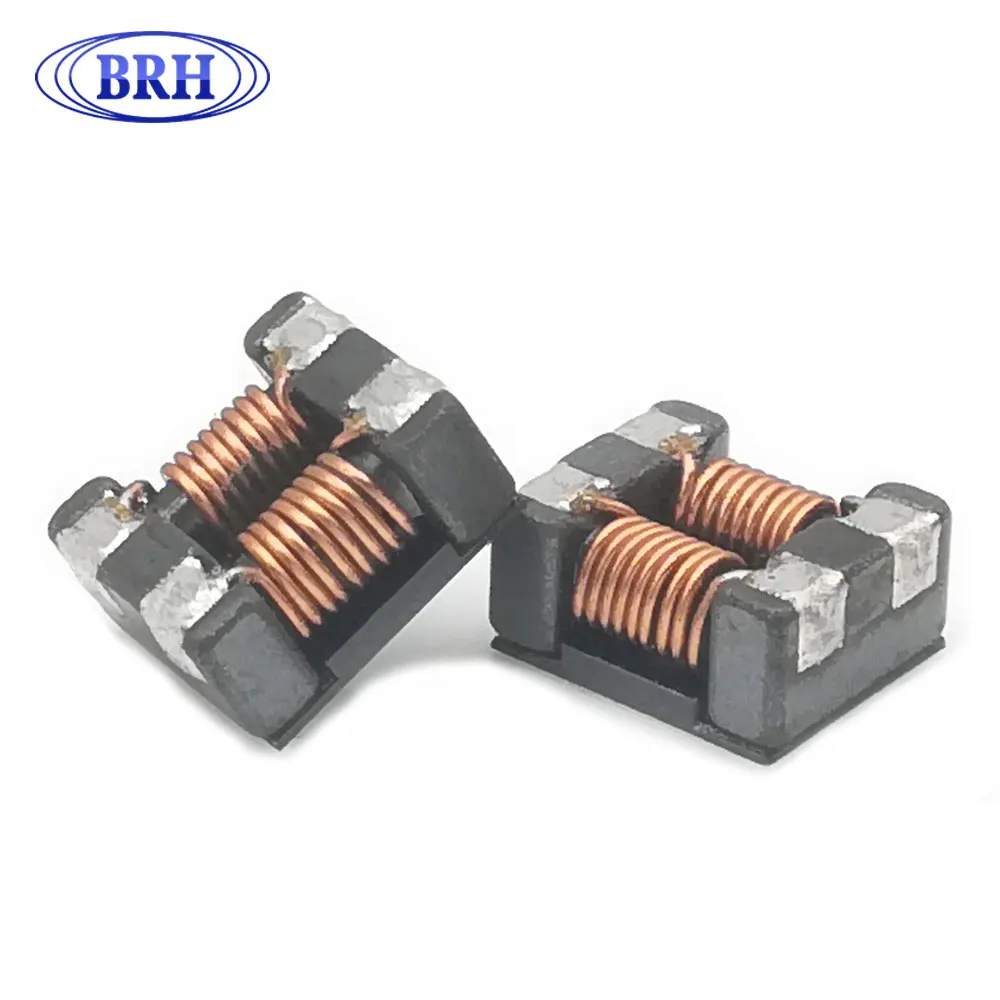

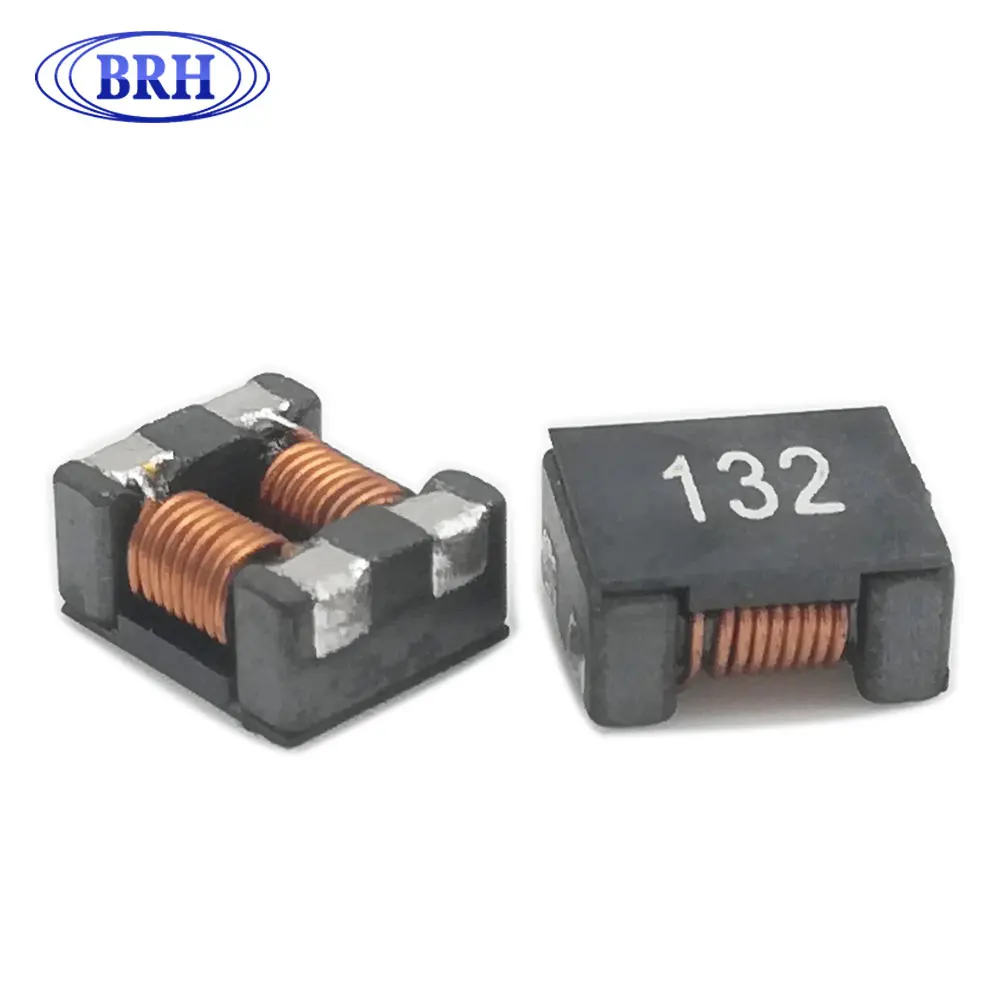

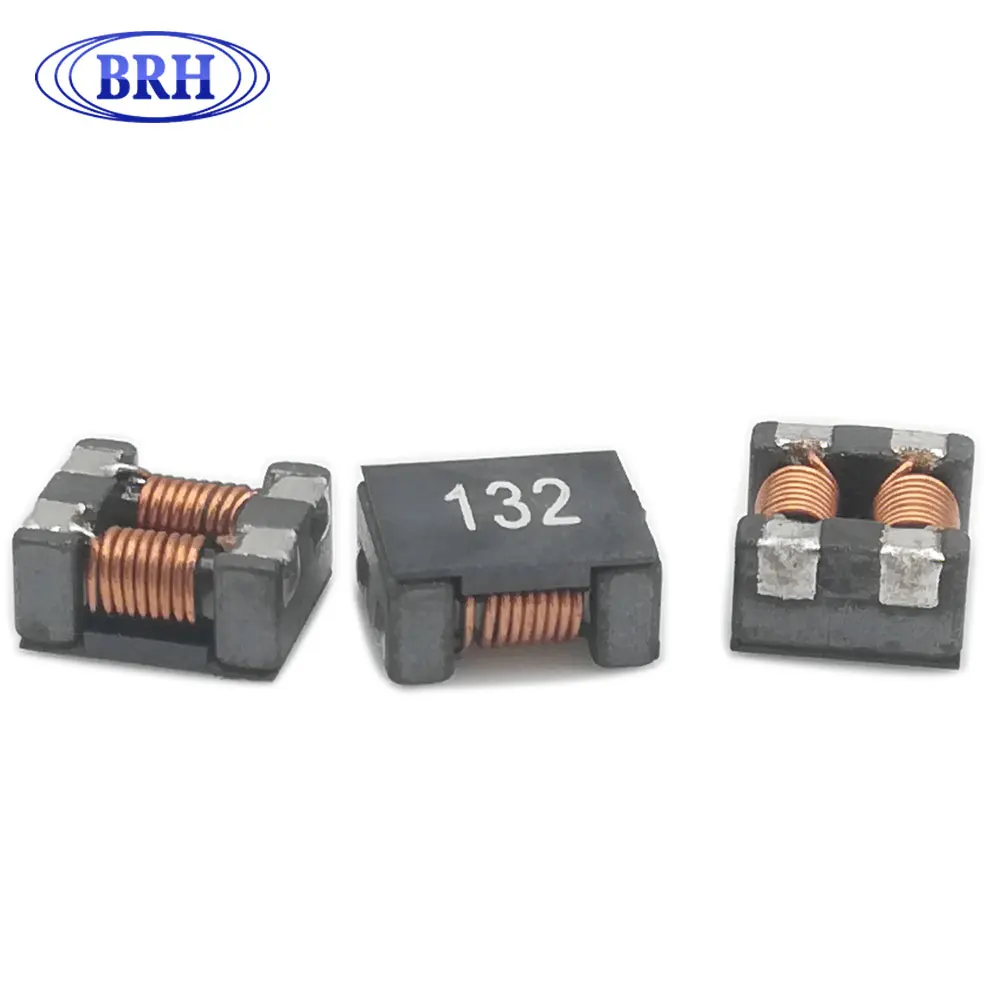

Wholesale high frequency smd common mode choke inductor
Wholesale high frequency smd common mode choke inductor
Wholesale high frequency smd common mode choke inductor
Wholesale high frequency smd common mode choke inductor
Wholesale high frequency smd common mode choke inductor

Wholesale high frequency smd common mode choke inductor

Share on (60763485191):


Price:RUB 76.52

Quantity:


Product Overview

Description

Description

MODEL

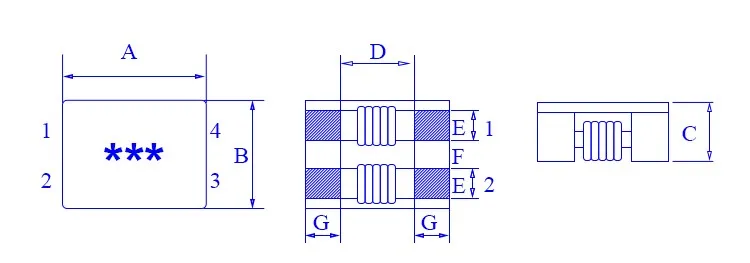

PRODUCT DIMENSIONS
A
B
C
D
E
F
G
BOK6E
7.0±0.5
6.0±0.5
3.8 MAX
3.5 Typ
1.5±0.2
1.5±0.2
1.75±0.2
BOK7A
9.0±0.5
7.0±0.5
4.8 MAX
5.7 Typ
1.5 Typ
2.0 Typ
1.7 Typ

SIZE CODE
（inch)

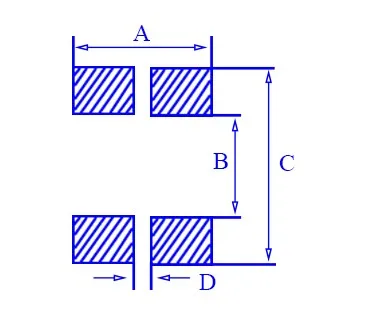

RECOMMENDED PATTERN
(mm)
A
B
C
D

BOK6E
4.5
Typ
4.0 Typ
9.0
Typ
1.5
Typ

BOK7A
5.0
Typ
5.0
Typ
11.0 Typ
1.5 Typ
Parameter
Detailed specifications and parameters are introduced

ORDERING CORE
Impedance(Ω)
AT 100MHZ
DC
Resistance
Rated
Voltage
Insulation Resistance
Rated
Current
Min
Typ
(Ω)MAX /1LINE
(V)MAX
(Ω)MIN
(mA)MAX
BOK6E-1A90T
100
140
0.010
80
0.01
9000
BOK6E-3A50T
225
300
0.010
80
0.01
5000
BOK6E-5A50T
275
350
0.010
80
0.01
5000
BOK6E-7A40T
500
700
0.015
80
0.01
4000
BOK6E-10A30T
800
1020
0.017
80
0.01
3000
BOK6E-13A25T
910
1300
0.021
80
0.01
2500
