Лидер продаж 2020, машина для экстракции конопляного масла сверхкритической co2

Share on (60763486780):


Price:22 500,00 $

Quantity:


Product Overview

Description



Machine Introdution

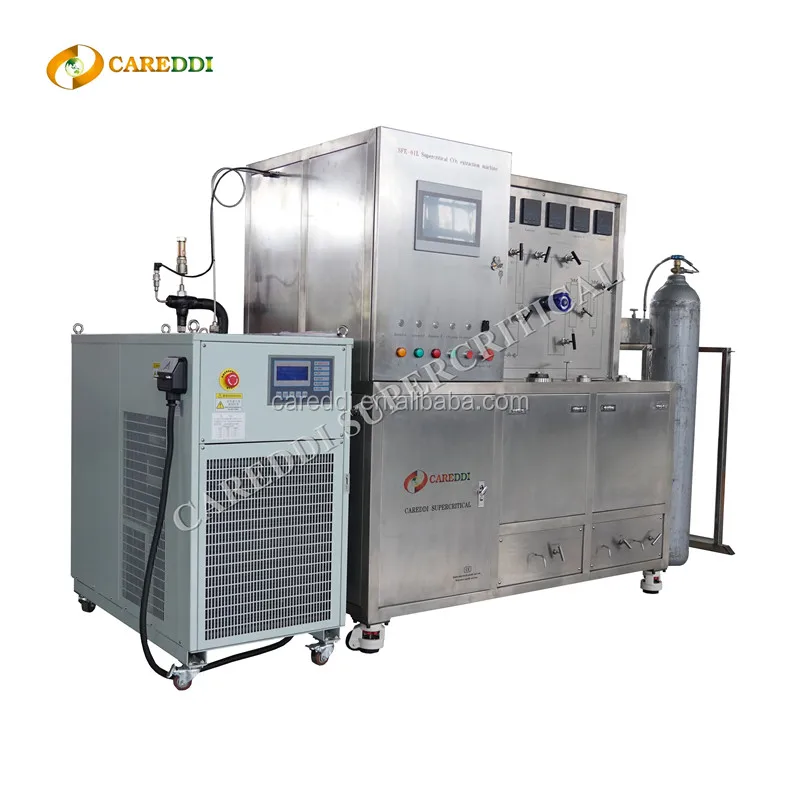

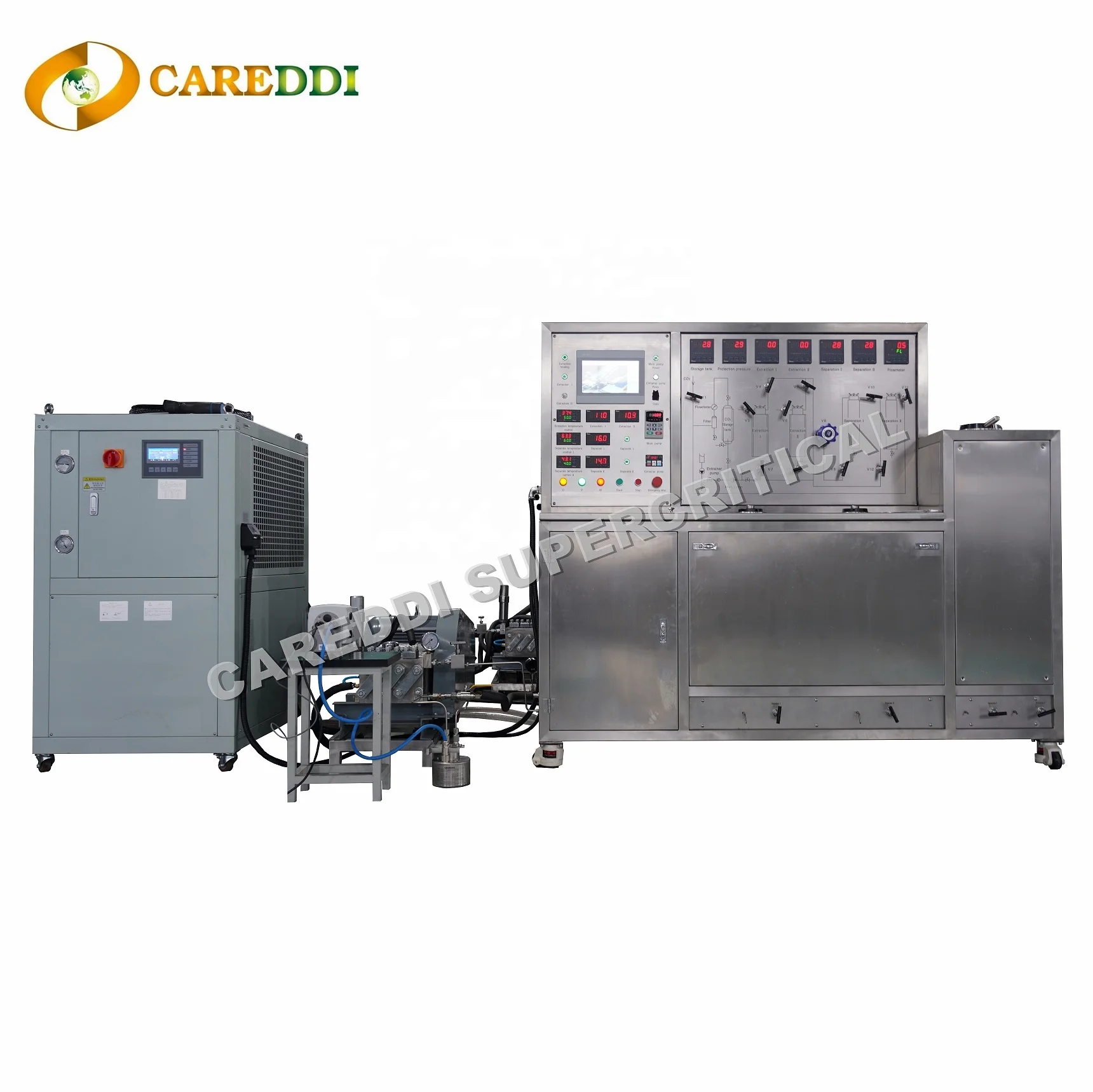

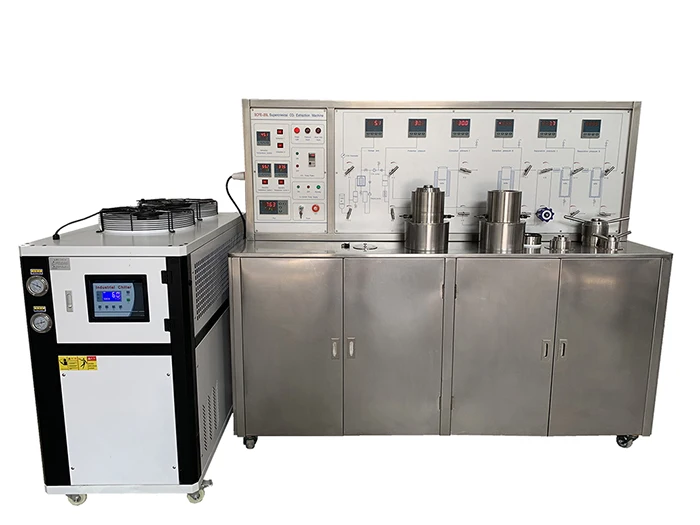

     Supercritical co2 extraction machine  is used under high pressure and suitable temperature suitable to extract valuable content from material (solid or liquid), it is to change the pressure and temperature conditions of the separator tanks to let the dissolved substances separated out to achieve the purpose of separation. The whole equipment beauty, safety and easy operation, pressure temperature flow number can be showed from pressure meter and digital instrument. The material of pipe parts, valves, pipe lines, are all stainless steel(0Cr18Ni9Ti).





Main Configuration


SIGN

MAIN CONFIGURATION

REMARK

1

Extraction Tank

Volume:10L+10L (2 tanks),Max working Pressure:40MPa

2

Separation Tank

Volume: 4Lx1+2Lx1,Max working Pressure:30MPa

3

Pump

CO2 high-pressure pump,Co-solvent pump

4

Cooling System

Temperature range:-5℃~+5℃

5

Heating Exchange System

Max working Pressure:50MPa

6

Purification System

Max working Pressure:50MPa

7

CO2 Storage Tank

Max working Pressure:16MPa

8

Flowrate Meter

Model:Metal tube float (6.3-63L/H)

9

Temperature Control System

Temperature Range: Room temperature~75℃


10


Safety Devices

Pressure gauge at high pressure pump outlet,overpressureprotection

The extractor, separator, evaporator, dry purifier and mixer have safety valve to keep safe of system.


11


User-supplied

Installation dimension: 2500×2500×1600mm

CO2: Food grade≥99.5%, single bottle net weight ≥22Kg

Power:3 phase



Standard Models


Model No.
Volume & Pressure
Extractors and separators
1
SCFE-01
1L/50Mpa
1 Extraction 2 Separation
2
SCFE-02
2L/50Mpa
1 Extraction 2 Separation
3
SCFE-05
5L/50Mpa
1 Extraction 2 Separation
4
SCFE-06
(5+1)L/50Mpa
2 Extraction 2 Separation
5
SCFE-10
10L/40Mpa
1 Extraction 2 Separation
6
SCFE-10
5Lx2/50Mpa
2 Extraction 2 Separation
7
SCFE-20
10Lx2/40Mpa
2 Extraction 2 Separation
8
SCFE-48
24Lx2/40Mpa
2 Extraction 2 Separation
9
SCFE-96
24lx4/40Mpa
4 Extraction 2 Separation
10
SCFE-120
30Lx4/40Mpa
4 Extraction 2 Separation
11
SCFE-180
30Lx6/40Mpa
6 Extraction 2 Separation
12
SCFE-180
30Lx6/40Mpa
6 Extraction 3 Separation
13
SCFE-200
50Lx4/40Mpa
4 Extraction 2 Separation
14
SCFE-300
50LX6/40Mpa
6 Extraction 2 Separation
15
SCFE-300
50Lx6/40Mpa
6 Extraction 3 Separation
16
SCFE-100Lx3
100Lx3/35Mpa
3 Extraction 2 Separation
17
SCFE-200Lx3
200Lx3/35Mpa
3 Extraction 2 Separation
18
SCFE-400Lx3
400Lx3/35Mpa
3 Extraction 2 Separation
19
SCFE-600Lx3
600Lx3/35Mpa
3 Extraction 2 Separation
20
SCFE-1000Lx3
1000Lx3/35Mpa
3 Extraction 2 Separation
21
SCFE-1500Lx3
1500Lx3/35Mpa
3 Extraction 2 Separation


Characteristics


 Supercritical co2 extraction machine:

Low Critical temperature suitable for extraction and purification of heat sensitive compound.

★ Being capable to provide inert environment to avoid oxidation of products and affection of effective content of extracts.

★ Fast extraction speed, no toxicity, non-flammable, safe application and no pollution upon environment.

★ No residue of solvent, no nitrate and ions of heavy metal.





Material


Some Utilized Resources

supercritical co2 extraction machine:Sea buckthorn fruit oil ,grape seed oil oidiophore oil of glossy ganoderma ,fish oil,arteanuin ,netmeg oil,menthence,mother chrysanthemum oil, curcuma oil pigment, lycopin, cortex magnoliae officinalis extract, olibanum extract,Gingerol, pepper haematochrome ,dried tiny shrimp ,haematochrome, Zanthoxylum oil,garlic oil ,tobacco leaves essence oil.





Packing & Delivery


Size:1.35*1.25*1.65m       Weight:1.3T

         2.08*0.95*2.0m         Delivery:50days

The normal package is wooden box (size:L*W*H)



Our Service






Pre-Sales Service

Pre-Sales Service

❤ Inquiry and consulting support.

❤ Sample testing support.

❤View our Factory.

❤Training how to instal the machine, training how to use the machine.

❤ Engineers available to service machinery overseas.
