3.0W 2BB mono solar cell 5x5

Share on (60763494979):


Price:RUB 5,314.39

Quantity:


Product Overview

Description

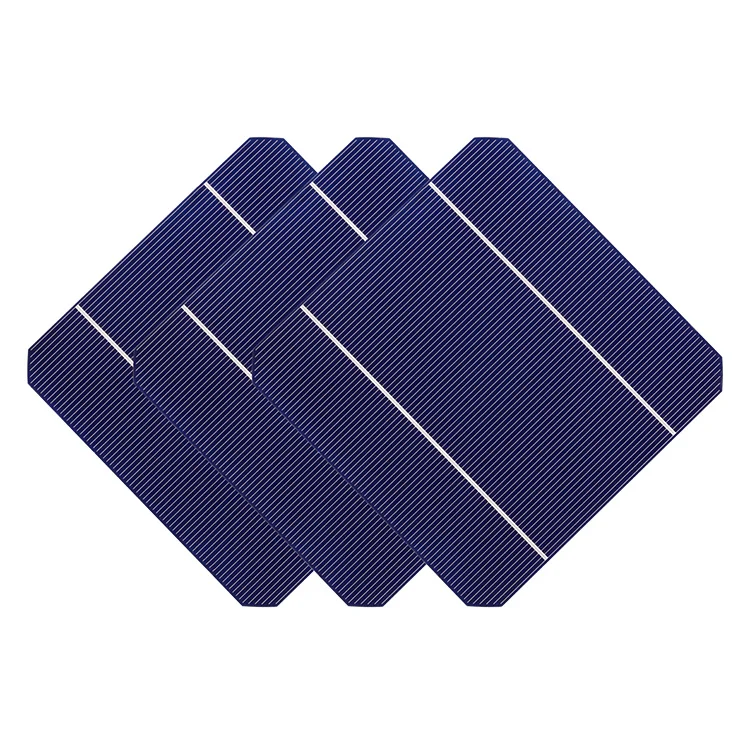

3.0W 2BB mono solar cell 5x5



 Physical Characteristics



Item3.0W 2BB mono solar cell 5x5
Materialmonocrystalline silicon
Dimension125mmx125mm±0.25mm
Diagonal/
Thickness(Si)

200±20 μm/180±20μm

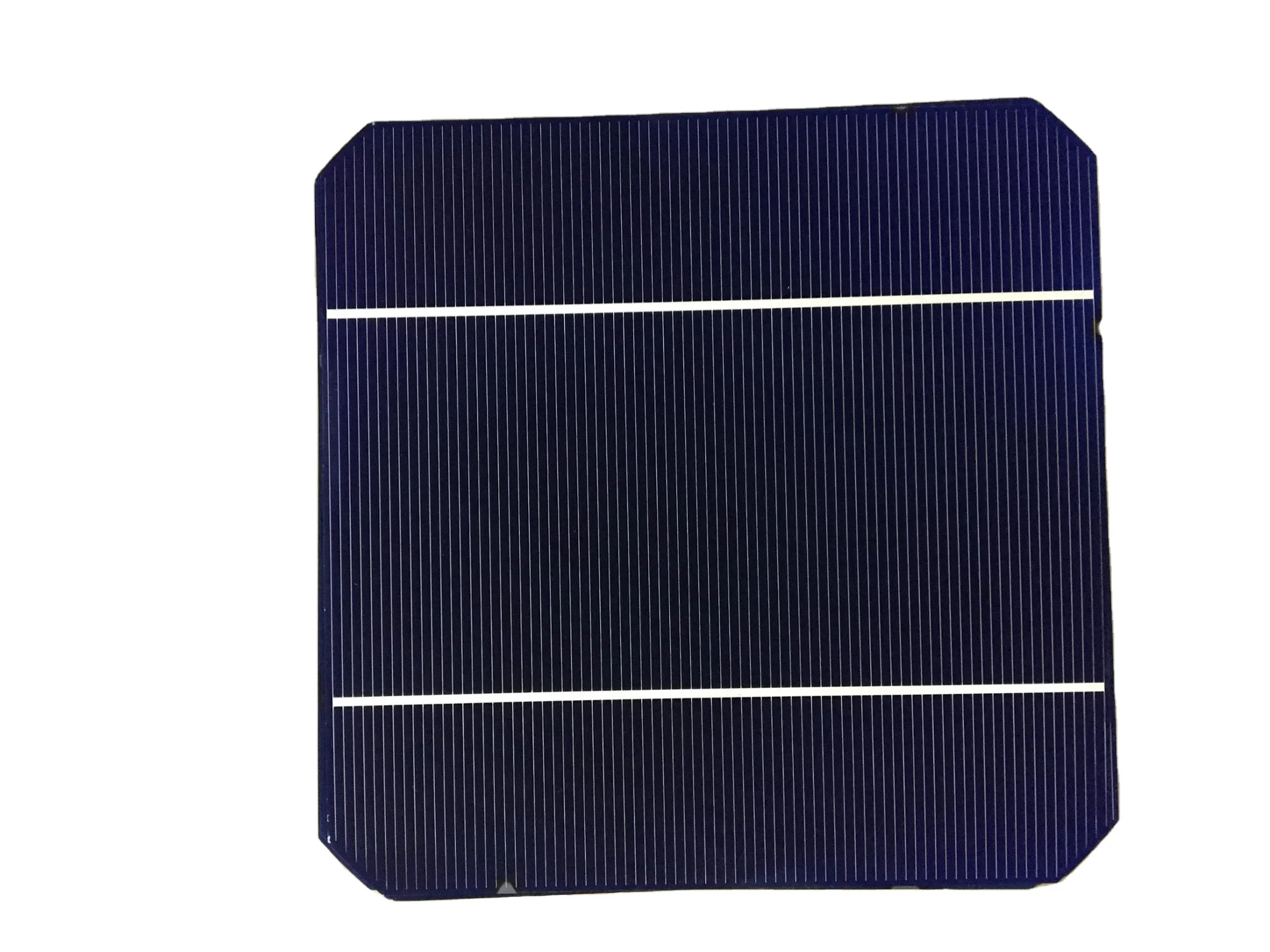

Front(-)

Blue anti-reflecting coating (silicon nitride)

1.4mm wide bus bars

Distance between bus bars: 52mm

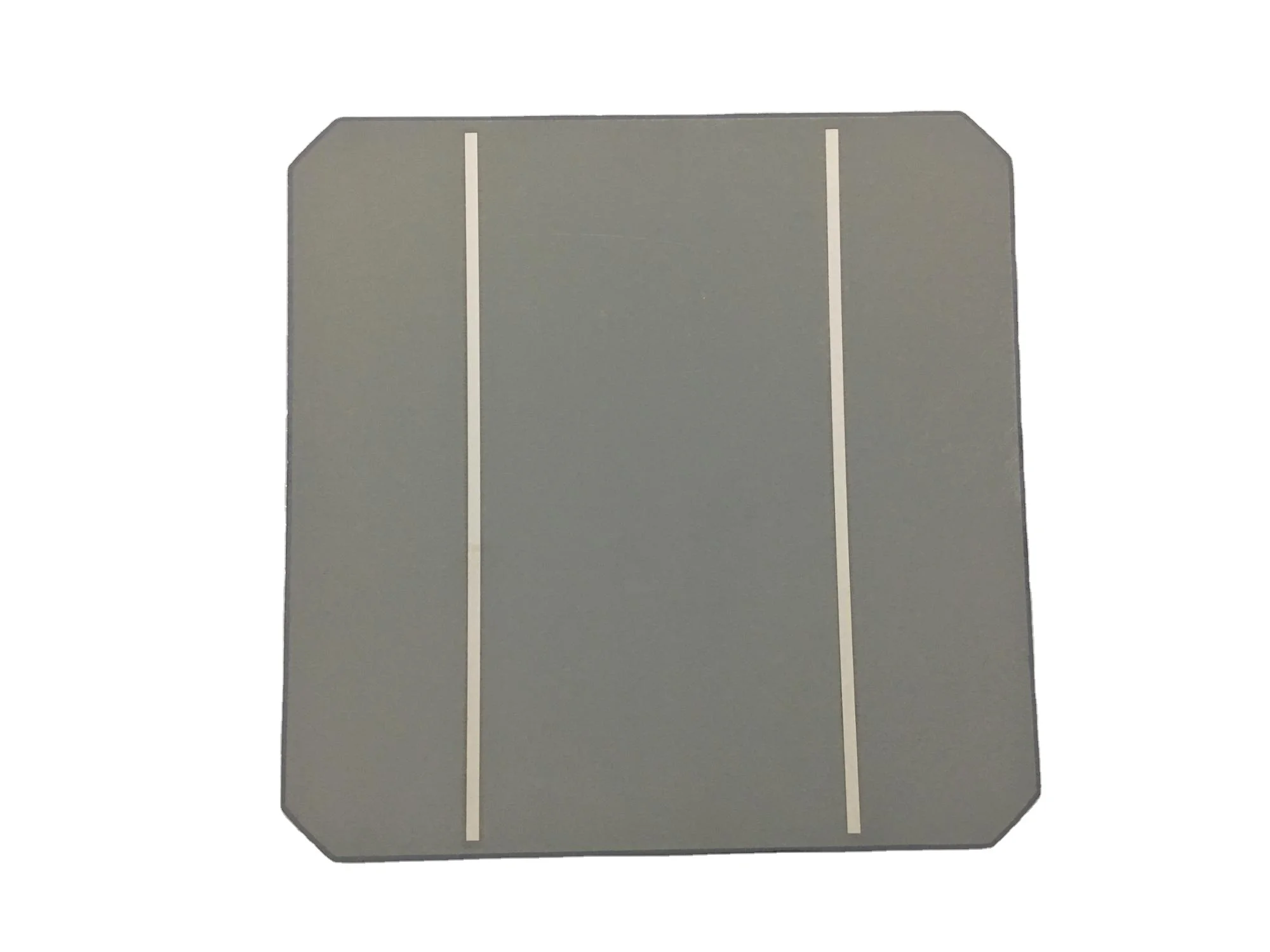

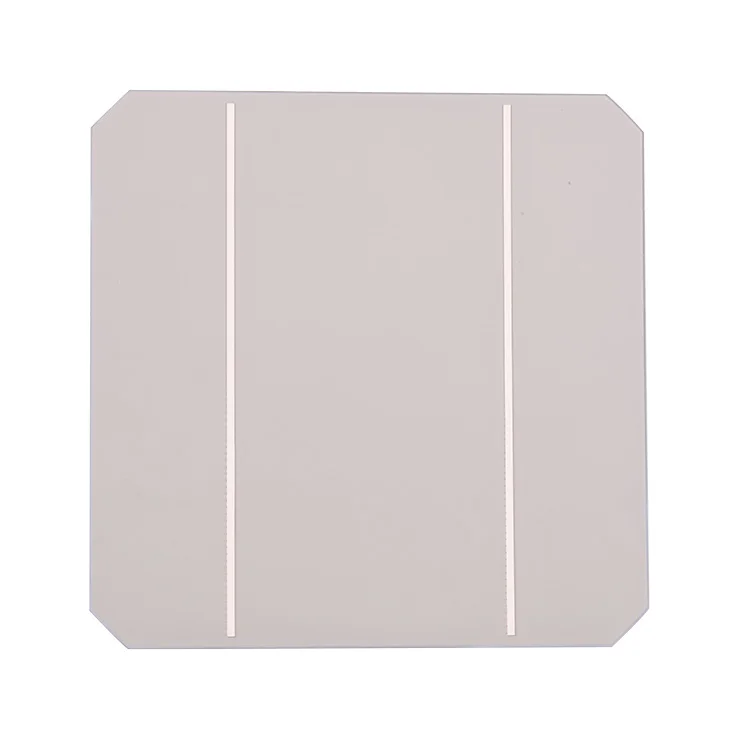

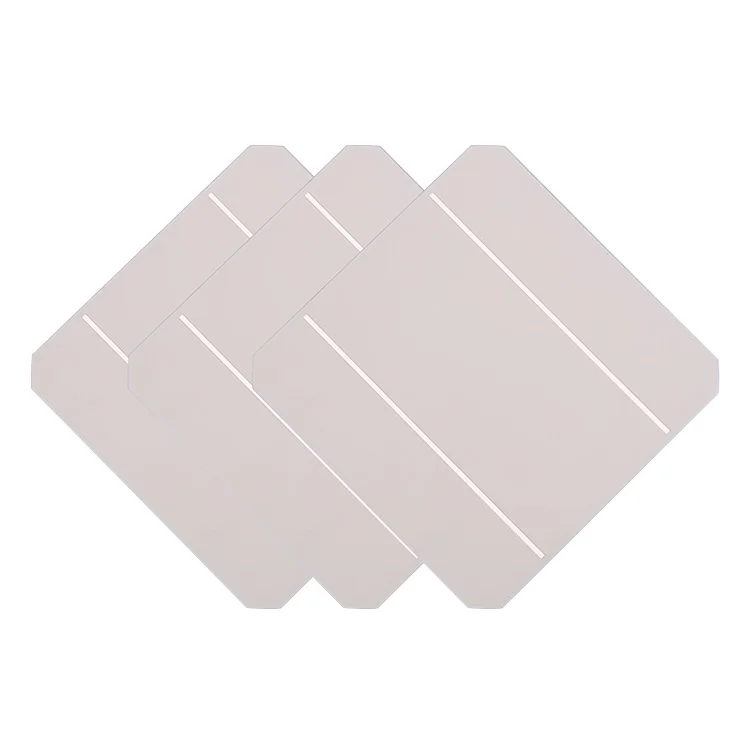

Back(+)

Aluminum back surface field

2.0mm wide soldering pads

Distance between bus bars: 52mm





 Electrical Characteristics





Efficiency code1740176017801800182018401860188019001920
Efficiency(%)17.417.617.818.018.218.418.618.819.019.2
Pmax(W)2.6942.7252.7562.7872.8182.8492.8802.9112.9422.973
Vmp(V)0.5240.5260.5280.5300.5310.5320.5330.5340.5350.536
Imp(A)5.1505.1805.2205.2805.3005.3405.3605.4205.4805.520
Voc(V)0.6180.6210.6230.6250.6270.6280.6290.6300.6310.632
Isc(A05.4595.4915.5335.5975.6185.6605.6825.7455.809

5.851

 Data under standard testing conditions(STC): 1,000W/ m2 AM1.5, 25℃, eff. tolerance : average + 0.3%/-0.1% absolute.





 Production Process





 Packaging and Shipping
 Solar

3.0W 2BB mono solar cell 5x5



3.0W 2BB mono solar cell 5x5

Cell Sho
 Our Services




Quick Response
1. Any time and anywhere, reply clients' email and solve all problems happen in the work  at the first time.
2. Remove clients doubts and offer the best solution at the first time.
 3. Give our clients the lastest news of the photovoltaic, update the newest stock informtion.
4. Precision cell efficiency sorting procedures
5. Stringent criteria for color uniformity and appearance
6. Reverse current and shunt resistance screening
7. We always giving our clients the most economical and fastest deliery method.
8. No matter the Air transportation / Ocean shipping /  Internation express, our professional logistic team will ensure cargo transportation Safe and High efficiency
Payment Terms
We can accept payment by T/T, LC, Paypal, Western Union and Trade Assurance in Alibaba.

Company Information



Shenzhen Taihesheng Solar Energy Co.,Ltd is a professional manufacturer & exporter which is concerned with the design, production,and marketing. our manufacturer covers an area of 8000m2 as a high-tech environmental friendly enterprise,which was established in 2009 and specialized in solar industry for providing solar cells ,solar modules , solar panels and solar charger etc application products.

Under strict quality control system. Our products include: 125mm mono solar cell and 156mm poly & mono solar cell,0.1W-300W mono-crystalline and poly-crystalline silicon solar panel.our products approved CE, ISO, RoHS,IEC, TUV,UL certificates, Which are widely exported to Europe,America, Africa, Asia and Middle east countries, we gainded more and more higher reputation from our clients.We also offer OEM,ODM,OBM service as per customer requirement and aim at making a greater contribution to the usage of solar energy in the world.
