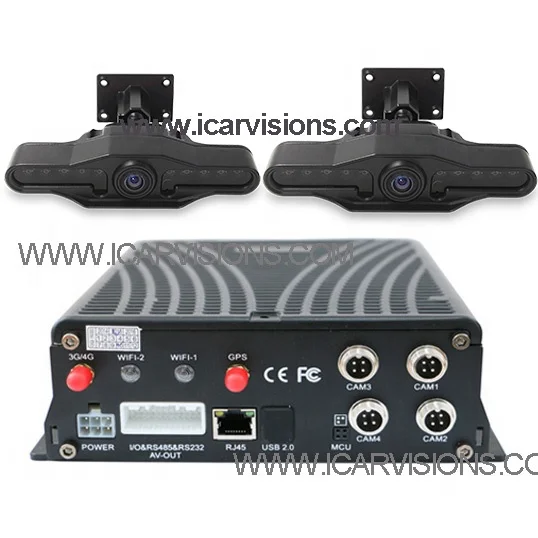

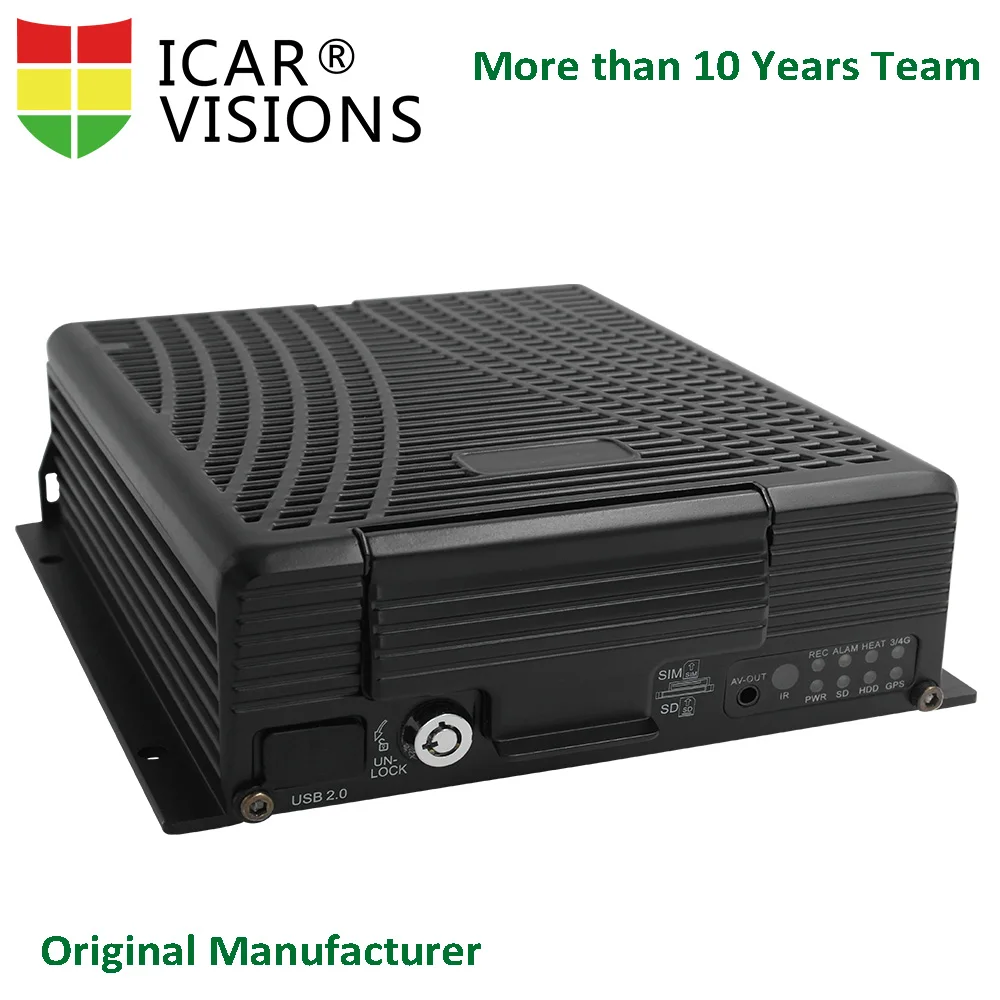

ICARvisions OEM manufacturer 1080P 4G WiFi mobile DVR system H264 CMS free software without license

★4 x 720P AHD / 960H / D1 / HD1 / CIF + 1 x IPC (720P / 1080P) , support 960P AHD camera
★ Built-in 1 x POE(12V) Ethernet Port
★ accept HDD/SSD up to 2 TB Storage, and 1 SD card (up to 128GB) for backup(at 3G/4G/Wi-Fi model option)
★ Internal G-Sensor, with GPS, 4G FDD and Wi-Fi (5.8 Ghz)
★ 2 WIFI Antennas (download speed up to 3Mb/s)
★ Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard)
★ Hard drive automatic heating startup in cold weather
★ On board UPS 8 seconds delay power-off for data protection
★ Operating temperature -40℃ ~ +80℃
★ 8V-36V wide voltage power supply

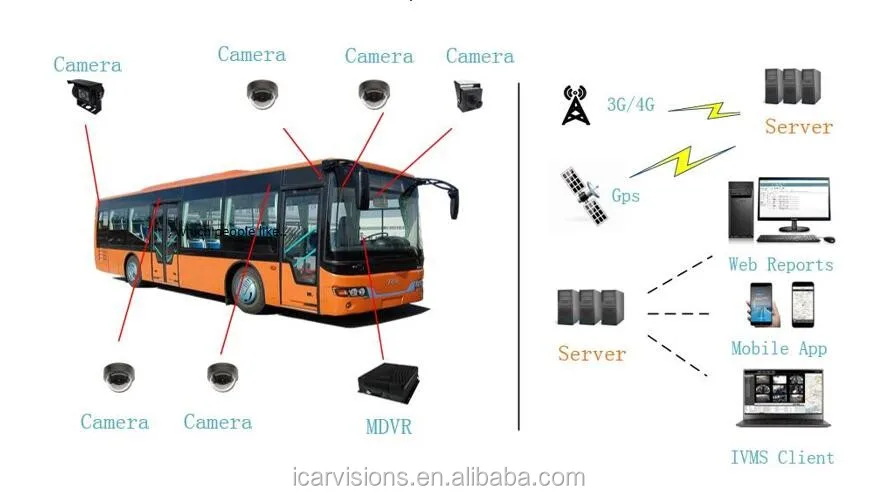

Our Mobile DVR with 3G / 4G, GPS, WiFi modules optional, according to different demands.
GPS: For map, location and route tracking
3G / 4G: For real-time video and monitoring
Wi-Fi: For automatically downloading video file

JH4-HD series model names:

Function		JH4-HD
System	Language	English / Chinese
	Operation Interface	Graphical User Interface (OSD menu)
	Password Security	2 Levels: Administrator & User
Video	Video Input	Supports 4 channels CIF/HD1/D1/960H/720P AHD camera Video input Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input Supports 1-CH 720P/1080P IPC + 4-CH 720P AHD/960H/D1/CIF Video input
	Video Output	2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port)
	Video Display	Single picture, 1~5 pictures
	Signal System	PAL / NTSC ( PAL@100 frame 720P/sec; NTSC@120 frame 720P/sec )
	Image Compression	H.264 Main profile
Audio	Audio Input	4 Channels
	Audio Output	2 Channels (Front Panel 3.5mm Jack, 1 in the 24pin connector)
	Record Format	Synchronized A/V recording
Recording & Storage	Image Resolution	CIF / HD1 / D1 / 960H / 720P /1080Poptions
	Video Coding	ISO14496-10 Industry Standard
	Video Bit Rate	CIF: 1536Kbps ~ 128Kbps,
		HD1/D1: 2048Kbps ~ 400Kbps,
		960H: 2048Kbps ~ 400Kbps,
		720P:4096Kbps ~ 400Kbps
		1080P:4096Kbps ~ 400Kbps
		Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)
	Audio Bit Rate	40Kbps
	Storage	Up to 2TB HDD/SSD and 1 SD card for backup(at 3G/4G/WIFI model option)
Alarm	Alarm Input	8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC
	Alarm Output	1 Channel, 12V output

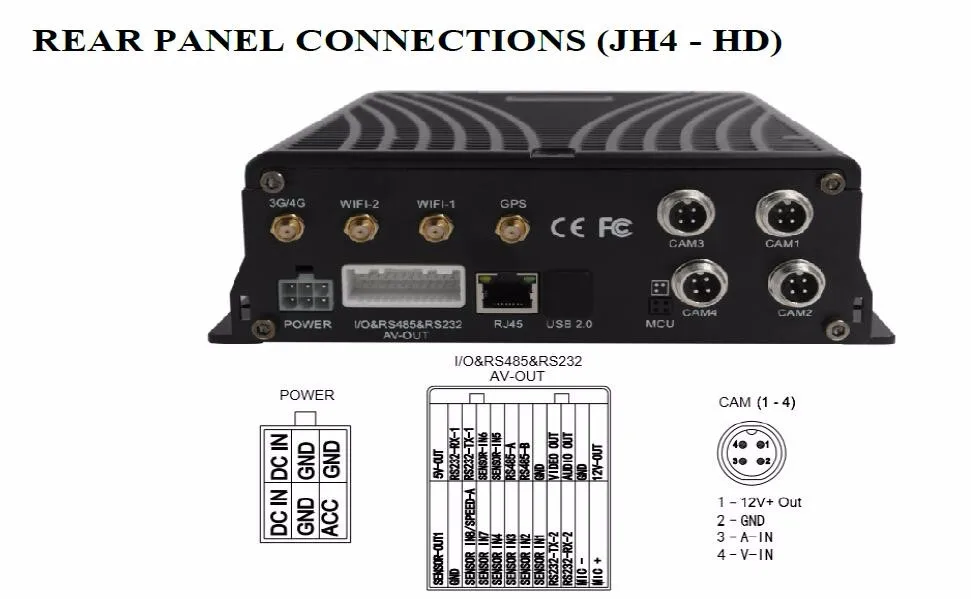

Communication Ports	RS485	1 Port for PTZ control or Data Device usage
	RS232	2 Port for communication or data usage
	RJ45 Network	1 Ports of RJ45, For connection to an IP camera with maximum of 1080P
	USB	2 Ports for USB 2.0, the front panel one to download video files & upgrade firmware; the rear panel one is optional.
Wireless Communication*	3G*	3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module
	4G*	4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier
	Wi-Fi*	Internal Wi-Fi 802.11b/g/n ( 2.4 / 5.8 Ghz) optional
GPS	Int'l Standard GPS*	Internal GPS module. Real-time geographic coordinates, speed information
G-Sensor	Internal G-Sensor	Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates
Software	PC Playback	A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
	IVMS	Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc.
Software Upgrade	Local or Remotely	Upgrade through the front USB2.0 or remotely via IVMS platform
Voltage Input	+8~+36V	8~36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage
Voltage Output	12V	12V(+/-0.2V),Max 3A
ACC Detection	≤4V	Power Off
	≥6V	Power On
Video Input Resistance	75Ω	75Ω
Video Output Voltage	2Vp-p	2VP-P CVBS output analog signal, screen input requires 75Ω resistance
I / O port	<1V	Low voltage trigger
	>5V	High voltage trigger
Operation Temperature	-40℃~80℃	Install in well ventilated area, protected from moisture, heat, dust and vibration
Dimensions	192x184x61mm	Including Security Cover 248x184x61mm

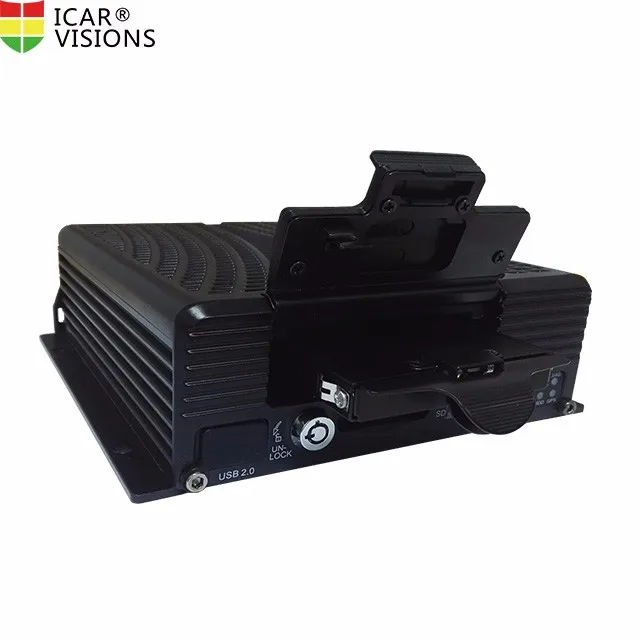

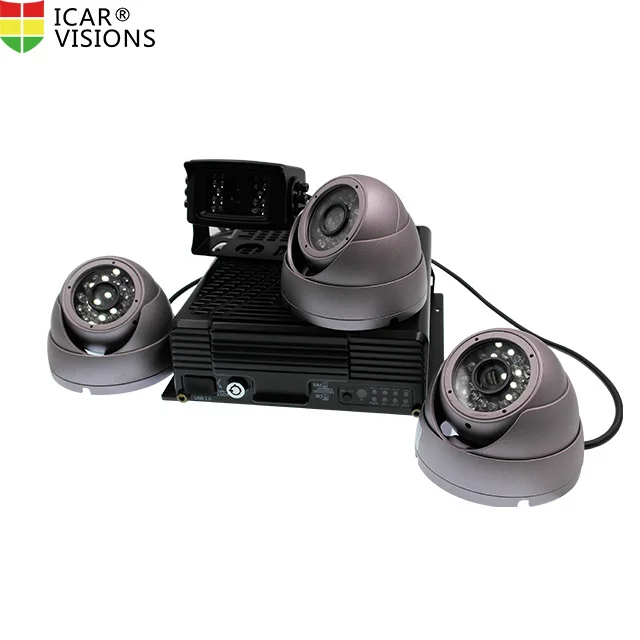

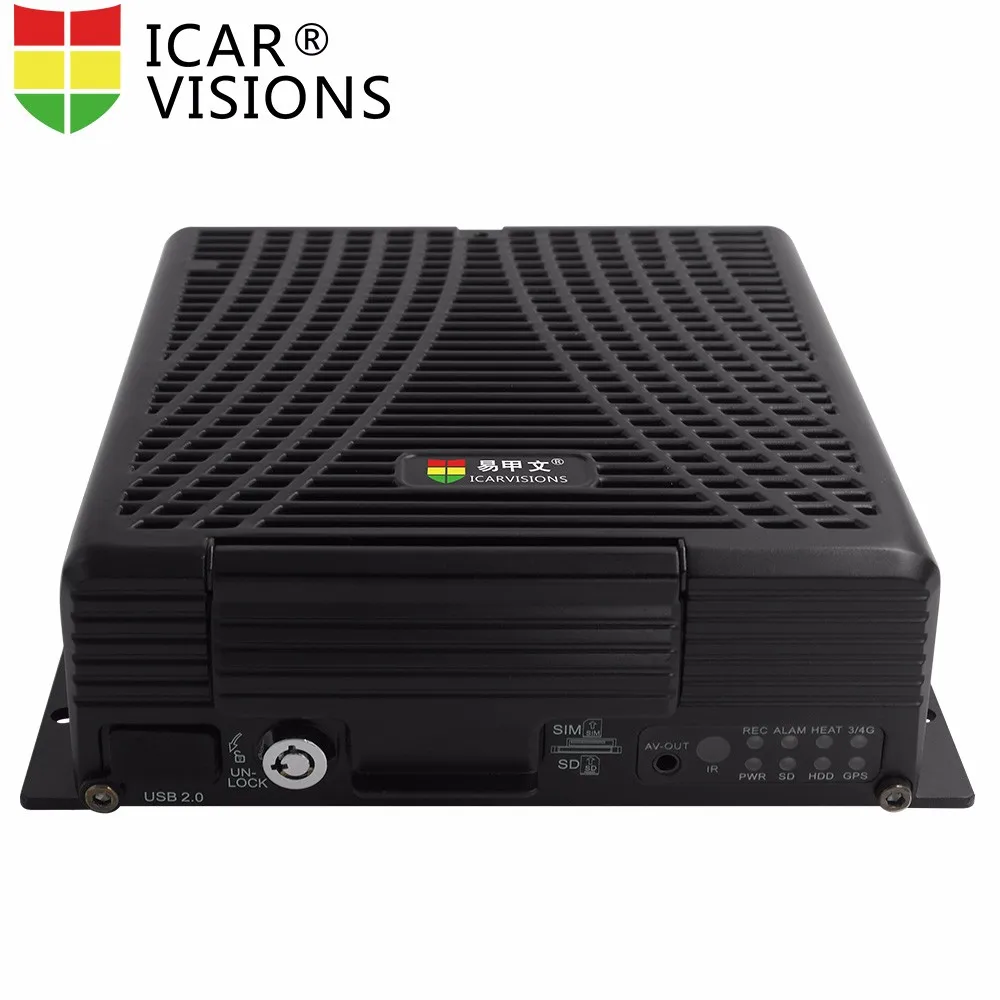

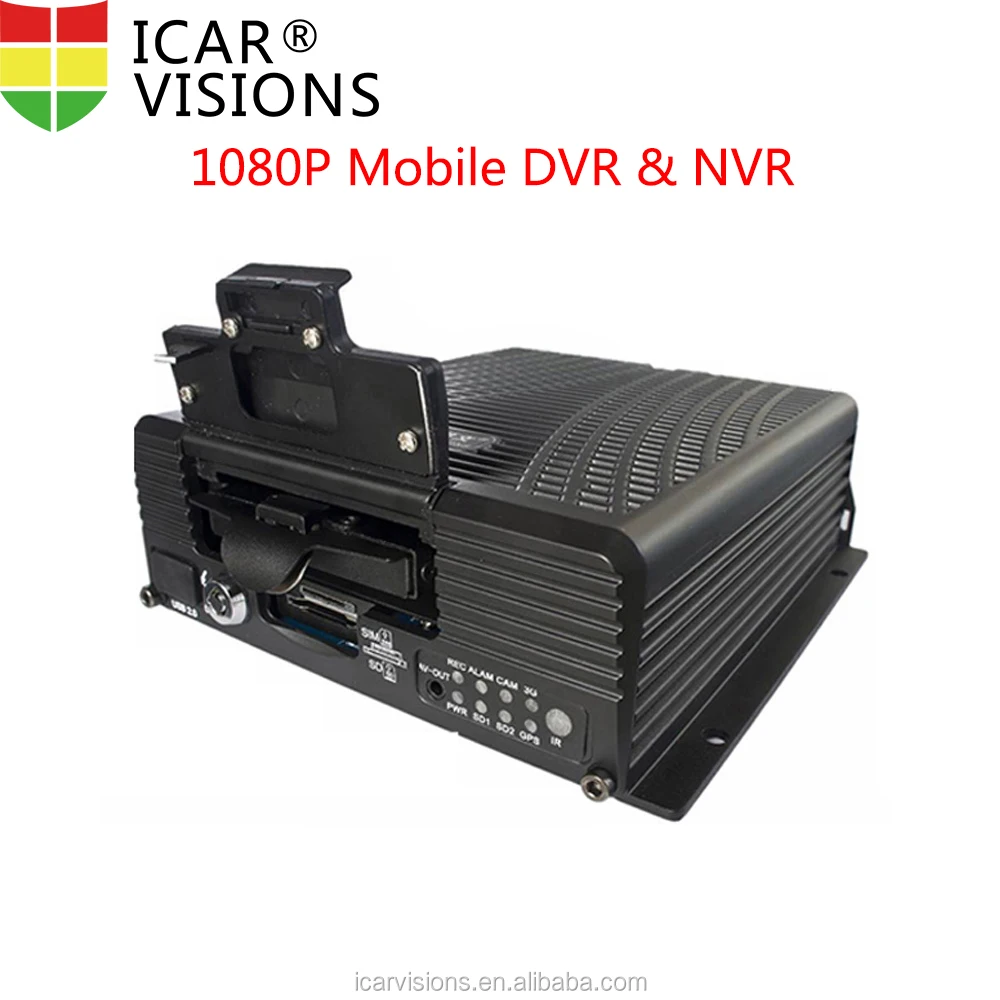

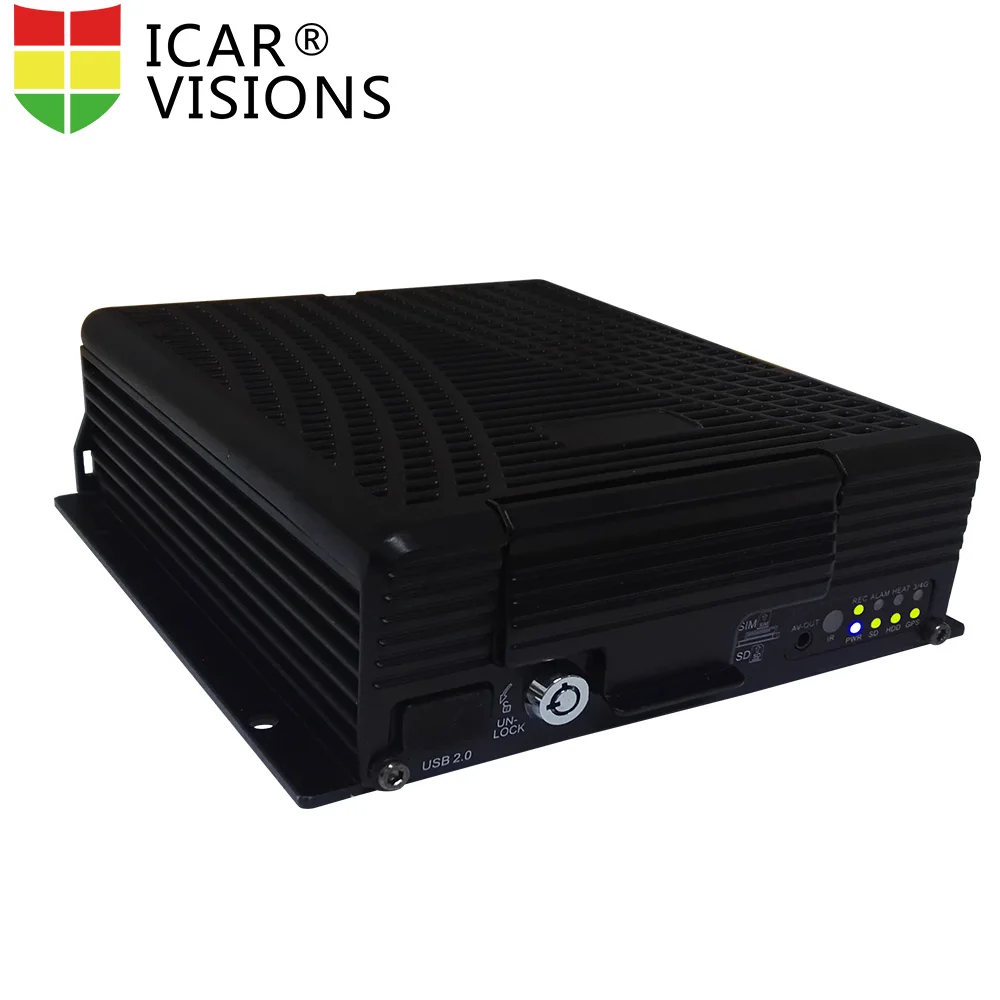

Detailed Images

Related Products

Customized IVMS Server,Client and APP are all available,which developped by ourselves.

ICARvisions is a solutions based, global leader specializing in vehicle related hardware and software design, manufacture and deployment of Mobile Digital Video Recorders (MDVR), Mobile Network Video Recorders (MNVR) and Sensors, Cameras, Cables, and Accessories.And we have a strong RnD team so we have developped our own server and software for any OEM & ODM projects.

All software and technical support service are free!!!

Mobile DVR Compatible Sensors:

Temperature sensor;

RFID System;

Fireproof Blackbox;

Driver Panic Button;

Press to Talk

Passenger Counter ;

UPS

Advanced ADAS and DSM
