hot sale 2.5 inch commercial ro membrane 2521 reverse osmosis RO membrane
- Category: >>>
- Supplier: China Frotec Environmental Co. Ltd.
Share on (60763504164):
Product Overview
Description
hot sale 2.5 inch commercial ro membrane 2521 reverse osmosis RO membrane
♦ Part one: Frotec RO Membrane Description
1.Brief introduction and Technical Specification
Frotec Membrane ULP (Ultra Low Pressure) series are the ultra low-pressure aromatic composite membrane elements, applicable to desalination of surface water and underground water. It can work under ultra low pressure to reach as high permeate flow and salt rejection as regualr low-pressure composite membrane, and achieves a salt rejection rate of up to 99.5%, which can decrease the investment costs for such relevant facilities as pump, piping, and container etc. and operating cost for the RO system, thus increasing the economic efficiency.
Working under the conditions of ultra low operating pressure, ULP membrane series can achieve as high permeated flow and rejection rate as regular low-pressure membranes can, it rus under approximately two thirds pressure of that regular low pressure compound membranes, and can achieve a rejection rate of as high as 98%.
| Model | 2521 | 2540 | 4021 | |
| Perfor-mance | Stable Desalination % | 98 | 98 | 98 |
| Min. Desalination % | 97 | 97 | 97 | |
| Mean Permeable Flow GDP (L/d) | 380(1300) | 780(2800) | 1000(3400) | |
| Active Film Area ft2(m2) | 13 (1.2) | 28 (2.6) | 36 (3.3) | |
| Test Conditions | Pressure | 100psi (0.7Mpa) | ||
| Water Temp. | 25℃ | |||
| Concentration(NaCl) | 2000ppm | |||
| Water PH | 6.5 to 7.5 | |||
| Recovery Rate % | 15 | |||
| Operating Conditions | Max. Operating Pressure | 600psi (4.2Mpa) | ||
| Max. Feed Water Temp. | 45℃ | |||
| Max. Feed Water Silt Density Index (SDI) | 5 | |||
| Feed Water Chlorine Tolerance | < 0.1ppm | |||
| Feed Water PH Range, Continuous Operation | 3 to 10 | |||
| Feed Water PH Range, Short-Term Cleaning | 2 to 12 | |||
| Max. Pressure Drop of Single Membrane | 15psi (0.1Mpa) | |||
Industrial RO Elements -- 4040
4-inch membrane specifications
Model No. | BW-4040 | ULPH-4040 | ULPD-4040 | ULP31-4040 | |
Performance | Desalinization rate % | 99.5 | 99.3 | 99.1 | 99.5 |
Permeate Flow GPD (m^3/d) | 1900(7.2) | 1900(7.2) | 2000(7.7) | 2000(7.7) | |
Effective membrane area ft^2(m^2) | 106(9.9) | 106(9.9) | 106(9.9) | 113(10.5) | |
Feed water TDS less than ppm (mg/l) | 6000 | 3000 | 3000 | 3000 | |
Test condition | Test pressure | 225psi (1.55MPa) | 150psi(1.03Mpa) | ||
Test fluid temperature | 25°C | ||||
Test fluid density (NaCl) | 1500ppm | ||||
Test fluid ph. | 7.5 | ||||
Single RO membrane element recovery rate | 15% | ||||
Operating conditions | Max operating pressure psi (MPa) | 600(4.14) | 600(4.14) | 600(4.14) | 600(4.14) |
Suggested operating pressure psi (MPa) | 225(1.55) | 150(1.05) | 150(1.05) | 150(1.05) | |
The maximum water supply temperature | 45°C | ||||
The maximum water supply SDI | < 5 | ||||
free chlorine concentration in water supply | <0.1ppm | ||||
Water supply pH scope when continuous running | 3~10 | ||||
Water supply pH scope when chemical cleaning | 2~12 | ||||
The maximum pressure drop of single RO membrane element | 10psi(0.07Mpa) | ||||
Industrial RO Elements -- 8040
8-inch membrane specifications
Model No. | BW-8040 | ULP-8040 | |
Performance | Desalinization rate % | 99.5 | 99.3 |
Permeate Flow GPD (m^3/d) | 10500(40) | 12000(45) | |
Effective membrane area ft^2(m^2) | 400(37) | 400(37) | |
Feed water TDS less than ppm (mg/l) | 6000 | 3000 | |
Test condition | Test pressure | 225psi (1.55MPa) | 150psi(1.03Mpa) |
Test fluid temperature | 25°C | ||
Test fluid density (NaCl) | 1500ppm | ||
Test fluid ph. | 7.5 | ||
Single RO membrane element recovery rate | 15% | ||
Operating conditions | Max operating pressure psi(MPa) | 600(4.14) | 600(4.14) |
Suggested operating pressure psi (MPa) | 225(1.55) | 150(1.05) | |
The maximum water supply temperature | 45°C | ||
The maximum water supply SDI | < 5 | ||
free chlorine concentration in water supply | <0.1ppm | ||
Water supply pH scope when continuous running | 3~10 | ||
Water supply pH scope when chemical cleaning | 2~12 | ||
The maximum pressure drop of single RO membrane element | 10psi(0.07Mpa) | ||

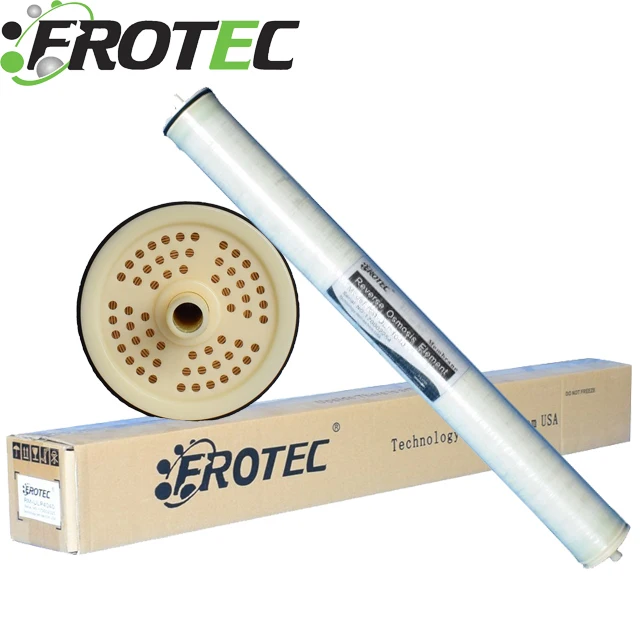

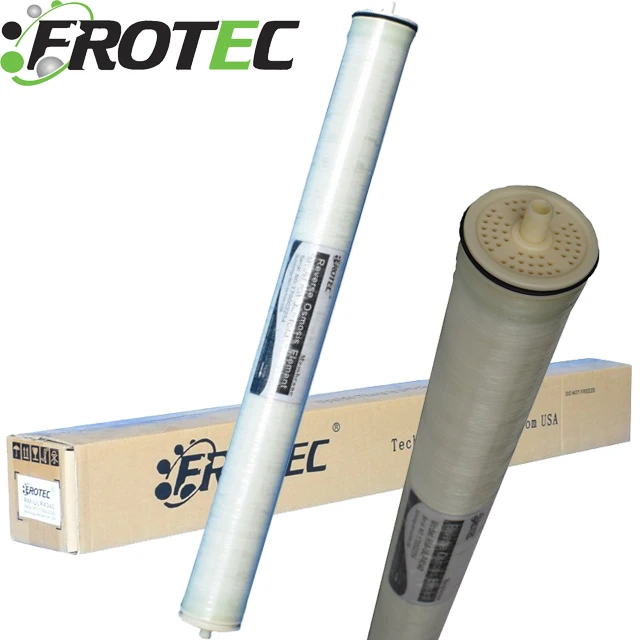

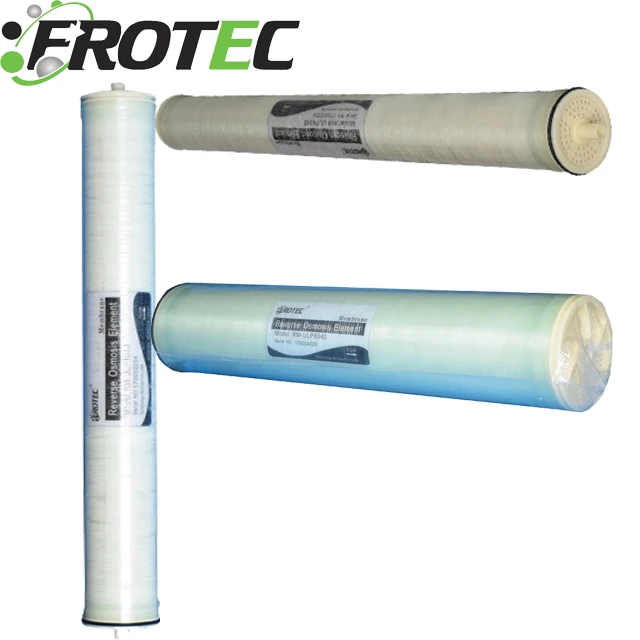

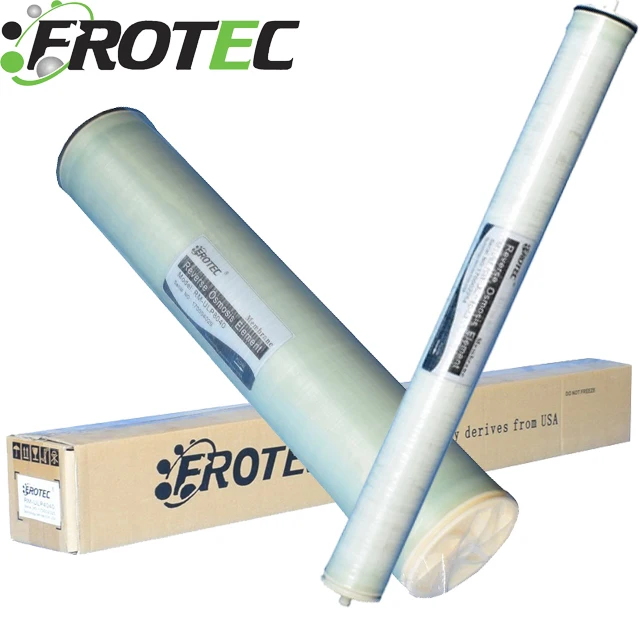

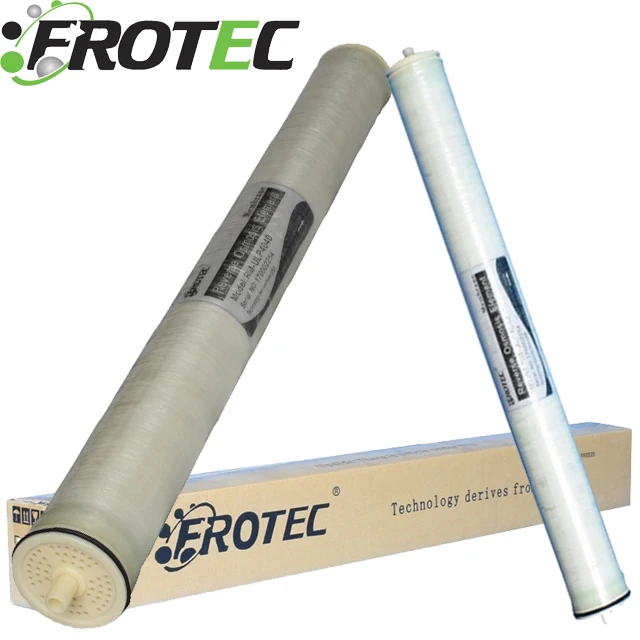

2. Product Show
3. Application
• Pre-filtration for RO system
• Solvents, selected acids & lyes, chemical industry.
• Semiconductor, Electronic industry ultrapure water system
• Food and beverage
• Oil and Gas industry.
• Pharmaceutics
• Paints, coatings and plating solutions
♦ Part two: Frotec RO Membrane Packaging
♦ Part three: Frotec Serivce
1. Our Service
♦Welcome to your inquiry,you are promised to get our quotation withing 24 hours
♦We are pleased to send you a sample on you confirm
♦We promise that we will implement your order on time
♦You are promised to get the best quality at the best price with the best service
2.FAQ
a.OEM service available for filter cartridge?
Yes, OEM service is available, but the Frotec brand price better than OEM
b.Payment Term
We can accept L/C, T/T, Western Union, MoneyGram and paypal
c.Certicification
We had passed ISO9001
d.Shipping
If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.
For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.
e. Lead time
The normal lead time is 7-15 days, which depends on your quantity.
