Wall mounted Jib Crane

BX Heavy duty jib crane has the characteristics of large lifting capacity, large working scope, compact structure, easy operation and maintenance, etc, which consists of variable section cantilever, rotary drive mechanism, electric hoist or manual hoist. The tonnage can reach 10 ton, 12 ton, 16 ton, etc. The jib length can reach 8 m, 10 m, 12 m, etc.

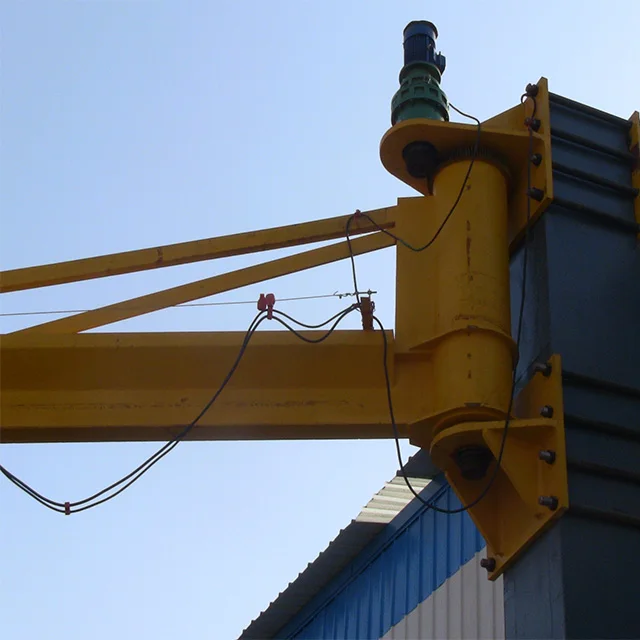

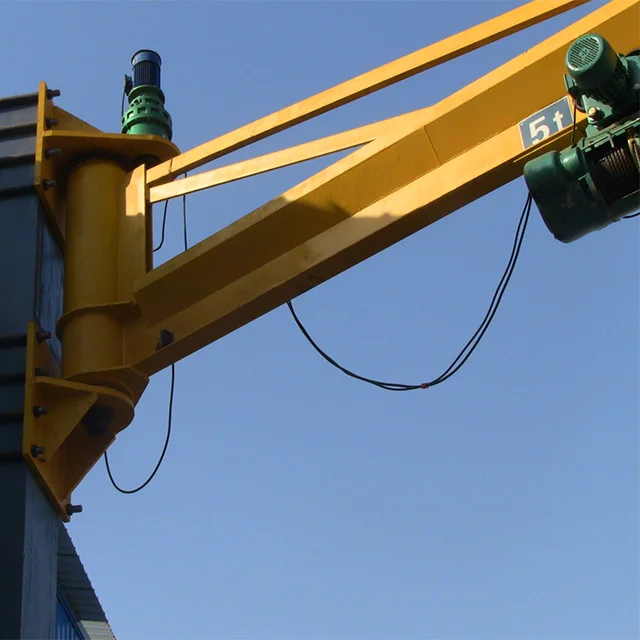

It is fixed on the wall or poles by anchor bolt. The motor drives the driving mechanism to make the cantilever rotate. Electric hoist or winch trolley travelling on the jib beam . The control type is pendent control or remote control. It is widely used in metallurgy, machinery, shipbuilding, railway, freight yard , wharf, etc.

Wall mounted JIb Crane Advantages:

Wall mounted jib crane is a new generation of hoisting equipment developed to meet the requirement of modernized production in side workshop or house. It is wall mounted type which is suitable for short distance, frequent and intensive hoisting operations, with such features as high efficiency, energy  frugal, labor saving, occupying less space, easy operating and maintenance, etc.

In simple terms:

1. Installation with high strength bolt connection

2. Convenient in operation, safe and turn to flexible

3. Low noise, commodious cabin and good looking

4. High quality and efficiency, competitive price

5. Reasonable and simple whole structure, light self-weight, conform to the state standards

6. Inexpensive handling systems doesn't require modification of the building structure aroud.

 JIb Crane Product Usage:

1. Factory, workshop, warehouse, store

2. Logistic, dock, port, freight yard

3. Construction building, mine, etc.

 .

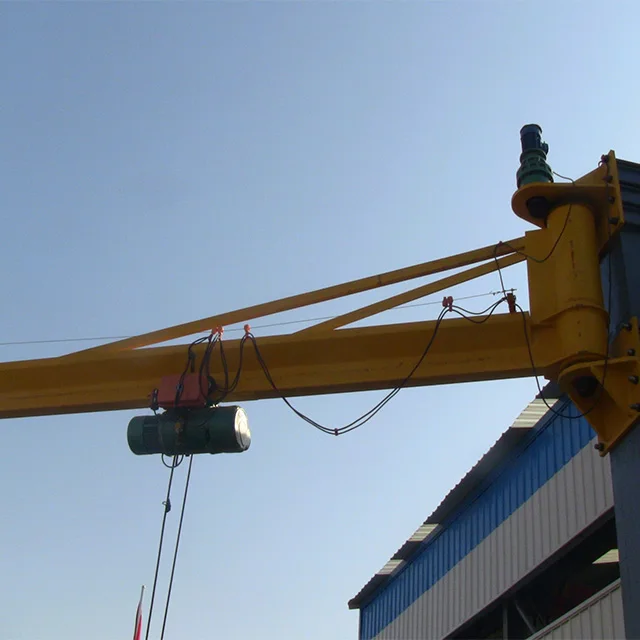

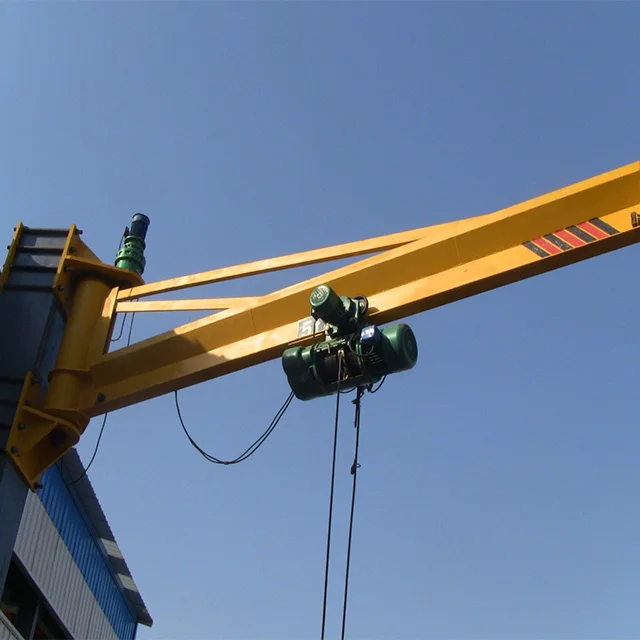

Outdoor use:

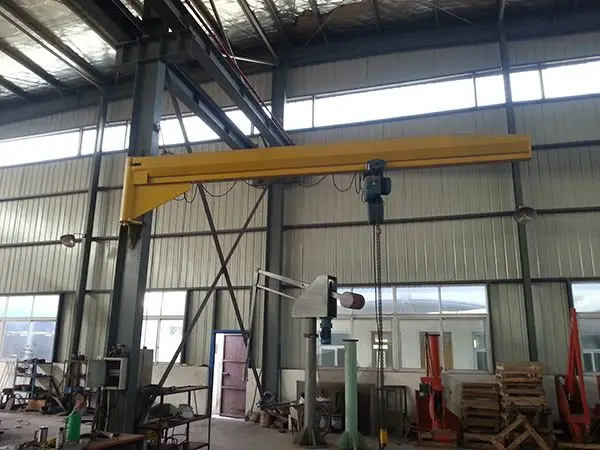

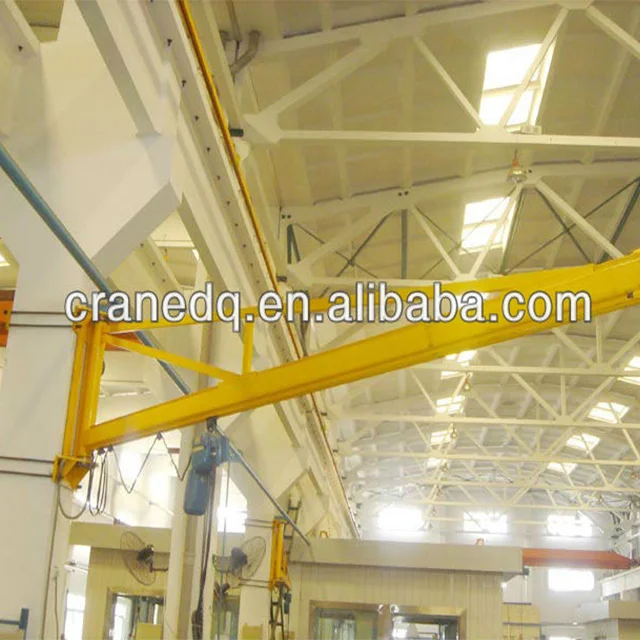

 Indoor Use:

Parameters:

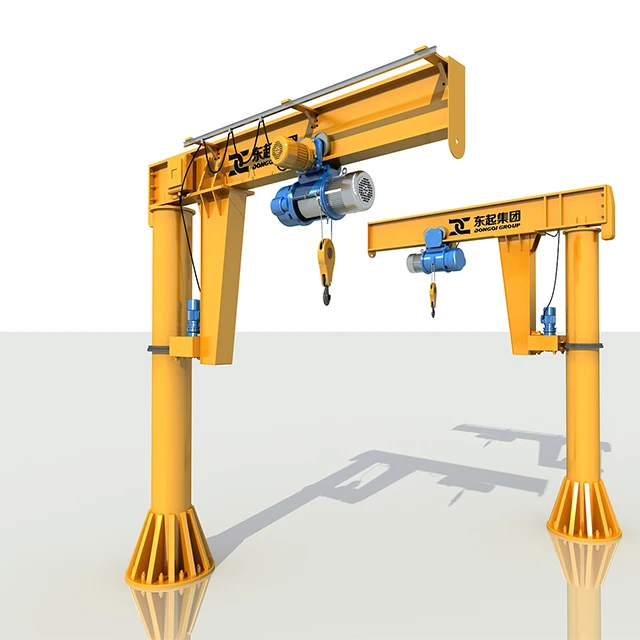

Some related products you may want to know:

Get more details

Get more details

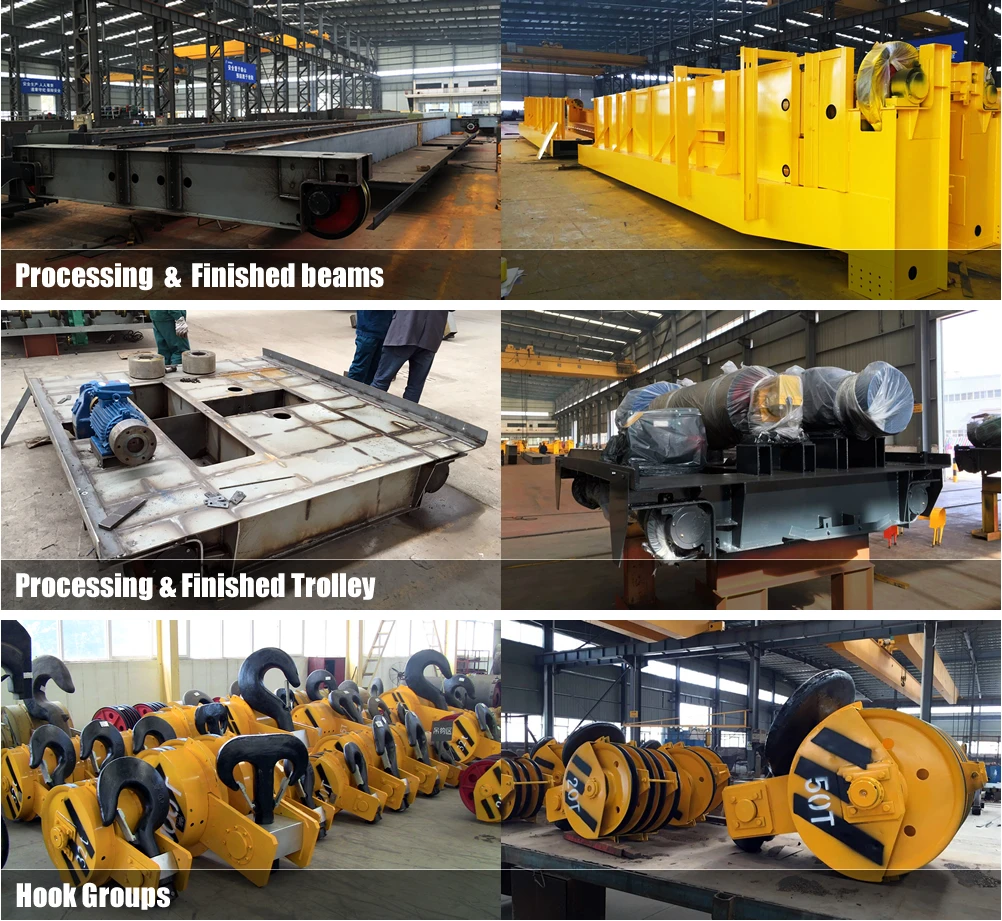

About Us:

HENAN DONGQI MACHINERY CO., LTD is a Sino-New Zealand joint venture, which is located in Changyuan, the Chinese crane hometown and covers an area of 240,000 square meters; total investment is 240 million RMB, and registered capital 108 million RMB. There are over 3600 employees, among them 500 technicians,and over 70 senior engineers at present. All kinds of manufacturing and detection devices total 2000 sets. Our company establishes research and development laboratories based on technical backbones, applies high-end design software and high scientific and technological achievements to develop products meeting market demand and market segmentation. The company brings in advanced European technology which allows kinds of nonstandard design to meet various work conditions.We are committed to providing the beat design plan and customize distinct cranes with high technology and economic index.

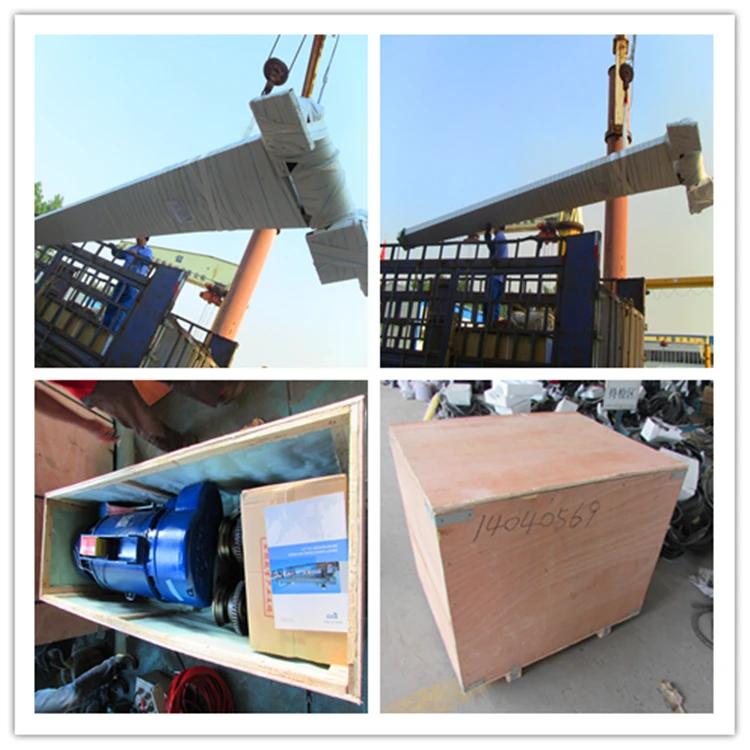

JIb Crane Package and Delivery:

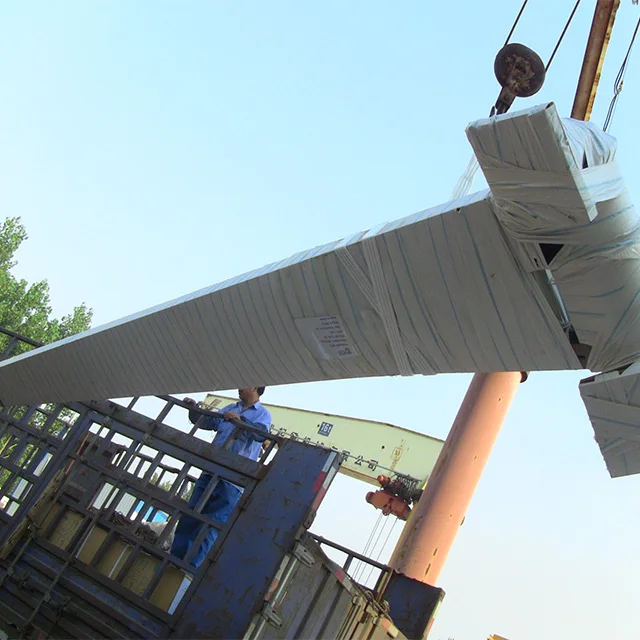

The steel structure will be packaged by the high quality plastic wooven and other parts will be packaged by the plywood box.

Notice:

As this kind of Jib Crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.
1. lifting capacity.
2. Arm length.(pillar center to hook center)

3. lifting height.(hook center to ground)

4. Power supply: Voltage.
5. Working condition: which material to lift?

6. Would be better if you have drawings of your plant.
