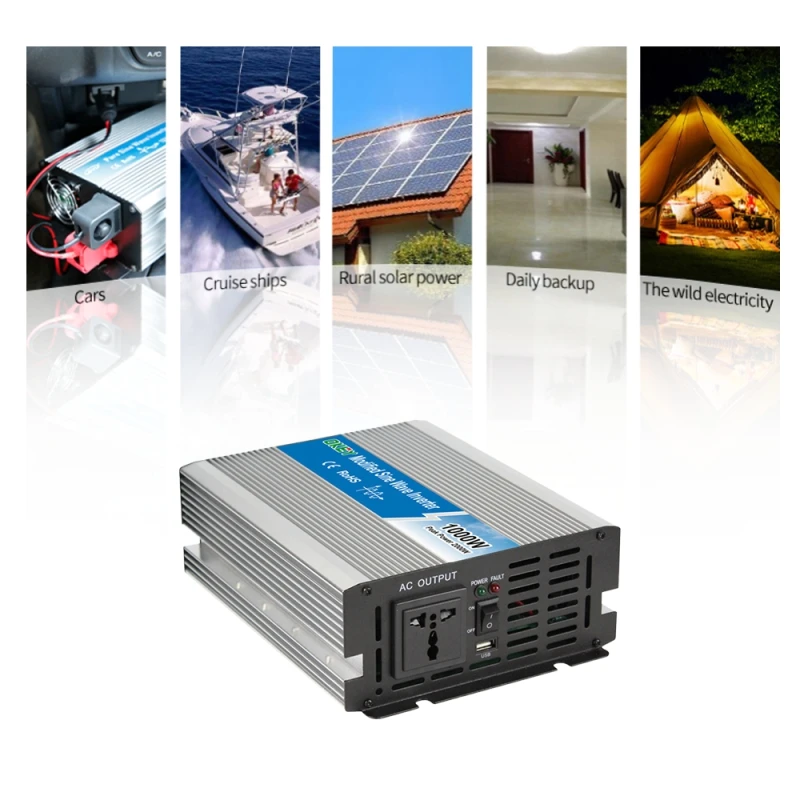

high quality off grid solar inverter 12V 24V 48V dc to ac 110V 220V solar inverter 1000W modified sine wave inverter
- Category: >>>
- Supplier: Yueqing Okey trade Co Ltd
Share on (60763581432):
Product Overview
Description
Product Description
Specification
Model | OPIM-1K-1 | OPIM-1K-1 | OPIM-1K-1 | OPIM-1K-2 | OPIM-1K-2 | OPIM-1K-2 | |||||
Rated power | 1000W | ||||||||||
Peak power | 2000W | ||||||||||
Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V | |||||
Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | |||||||||
Unload current less than | 0.8A | 0.5A | 0.2A | 0.8A | 0.5A | 0.2A | |||||
Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | ||||||||||
Output waveform | Modified Sine Wave | ||||||||||
Waveform distortion | THD<3%(Linear load) | ||||||||||
USB port | 5V 1A | ||||||||||
Max.efficiency | 90% | ||||||||||
Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V | |||||
Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V | |||||
Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V | |||||
Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V | |||||
Low voltage recover | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V | |||||
Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | |||||
Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | ||||||||||
Over voltage | LED Red light on, shut down | ||||||||||
Over load | LED Red light on, shut down | ||||||||||
Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | ||||||||||
Short circuit | LED Red light on | ||||||||||
Input reverse polarity | Fuse burn-out | ||||||||||
Working temperature | -10°- +50° | ||||||||||
Storage temperature | -30°- +70° | ||||||||||

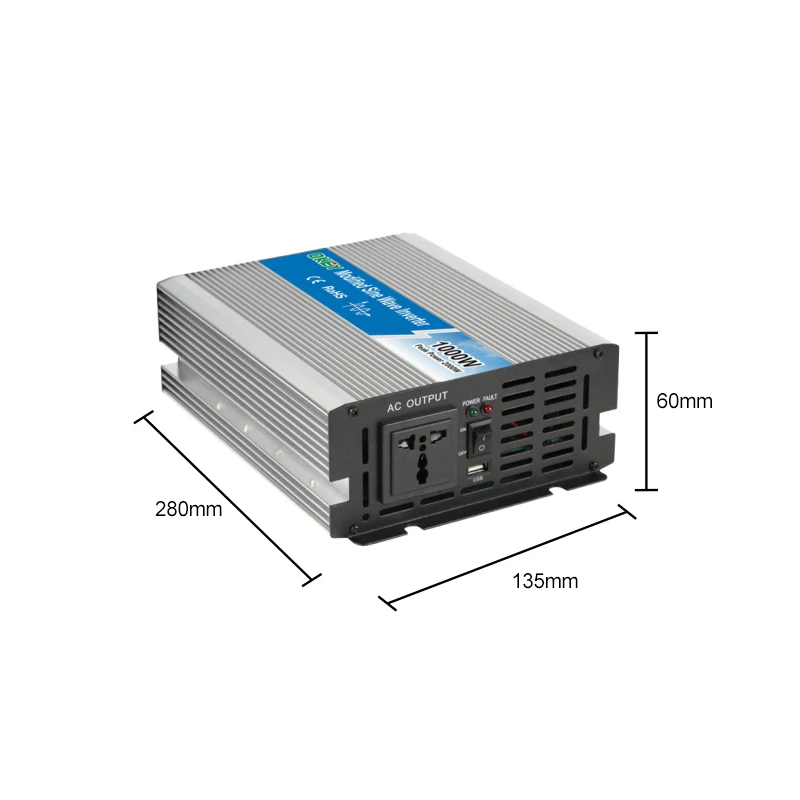

Dimension(mm) | 280x135x60mm | ||||||||||
Packing(mm) | 330x185x85mm | ||||||||||
Net./gross weight(g) | 1340/1800g | ||||||||||
QTY/Ctn | 8 Pcs | ||||||||||
Meas./Ctn(mm) | 440x350x330mm | ||||||||||
Gross weight/Ctn(g) | 15000g | ||||||||||
Warranty | 18 Months | ||||||||||
Configuration | Standard | ||||||||||
Cooling method | Intelligent air cooling | ||||||||||

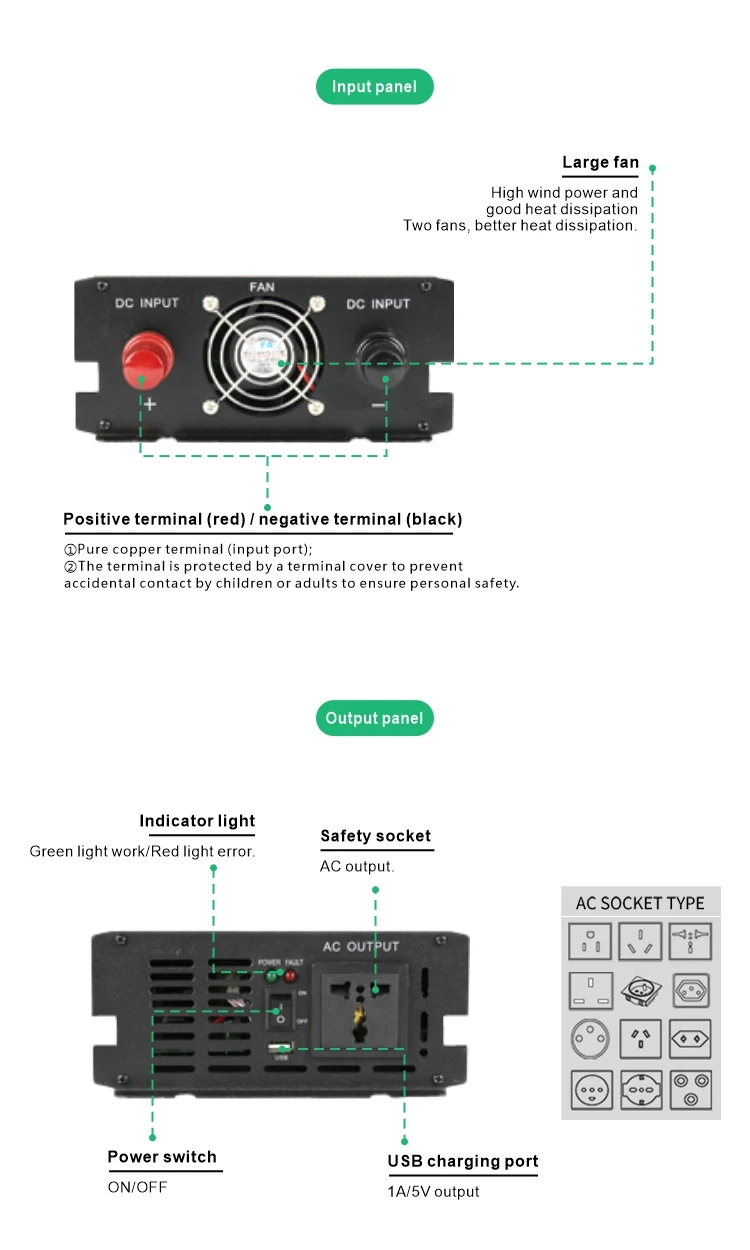

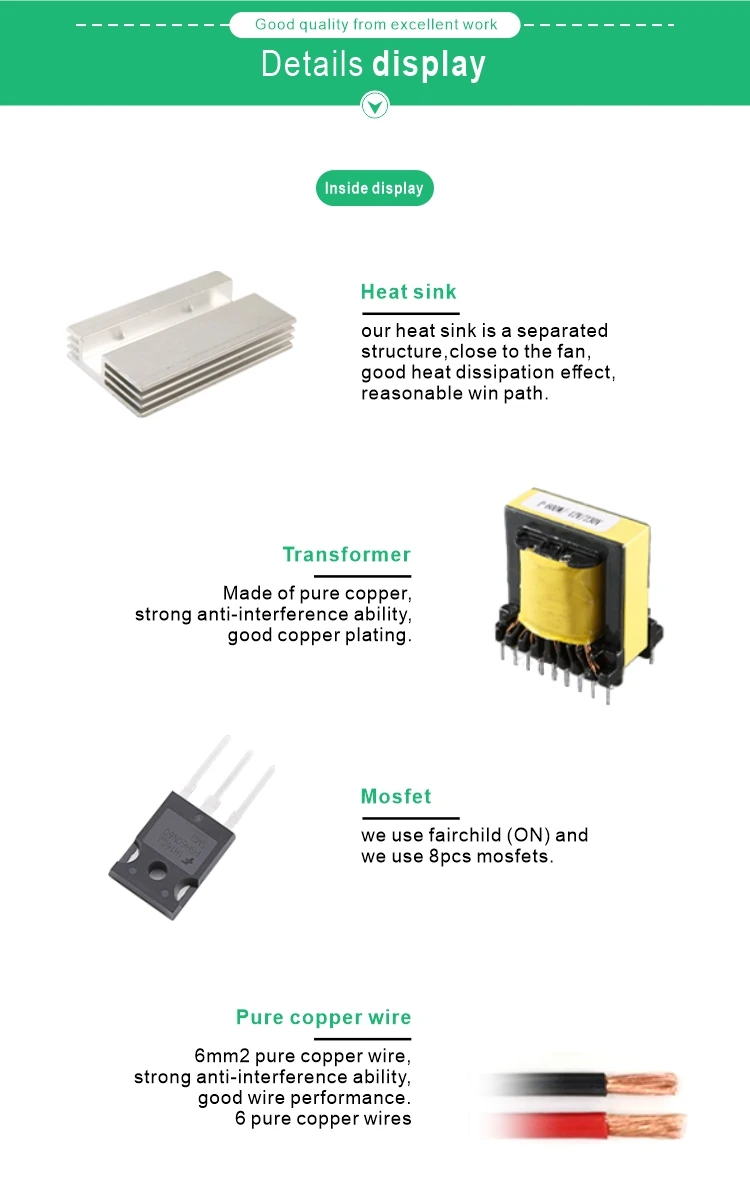

Details Images
Recommend Products
Company Profile
Packing & Delivery
Standard packing or as for your requirement .
FAQ
1.Q:Ifyour productis safe enough to use?
A: Yes,our inverter has CE,Rohs, FCC certification.All of our products have many kinds of protection function.

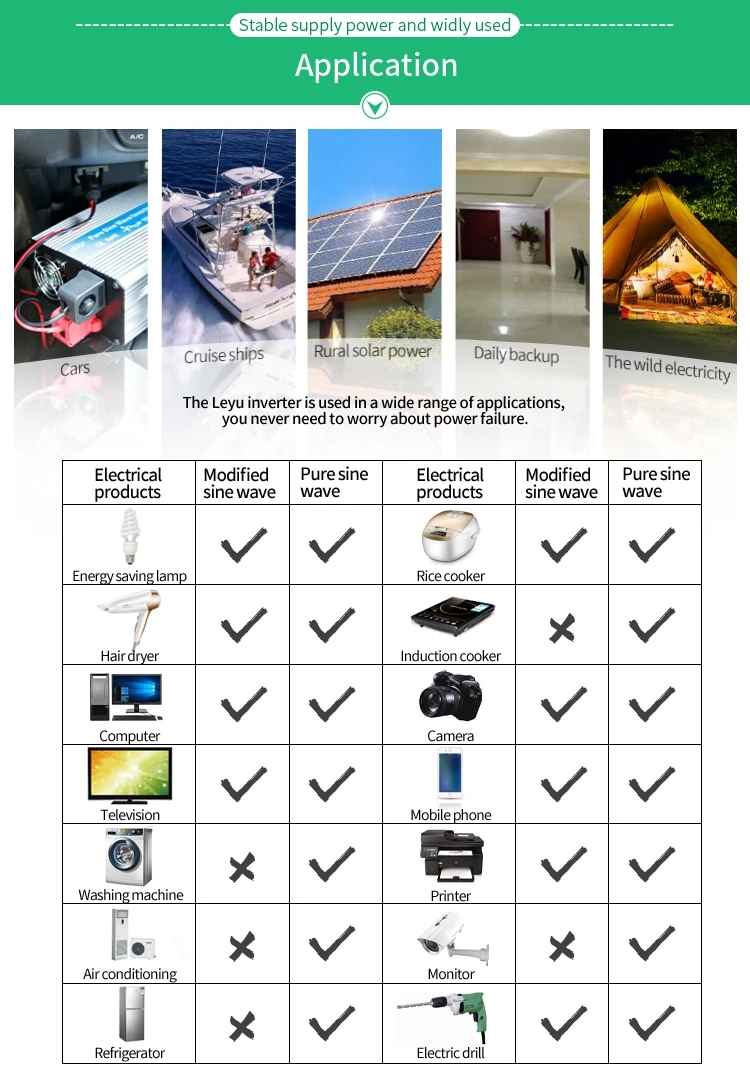

2. Q: What kind of apliances does your inverter can be used for?
A: Yes,our inverter has CE,Rohs, FCC certification.All of our products have many kinds of protection function.
2. Q: What kind of apliances does your inverter can be used for?
A:Our pure sine wave inverter can be used for both resistive load and inductive load.
3.Q:What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc, all belong to resistive loads. Our inverters can drive them successfully.
4. Q:Is the output voltage of your inverter stable?
rue value by a multimeter. Actually the output voltage is quite stable. Here we need make a special explanation: many customers found it unstable when using conventional multimeter to measure voltage. We can say the operation is incorrect. Ordinary multimeter can only test pure sine waveform and calculate data.
5. Q: How many kinds of output wave form for inverters?
A: Two kinds. Pure sine wave and modified sine wave. Pure sine wave inverter could provide high quality AC and carry various loads, while it requires high tech and high cost. Modified sine wave inverter load poorly not carrying inductive load, but the price is moderate.
6.Q;What should be noticed when installing inverter?
A: Put the product in a place where is well ventilate, cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter. Remenber to turn on the inverter before turn on the appliance.
3.Q:What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc, all belong to resistive loads. Our inverters can drive them successfully.
4. Q:Is the output voltage of your inverter stable?
rue value by a multimeter. Actually the output voltage is quite stable. Here we need make a special explanation: many customers found it unstable when using conventional multimeter to measure voltage. We can say the operation is incorrect. Ordinary multimeter can only test pure sine waveform and calculate data.
5. Q: How many kinds of output wave form for inverters?
A: Two kinds. Pure sine wave and modified sine wave. Pure sine wave inverter could provide high quality AC and carry various loads, while it requires high tech and high cost. Modified sine wave inverter load poorly not carrying inductive load, but the price is moderate.
6.Q;What should be noticed when installing inverter?
A: Put the product in a place where is well ventilate, cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter. Remenber to turn on the inverter before turn on the appliance.
