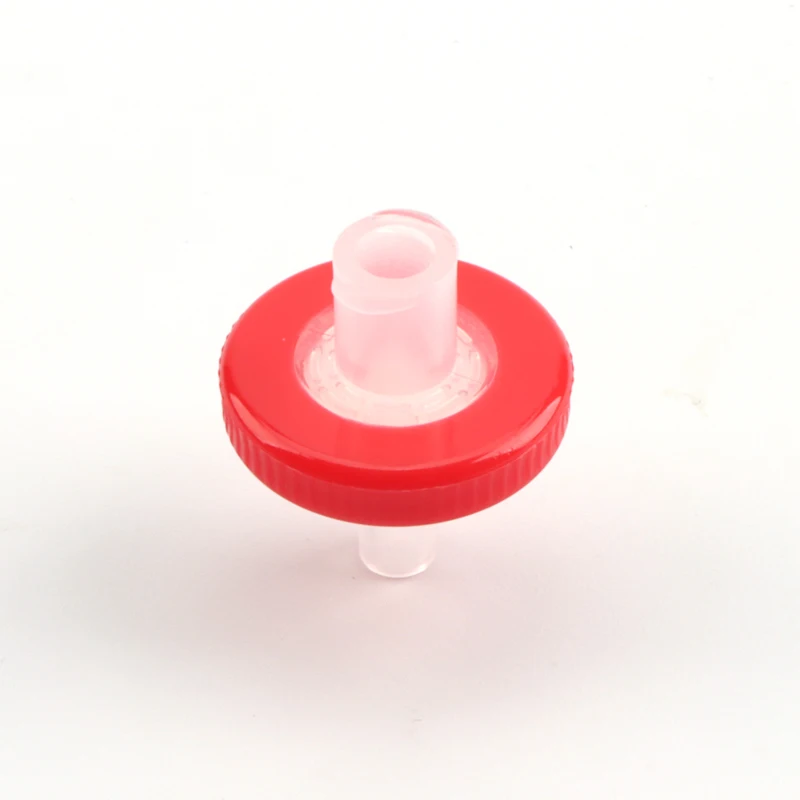

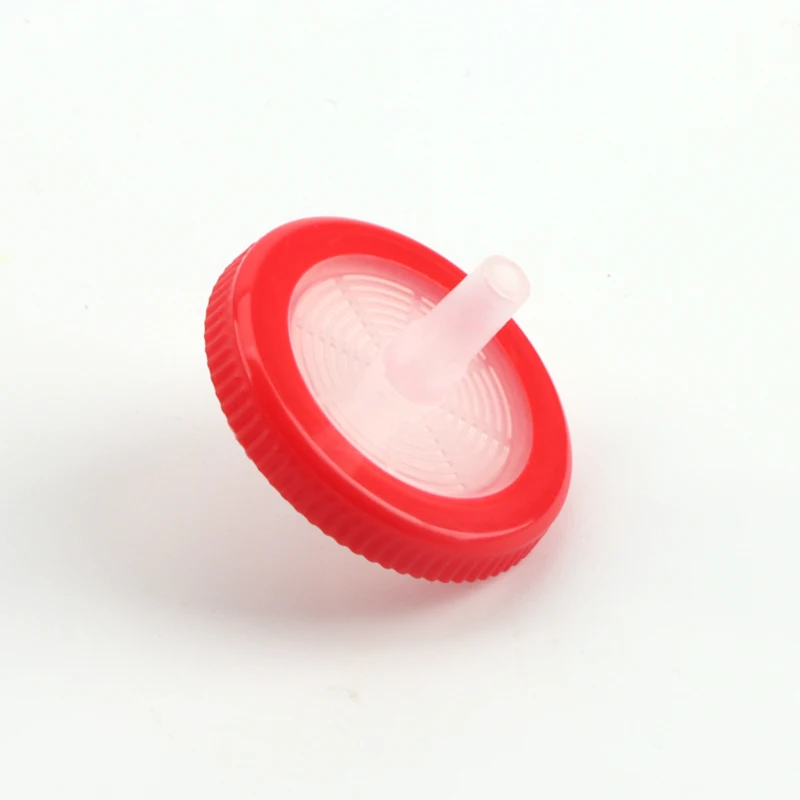

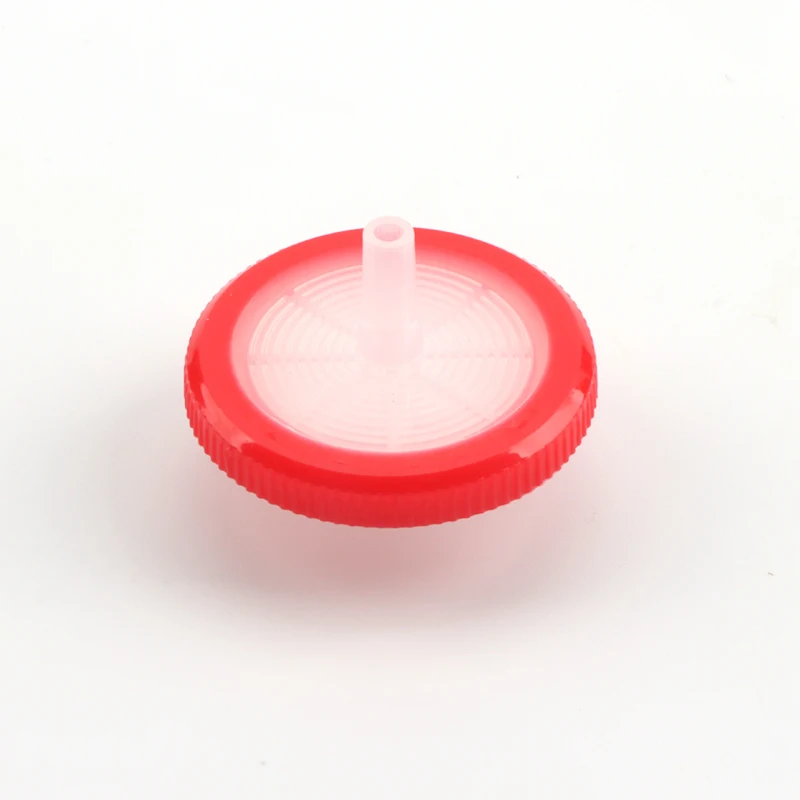

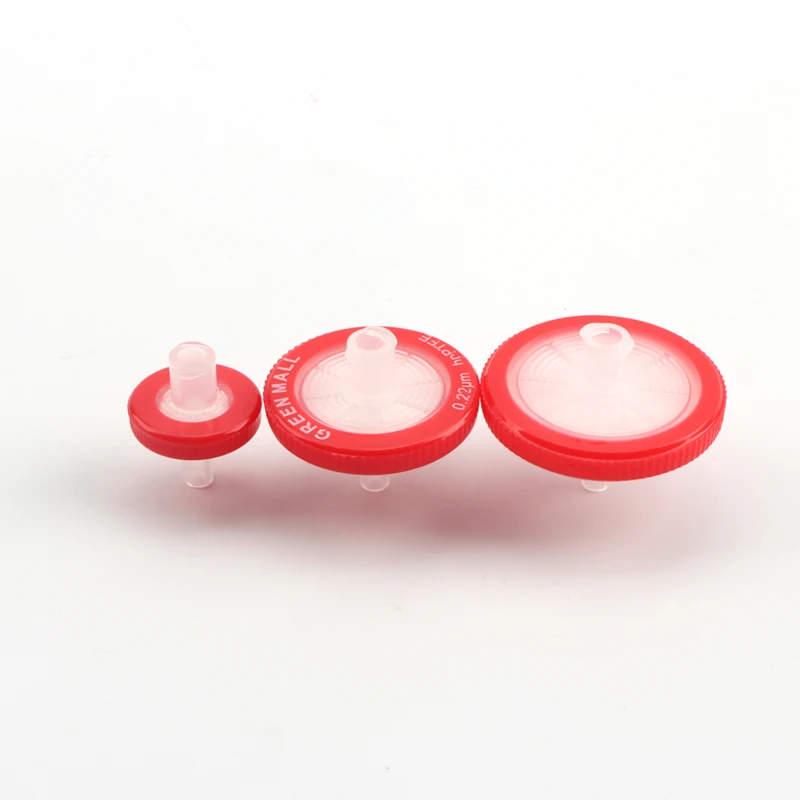

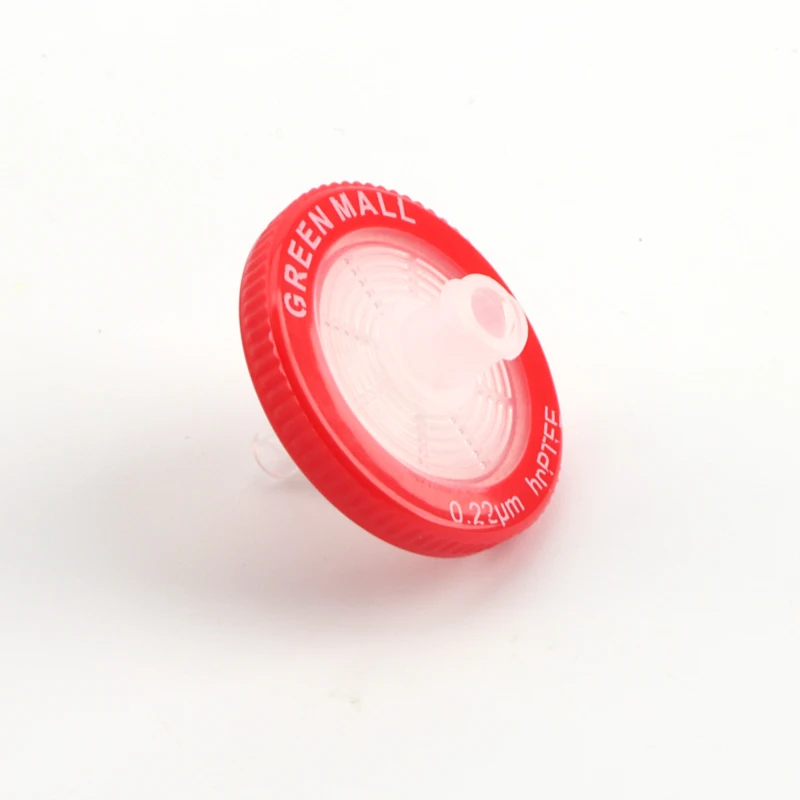

PTFE 13mm 0.22um Disposable Hydrophobic PTFE Syringe Filter For Lab Use
- Category: >>>
- Supplier: Jiangsu Green Union Science Instrument Co. Ltd.
Share on (60763673035):
Product Overview
Description
About the PTFE membrane
PTFE is the membrane of choice for use with the aggressive solvents, liquids and gases that can attack other membranes.lt is resistant to most acids,alkalis and solvents.The hydrophobic nature of the membrane also hasapplications for air and gas terilization.Hydrophilic PTFE can be used to filter aqueous and oraanic mixed liquids.PTFE membranes are used in a variety ofhealthcare applications such as vents on IV filtersand spike vents,protecting equipment andsensors from fluids and contamination,andsubstrates for tissue growth and implacable.
Technical Data for 33mm
Specification | 33 0.22 hpPTFE | 33 0.45 hpPTFE | 33 0.22 PTFE | 33 0.45 PTFE | |||
Item No. | RSF33TQ2B | RSF33TQ1B | RSF33TS2B | RSF33TS1B | |||
Filtration Area | 6.15 cm2 | ||||||
Holdup Volume | 150 ul | ||||||
Wettability | Hydrophilic | Hydrophobic | |||||
Volume Throughput (ml) | 200 | ||||||
Inlet/Outlet | Female luer Lock/ Male Luer Slip | ||||||
Maximum Operation Temperature(℃) | 100 | ||||||
IPA Bubble Point | ≥1.2bar | ≥0.8bar | ≥1.2bar | ≥0.8bar | |||
Bursting Pressure | 10 bar | ||||||
Technical Data for 25mm
Specification | 25 0.22 hpPTFE | 25 0.45 hpPTFE | 25 0.22 PTFE | 25 0.45 PTFE | |||
Item No. | RSF25TQ2B | RSF25TQ1B | RSF25TS2B | RSF25TS1B | |||
Filtration Area | 3.8 cm2 | ||||||
Holdup Volume | 125 ul | ||||||
Wettability | Hydrophilic | Hydrophobic | |||||
Volume Throughput (ml) | 100 | ||||||
Inlet/Outlet | Female luer Lock/ Male Luer Slip | ||||||
Maximum Operation Temperature(℃) | 100 | ||||||
IPA Bubble Point | ≥1.2bar | ≥0.8bar | ≥1.2bar | ≥0.8bar | |||
Bursting Pressure | 10 bar | ||||||
Technical Data for 13mm
Specification | 13 0.22 hpPTFE | 13 0.45 hpPTFE | 13 0.22 PTFE | 13 0.45 PTFE | |||
Item No. | RSF13TQ2B | RSF13TQ1B | RSF13TS2B | RSF13TS1B | |||
Filtration Area | 0.8 cm2 | ||||||
Holdup Volume | 15 ul | ||||||
Wettability | Hydrophilic | Hydrophobic | |||||
Volume Throughput (ml) | 10 | ||||||
Inlet/Outlet | Female luer Lock/ Male Luer Slip | ||||||
Maximum Operation Temperature(℃) | 100 | ||||||
IPA Bubble Point | ≥1.2bar | ≥0.8bar | ≥1.2bar | ≥0.8bar | |||
Bursting Pressure | 15 bar | ||||||
Ordering information
Item No. | Product Name | Diameter（mm） | Pore Size (μm) | Membrane Material | Package |
RSF13TS1B | Syringe Filter | 13 | 0.45 | Hydrophobic PTFE | 100pcs/pack |
RSF13TS2B | Syringe Filter | 13 | 0.22 | Hydrophobic PTFE | 100pcs/pack |
RSF13TQ1B | Syringe Filter | 13 | 0.45 | Hydrophilic PTFE | 100pcs/pack |
RSF13TQ2B | Syringe Filter | 13 | 0.22 | Hydrophilic PTFE | 100pcs/pack |
RSF25TS1B | Syringe Filter | 25 | 0.45 | Hydrophobic PTFE | 100pcs/pack |
RSF25TS2B | Syringe Filter | 25 | 0.22 | Hydrophobic PTFE | 100pcs/pack |
RSF25TQ1B | Syringe Filter | 25 | 0.45 | Hydrophilic PTFE | 100pcs/pack |
RSF25TQ2B | Syringe Filter | 25 | 0.22 | Hydrophilic PTFE | 100pcs/pack |
RSF33TS1B | Syringe Filter | 33 | 0.45 | Hydrophobic PTFE | 100pcs/pack |
RSF33TS2B | Syringe Filter | 33 | 0.22 | Hydrophobic PTFE | 100pcs/pack |
RSF33TQ1B | Syringe Filter | 33 | 0.45 | Hydrophilic PTFE | 100pcs/pack |
RSF33TQ2B | Syringe Filter | 33 | 0.22 | Hydrophilic PTFE | 100pcs/pack |
