1.Innovative design. Beautiful shape. Compact structure, wide speed range. Table can rotary + 180 ° and also can tilt + 45 °, using a wide range.
2.Provided with cooling device and a tapping device.
3.Electrical systems and implementing IEC electrical standards, with short circuit and overload protection function, the main motor is large power. The unique protective devices, safe and reliable.
Specs

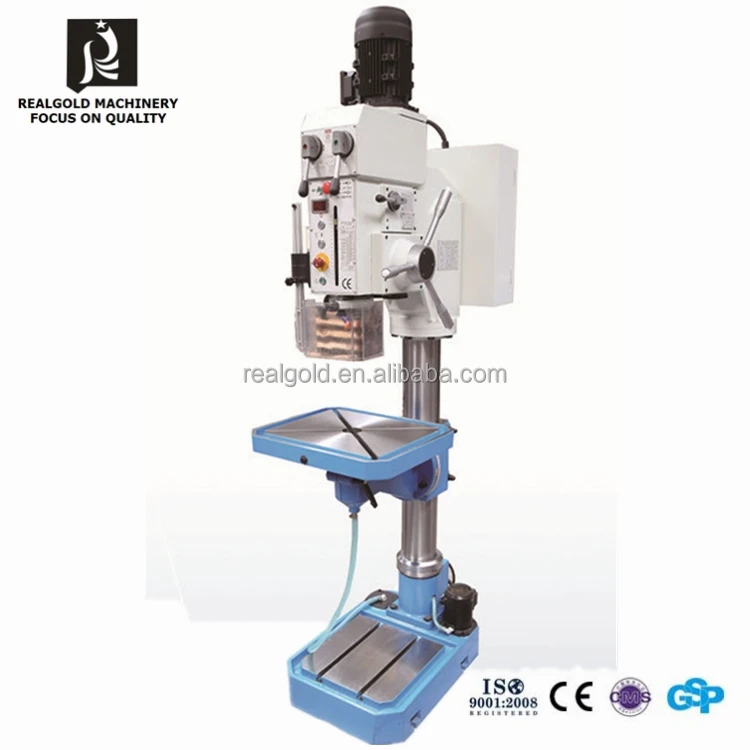

Z5035
Max. Drilling dia.(steel)
35mm
Max. Threading dia.(steel)
M22
Distance between spindle to column
590mm
Distance between spindle to worktable
1150mm
Spindle stroke
155mm
Spindle taper
MT4
Spindle speed
12step 125-3030rpm
Feed range of spindle
3 degree 0.1, 0.2, 0.3
Worktable size travel
530mm
Worktable size(L*W)
500x420mm
Work table swing angle
±45°
Dia. of column
120mm
Main motor power
1.0/1.2kw
Machine dimension(L*W*H)
875*510*2140mm
Net weight
430kg
STANDARD ACCESSORIES:
spindle prection CE electrical parts electromagnetic clutch depth DRO cooling pump auto lifting table oil pump
FAQ
Q1. How can I get a quotation? A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purpose machine)?
A.Yes, we provide kinds processing solutions for customers, in order to meet different requirements.
Q3. Can you provide training for operation CNC machines?
A.Yes, free training in our factory or customer's factory is available.
Q4. How about your price?
A.Send me details about what you need, you will get the best price in China. The price is competitive not only in China.
Q5. What's your warranty terms? A.We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine’s bill of lading date.
Q6. What’s the delivery time, and what’s the package?
A.Normally the delivery time is about 30-45 days. All our machines are packed with seaworthy package.
Our Services
Within 18 Hours Feedback is Our Promise
REALGOLD Fast Facts:
♦ 97% Client Retention Rate
♦ 10,000+ Cooperate Clients
♦ 25 Years of Brand Operating, 15 Years of Machine Tools Building
♦100% Focus on Our Clients Best interests
18months warranty, our quality confidence and customers’ peace of mind.
We will supply parts or service for repairs at no cost for a period of 18 months after bill of lading date. Extended warranty is available at the time of purchasing.
