Reinforcing expanded metal sheet
- Category: >>>
- Supplier: Anping County Dechengli Hardware Products Co. Ltd.
Share on (60763710616):
Product Overview
Description

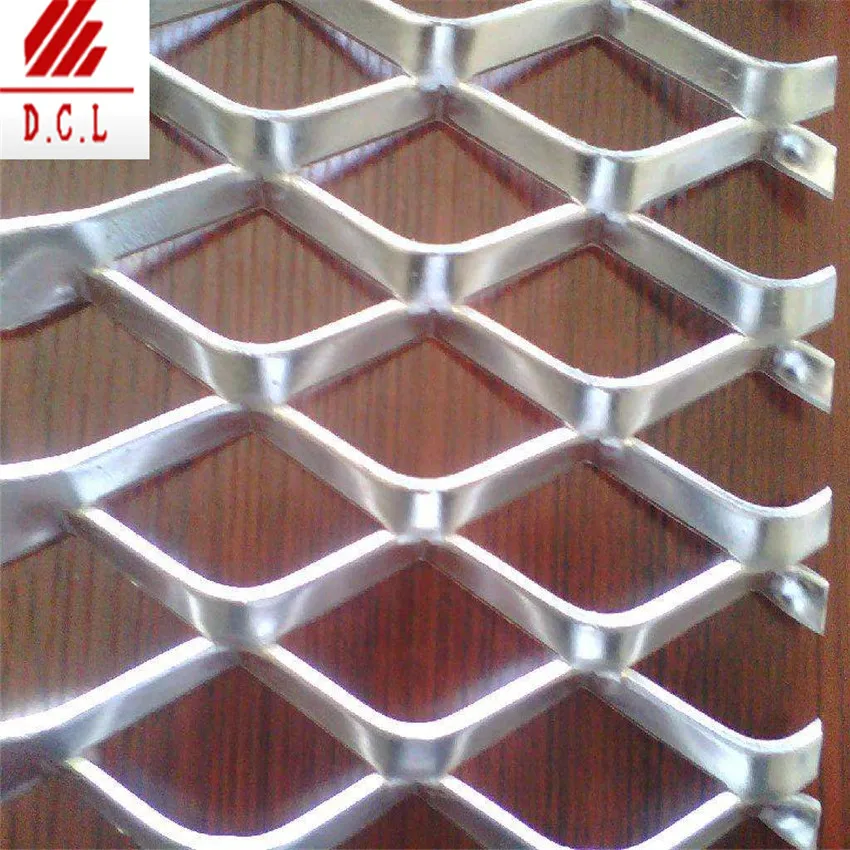

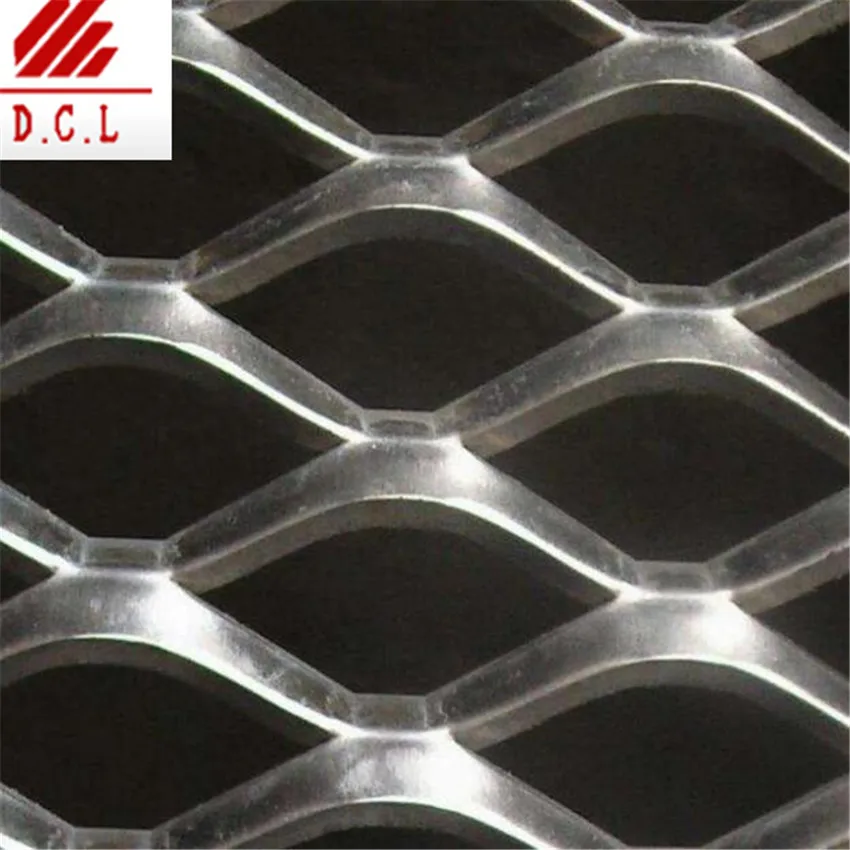

Aluminum Expanded metal
Product Description
Expanded metal is a multipurpose product. In production process, it doesn’t have any waste material and saves a lot of cost.

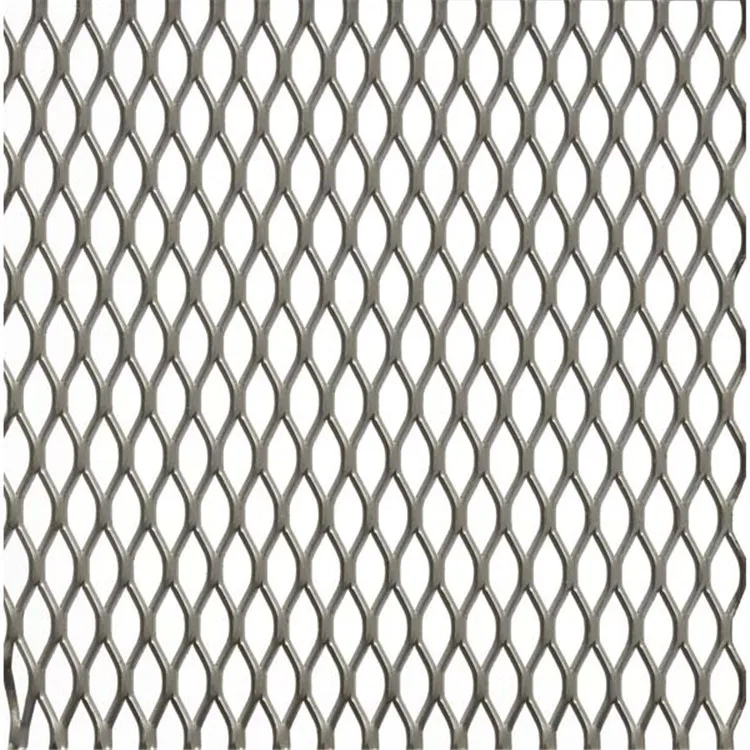

The expanded metal is stretched into diamond shaped holes. The final product is stronger and durable.
expanded metal can use in sheets of carbon, plates of carbon, galvanized material, stainless steel material, aluminum, mild steel and other alloys.DCL produces high quality expanded metal .
Application of expanded metal:

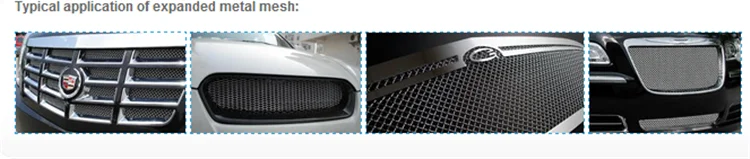

Special designed in architectural expanded metal, outdoor decorative expanded metal, outdoor furniture expanded metal, building expanded metal, ceiling expanded metal, fencing expanded metal, filtration expanded metal, vehicles expanded metal, art expanded metal and concrete structure reinforcement of expanded metal.
Expanded metal can be divided into two Type

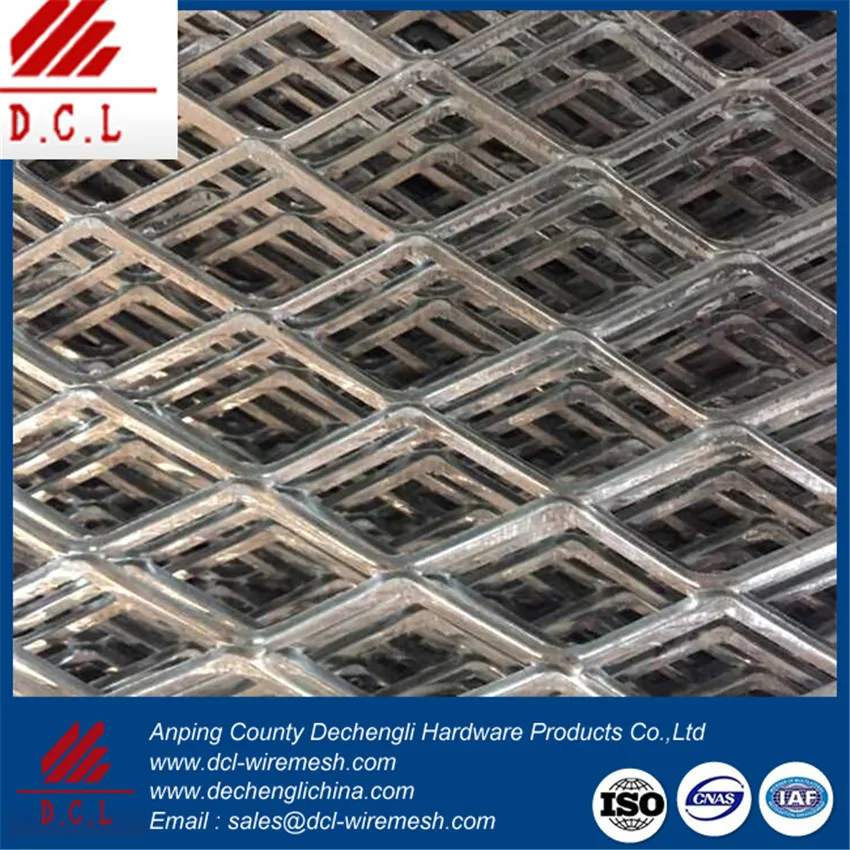

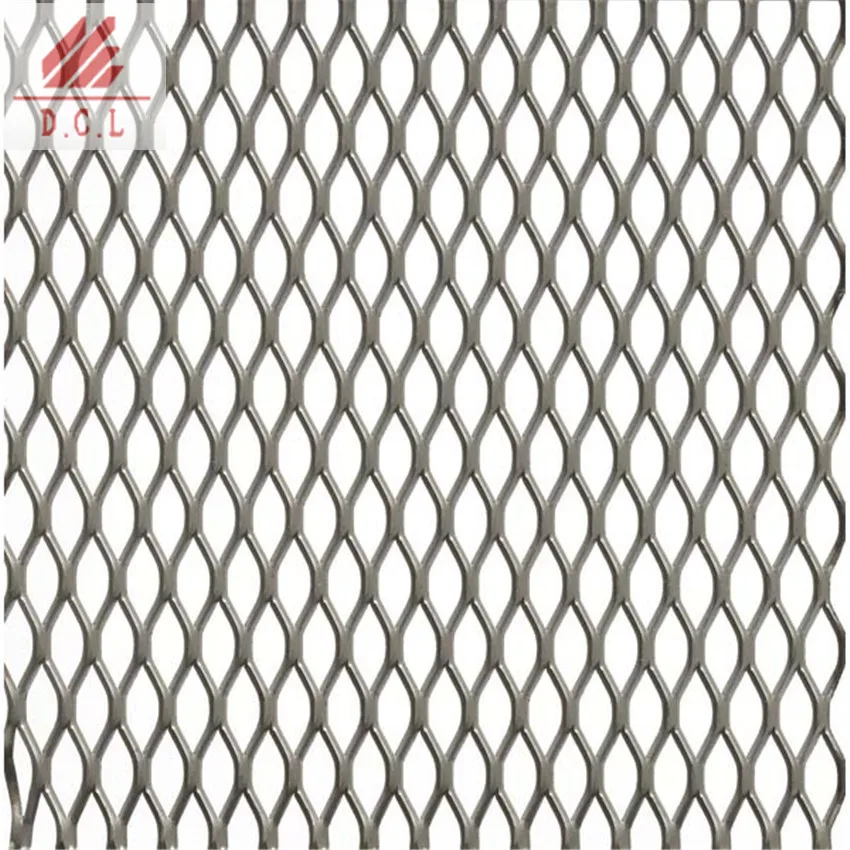

1. Flattened expanded metal

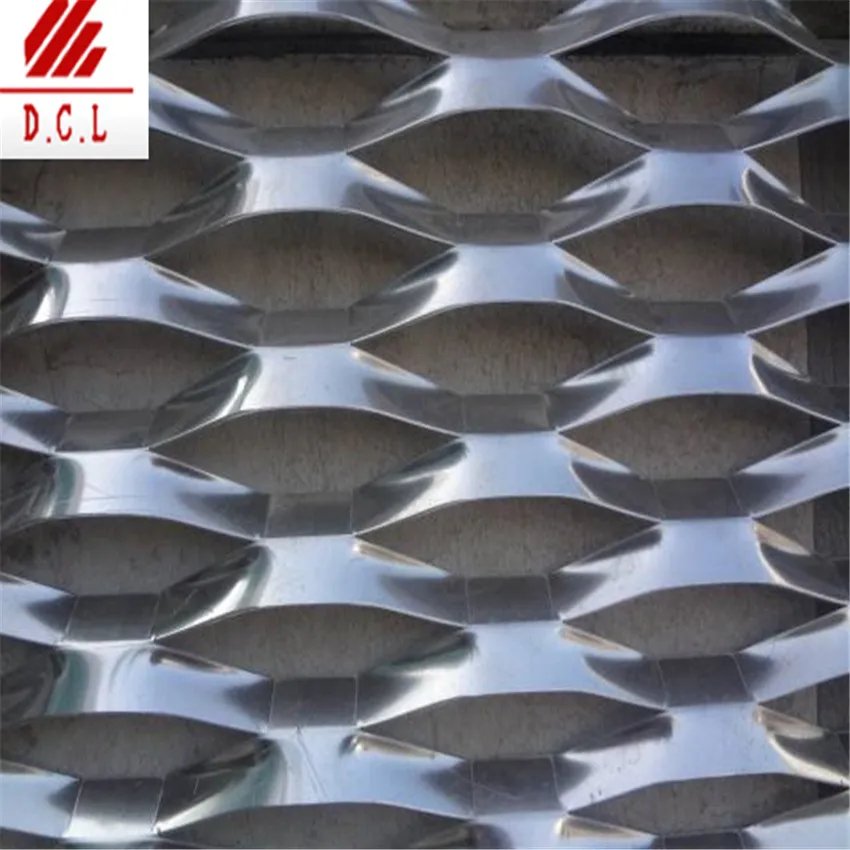

2. Raised expanded metal
Detailed Images
Speciifcation

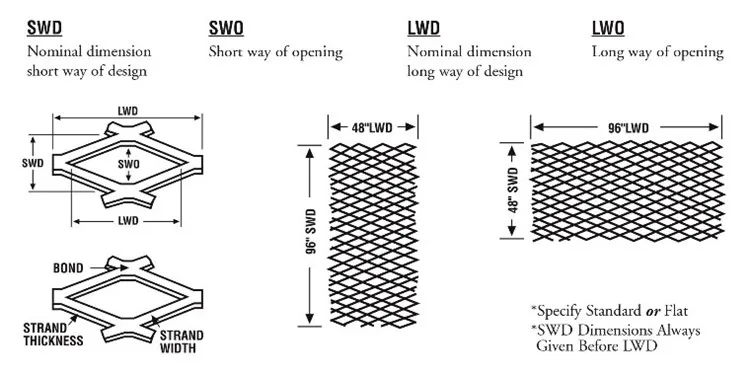

Pattern Number | L.W.M (mm) | S.W.M. (mm) | Strand Width (mm) | Strand Gauge (mm) | % Free Area | Approx. Kg/M2 |
MF876 018 | 6.05 | 3.38 | 0.8 | 0.5 | 50 | 2.1 |
MF877 018 | 10.24 | 5.84 | 0.8 | 0.5 | 75 | 1.2 |
MF888 036 | 10.24 | 5.84 | 1.2 | 0.9 | 65 | 3.2 |
MF889 036 | 14.27 | 5.84 | 1.2 | 0.9 | 60 | 3.2 |
MF890 036 | 19.05 | 7.42 | 1.2 | 0.9 | 60 | 3.4 |
MMF 020R | 5.80 | 3.50 | 0.8 | 0.6 | 44 | 2.1 |
MMF 078R | 19.00 | 7.40 | 1.7 | 1.0 | 55 | 3.4 |
MMF 124R | 30.50 | 11.70 | 2.4 | 1.6 | 62 | 4.9 |
MMF 126R | 30.50 | 11.70 | 2.4 | 1.2 | 61 | 3.8 |
MMF 157R | 38.00 | 16.50 | 2.2 | 1.6 | 76 | 3.4 |
MMF 201R | 50.80 | 22.50 | 2.5 | 2.5 | 77 | 4.4 |
MMF 203R | 50.80 | 22.50 | 3.0 | 1.6 | 80 | 3.4 |
MMF 208R | 50.80 | 22.50 | 3.9 | 3.0 | 69 | 8.1 |
MMF 209R | 50.80 | 22.50 | 3.1 | 3.0 | 71 | 6.5 |
MMF302R | 76.20 | 33.90 | 3.5 | 3.0 | 78 | 4.9 |
MMF 336R | 85.70 | 40.60 | 3.2 | 3.0 | 84 | 3.7 |
MMF 405R | 101.60 | 50.80 | 5.0 | 3.0 | 82 | 4.7 |
MMF 407R | 101.60 | 50.80 | 3.4 | 3.0 | 85 | 3.1 |
MMF 459R | 114.30 | 39.30 | 4.6 | 3.0 | 82 | 5.4 |
MMF 008R | 200.0 | 75.0 | 6.3 | 3.0 | - | 3.6 |
Production Flow

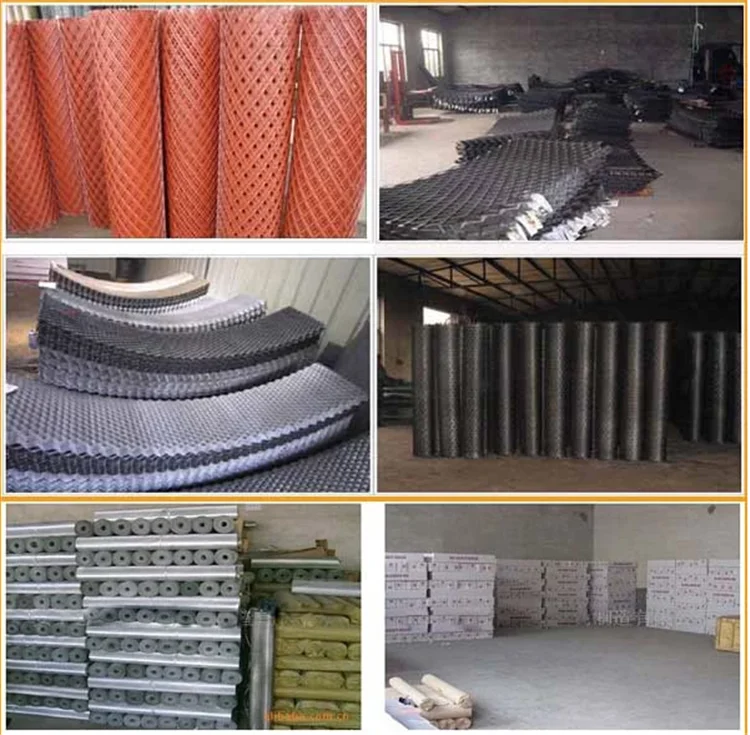

Packing and Shipping
1. light expanded metal can be packed into rolls
2. packed into piece ,then in pallet
3. packing finished can be packed waterpoof paper or putting into wooden case

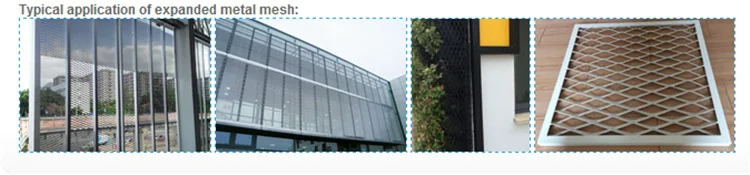

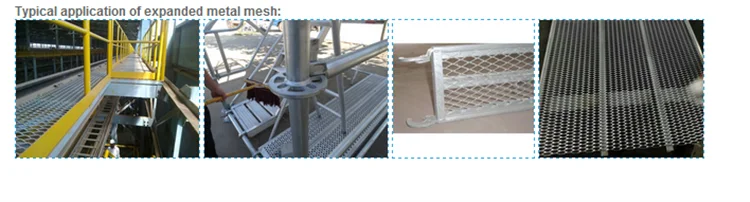

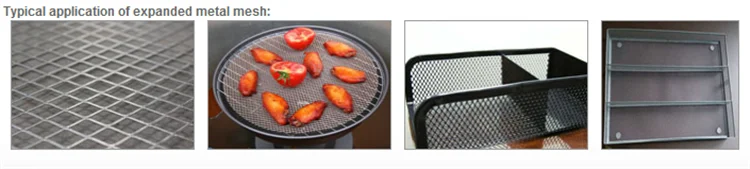

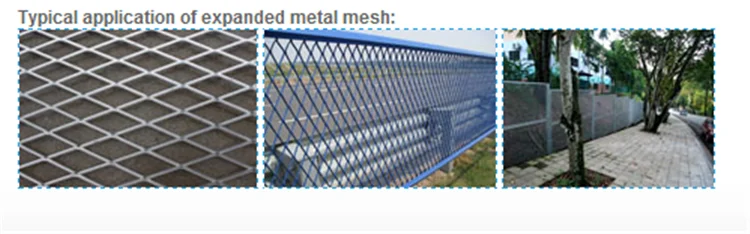

Expanded metal usage
Expanded flattened mesh
Application
- Filters
Reinforcing
Security Guarding
Exhibition Stands
Machinery Guards
Fan Guards
Racking
Security Cages
Grilles
Compounds
Tree Guards - Window Guards
Stairways
Fire Guards
Enclosures
Litter Bins
Ventilator Guards
Catwalks
Partitions

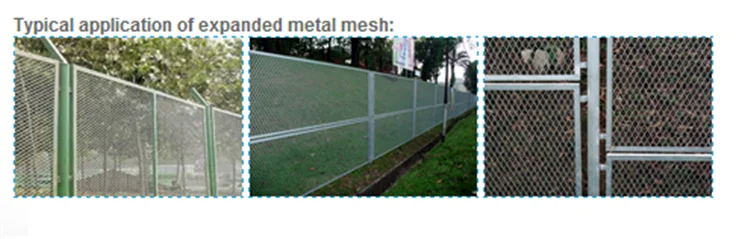

Fencing
Filter Support Tubes
Lockers
Cages & Pens
