New Design Double screenTouch Screen Kiosk All in one PC for Shopping mall indoor Digital Sigange
- Category: >>>
- Supplier: Shenzhen Yoda Views Technology Co. Ltd.
Share on (60763721965):
Product Overview
Description
Product Description

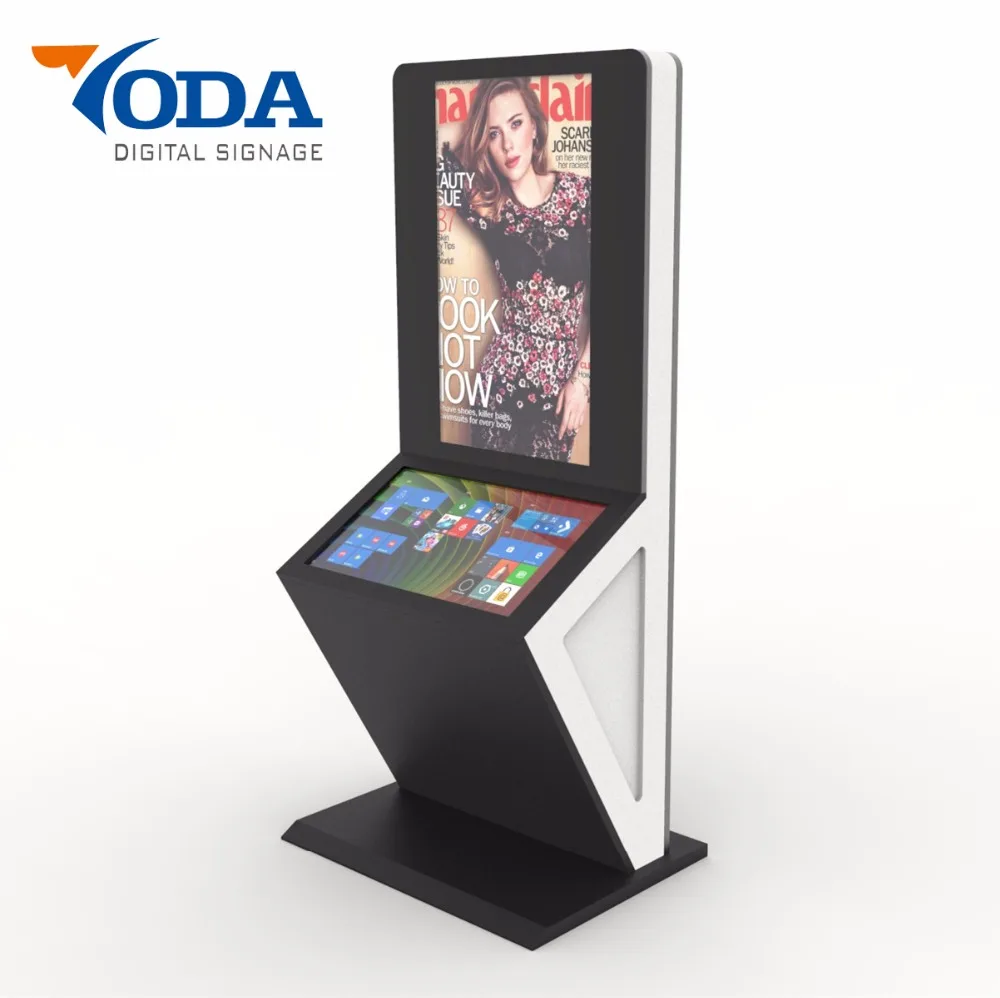

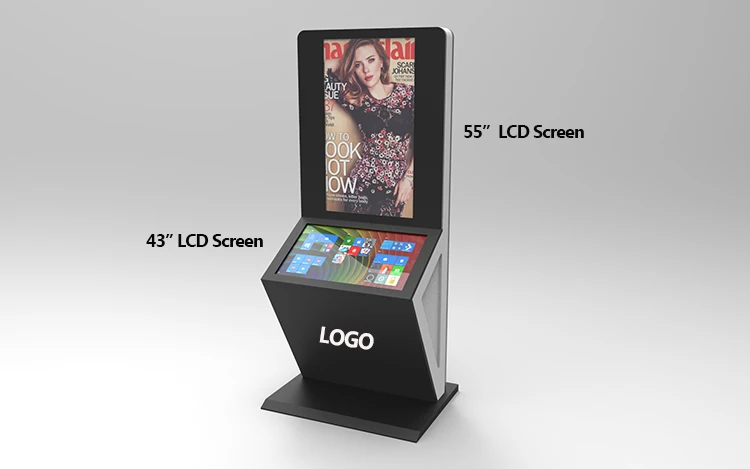

This product is an up and down dual screen integrated machine that is based on the Windows OS platform with extended desktop functionality and infrared touch (down screen). The upper screen uses a 55-inch LED display as a multimedia information display, and the down screen uses a 43-inch LED display and infrared touch to achieve human-machine interaction.
Appliccation
Mall, Supermarket, Airport etc.
Specification
LCD Panel a-Si TFT LCD opencell and LED backlight | |||||
Size | 43inch (Underside) | 55inch (Upside) | |||
Display Area (mm) | 940.896(H) × 529.254(V) | 1209(H) × 680(V) | |||
Resolution | 1920(RGB) × 1080 | ||||
Display Color | 16.7M(8-bit) | ||||
Pixel Pitch (mm) | 0.49 / 0.49 | 0.63 / 0.63 | |||
View Angle | 89°(U) / 89°(D) / 89°(L) / 89°(R) | ||||
Brightness | 380cd/m² | 450cd/m² | |||
Contrast | 1200:1 | 3000:1 | |||
Response Time | 8ms | 6ms | |||
Touch Screen (43inch) | |||||
Touch Technology | IR Touch | ||||
Touch Point | Multi 10 point touch | ||||
Resolution | ≥4096 × 4096 | ||||
Touch Accuracy | ±2mm | ||||
Refresh rate | 120FPS,Response time≤10ms | ||||
Touch Media | Finger metal touch pen and other opaque objects | ||||
Pretective Glass | 4~6mm tempered glass,hardness ≥ Mohs level 7 | ||||
Transmittance | ≥89% | ||||
Audio | |||||
Speaker | 8Ω/5W × 2 | ||||
Audio Mode | Stereo | ||||
Power | |||||
Input Voltage | AC100~240V,50/60Hz | ||||
Standby Power | ≤1W, Supports Low Power Standby Mode | ||||
Rated Power | ≤80W + 60W + 160W | ||||
Mainboard | |||||
Operating System | Ultimate Windows 7(32-bit) | ||||
CPU | Intel Core I5-5287U(5th generation,Dual-core) 2.9GHz/3.3GHz | ||||
GPU | Intel HD Graphics 5500 | ||||
RAM | DDRIII 1600 8GB | ||||
Hard Disk | 2.5’ SSD 128GB | ||||
Network | Realtek8111F GIGABIT Interface,Wake on LAN | ||||
WIFI | PCIe 150Mbps ,802.11b/n/g | ||||
Sound effects | Realtek ALC662 HD Digital Audio Decoder | ||||
Interface | USB 2.0 × 2,USB3.0 × 2 VGA OUT × 1 HDMI OUT × 1 MIC × 1 EARPHONE OUT/LINE OUT × 1 LAN( RJ45) × 1 DC OUT / IN × 1 | ||||

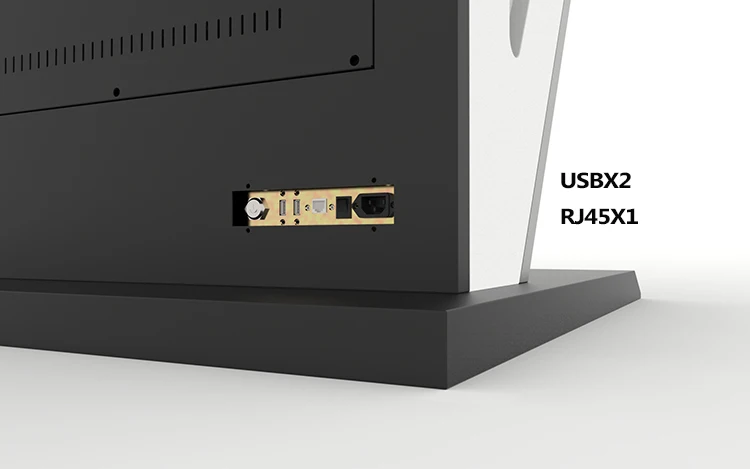

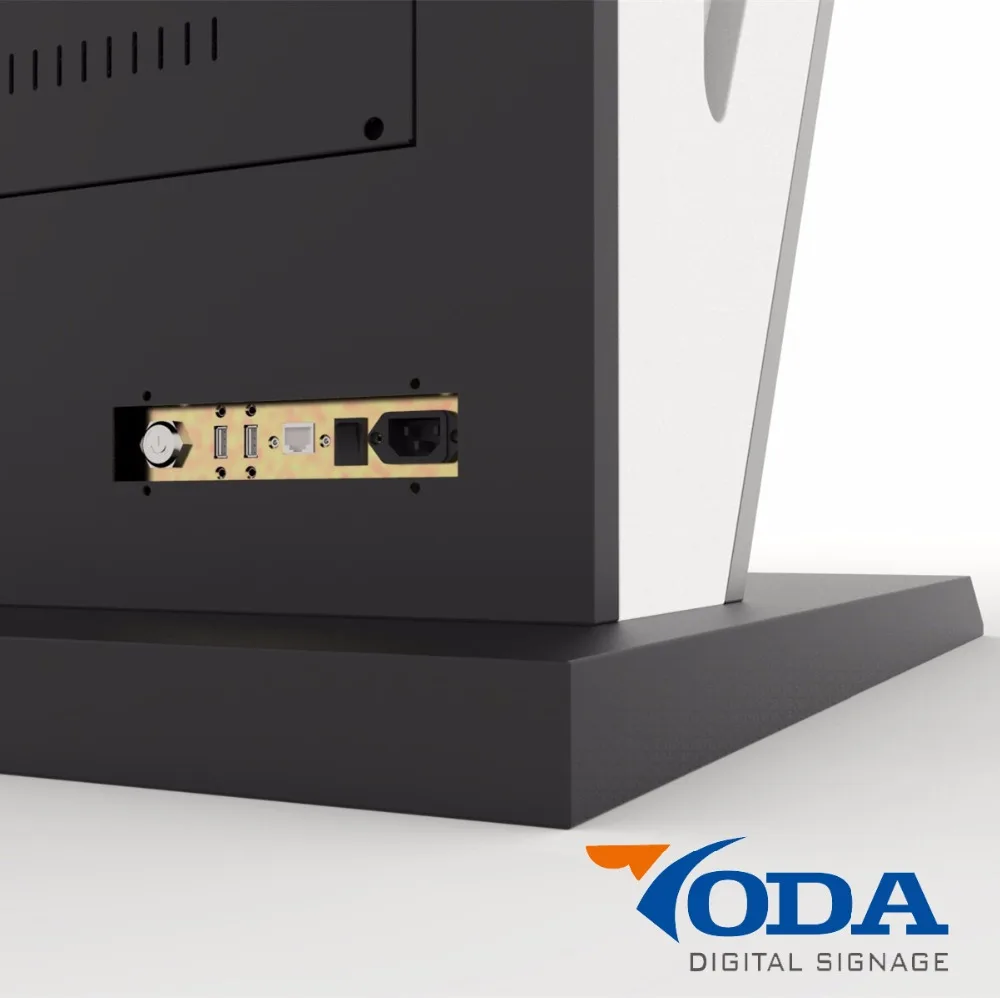

External Interface | RJ45(LAN) × 1,USB 2.0 × 2 | ||||
Power on | Support | ||||
Timer Switch | Support the timing of startup, the timing of shutdown requires third-party software support | ||||
Real-time Clock | Support | ||||
Appearance | |||||
Cabinet Material | Cold rolled stell SPCC/Aluminum/Custom,Metal Painting,internal components plating,Anti-rust,Anti-magnetic,Anti-static | ||||
Appearance Color | White/Black/Silver/Customized | ||||
Installation Mode | Floor-stand | ||||
Operating Temp/Hum. | 0℃~50℃/20%~80% | ||||
Storage Temp/Hum. | -10℃~60℃/5%~95% | ||||
Standard Accessories | Manual,Warranty Card,1.8M Power Cord,Installation Kit,Keys,Touch Pen,WIFI Antenna | ||||
Remark | Various Functions and software can be customized | ||||
