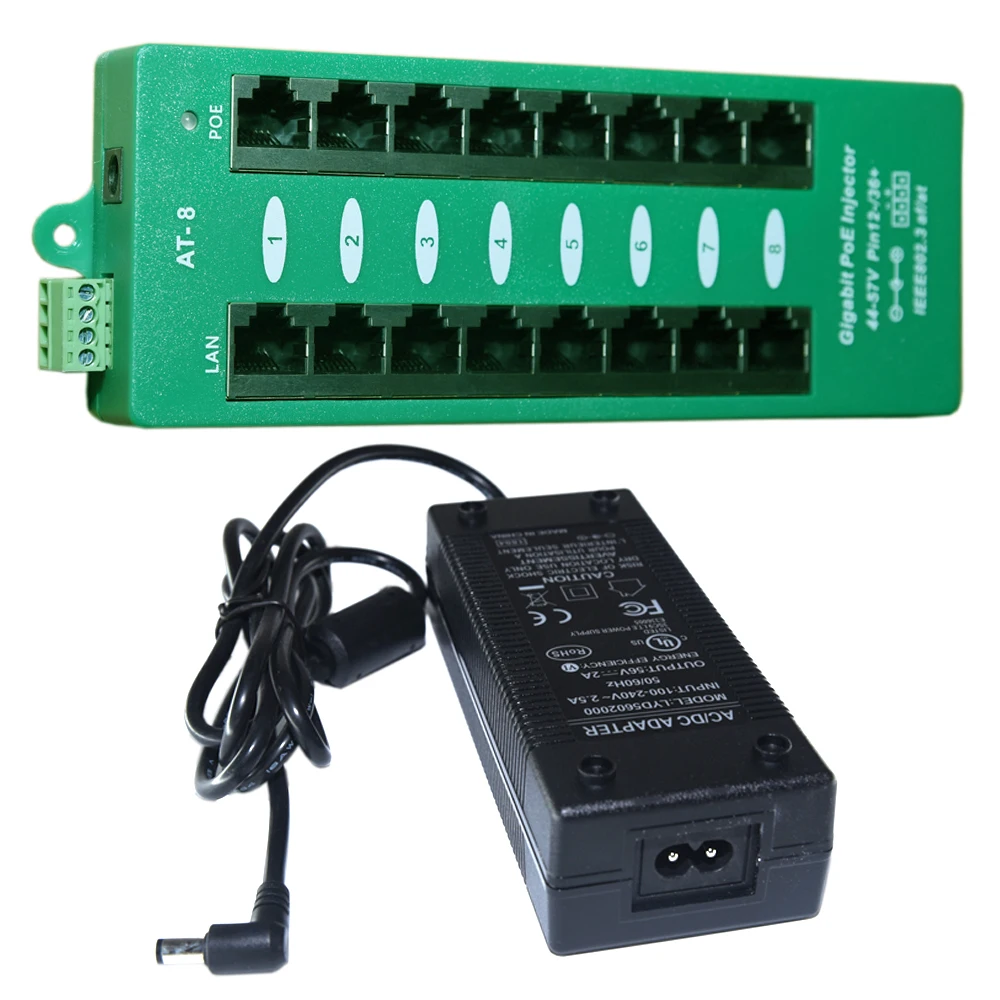

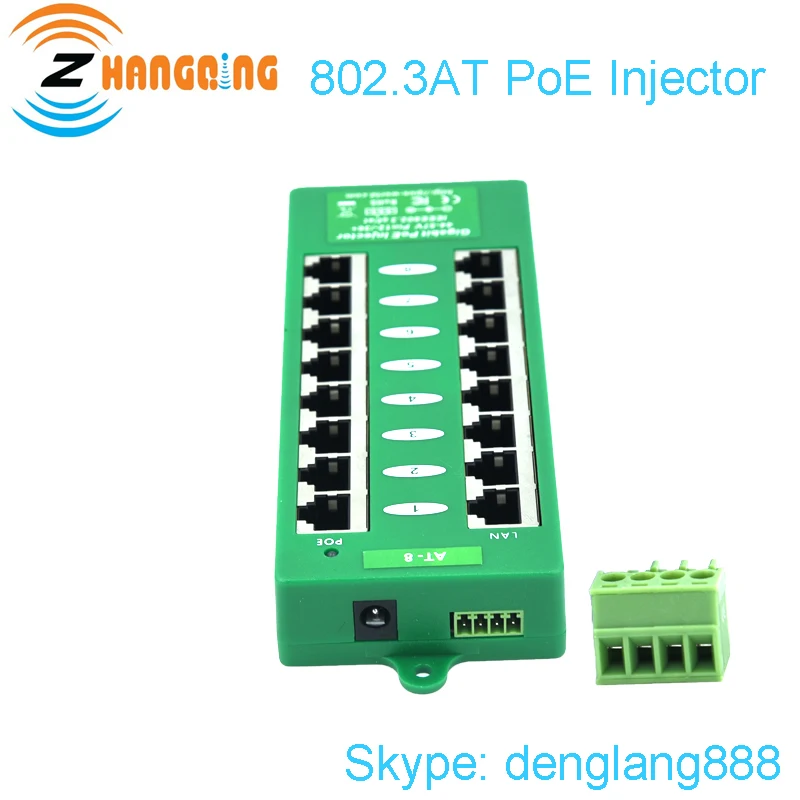

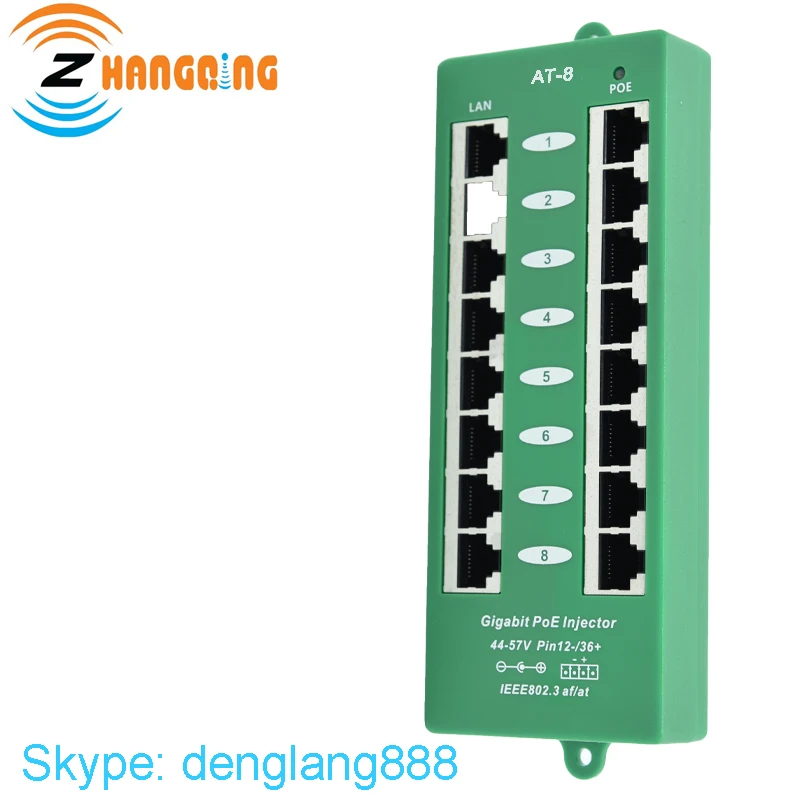

Gigabit 802.3af 802.3AT 56volt 120watt Active PoE Injector 8 port

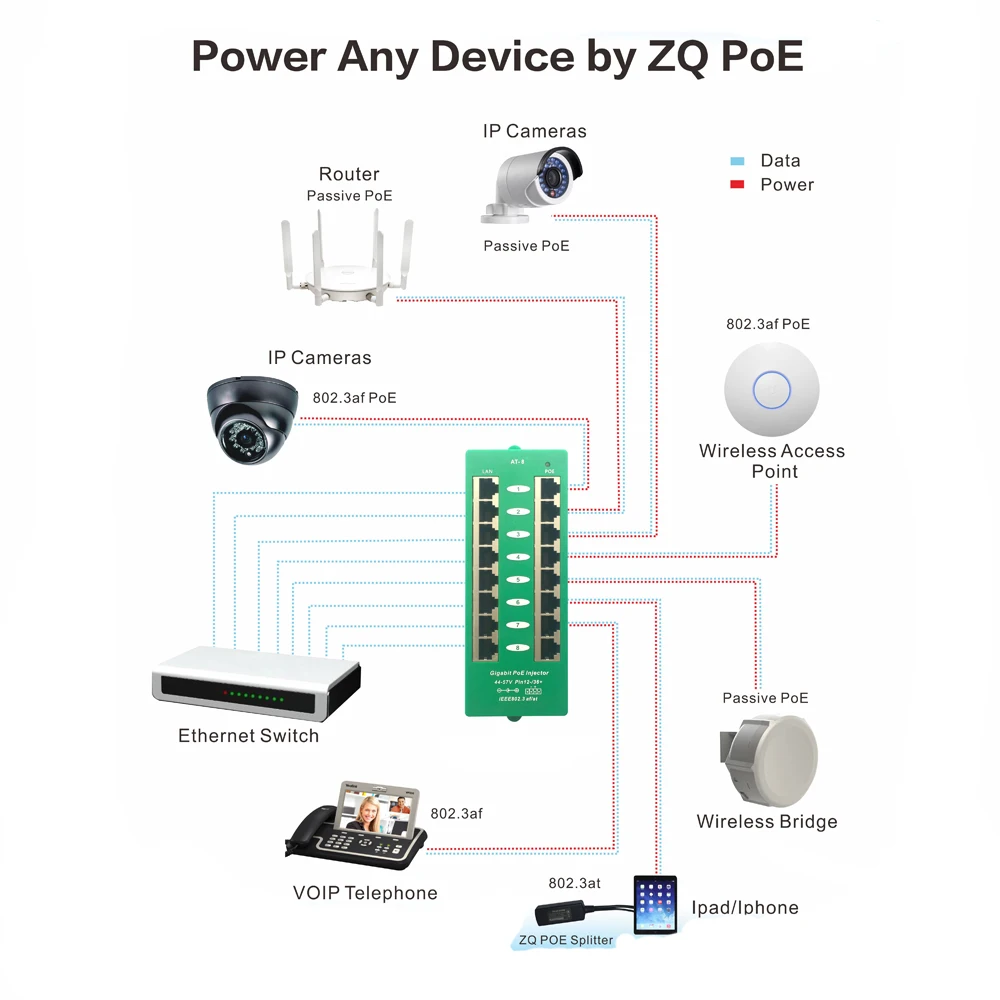

This 8 port PoE+ Gigabit injector with a 56 volt 120 watt power supply allows for 10/100/1000 data speed and is able to provide up to 25 watts of power to each individual port. It negotiates with 802.3af devices and gives the device the Power it needs. No power is given Until a PoE device is found and activated. Used to power 12 volt IP cameras, phones, and access points.

Features:
Wall mount
Use with any PoE or non-PoE switch
No power given to non-PoE devices
802.3af /at compatible
LED power dipslay
10/100/1000 data speed
Protected extra low voltage - PELV per NFPA standard 79
550 ma current limiter per port
2.1mm x 5.5mm DC plug
Mode A outpout pins: 1&2 (-) and 3&6 (+)
Quiet operation - no fan or cooling required
Operating temperatute: 0°C ~ 50°C
Storage temperature: 0°C ~ 50°C
Humidity range: 5% to 90% non-condensin

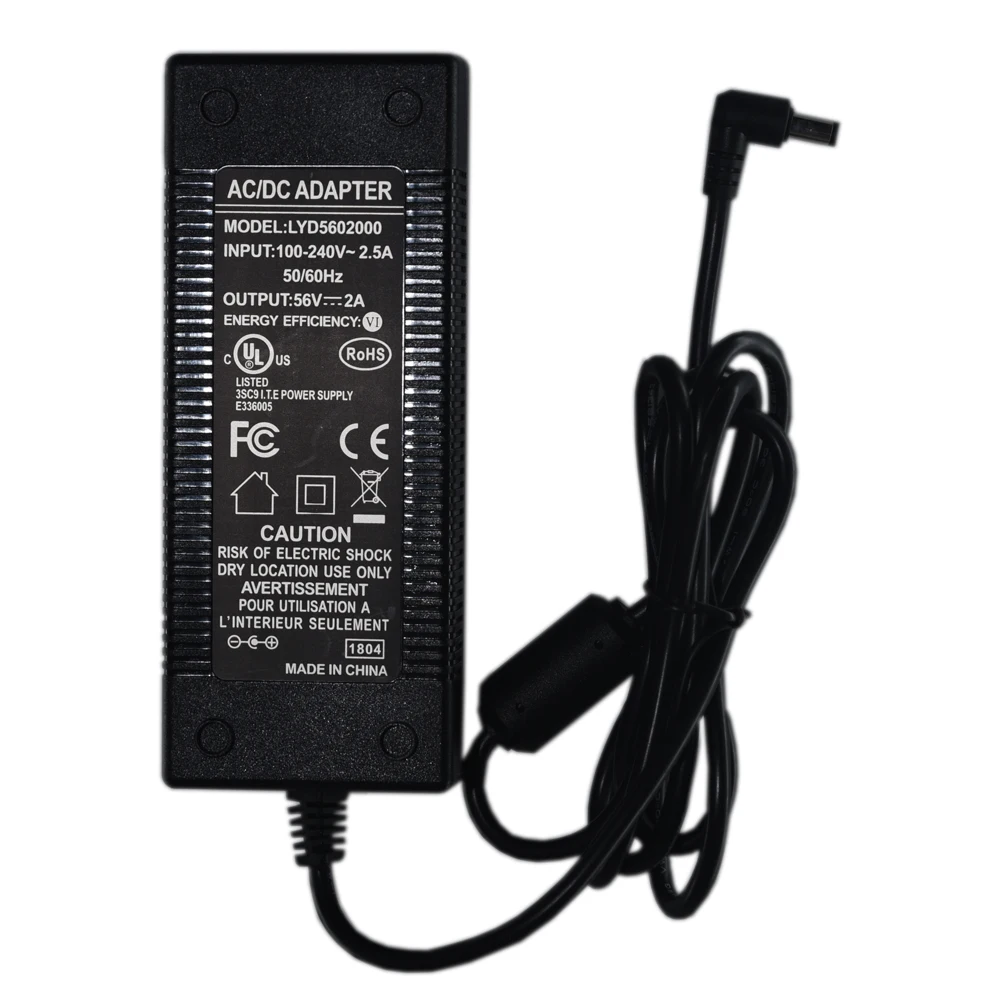

​56v 120w power supply

Product Specifications:
Size: 116 x 45 x 25 mm includes 2 10mm tabs
Weight: 1200g

Other Options:
4 port verison available
6 and 12 wall mount Gigabit injectors
6 and 12 rack mount injectors

Usually in Stock.

About 1KG Each Sets.
