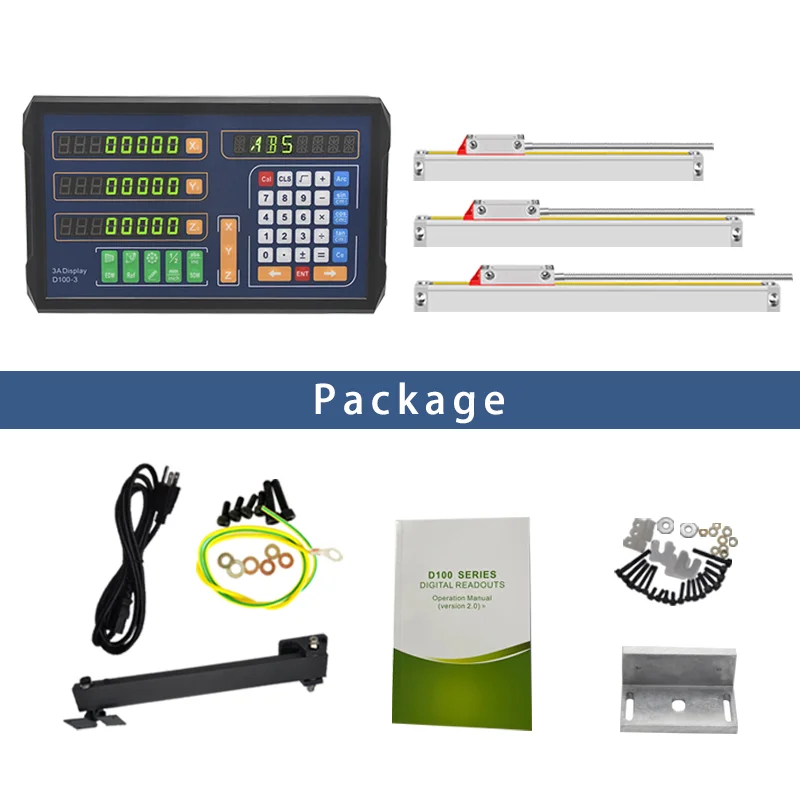

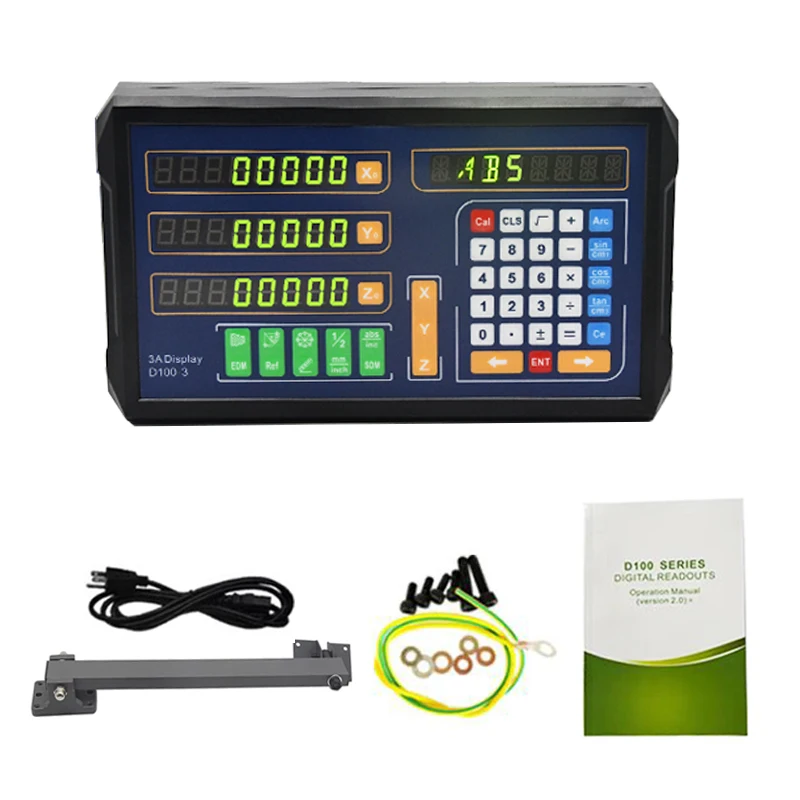

DITRON 2/3 Axis Dro Digital Readout Display and Linear Glass Scale for Lathe Milling Machine
- Category: >>>
- Supplier: Chengdu Ditron Measuring Co. Ltd
Share on (60763806281):
Product Overview
Description
Product Description
D100 technical parameter
1)Voltage range: AC 80V-260V/50HZ-60HZ
2)Power dissipation: 15W
3)Coordinate number: 2/3
4)Display: 8 bit display with signed
5)Times frequency: 4X
6)Readout box input signal: TTL/RS422
7)Input frequency:>100KHZ
8)Resolution:10um, 5um, 1um, 0.5um, 0.1um
9)Operating keyboard: light touch buttons

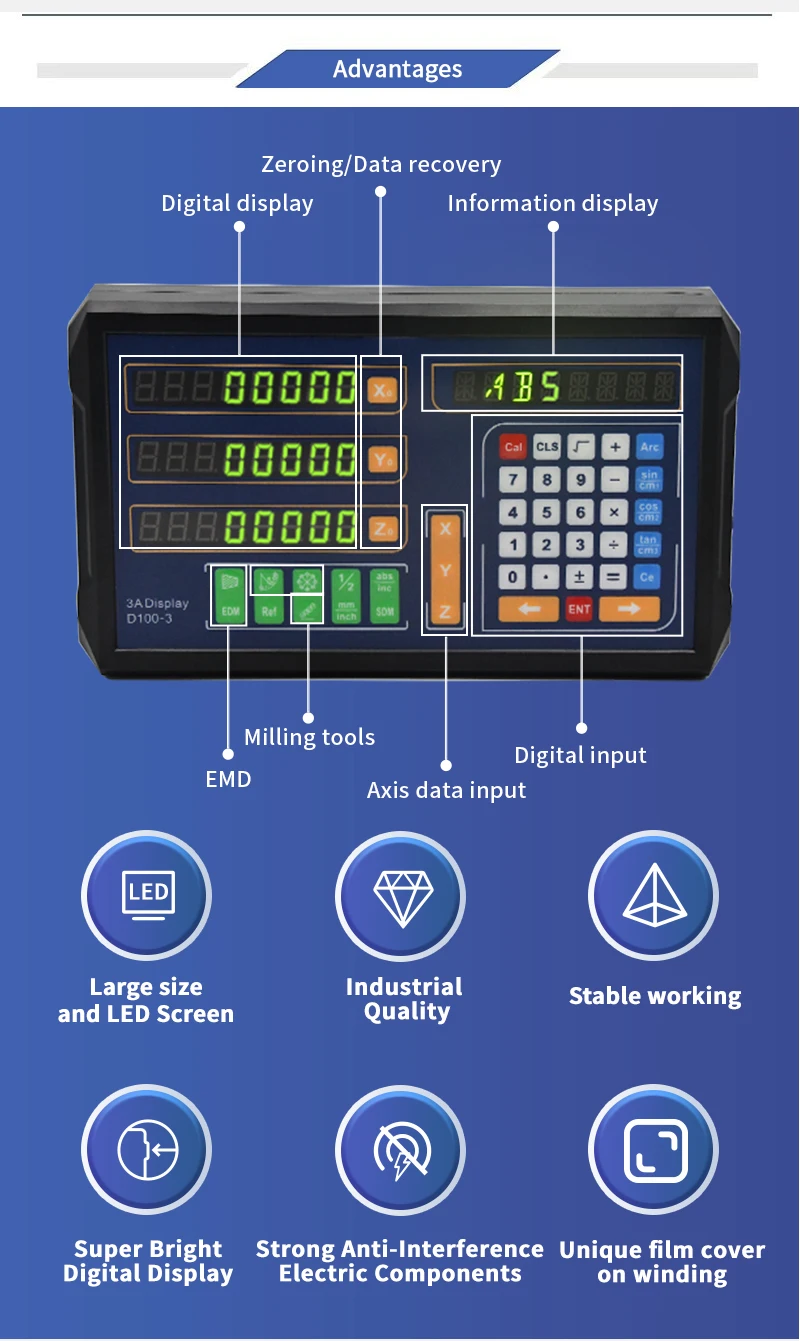

Features
Display as 8 digital readout with green LED.
Unique film covering on the windows makes the displaying much more recognizable.
High integration makes the performance be stable.
Switching on &Switching off can meet more than 100000 times.
Adopting the advanced digital filtering makes the counting be more accurate and stable.
Advanced electronic technology and high speed count
Durable keypad for all functions
All counters supplied with mounting Bracket

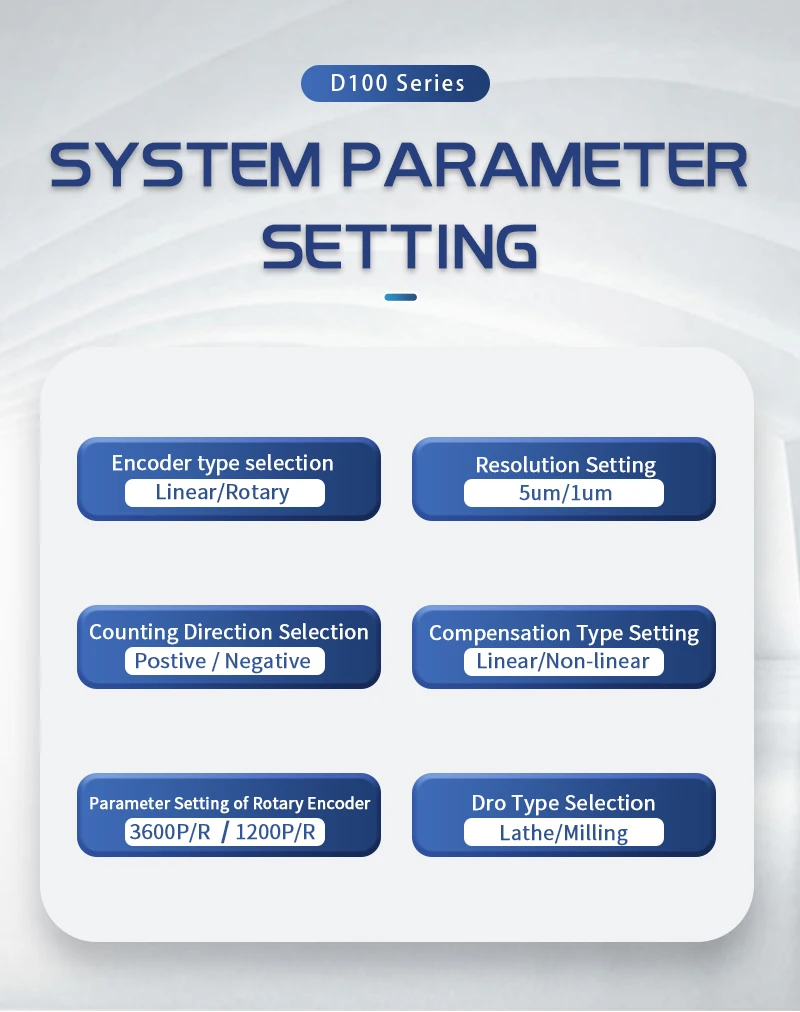

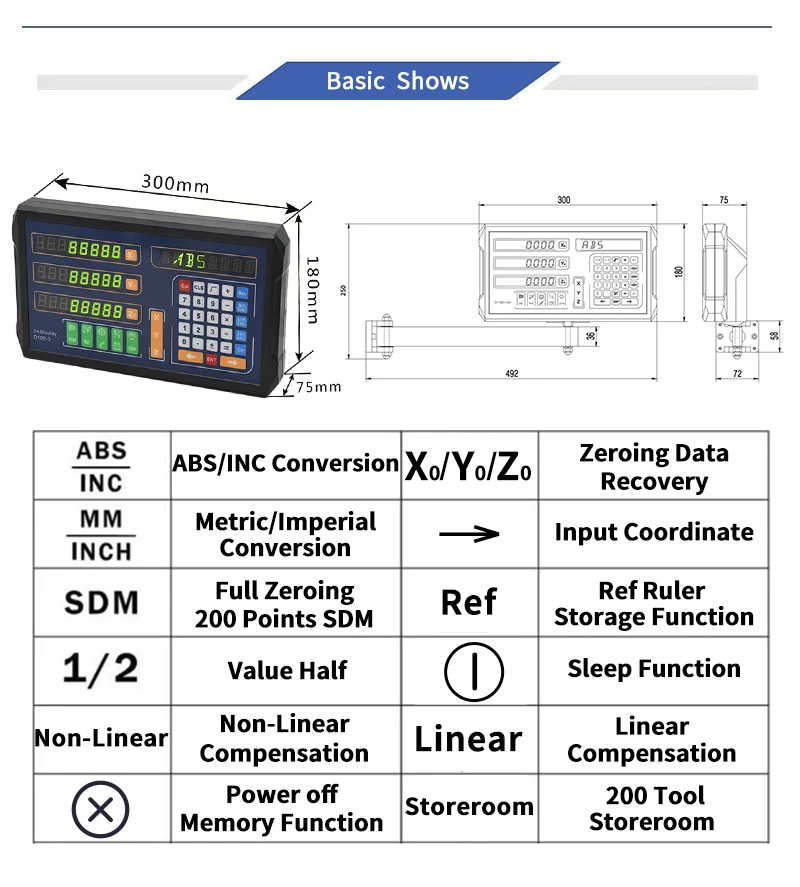

Functions
1)Zeroing and Data Recovery
2)Value Inputting
3)Metric and Imperial Switching
4)Power off memory
5)Encoder Selection(Rotary or Linear)
6)Linear Compensation
7)Non-linear Compensation
8)Calculator
9)Counting Direction Setting
10)ABS/INC Coordinate
11)200 sets of SDM Coordinates
12)REF
13)Centering

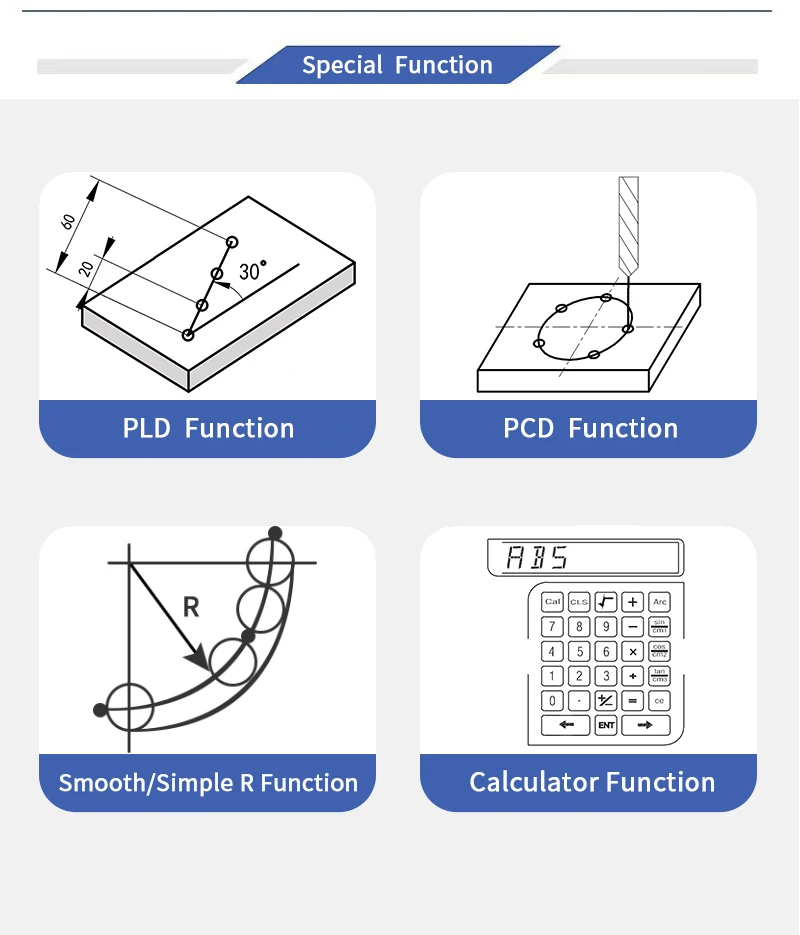

Specail Function:
14)PLD Function
15)PCD Function
16)Simple R Function
17)Smooth R Function
18)Radius/Diameter switching
20)Axis summing
21)Digital Flitering Function
22)Taper Measuring Function
23)RS232 Interface
24)EDM Function
