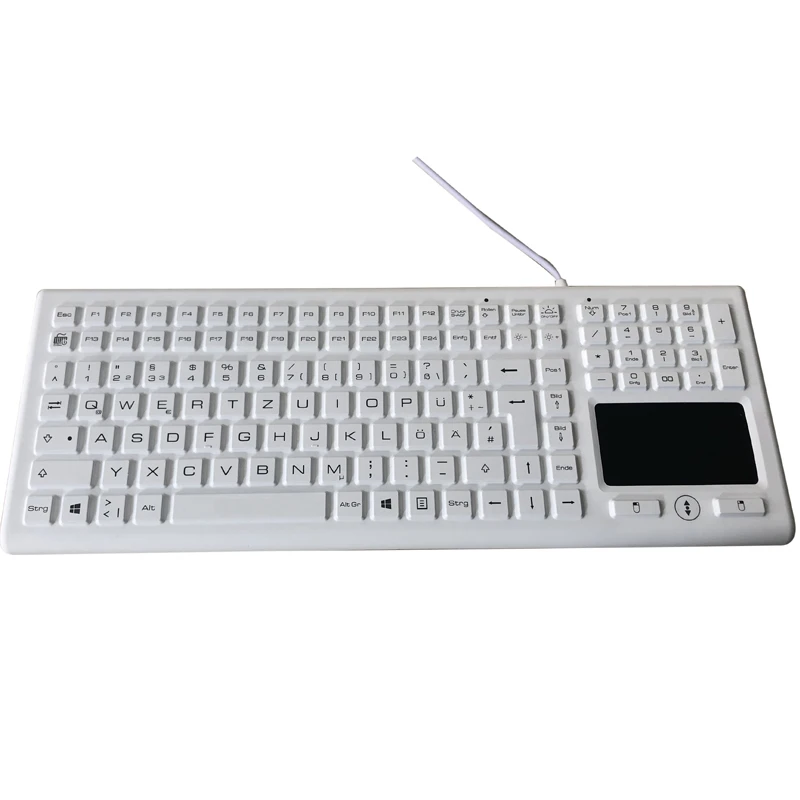

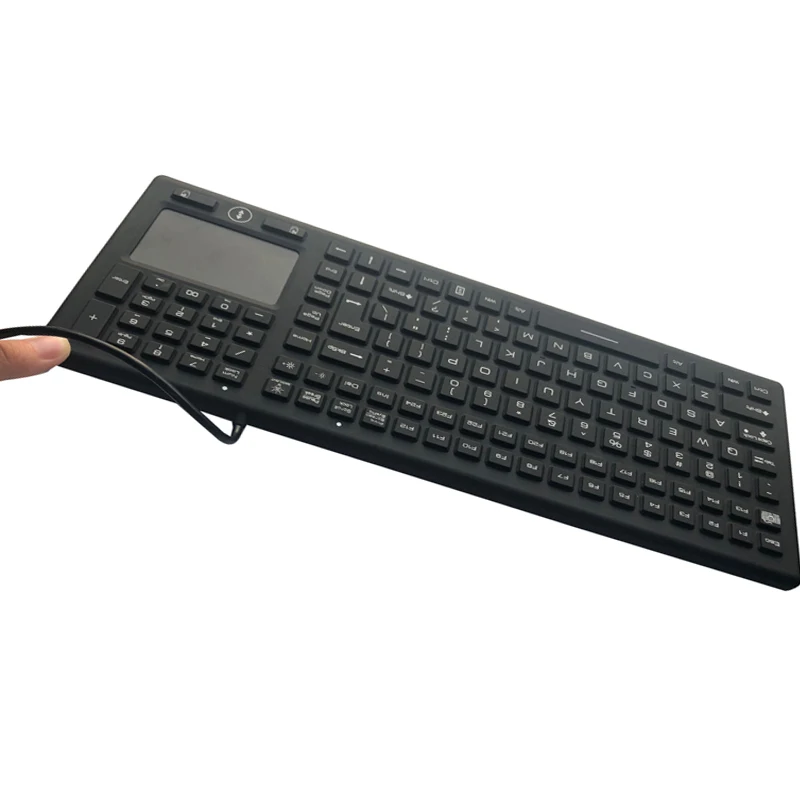

IP68 Waterproof Keyboard with 122 keys including 24 function keys and numeric keypad

Items

Specifications

Key Feature

-   With integrated touchpad

-   122 keys including 24 function keys and numeric keypad

-   Adjustable brightness of backlight

-   Backlight can be chosen ON or OFF by pressing the “Backlight” key

-  All the keys can be locked and disabled for cleaning simply through pressing the “5 Sec ON/OFF” key for 5 seconds

- Use of antimicrobials to contain reproduction of harmful bacterials

- Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists

- Custom color available

Material

- Silicone

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: <=100 mA
- Interface: USB or PS2
- EMC Emission:EN55022(B)

Environmental Characteristics

- Operating temperature: -20º C to + 60º C
- Storage temperature: - 30º C to + 75º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force: 60-80g
- Key travel: 2mm
- Lifetime (cycles): Min 10, 000, 000 actuations
- Sealing protection: IP68
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4

Compatible Operation System

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10

Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

Certification

FCC,CE,RoHs

Dimension

-365.00(L) x 136.00(W) x 12.00(T) mm

Weight

0.65kgs
