ELP New CMOS OV4689 1080p 60fps 640*360 260fps 720p 120fps high speed USB Camera module for highway video capture
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (60763831130):
Product Overview
Description
ELP New CMOS OV4689 1080p 60fps 640*360 260fps 720p 120fps high speed USB Camera module for highway video capture
Product Description
Features:

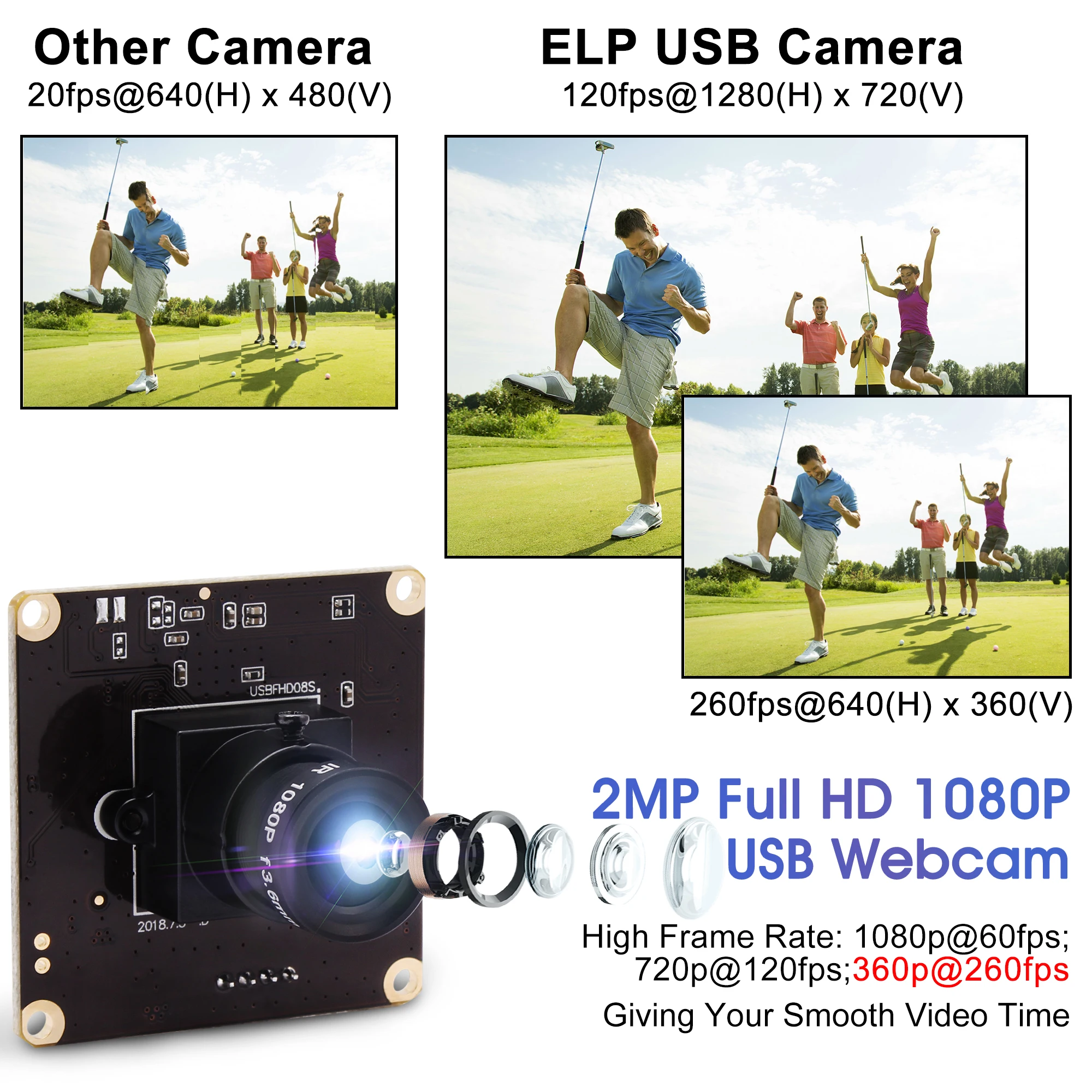

* 2MP 1080P high speed usb camera module
* 1/3” omnivison OV4689 sensor for high quality image

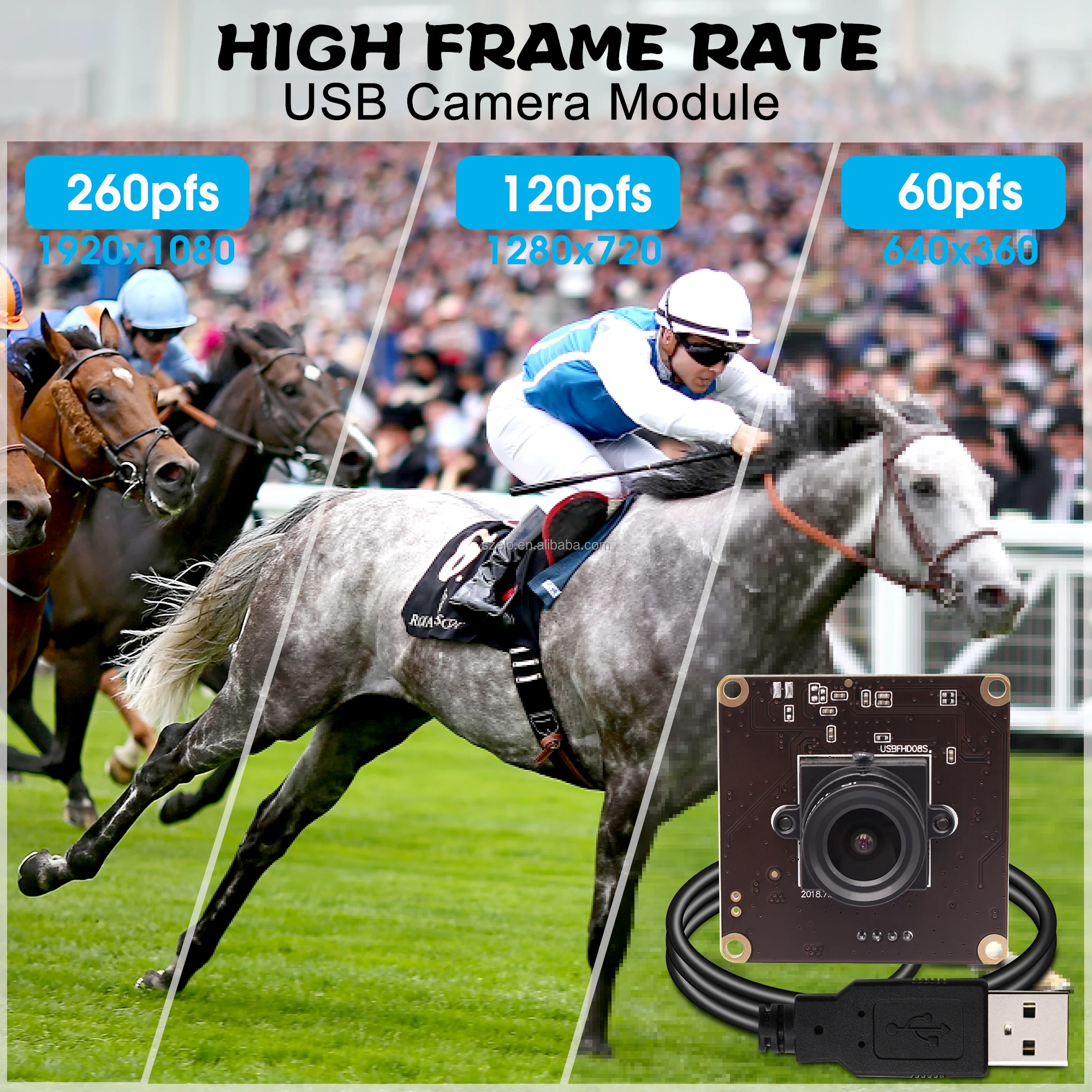

* High frame rate- 1080P 60fps, 720p 120fps, 640*360 260fps
* With HD 3.6mm M12 lens
* MJPEG/YUY2 dual video format optional
* Mini size 38*38MM embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG

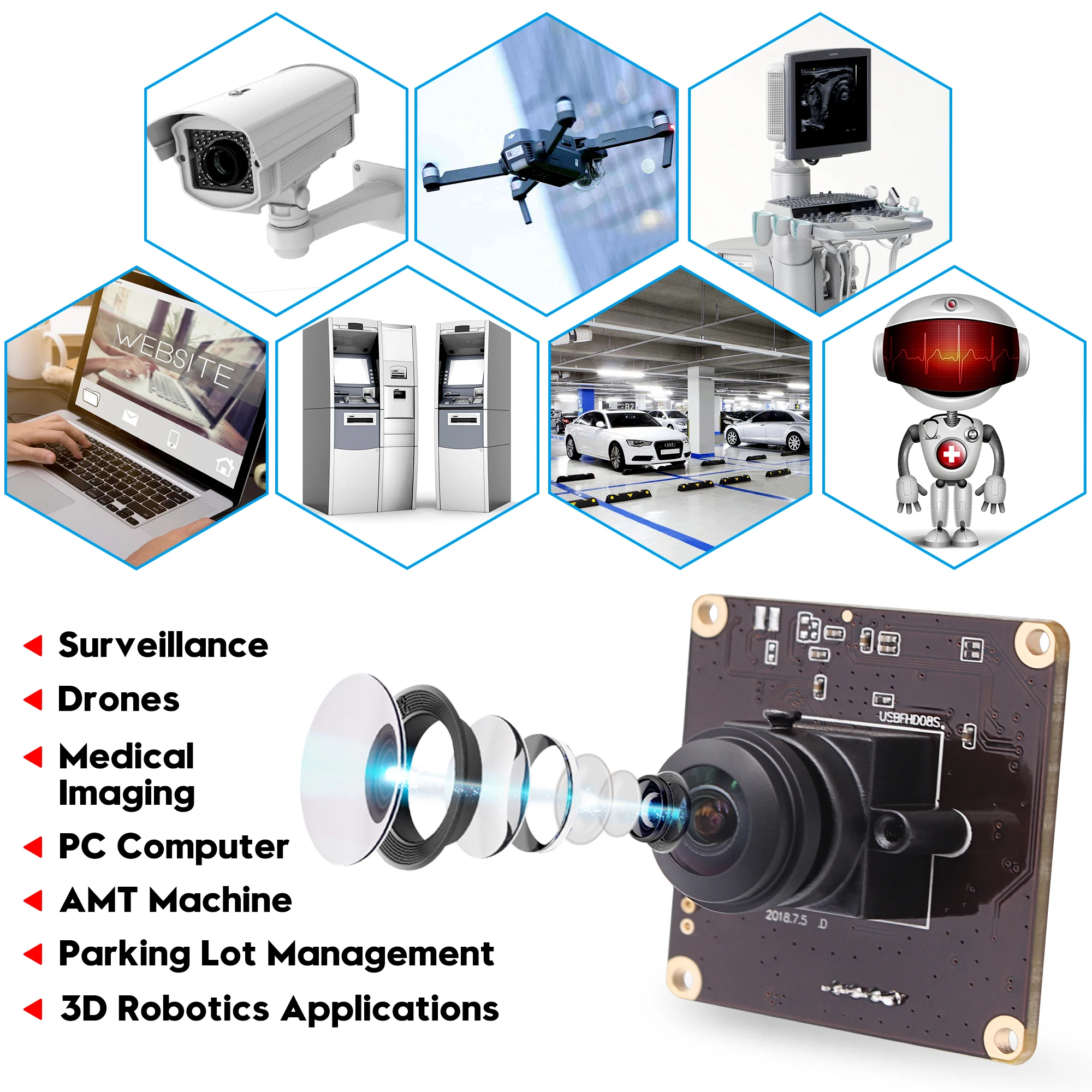

* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
Specification:
Model | ELP-USBFHD08S-L36 |
Sensor | OV4689 |
Lens Size | 1/3 inch |
Pixel Size | 2.0µm X 2.0µm |
image area | 5440 µm x 3072 µm |
Max. Resolution | 1280(H)X720(V) |
Compression format | MJPEG / YUV2(YUYV) |
Resolution & frame | 1920X1080 MJPEG@ 60fps 1280X720 MJPEG@ 120fps 640X360MJPEG@ 260fps |
S/N Ratio | 38.3dB |
Dynamic Range | 64.6dB |
Sensitivity | 1900mV/lux-sec@550nm |
Mini illumination | 0. 1lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
AEC | Support |
AEB | Support |
AGC | Support |

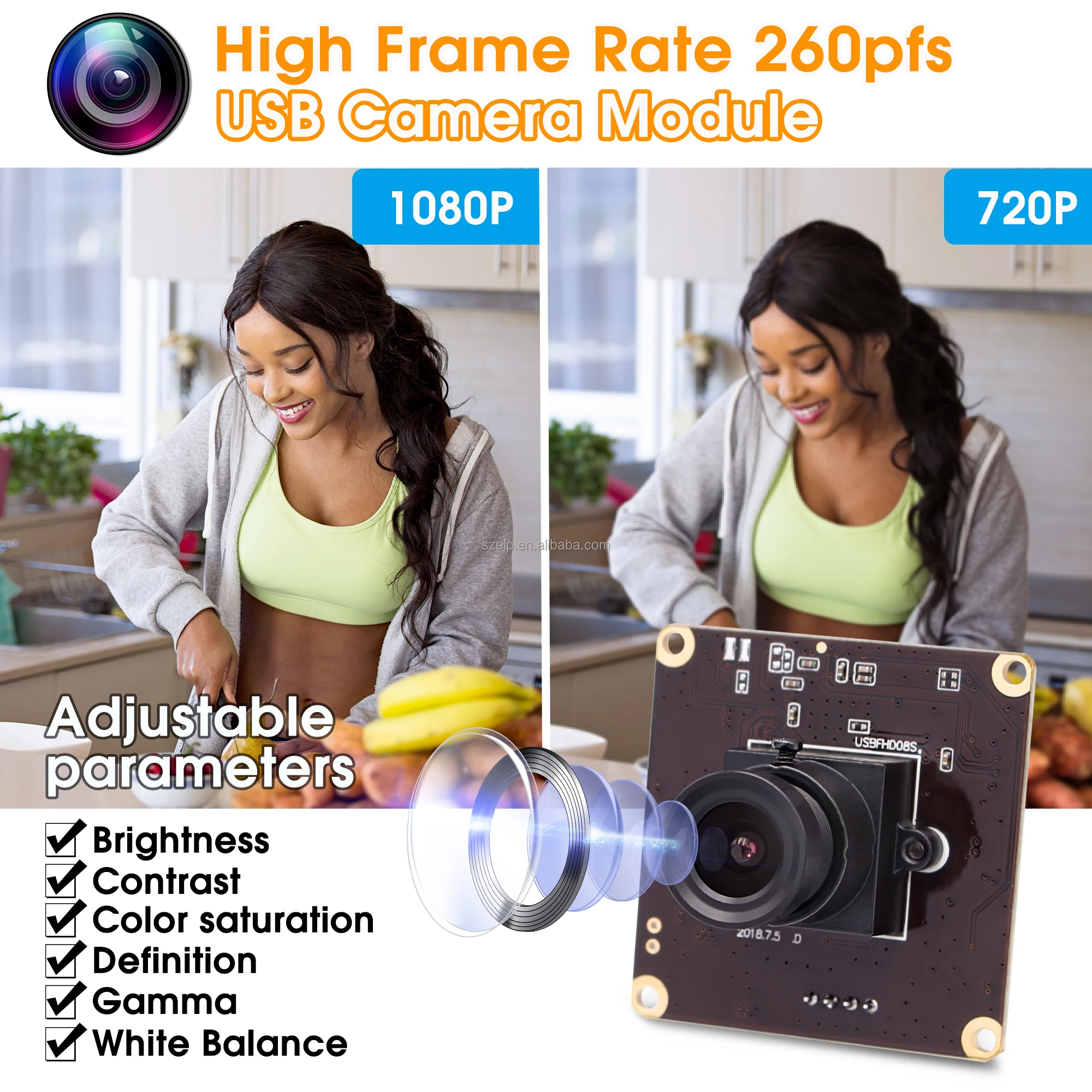

Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
Lens Parameter | 3.6MM M12 lens |
Power supply | USB BUS POWER |
Operating Voltage | DC5V |
Working current | 150mA~185mA |
Working temperature | 0~70℃ |

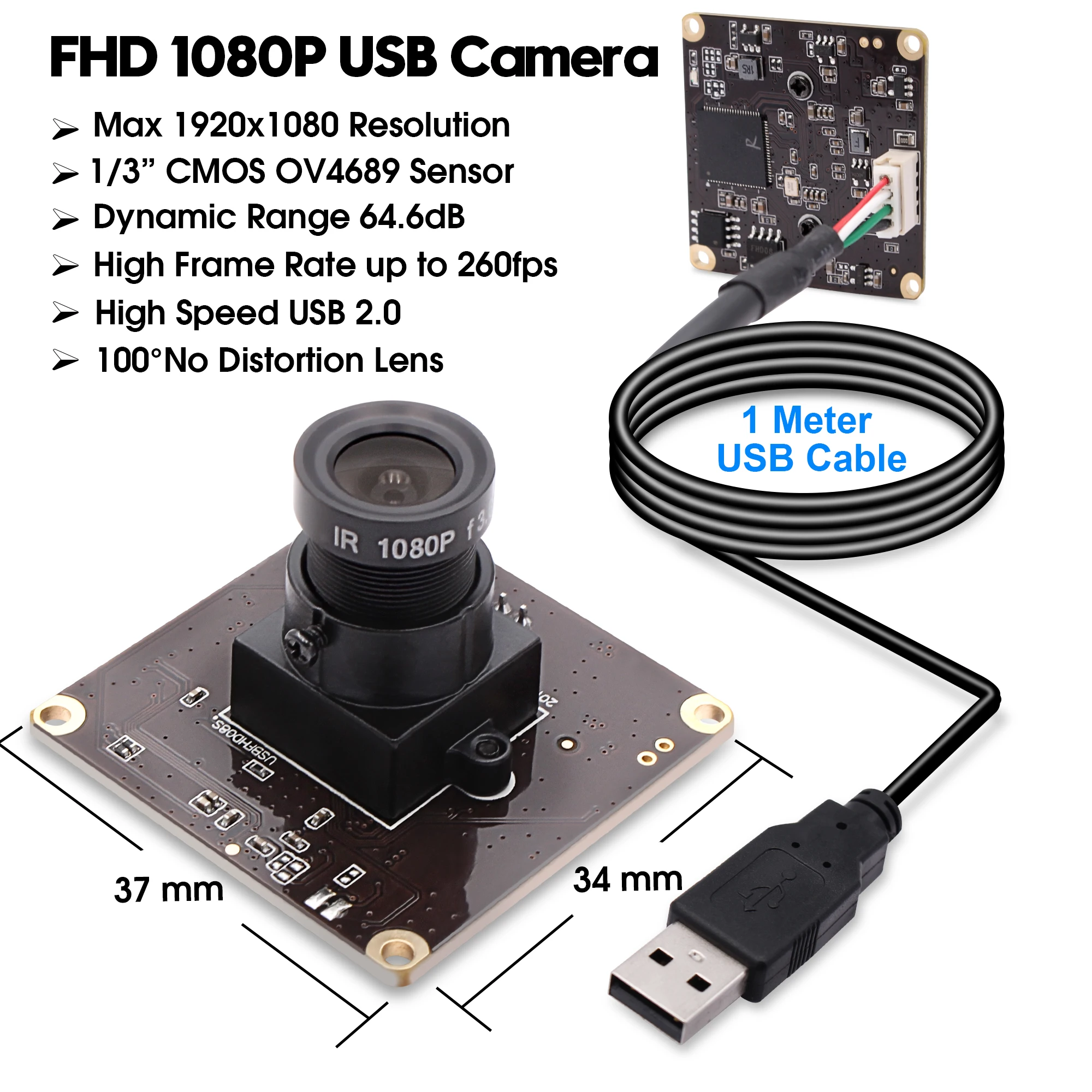

Board size /Weight | 38*38mm |
Cable | Standard 1M |

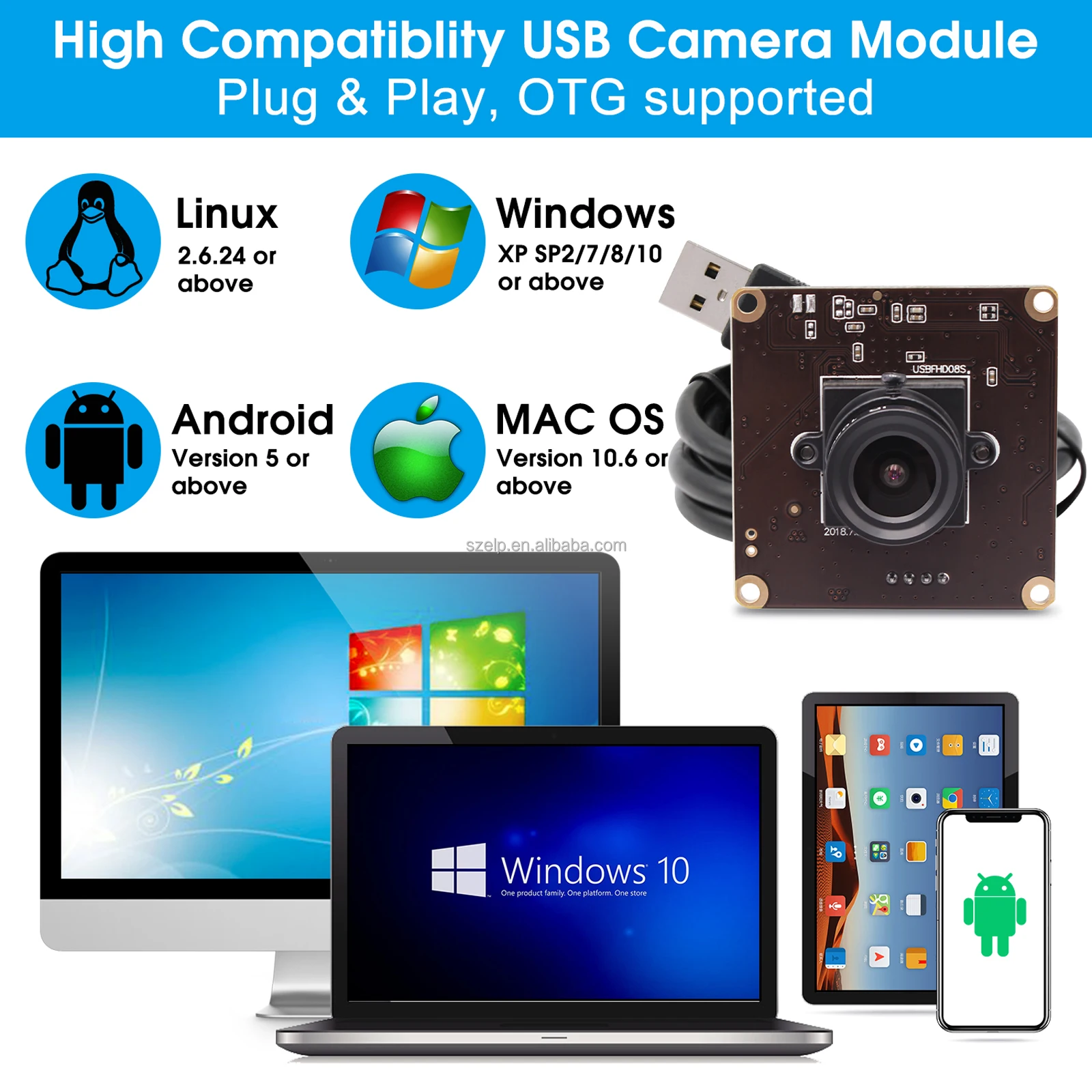

Operating system request | Win XP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |

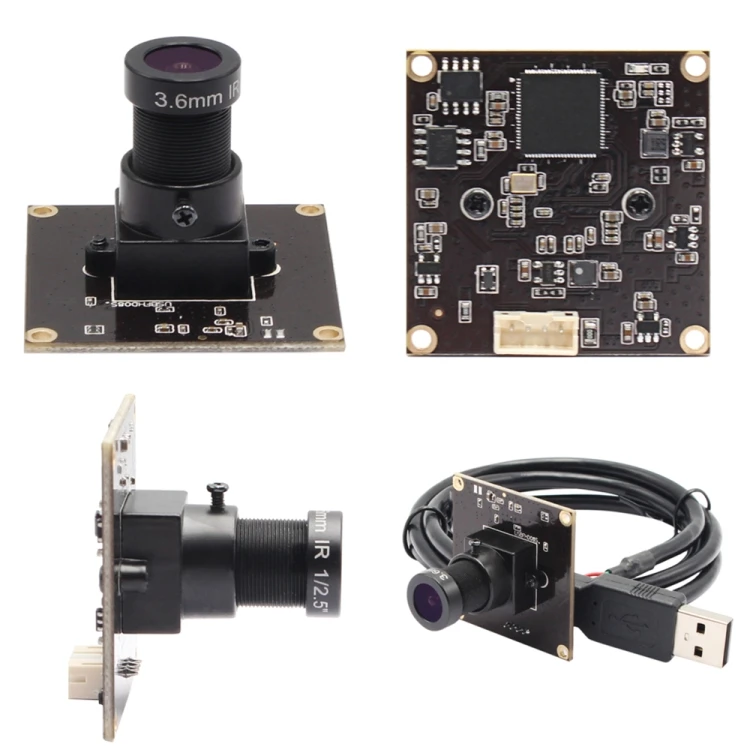

Pictures:
Effect show:
Company Information
Related USB Cameras
Our USB Camera includes VGA 640X480,1MP,1.3MP,2MP,3MP,5MP and 8MP resolution.
Some features are showed as below. Just click and check !
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?

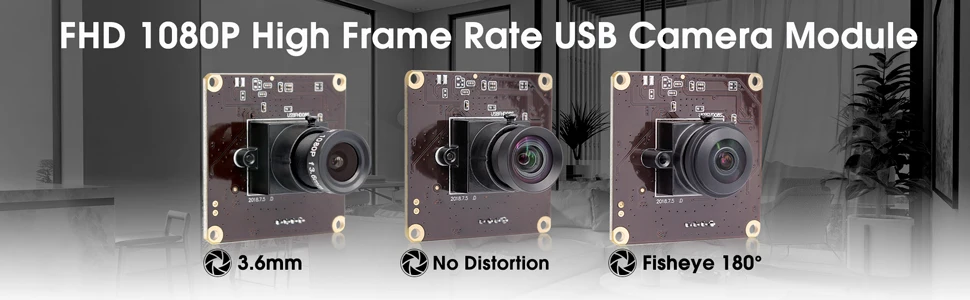

We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
