Heat Exchange/ 2 Way 3 Way Flow Mixing DN80 Electric Flange Globe Valve

Winner Electric Actuator Globe Valve

Winner Control valve consists of WVA32-2-(..2500) series rotary actuator and WVT-3-..series valve body. Equal percentage flow

characteristic guarantees the valve performances of staility. Mode code as following:

WVA32-1-D2500 Incremental control by reversible motor

WVA32-2-A2500 Proportional control with input & output signal 0~10vdc/4~20mA

Electric Actuator Globe Valve Application

 1. HVAC System

 2. Heating system

3. Water treatment system

4. Industrial equipments

Electric Actuator Globe Valve Features

AC24V Lower power supply voltage, synchronous motor

1. magnetic clutch

2. use a central screw sleeve connection the valve shaft and positioning by leve scale

3. valve opening status indication

4. ABS flame retardant engineering plastics

5. Easy installation type

6. Proportional control, CW/CCW switch rotating direction by press key 2, LED2 on CW, LED2 off CCW

7. Proportional control, input signal switch by press key 3, LED3 on 0~10vdc, LED3 off 4~20mA.

Glove Valve Specfications

WVT-2/3-Series 2 way or 3 way flanged valve consists of valve body, cap, valve clack, stem, shaft seal and sealing elements.

Rate Pressure (Bar): 5

Valve body: WCB

Valve cap: Q235A

Valve clack: Brass

Valve Stem: 1Cr18Ni9(AISI302) Stainless Steel

Flow characteristic: Equal percentage

Sealing elements: Teflon ring +NBR O ring

Max. Temp: 200 C degree

Min. Temp: 10 C degree

Rated Pressure: PN16

Leakage Rate: 0.03% Kvs

Payment Method

TT/WESTERN UNION/PAYPAL/LC

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

The actuator and valve body is packed seperatedly in a carton box.

For shipping by sea, the inner carton box is protected by waterproof transparent film.

 Winner electronic was established in 2005 in Wuhan ,Hubei province, China. Winner electronic is the first company in China to develop, produce and sell small automotive electric ball valve and put the ball valve for central air condition system. After first generation, second generation, third generation improvement, our products are now widely used for HVAC system, hospital equipment system and environmental control system. All our valves are our patent products and they are CE, ROSH certified. Winner has developed to be the most professional which has the longest experience in electronic ball valve manufacturer. In 2010, winner set up its branch in Changsha ,Hunan Province to match up the fast developing market.

Our company is a professional supplier of motorized ball valves, automatic control valves and thermostats, which are widely used in HVAC equipment, water treatment systems and some industrial equipments. With high-quality products, excellent services and a good reputation, we have won great support from customers around the world. Thus, our company scale has expanded. We also offer all kinds of OEM/ODM services. At present, we export products to America, Europe, the Middle East and other countries in Asia. We have established long-term stable and good business relationships with many manufacturers and wholesalers around the world. Currently, we are looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.

 Motorized Ball Valves

Proportional Control Ball Valves

Self Close Spring Return Zone Valve

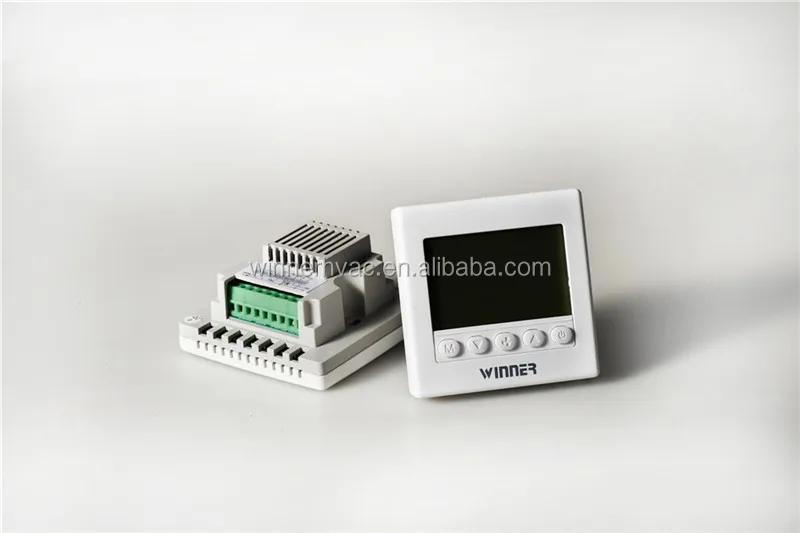

Room Digital Temperature Control Thermostat

 Q1: Only Bulk Orders?

 No, Sample orders are aslo welcome.

Q2: How to place orders?

Your can send inquiry or leave messages about your requirements or questions on Alibaba. Our sales will get back to you within 24hours.

Q3: How many days for delivery?

Usually it takes about 3 working days if stock available.

Q4: How to make payment?

After confirming all details, our sales will provide a PI with payment method (TT/WESTERN UNION/PAYPAL/LC).

Q5: Quality Guarantee?

18months

Q6: After-Sales services?

We shall be grateful if pictures or videos can be provided once there is any problem when you use our product. Our sales will

give prompt response and solving method will be provided in the first time.
