Product Overview
Description
4021 4040 8040 membrane housing 450psi membrane vessel with elements for water filtration

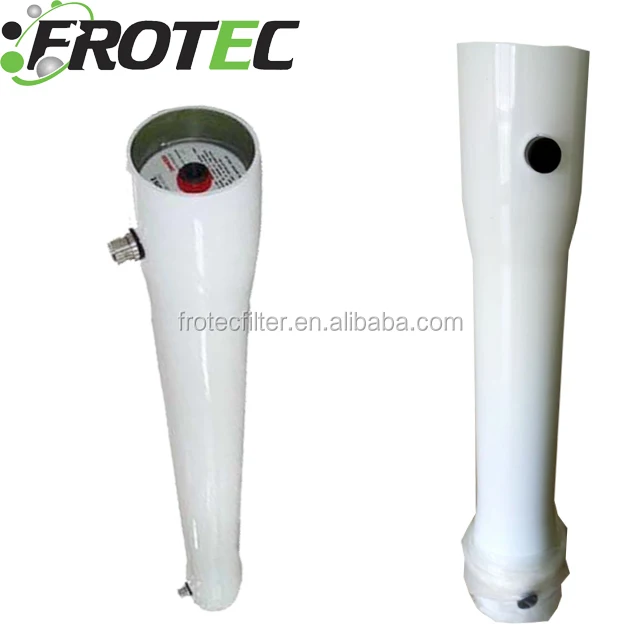

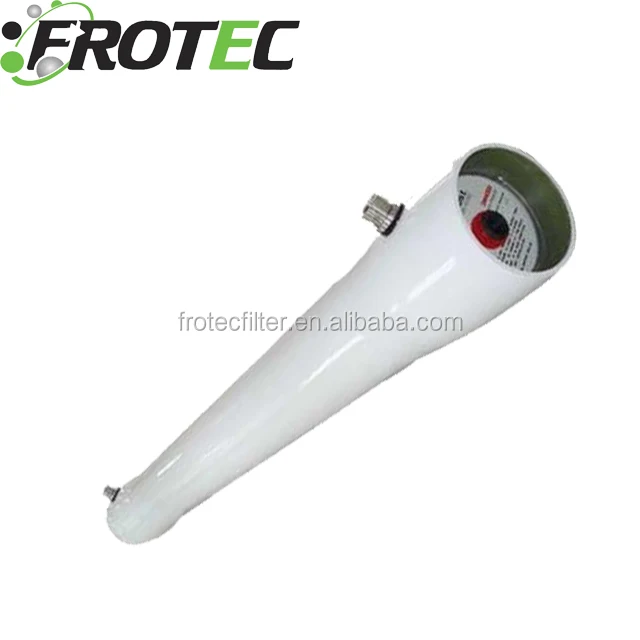

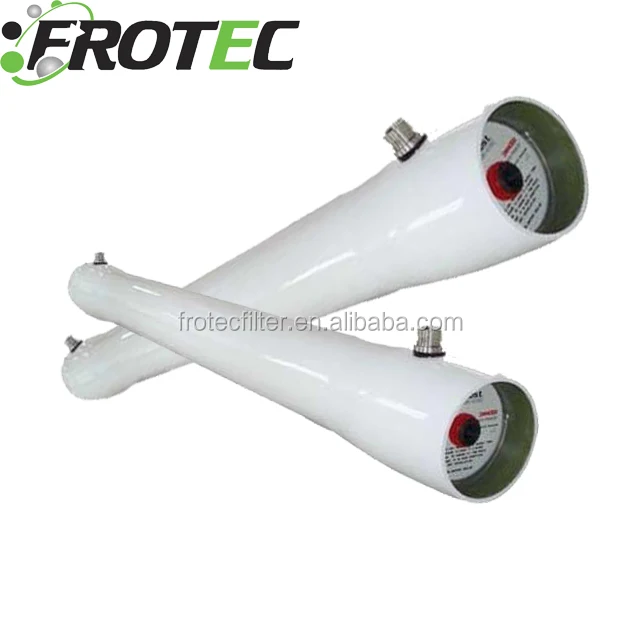

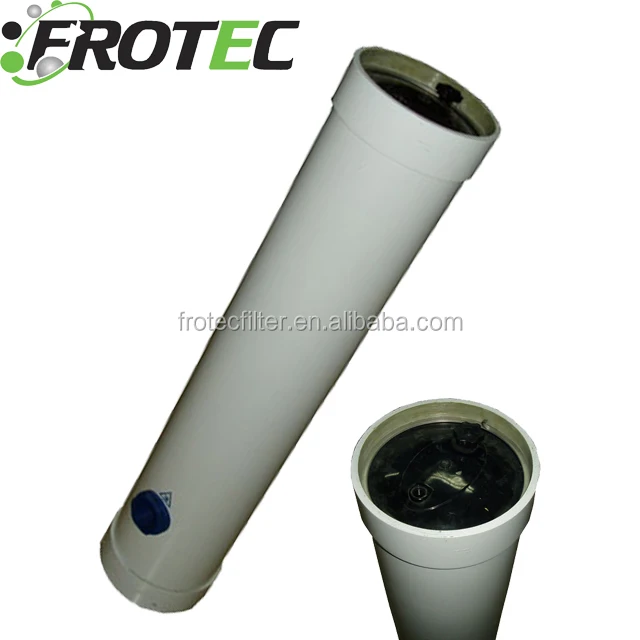

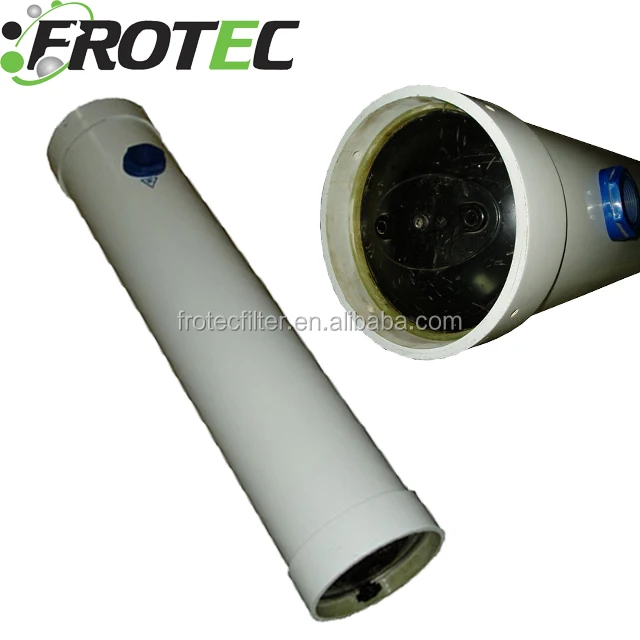

♦ Part one: Frotec FRP RO Membrane Housing Description
1.Brief introduction and Technical Specification
Our RO housing is made of high quality fiber glass, with a wide pressure range of 300PSI, 450PSI, 600PSI, 800PSI, 1000PSI, and a wide length range to adapt 1 - 6 elements. Our RO housing have end entry and side entry style.
Product Name: RO housing
Material:FRP
End Cap Material:ABS
Inlet:1 1/2" (8040), 3/4" (4040)
Outlet:1" (8040). 1/2" (4040)
Max. Working Pressure:300psi, 450psi, 600psi, 800psi, 1000psi
Color:White
Adapted Element Quantity:1, 2, 3, 4, 5 ...
Entry Style:End entry or side entry
Operating pH Range:3 - 11
Detail Specification
1. Connection type: Side Port(cellular board)
Side Port( flat board)
End Port
2. The type of pressure: 300,450,1000PSI
3. The type of length : 1~4 core
4. The appearance of colour :Standard
configuration of color is white .
Colors can also be customized according to customers' requirement
5. Special specifications can be customized.
Ro membrane housing is suitable for
1.Electronics,
2.Power system,
3.Metallurgical industry,
4.Chemical industry
5.Pharmaceutical industry,
6.Foods and beverage industry,
7.Treatment of industrial sewage and waste water,
8.Brackish water desalination etc.
Main technical characteristics
1) Withstand voltage: 2.0 ~ 2.5 MPa
2) Water on both sides on both ends
3) Structure: the standard parts, convenient disassembly
4) Seal: the withstand voltage test
5) On both ends of the organizational structure: clamp, the card type, the inner spring type.
Model specification for referance:
MPV40E (End Port)
1. Max. working pressure: 300psi, 450psi, 600psi, 800psi,1000psi
2. Inlet port: 3/4"
3. Outlet port: 1/2"
4. Model: 2521, 2540, 4021, 4040, 4080, 40120, 40160, 40200
MPV40S (Side Port)
1. Max. working pressure: 300psi, 450psi, 600psi, 800psi,1000psi
2. Inlet port: 3/4"
3. Outlet port: 1/2"
4. Model: 4021, 4040, 4080, 40120, 40160, 40200
MPV80E (End Port)
1. Max. working pressure: 300psi, 450psi, 600psi, 800psi,1000psi
2. Inlet port: 1 1/2"
3. Outlet port: 1"
4. Model: 8040, 8080, 80120, 80160, 80200...
MPV80S (Side Port)
1. Max. working pressure: 300psi, 450psi, 600psi, 800psi,1000psi
2. Inlet port: 1 1/2"
3. Outlet port: 1"
4. Model: 8040, 8080, 80120, 80160, 80200...
It's made up of frp,and quick lock head retention system for quick access to membranes
1.Working Pressure:300-1200psi
2.Size: 4" and 8"
3.Element:1-7
| Model | PSI(MPa) | Connection | Membrane size | Number of elements |
| 80S300 | 300(2.1) | SIDE | 8040 | 1-7 |
| 80S450 | 450(3.1) | SIDE | 8040 | 1-7 |
| 80S600 | 600(4.1) | SIDE | 8040 | 1-7 |
| 80S800 | 800(5.5) | SIDE | 8040 | 1-7 |
| 80S1000 | 1000(6.9) | SIDE | 8040 | 1-7 |
| 80S1200 | 1200(8.4) | SIDE | 8040 | 1-7 |
| Model | PSI(MPa) | Connection | Membrane size | Number of elements |
| 8E300 | 300(2.1) | END | 8040 | 1-7 |
| 80E450 | 450(3.1) | END | 8040 | 1-7 |
| 80E600 | 600(4.1) | END | 8040 | 1-7 |
| 80S800 | 800(5.5) | END | 8040 | 1-7 |
| 80E1000 | 1000(6.9) | END | 8040 | 1-7 |
| 80E1200 | 1200(8.4) | END | 8040 | 1-7 |
| Model | PSI(MPa) | Connection | Membrane size | Number of elements |
| 40S300 | 300(2.1) | SIDE | 4040 | 1-4 |
| 40S450 | 450(3.1) | SIDE | 4040 | 1-4 |
| 40S600 | 600(4.1) | SIDE | 4040 | 1-4 |
| 40S1000 | 1000(6.9) | SIDE | 4040 | 1-4 |
| Model | PSI(MPa) | Connection | Membrane size | Number of elements |
| 4E300 | 300(2.1) | END | 4040 | 1-4 |
| 40E450 | 450(3.10) | END | 4040 | 1-4 |
| 40E600 | 600(4.1) | END | 4040 | 1-4 |
| 40E1000 | 1000(6.9) | END | 4040 | 1-4 |

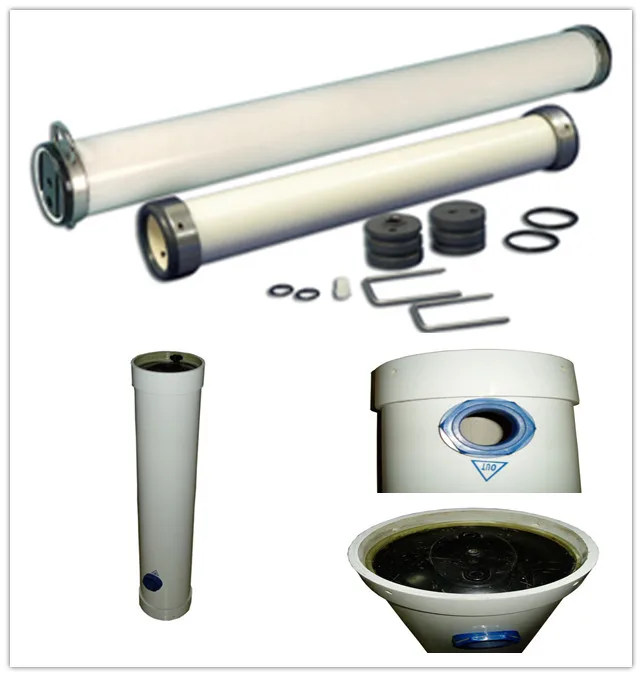

2. Product Show
3. Application
• Pre-filtration for RO system
• Solvents, selected acids & lyes, chemical industry.
• Semiconductor, Electronic industry ultrapure water system
• Food and beverage
• Oil and Gas industry.
• Pharmaceutics
• Paints, coatings and plating solutions
♦ Part two: Frotec FRP RO Membrane Housing Packaging
♦ Part three: Frotec Serivce
1. Our Service
♦Welcome to your inquiry,you are promised to get our quotation withing 24 hours
♦We are pleased to send you a sample on you confirm
♦We promise that we will implement your order on time
♦You are promised to get the best quality at the best price with the best service
2.FAQ
a.OEM service available for filter cartridge?
Yes, OEM service is available, but the Frotec brand price better than OEM
b.Payment Term
We can accept L/C, T/T, Western Union, MoneyGram and paypal
c.Certicification
We had passed ISO9001
d.Shipping
If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.
For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.
e. Lead time
The normal lead time is 7-15 days, which depends on your quantity.
