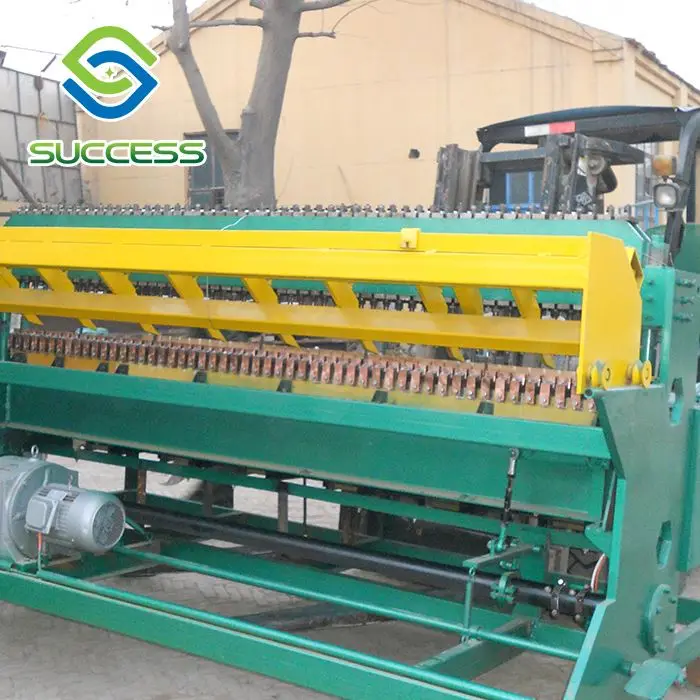

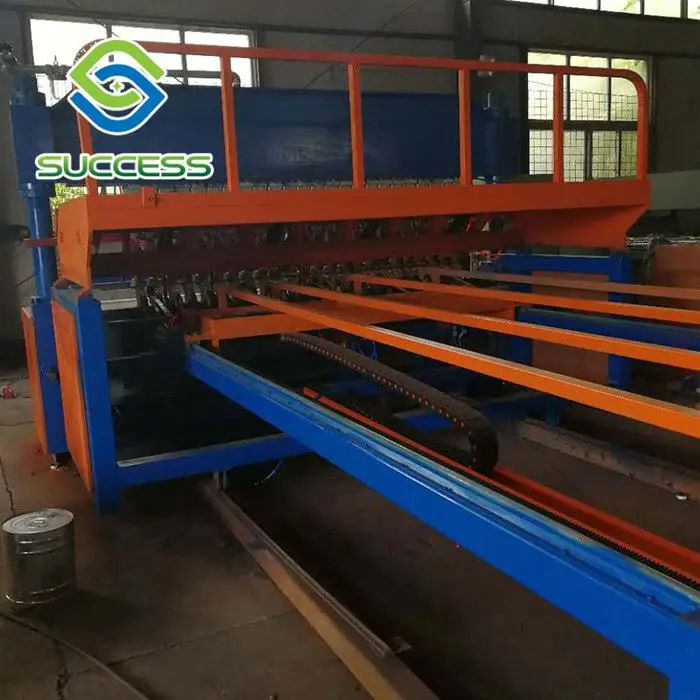

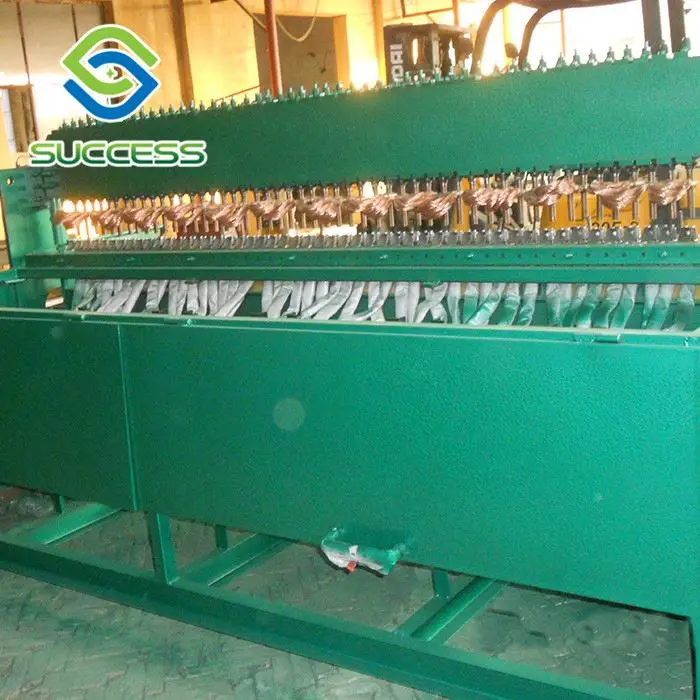

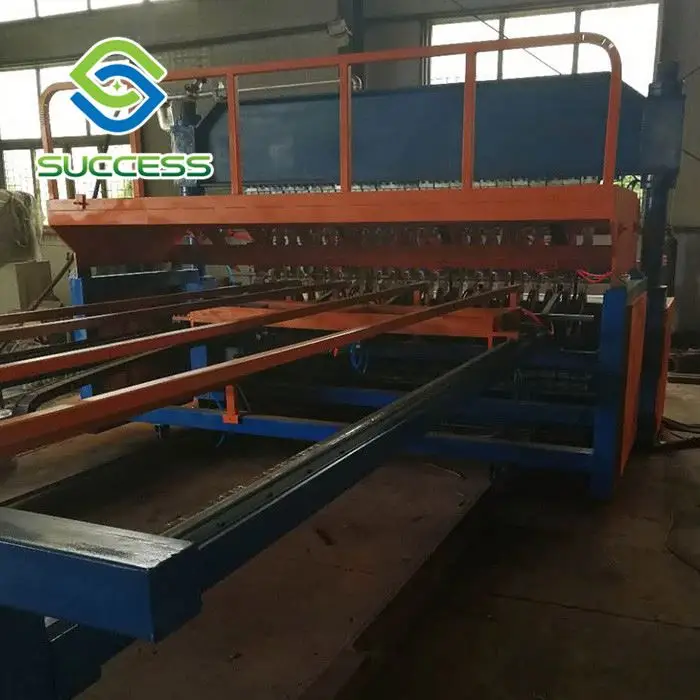

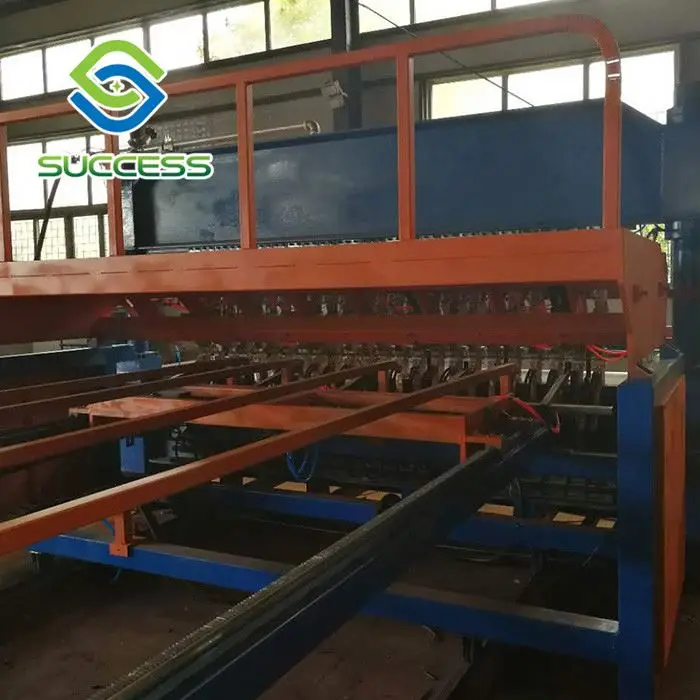

Double Wire Grassland Fence Mesh Welding Machine

Product Overview

Description

Double Wire Grassland Fence Mesh Welding Machine

1.The wire diameter of the machine is from 1.5-12mm; the length could adjust according to customers' demand.

2.It is used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire, and steel wire with plastics.

3.This machine has many advantages, such as neat cutting mouth, less error and good functions.

Machine components:

1.Host: including welded mesh body weft blanking parts

2.Attached to machines: dragnet institutions

3.Auxiliary equipment: Straightening Machine

1.Feeding material:

The warp wire and weft wire are straightened and cutted from coil wire material ,realized by auto straightening and cutting machine.

The warp wire are placed on a corresponding wire penetrating mold by worker, and the weft wire will be automatic falling down one by one ,from the weft wire system

2.Welding mesh panel system:

The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a Mitsubishi PLC digital programming system, and the mesh opening size can be adjusted only by direct input on a touch screen; and it could be exist different weft distance on one piece of one mesh sheet

3.Drawing mesh panel system:

Panasonic ( Japan ) step motor controls the whole automatic mesh panel drawing process until one mesh panel finished, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.

1.Synchronous control technology, welding time and sub-control welding consisting of PLC digital programming system,

input panel with touch screen or button to make the machine more intelligent and reasonable.

2.One-time compaction, multi-time welding.

3.The greatest advantage of control is: Meshes with different size appearing in weft direction on the same net.

4.New efficient welding transformer for welding, shift gear with eight grades expanding the range of welding wire diameter.

5.Easy operation, high flexibility, yield: Times of manual single spot welder
