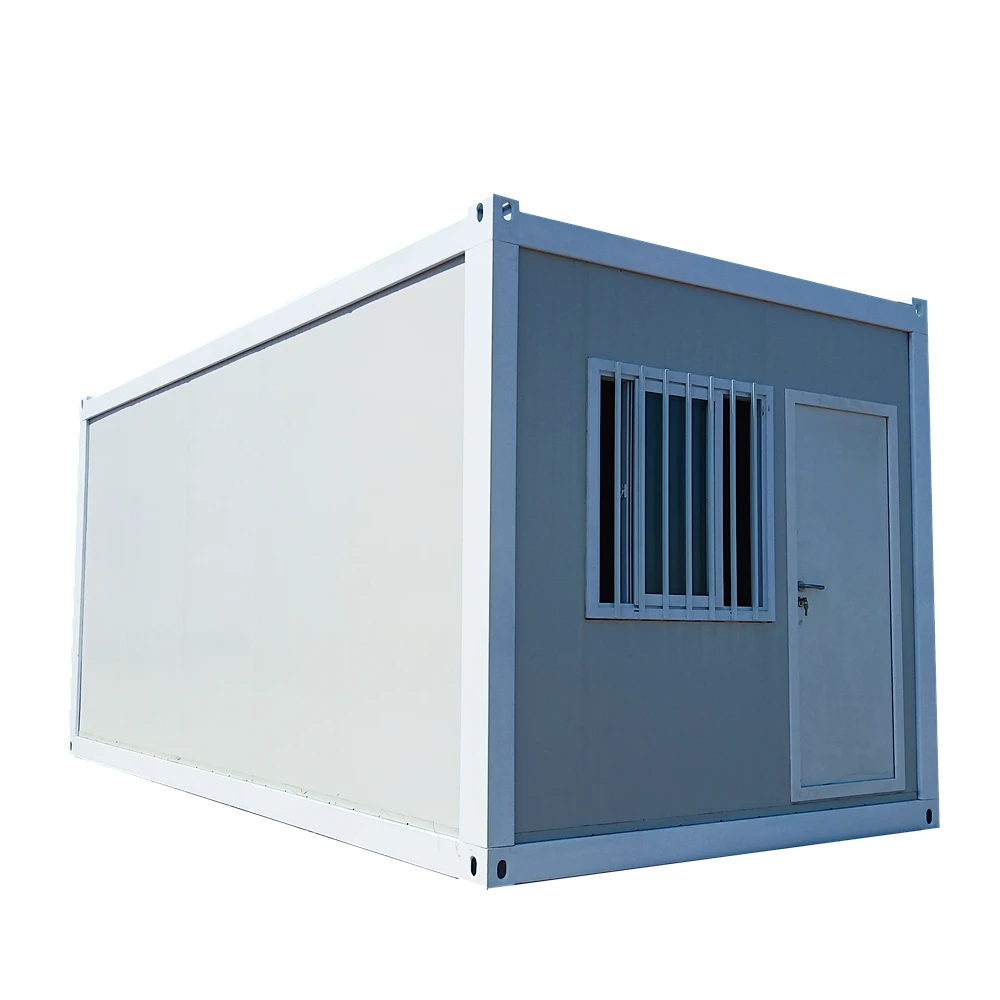

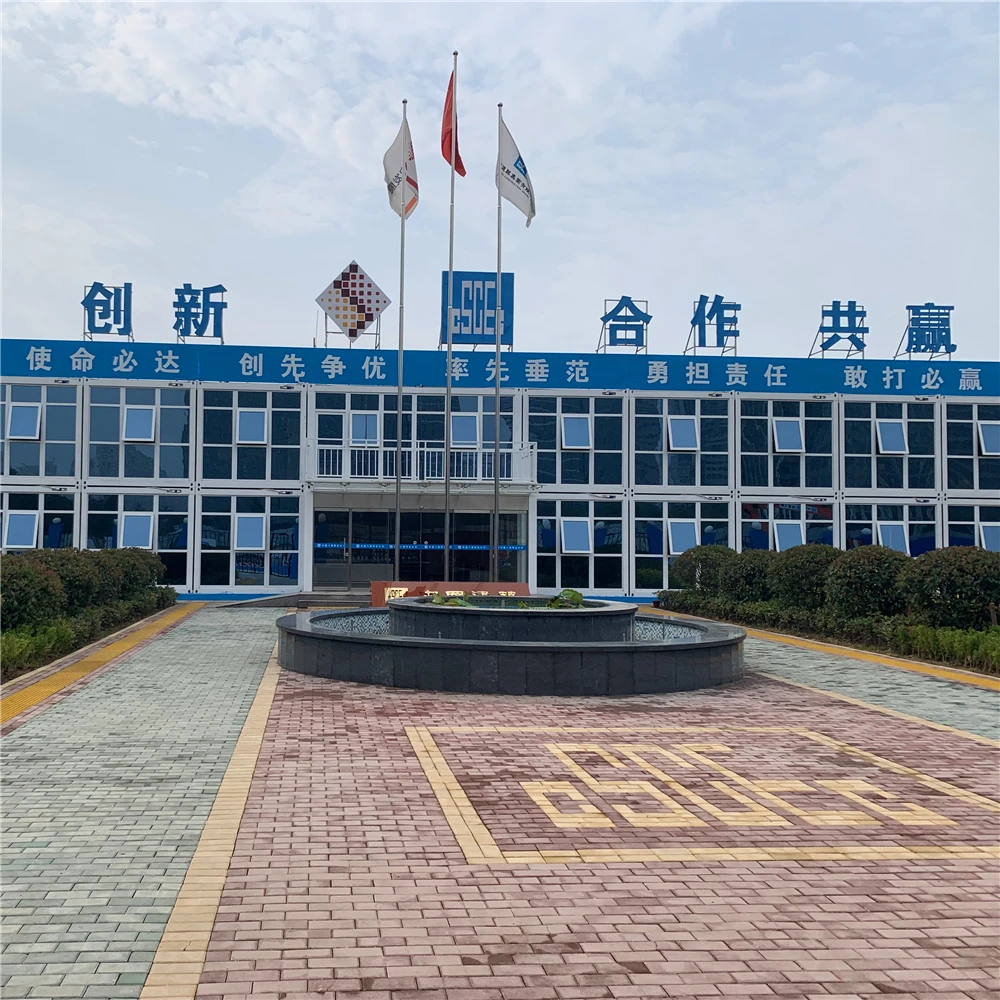

Low Cost Flexible High Construction Efficiency Prefab Light Steel Container House, fast shipping 20ft container home

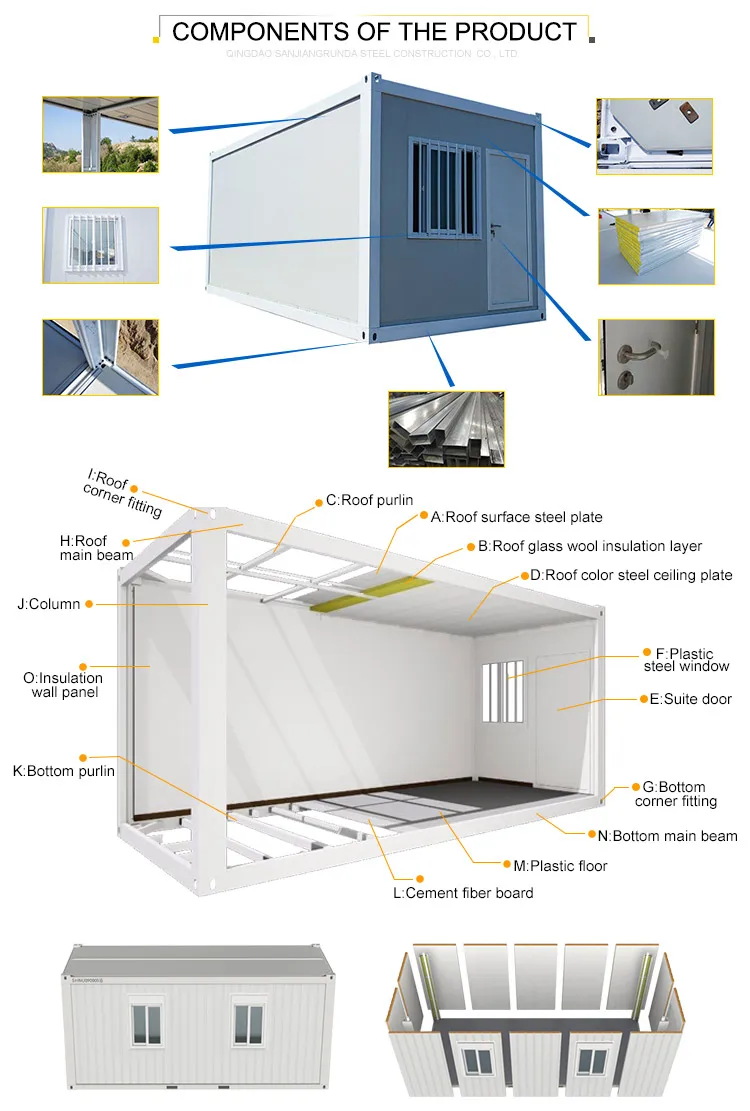

Item name

Low Cost Flexible Prefab Container House

Top Frame

Roof  surface

steel plate

0.5mm color steel plate (butyl tape)

Roof  insulation

100mm glass wool blanket 14kg/m³, double-layer insulation ceiling

Top Beam

Section size 160mm, 3.0mm thickness

Roof  corner

fitting

High-grade bailing box corner fitting 210mm*150mm*200mm*4.0mm thickness

Roof purlin

C-type steel 100mm*40mm*1.0mm 5pcs + square tube 30mm*30mm*1.0mm 2 pcs

Ceiling tile

Factory prefabricated V831 high-quality color steel ceiling tile 0.45mm, matching Z-type parts

Bottom Frame

Bottom Main Beam

Section size 160mm, thickness 3.0mm

Bottom corner fitting

High-grade bailing box corner fitting 210mm*150mm*160mm*4.0mm thickness

Bottom purlin

Square tube 100mm*50mm*1.2mm*14pcs, high-dense purlin

Cement

fiber board

1172mm*2800mm*18mm, damp-proof, fireproof, deformation

Plastic floor

1.6mm PVC plastic floor, with resistant and anti-skid layer

Bottom insulation

100mm glass wool blanket 14kg/m³, one-side alluminized paper, 0.45mm color steel sheet (optional)

Doors & Windows

Container house specialized security door

845mm*2050mm  color steel sheet 0.6mm thickness

Container house specialized windows

1130mm*1100mm hollow glass 3+6+3 security mesh

Column and wall

Column

210mm*150mm, thickness 3.0mm

Insulation wall panel

75mm glass wool sandwich panel, V1150 type, double side base panel thickness 0.4mm(Orange peel pattern), 50kg/m³

 Structure auxiliaries

Wiring system on the roof

Including one set light line, two sets socket lines, one set air-conditioner line, one set distribution box including  air switch and one explosion-proof plug

Electrical

Premium Brand single open switch*1, five hole socket*4, 16A air-conditioner socket*1, 24W ceiling light*2 including wires

75mm Gutter

0.8mm steel panel bending piece, including drain hole

Rainpipe

dia. 50mm PVC rainpipe*4, including clips

Internal corner edge trim

0.6mm steel panel bending piece, including punching at the sockets

 Installation accessories

Container spliced lock set

Hexagon socket screw and steel splice plate, lock on up, down, left and right respectively

Waterproof accessories

Epdm waterproof tape and hosepipe weather proofing sealant

Fastener to fix with the ground

Container house special customized aluminum alloy anti-skid plate

Column decorative sheet

three-section splicing type decorative gusset plate
