Product Overview

Description

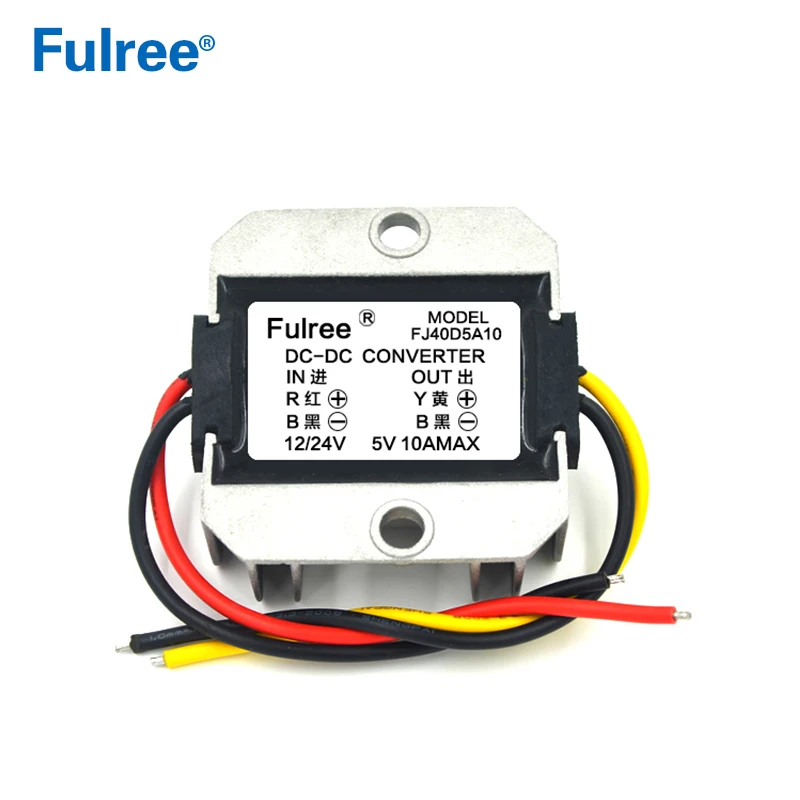

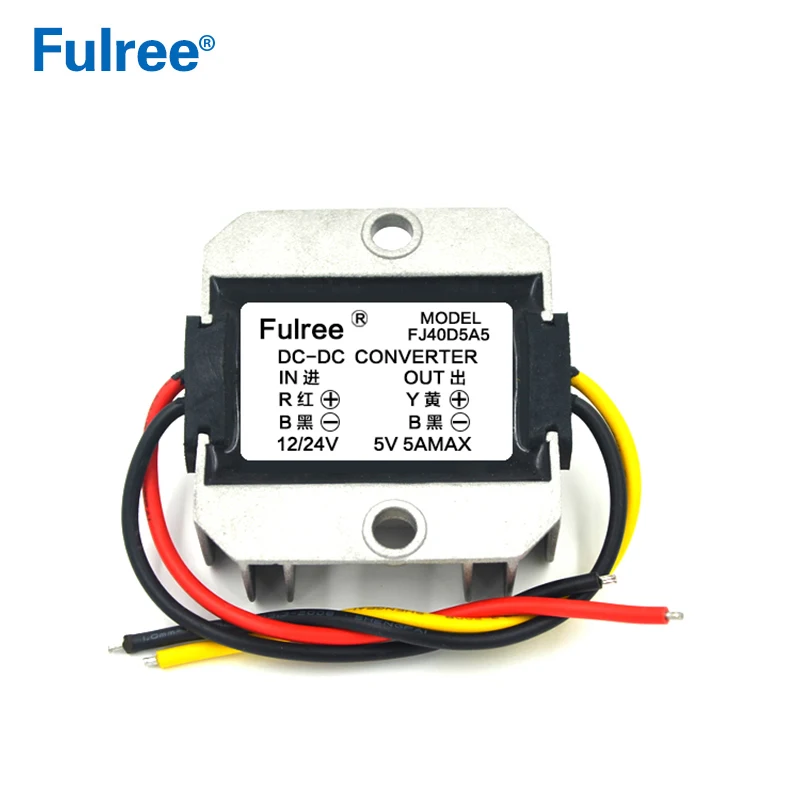

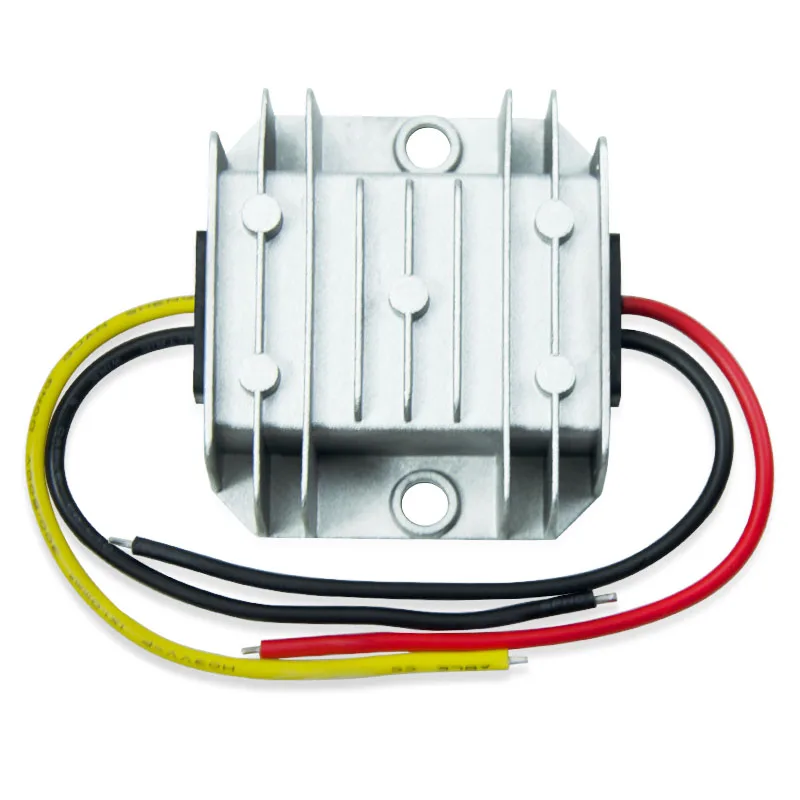

Fulree DC-DC Power Converter 12V 24V Step Down to 5V 3A/5A/8A/10A Buck Power Supply Module





























































































Product NameDC-DC Power Converter 12V 24V Step Down to 5V 3A/5A/8A/10A
Brand Fulree
ModelFJ40D5A3/FJ40D5A5/FJ40D5A8/FJ40D5A10
Input rated voltageDC 12V 24V
Input voltage rangeDC 10-35V
Efficiency93% (half load), 91% (full load)
Output voltage DC 5V
Output current  3A    /  5A  /   8A  / 10A Max
Output rated power
15W / 25W / 40W / 50W Max
Voltage regulation< 1%
Load regulation< 2%
Working temperature

-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,


or to enhance heat dissipation)


Module Properties

non-isolated buck module(buck)


Rectification synchronous rectification
Waterproof rating
IP68
Full load temperature rise:50°c
ProtectionOver-current, Over-temperature,  Short-circuit protection,

Auto-recovery when device is back to normal operating,


waterproof IP68 design, anti-shock protection


Input Reverse Polarity ProtectionNone (Please Series diode at the input port.)
NW100G

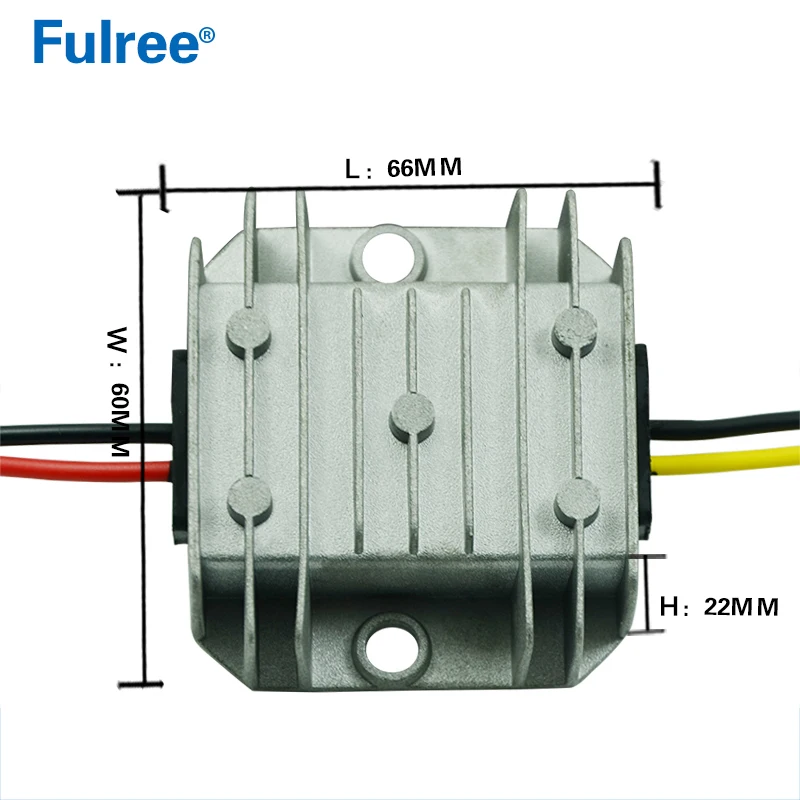

Product size 66*60*22MM

Other output voltage


option for 48V to 24V


3.3V, 3.7V, 4.2V, 5V, 6V, 7.5V, 9V(Pls contact with our sales manager if need)







Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.

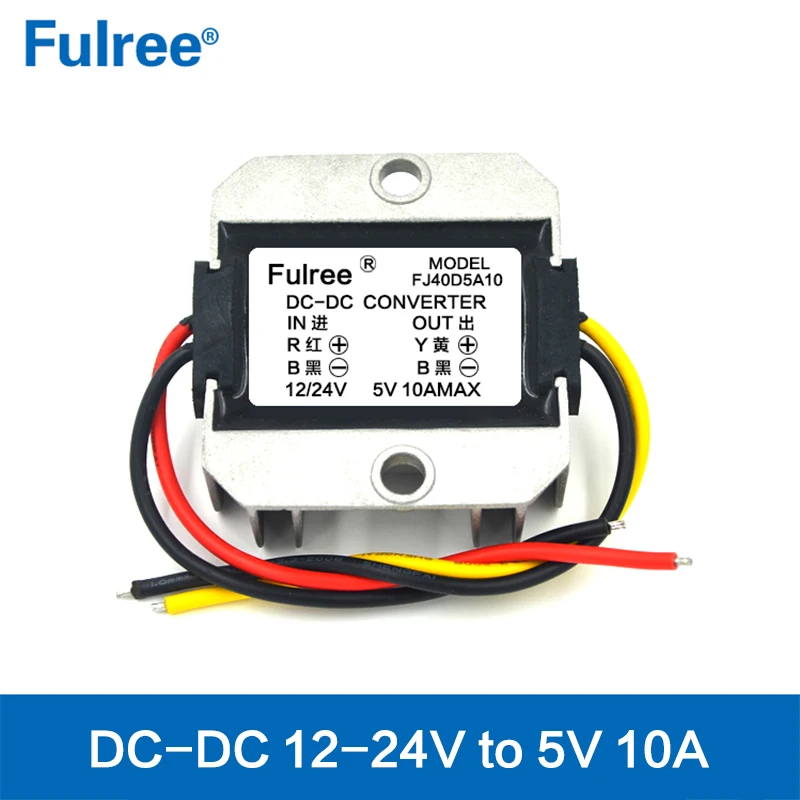

12v24v to 5v 3a.jpg12v24v to 5v 5a.jpg12v24v to 5v 8a.jpg12v24v to 5v 10a.jpg
