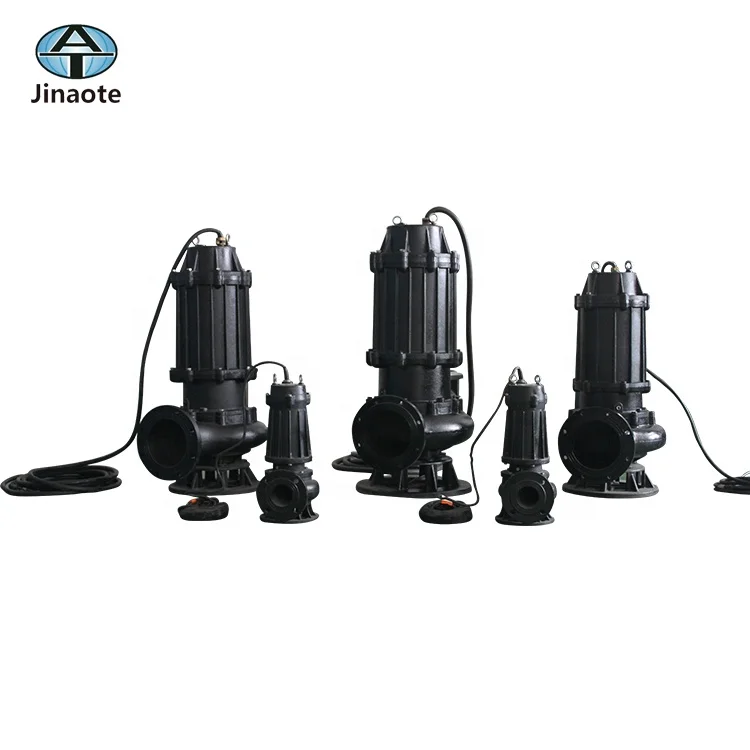

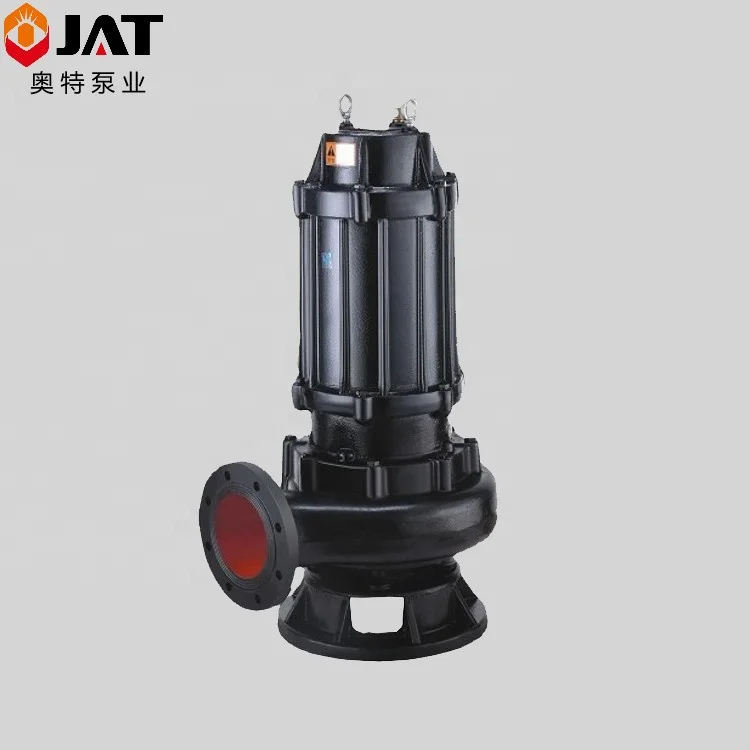

Submersible sewage pump for water pool sewage system treatment plants

Product Overview

Description

Applications :
Vertical, single-stage submersible motor pump made of wear-resistant industrial materials in close-coupled design, for wet or dry installation, stationary and transportable version.
Handling of all types of abrasive or aggressive waste water in water and waste water engineering as well as industry, especially untreated sewage containing long fibres and solid substances, fluids containing gas / air, as well as raw, activated and digested sludge; sea water desalination.

Type	Voltage	Flow	Head	Power	OutletDiameter
	(V)	(m3/h)	(m)	(kW)	(mm)
WQ15-15-1.5	380	15	15	1.5	50
WQ25-10-1.5		25	10		65
WQ9-22-2.2		9	22	2.2	50
WQ15-20-2.2		15	20
WQ25-15-2.2		25	15		65
WQ45-9-2.2		45	9		80
WQ15-30-3		15	30	3	50
WQ25-22-3		25	22		65
WQ40-16-3		40	16		80
WQ50-7-3		50	7		100
WQ12.5-40-4		12.5	40	4	50
WQ25-28-4		25	28		65
WQ30-26-4		30	26		80
WQ50-10-4		50	10		100
WQ12.5-50-5.5		12.5	50	5.5	50
WQ25-35-5.5		25	35		65
WQ30-30-5.5		30	30		80
WQ65-15-5.5		65	15		100
WQ100-9-5.5		100	9		150
WQ12.5-60-7.5		12.5	60	7.5	50
WQ30-40-7.5		30	40		65
WQ65-25-7.5		65	25		80
WQ80-20-7.5		80	20		100
WQ100-12-7.5		100	12		150
