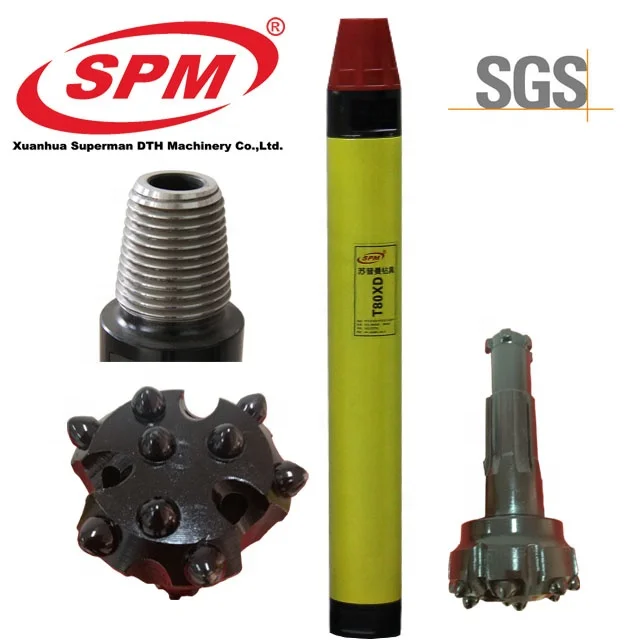

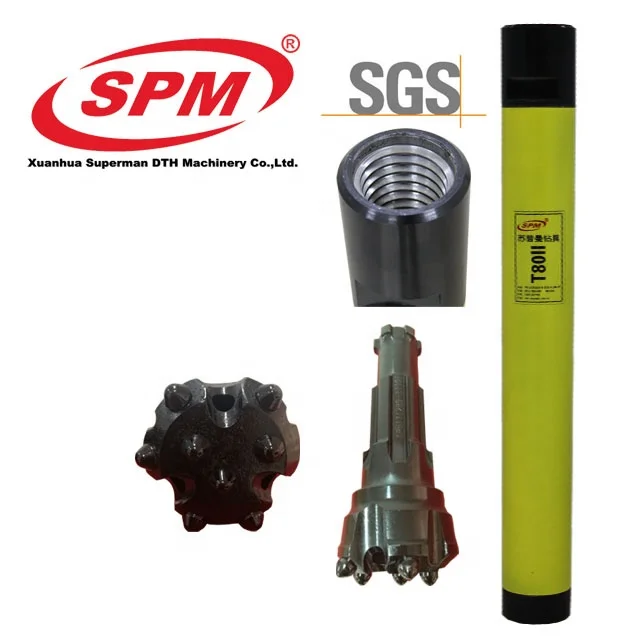

SPM80 cir80 dth bit and cir 90 dth hammer / cir90 dth hammer Geological Drill Hammer for oil geological drilling machine

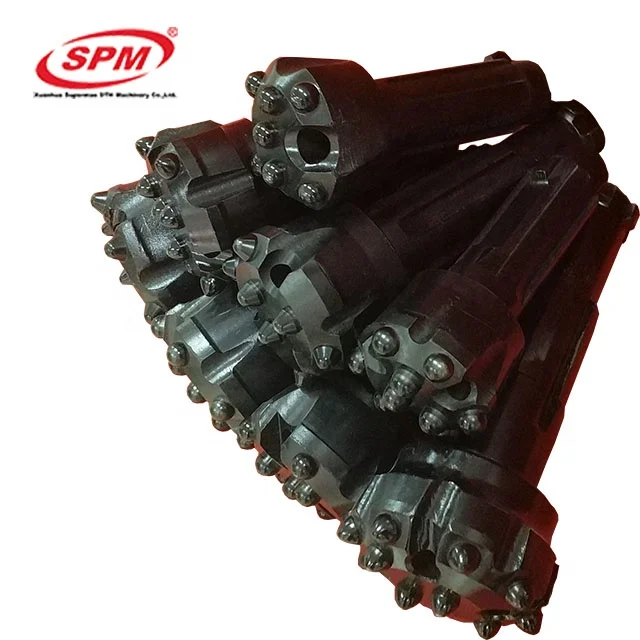

Low Pressure DTH Geological Air Drill SPM T80 is very popular in international Geological drilling . Low Pressure DTH Air Drill SPM T80 drill holes from 80mm to 90mm. Matched drilling bits:SPM80-80,SPM80-90.

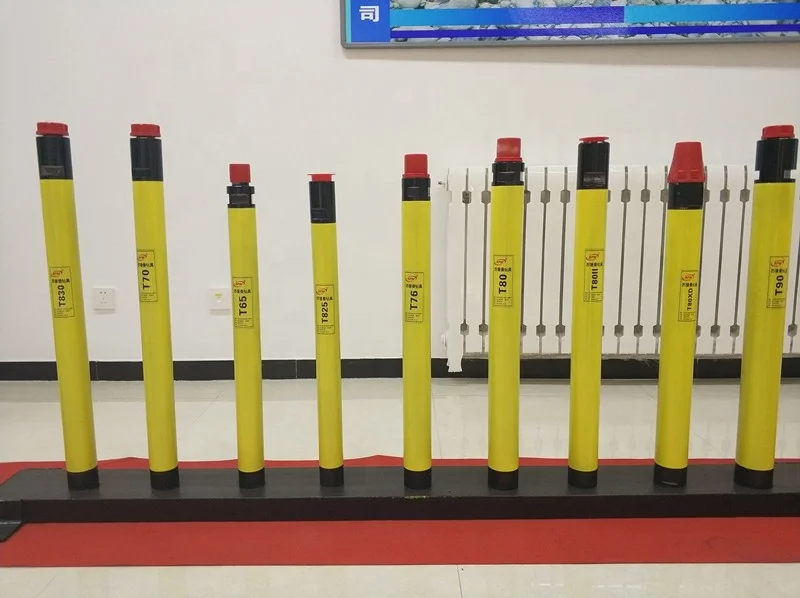

We supply T825,T830 ,T70 replace ATLAS-CIR70,T80 replace ATLAS-CIR80 ,T80-II, T80XD,T90 low Pressure DTH Air Drill Hammers and various matched drill bits,
We provide innovative equipment, consumables and service for Geological drilling. Whether the application is surface and underground mining, infrastructure, civil engineering, geotechnical, SPM is always increasing customers' productivity.
Technical Parameters
Hammer Name
DTH drill hammer T80
Model
T80
Item Number
080000000
Drilling Diameter(mm)
80―90
Hammer Length(mm)
795
External Diameter(mm)
Φ72
Weight(kg)
16
Working Pressure
0.5-0.7
Air Consumption(m3/min)
3.5--6.3
Impact frequency(bpm)
≥800
Top Sub(Connection to drill string)
MT48*10*2 Pin, male thread
Drive Sub(Connection to drill bit)
Φ50-6
Bit Shank
SPMT80
Advantages of SPM low air pressure DTH hammers:
1) Non-Blocking:Our S-series Down the hole hammers are proved to ensure extremely low rate of blocking during it works. 2) High Efficiency:The well drilling equipment carries with larger power of impact frequency and torque, thus ensuring faster penetration. Compared with others, the efficiency can be improved 10%.
3) Longer Service Life:All surfaces of the DTH hammer and bits are treated by anti-friction and intensified technology. When used in deep-hole drilling works, it can reach at 5000 meters or more.
Our Service
SPM,Born For Drilling
SPM have been focusing on DTH drilling for 16 years. SPM, born from Ingersoll Rand China, completely absorbed Ingersoll Rand's drilling techniques, continuing an international leading position in the drilling industry. We are specialized in manufacturing various DTH drilling hammers,matched drilling bits,drilling rigs and drilling pipes for water wells,mines and oil industries,SPM has been promoting productivity in drilling industry, SPM ensure the safety and stability of drilling engineering, and provide professional, efficient and reliable whole drilling solutions.
Customer Visit
Clients from more than 50 countries have already established agreeable and mutual benefit business relationship with us and highly appreciated our professional service.

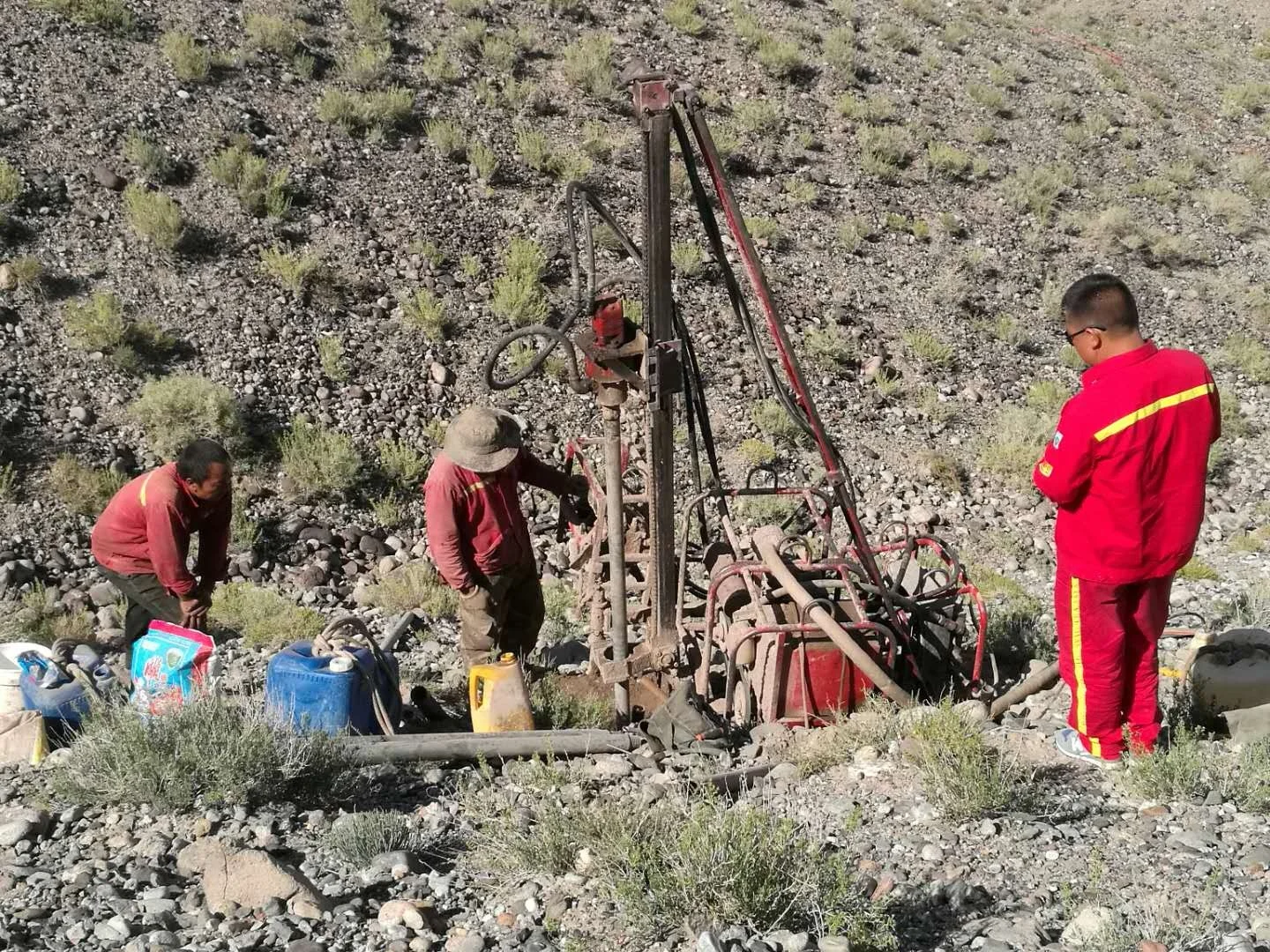

Construction
SPM and his dedicated teams are committing themselves to provide international clients with various quality products and professional services. SPM have rich experiences on well drilling construction sites, SPM offer technical support and whole drilling equipment supplied,
Our service:
We can supply all series of drilling equipment and drilling tools By using high-quality raw materials, utilizing advanced craft technologies and imposing strict quality inspection, the product range covers:Down the hole hammer and bits(dth hammers and dth bits),drill pipes, threaded drilling bits, reverse circulation hammers and bits, shank adapters and coupling sleeves, drilling rig, air compressor and spare parts for drill equipment.
SPM and his dedicated teams are committing themselves to provide international clients with various quality products and professional services,and make their upmost efforts to make continuous contributions to the growth of the world's economy and environment protection.
Certifications
Packing & Delivery
Packaging
Size
900mm (L) * 100mm (W) * 130mm (D)
Weight
20kg
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
