POE lightning protector 100/1000M Network surge arrester surge protector rj45

Product Overview

Description

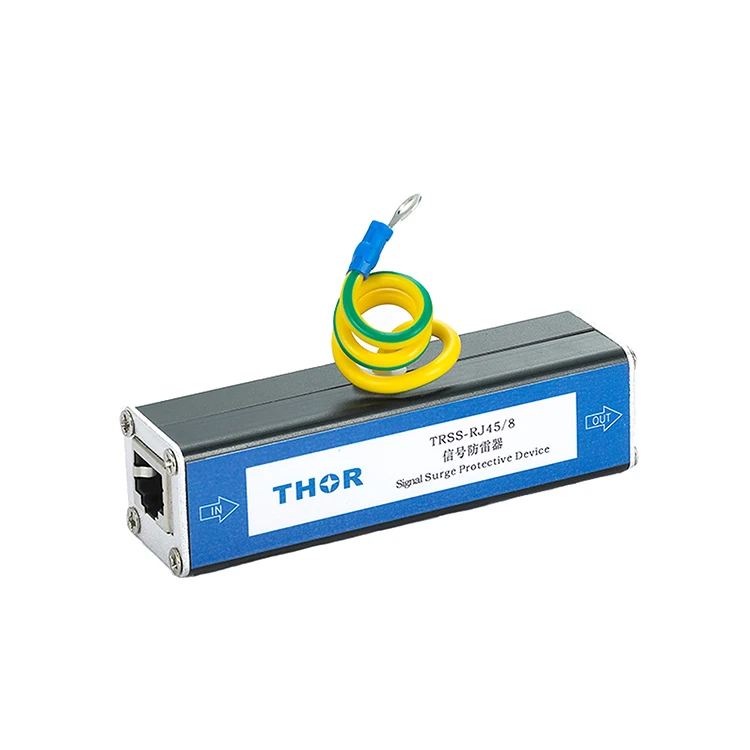

    TRSS-RJ45/8 network lightning arrester is a kind of surge protector, which is mainly used for the lightning protection measures taken by the network system and is an important performance of internal lightning protection.
     It is suitable for network transmission equipment such as railway communication systems, mobile base stations, differential transmission stations, hard disk recorders, video monitoring equipment, optical transceivers, etc., to protect them from overvoltage damage such as induced lightning strikes and electrostatic discharges introduced by the system. The grounding point is treated with a special process to avoid signal interference.

Surge Protector for Network System



Main technical parameters



Type	TRSS-RJ45
Rated Operating Voltage Un	5V
Max continuous operating voltage Uc	8V
Nominal discharge current(8/20μs)(In)	5KA
Residual pressure Up	45V
Max transfer speed	1000Mbps
Insert loss	≤0.5dB
Response time (ns)	≤1ns
Connection input out put	RJ45
Pinning	Data pin: 1,2: 3, 6 :  Power pin: 4,5: 7,8 :
Configuration dimension mm	94.5×25×25
