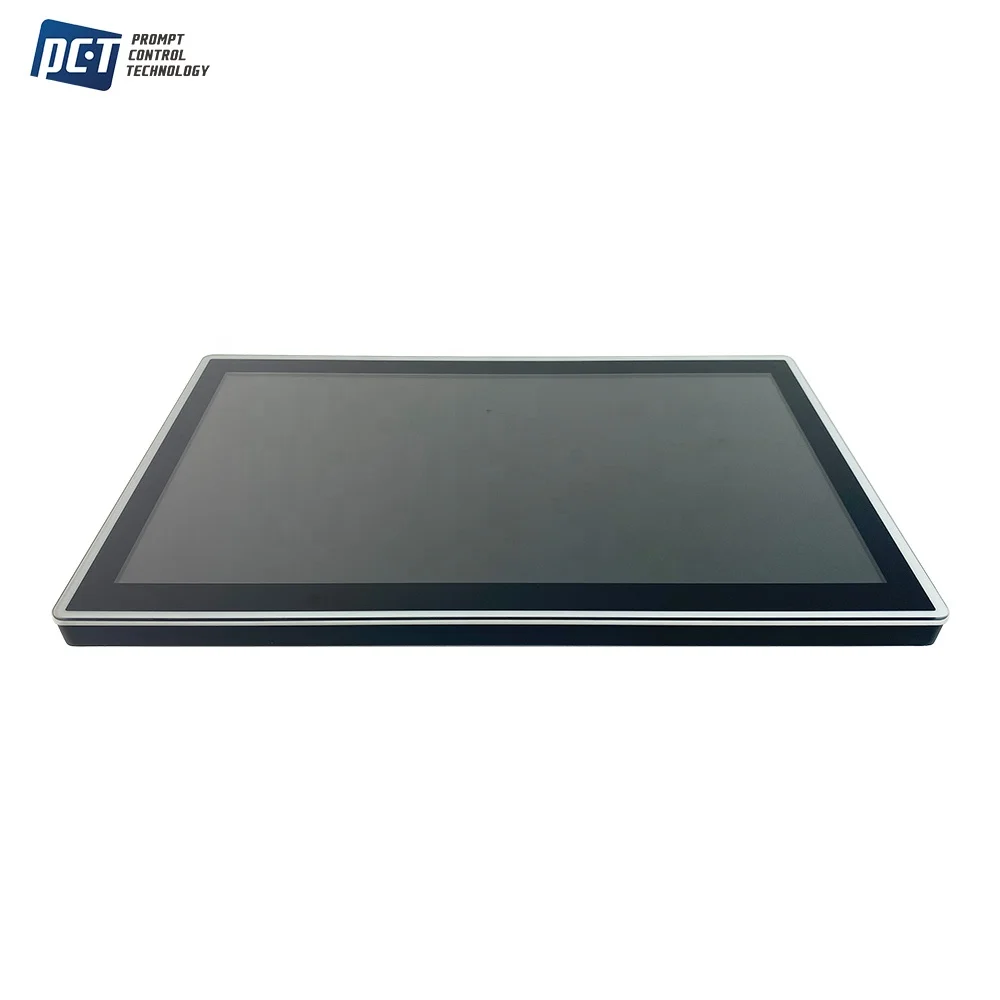

23,8 27 дюймов кромкой светодиодный защелка казино Емкостное касание емкостный сенсорный монитор с открытой рамкой
- Category: Touch Screen Monitors >>>
- Supplier: Promptcontrol Technology Co. Ltd.
Share on (60764005848):
Product Overview
Description
Product Description

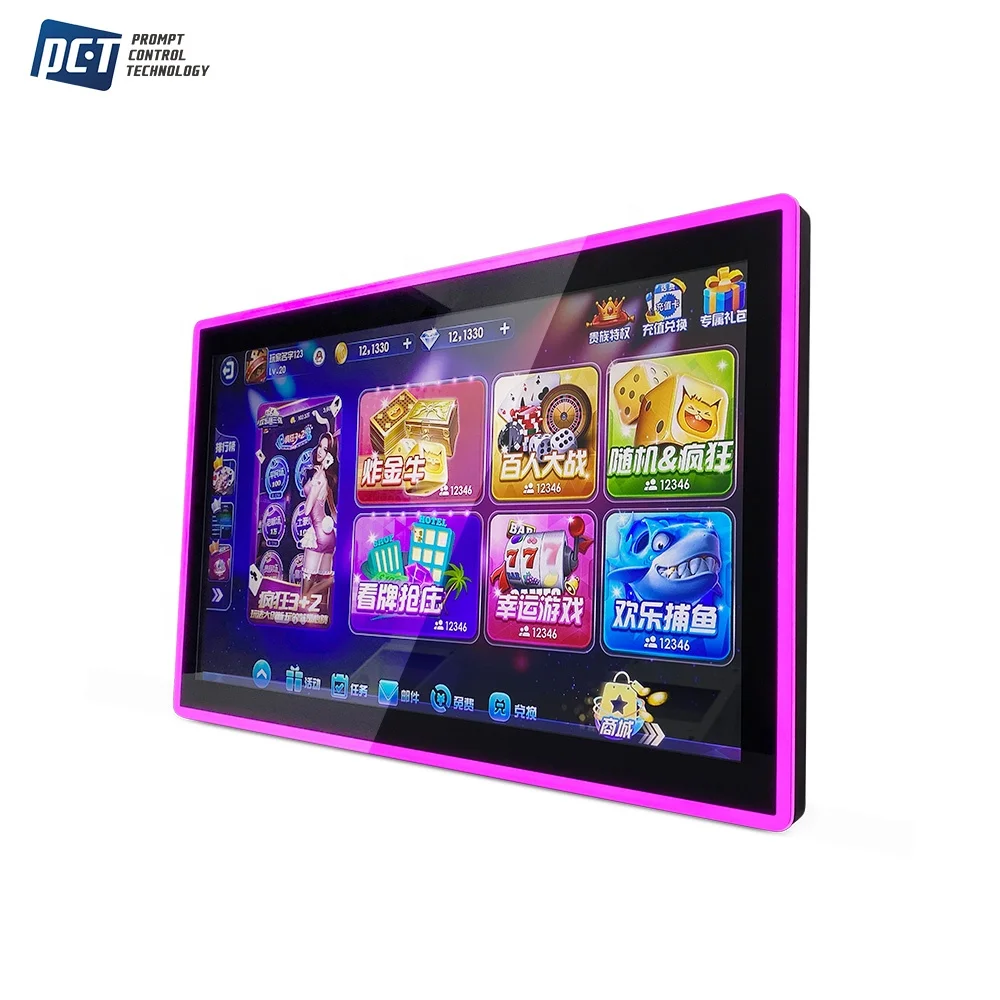

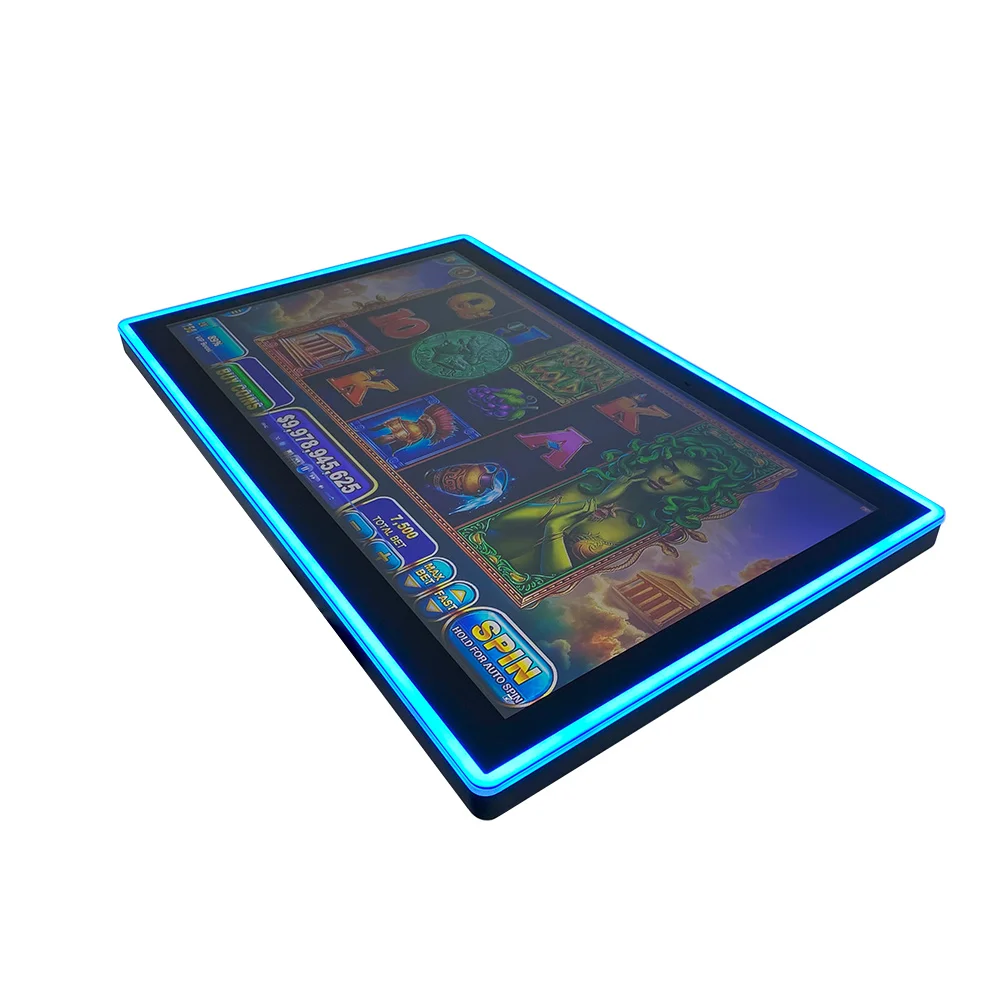

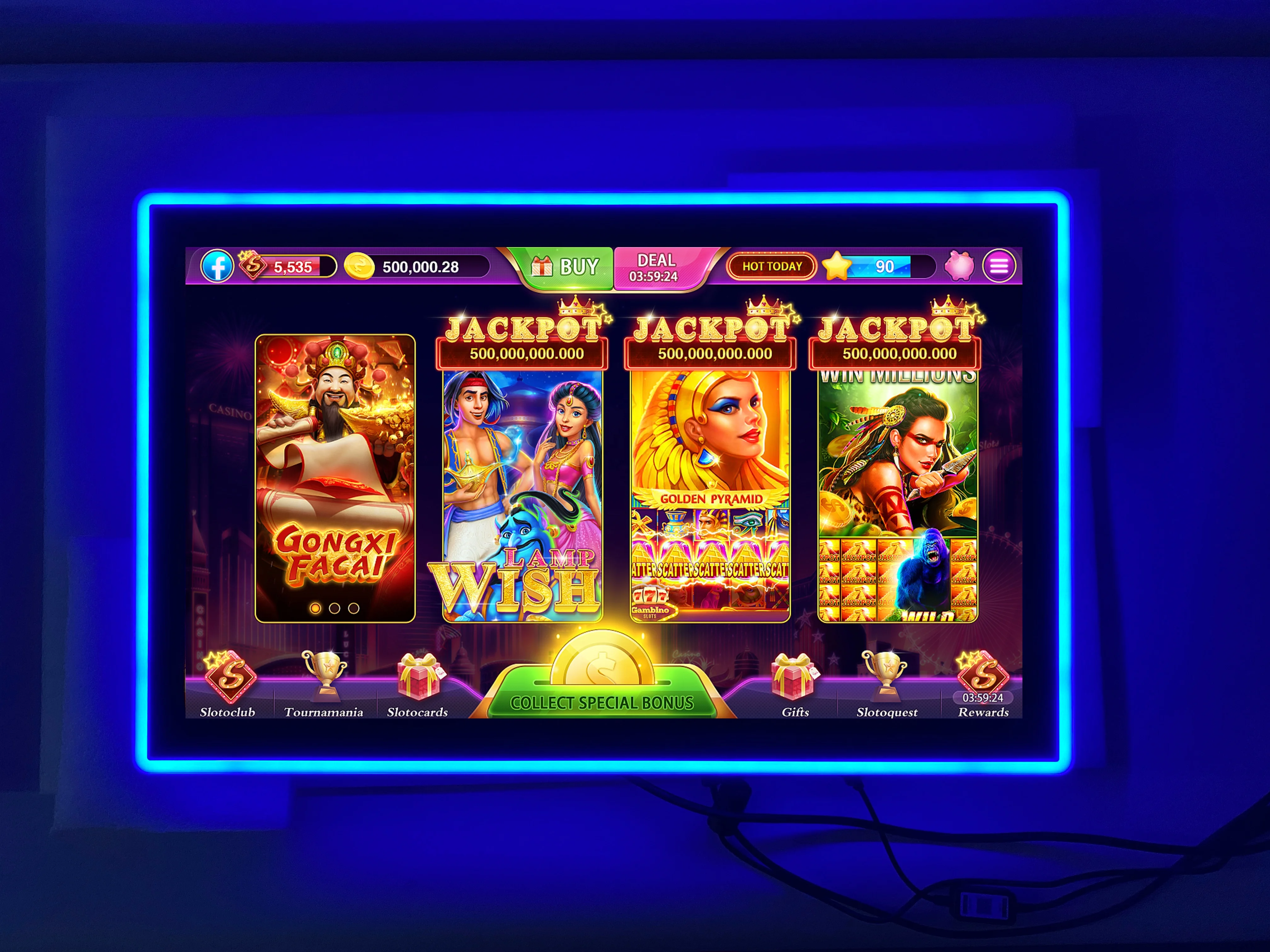

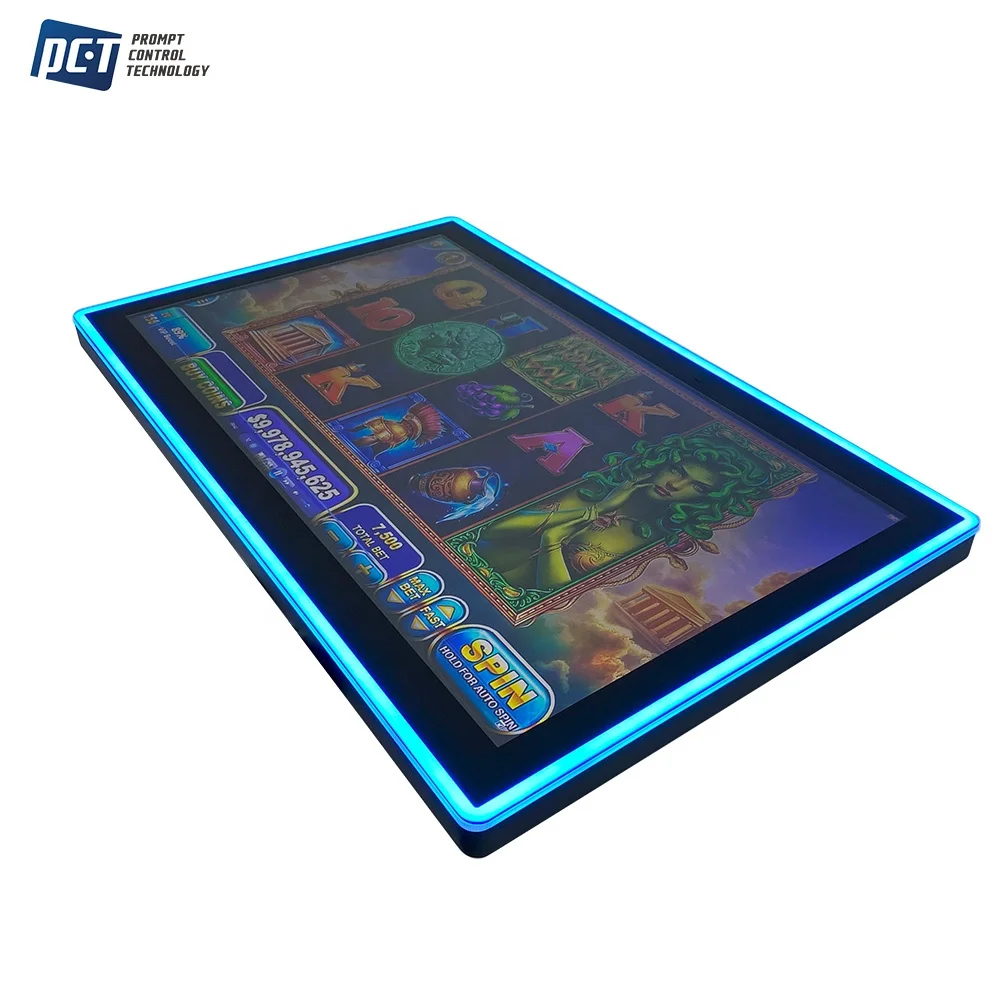

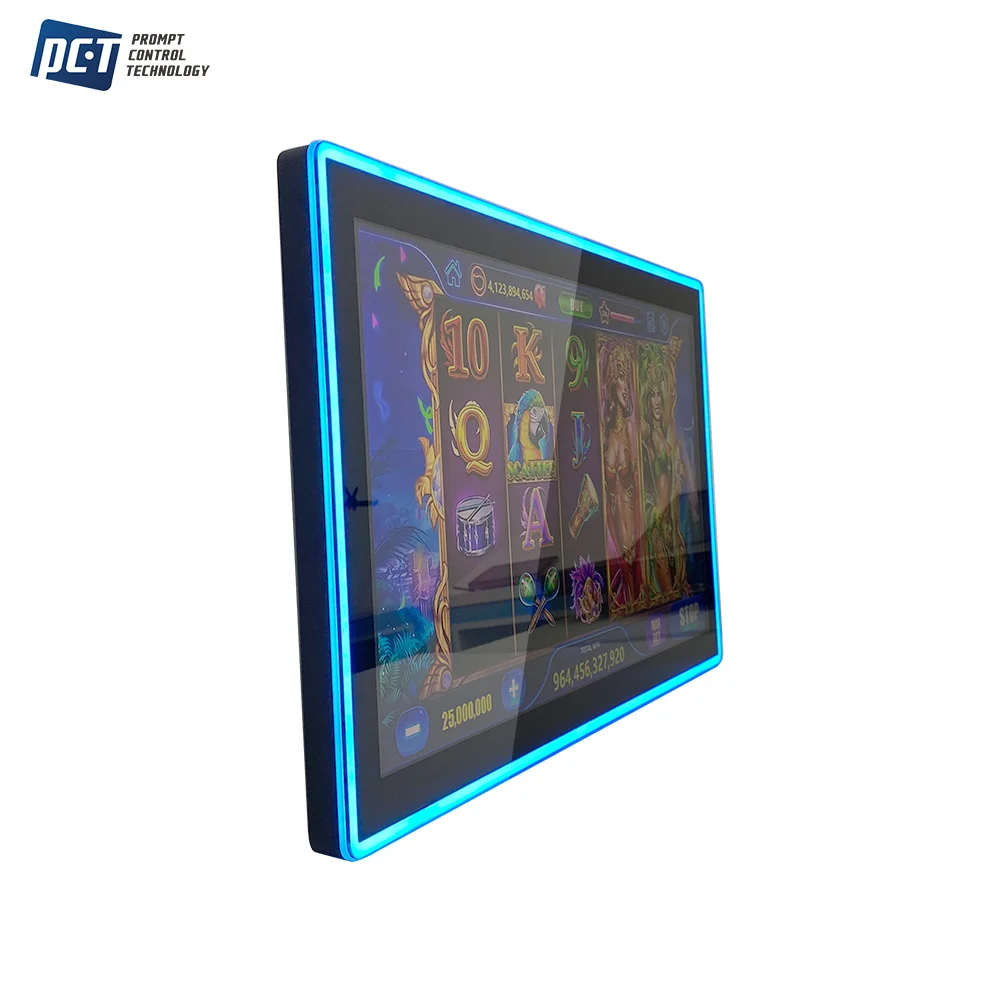

Ultra thin Edge LED framed Casino Gaming PCAP Capacitive Touch monitor Open Frame
PCT01-27T-Edge is one of 27” Full-HD LCD touch monitor that using the projected capacitive touch technology, with designed RGB LED framed for full monitor, illumination surrounding the display, widely used for casino or gaming application.
Main Features:

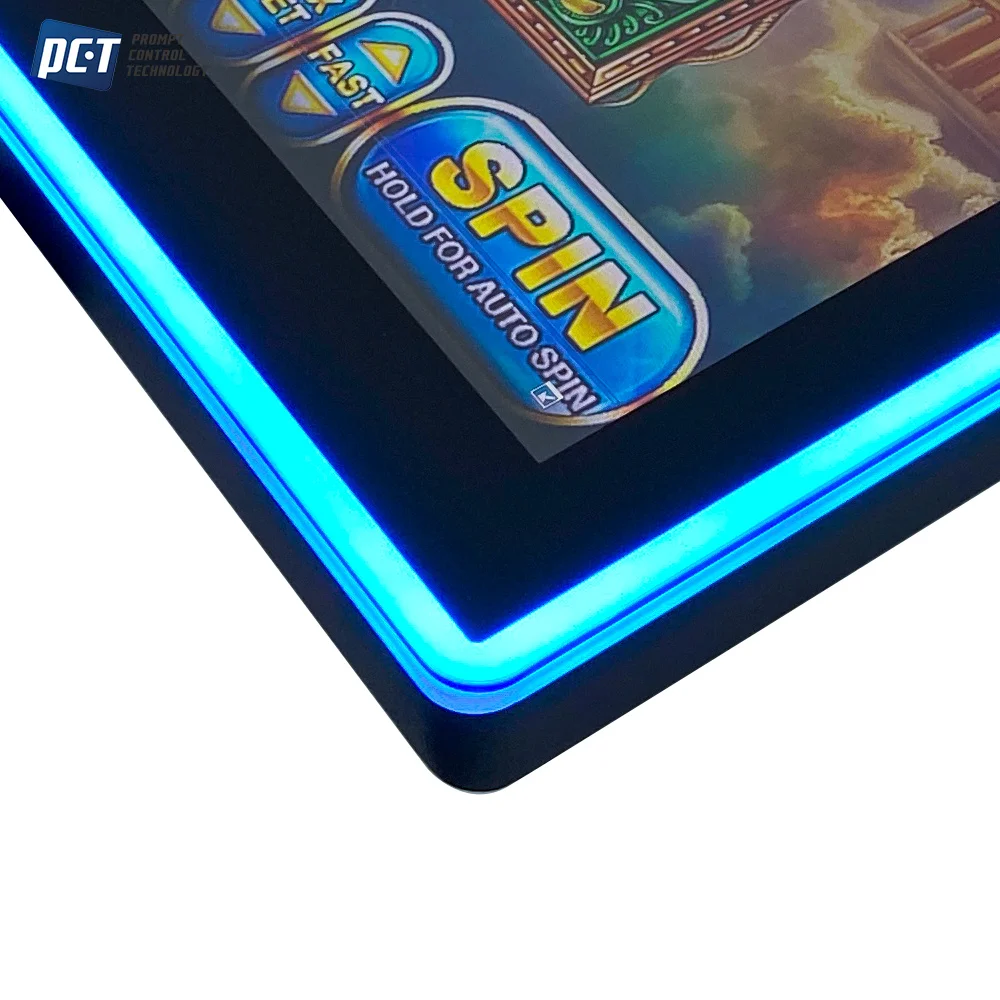

·Rigid high-quality PCB-mounted LEDs, no adhesive strips, no hotspots, no dark corners
·True-flat, black closed-frame designs
·FHD 1920*1080, WVA 178* 178 for landscape or portrait usage
·Dual-line LEDs in Addressable version
·10-touch PCAP behind 3mm tempered glass,ultra thin
Product 27” LED Framed LCD Touch monitor (Front + Edge)
Touch Panel | Type | Projected Capacitive technology |
Size | 27 Inch | |
Active Area | 597.20mm x 336.20mm | |
Total Thickness | 4mm | |
Hardness | 7H | |
Anti-vandal Treatment | Chemical strength | |
Consumption | ≤0.3W | |
Interface Type | USB interface, Type B | |
Touch Points | 10-touch | |
Response Time | ≤10ms | |
Linearity | ≤2% | |
Minimum Touch Diameter | 1.5mm | |
Touch Strength | ≤10g | |
Touch Panel Life Time | ≥200 million touches | |
Touch Operation | Finger or touch pen | |
Compatible O/S | WinXP, Win7, Win8, Windows 10, Android, Linux |
LCD Monitor Specification | Outline Dimension | 673.60mm×412.60mm×47.80mm |
Product Construction | True Flat surface, closed frame design | |
Product Color | Black | |
Environment Parameter | Operation: 0~+50°C Storage : -20~+70°C Operating Humidity : 20%~90% | |
Interface | VGA, DVI, HDMI | |
Installation | VESA 100mm / 75mm | |
Heat Radiation | Natural Air Cooling | |
Input Voltage | DC12V/4A | |
Warranty | 12 months | |
Certification |
Company Information

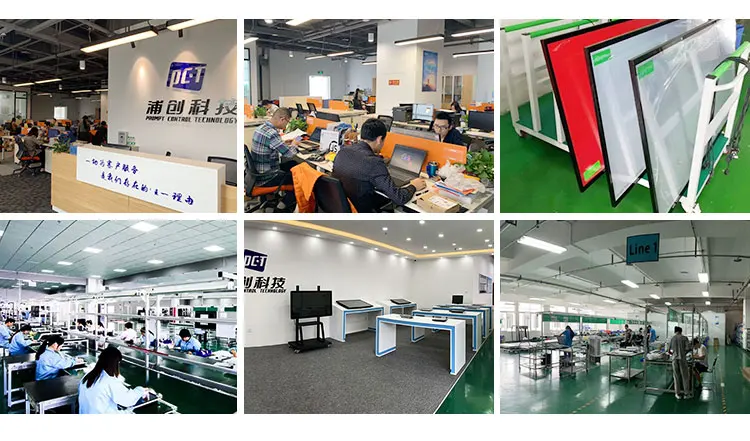

PromptControl Technology Co. Ltd. is a leading provider of Touchscreen, Touchmonitor and All-in-one computers, with high performance, excellent quality, cost-effective touch solutions, Prompt Control has got ISO 9001, CE, FCC, RoHS, UL certified.
1. Single & Multi-touch screens (custom sizes available)
2. Single & Multi-touch monitors (custom sizes and functions available)
3. All-in-one computers
4. ODM/OEM services

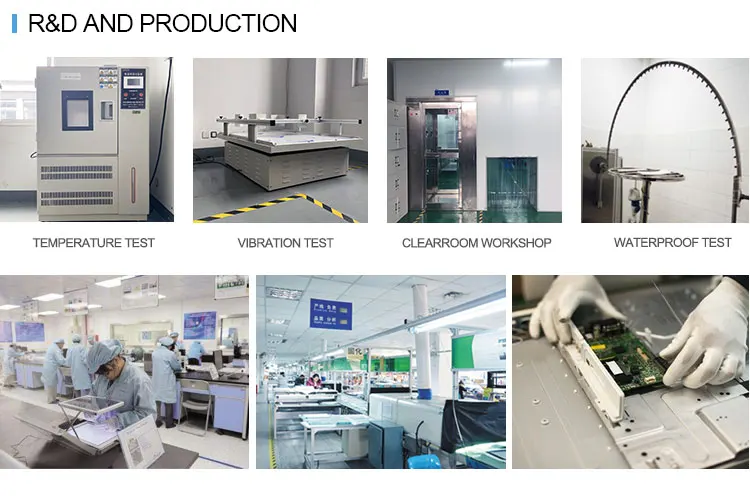

Production Capacity,
1. Single & Multi-touch screens:8-10K/month
2. Single & Multi-touch monitors:8K/month
3. All-in-one computers:5K/month
Applications: Products being widely used in industries such as finance, gaming, retail, kiosk, healthcare, education, etc.
