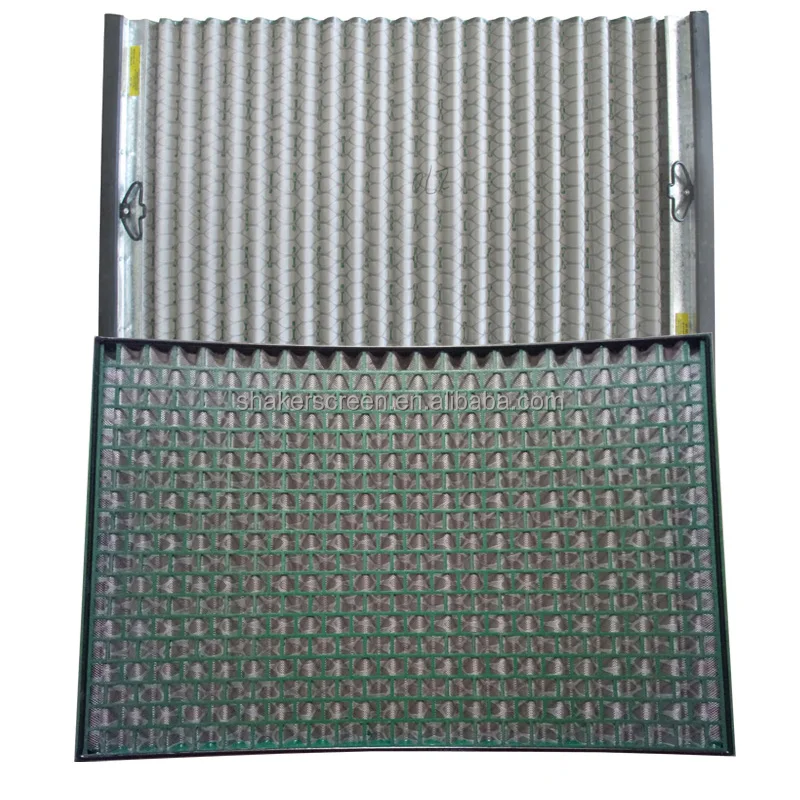

Oil Vibrating Sieving Mesh,Mud Shaker Screen with Wave Shape
Product Description

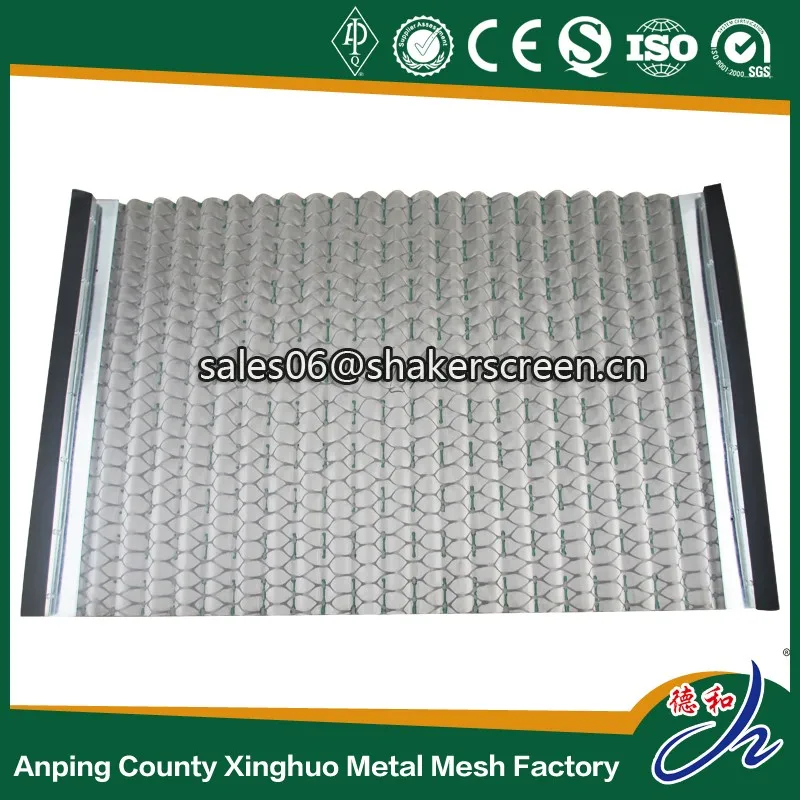

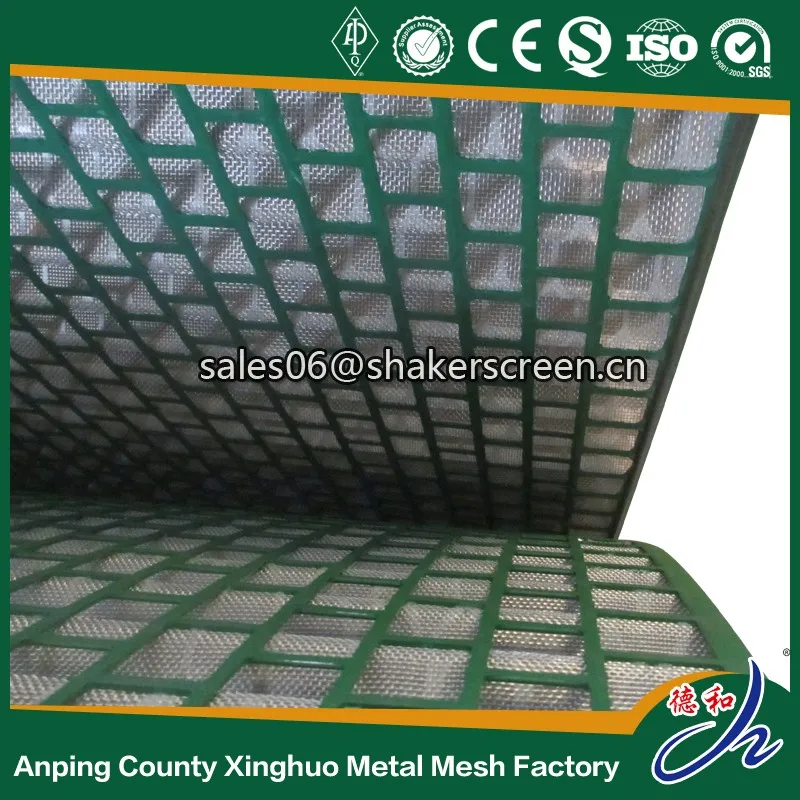

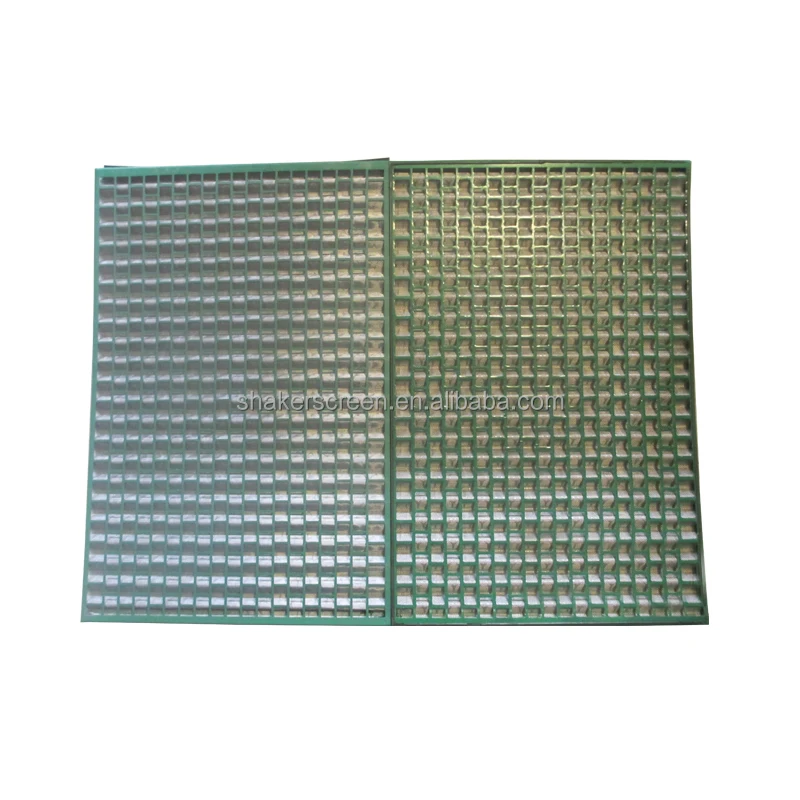

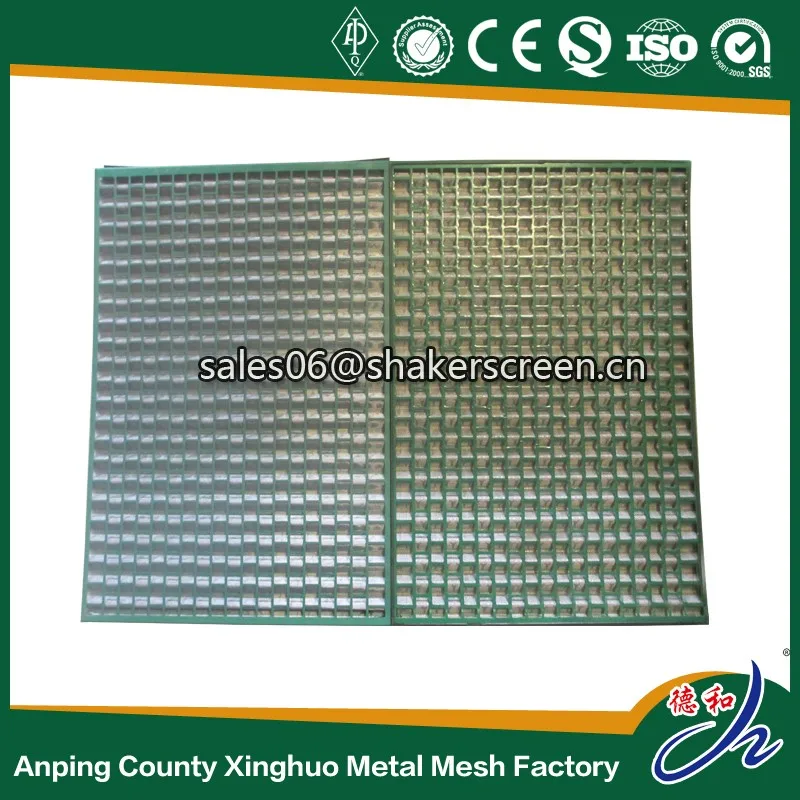

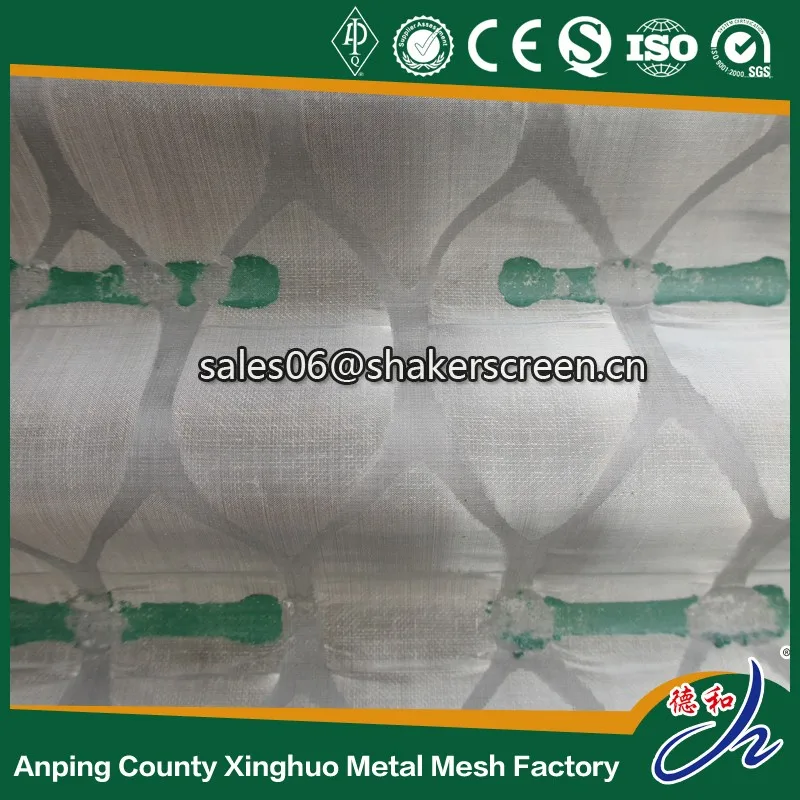

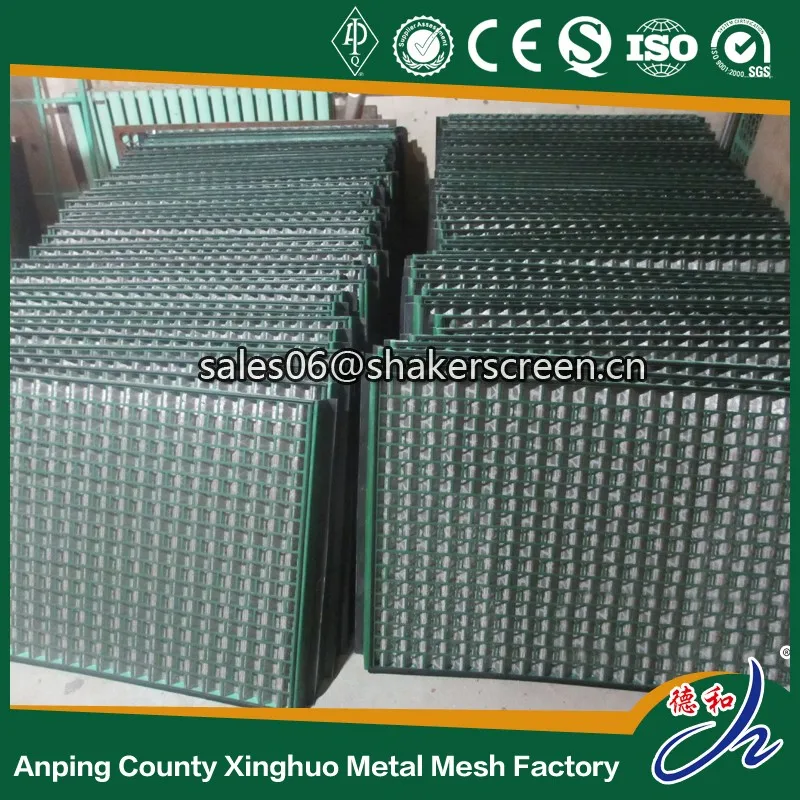

FLC-500 Series Screens, available in weaved and flat type panels are used on all FLC 500 series shale shakers. The flat type screens are constructed of two or three screen layers bonded to a perforated metal plate for added support and facilitation of repair. The weaved and weaved plus technology makes a three-dimensional screen construction, which offers a significant increase in usable screen area and theresult is a screen that increases fluid handling capacity. All thescreens are API RP 13C compliant.
There are different types via non-blanked area or filtration efficiency. Upon users' demanded, we can meet your different requirements. Our common mesh are sized API20-450. Kindly find following basic 500 series screen parameters.
Technical Parameter
Item
500 Series Screen
Mesh
API2--API450
Demension
1050mmx697mm
Weight
PMD: 7.5kgs
Screen Layer
2 or 3 Layers
Wire Mesh Material
SS304 or SS316(Customizable)
Frame Material
Carbon Steel
Working Time
7-10 days
Inner Packing
Caron Case
Outter Packing
Wooden Box
Payment Term
TT(30% deposit, 70% against BL copy), or LC Sight, Paypal
Delivery Time
According the Customer's Quantity, general 10-15 days after receive the deposit
inside with Carton Case, outside with wooden box or wooden pallet, or according your requirement
Product Uses
Company Information

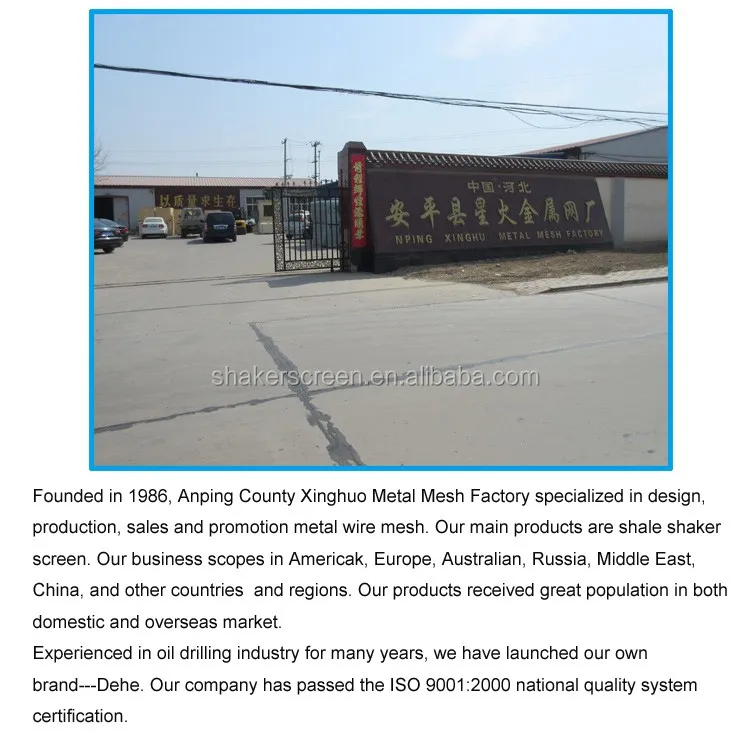

Company Profile
Anping County Xinghuo Metal Mesh Factory (formally Pacific Wire Panels) has been supplying replacement shale shaker screens to the oil and gas field drilling industry for over 20 years. Our original screens were designed to fit the Drilling Fluid Equipment range of Linear Motion shakers and since then have we expanded our range to fit most major manufacturers shale shakers. Our screens will fit linear, elliptical or circular motion shale shakers and we also have the ability to design and manufacture screens to fit any new shakers that enter the market. Anping County Xinghuo Metal Mesh Factory has a range of screen types that offer different advantages over conventional screens. The types of screens that we can supply include DX, RDX and HDX mesh screens. All of our screens comply to API 13E & 13C.
Exihibition

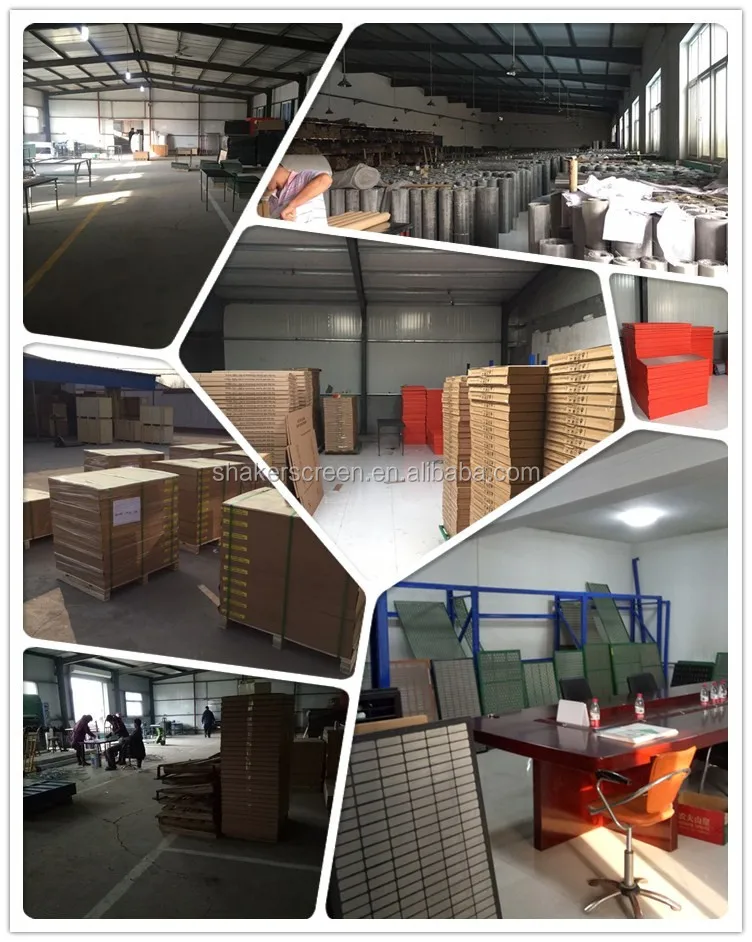

Workshop
Our Services
Payment: Western Union, Paypal, Money Gram, LC, TT
Shpping: DHL, TNT, or by Sea-shipment, by Air
Delivery Time: within 10-20 days after receive the deposit
Yes, we can provide free samples for your testing.
2. What’s the manufacture ability?
About 10,000 pcs one month.
3. How is the conductance of a screen determined, and what does it mean?
Conductance is measured by determining the flow rate of a fluid through a section of screen at a known pressure drop . The conductance results are reported as kilodarcy per millimeter. A higher conductance number means that fluid passes through thescreen more easily than a screen with lower conductance.
4. How can some meshes have API numbers that change with the screen type?
Test results can vary by several microns from one screen type to another, even though the mesh is the same. Variances can be caused by screen tension, test equipment, mesh properties, etc., that can affect the final results. Sometimes the variance is enough that the API number changes from one screen type to the next, even though the same mesh is used.
5. Where can I go to easily find API results for different screens and meshes?
