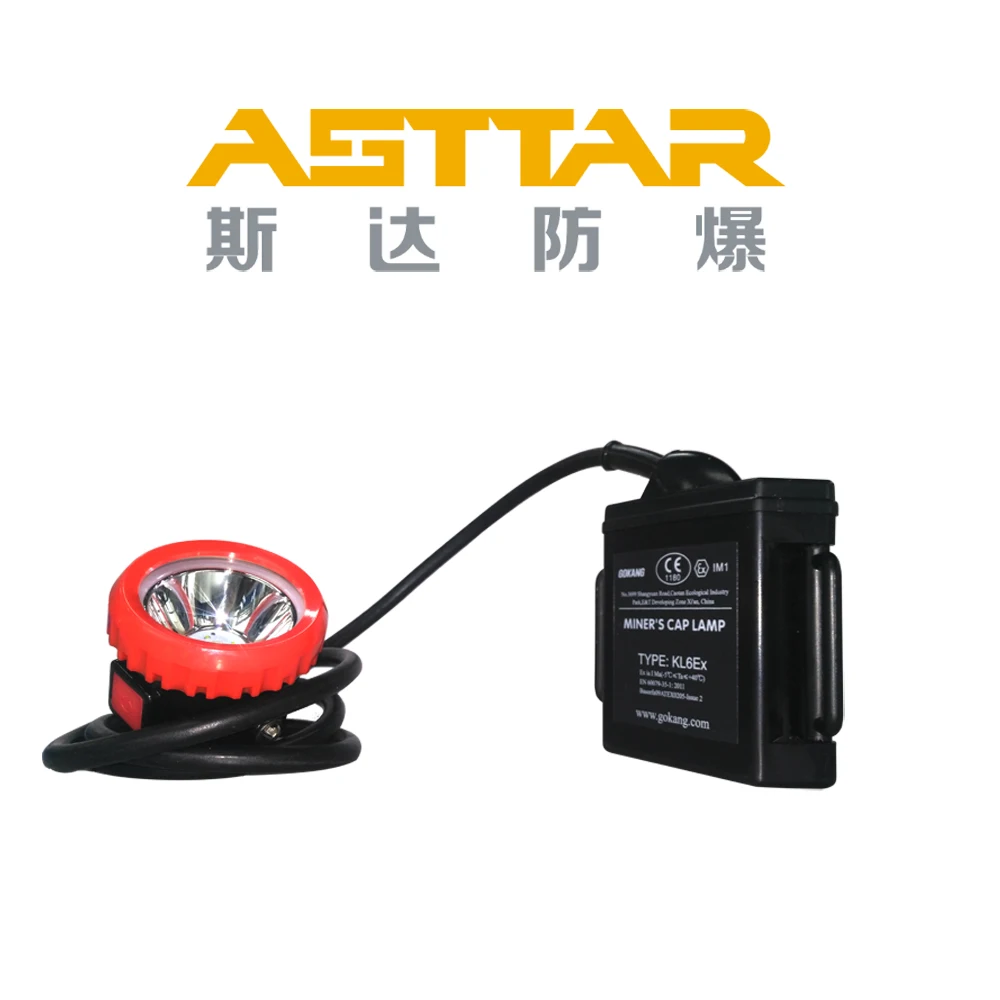

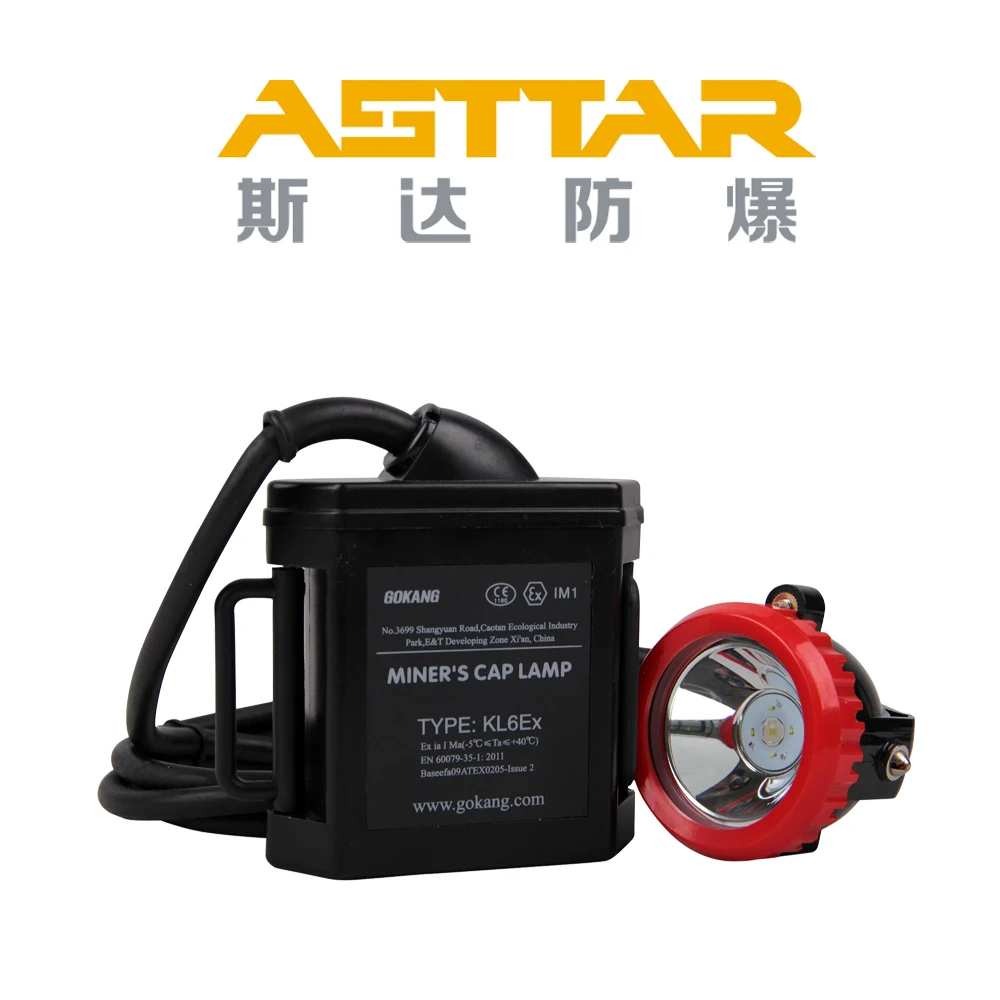

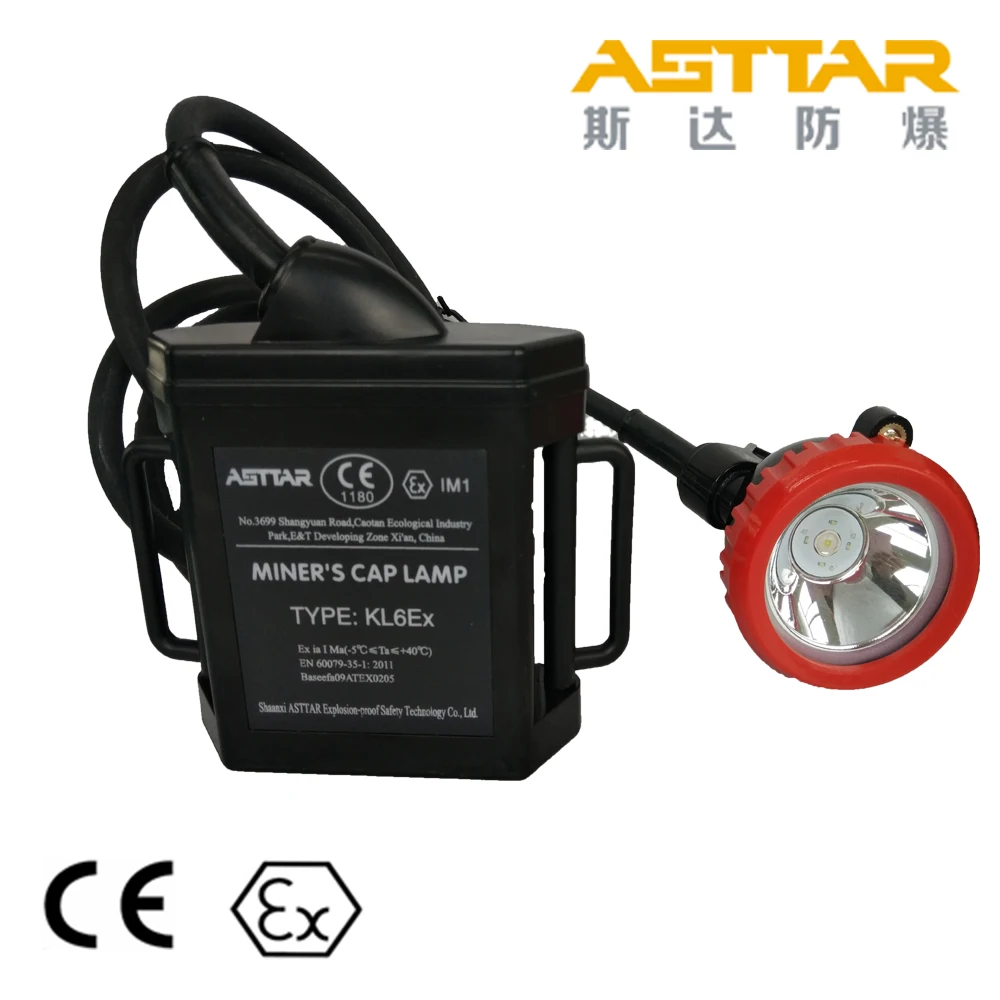

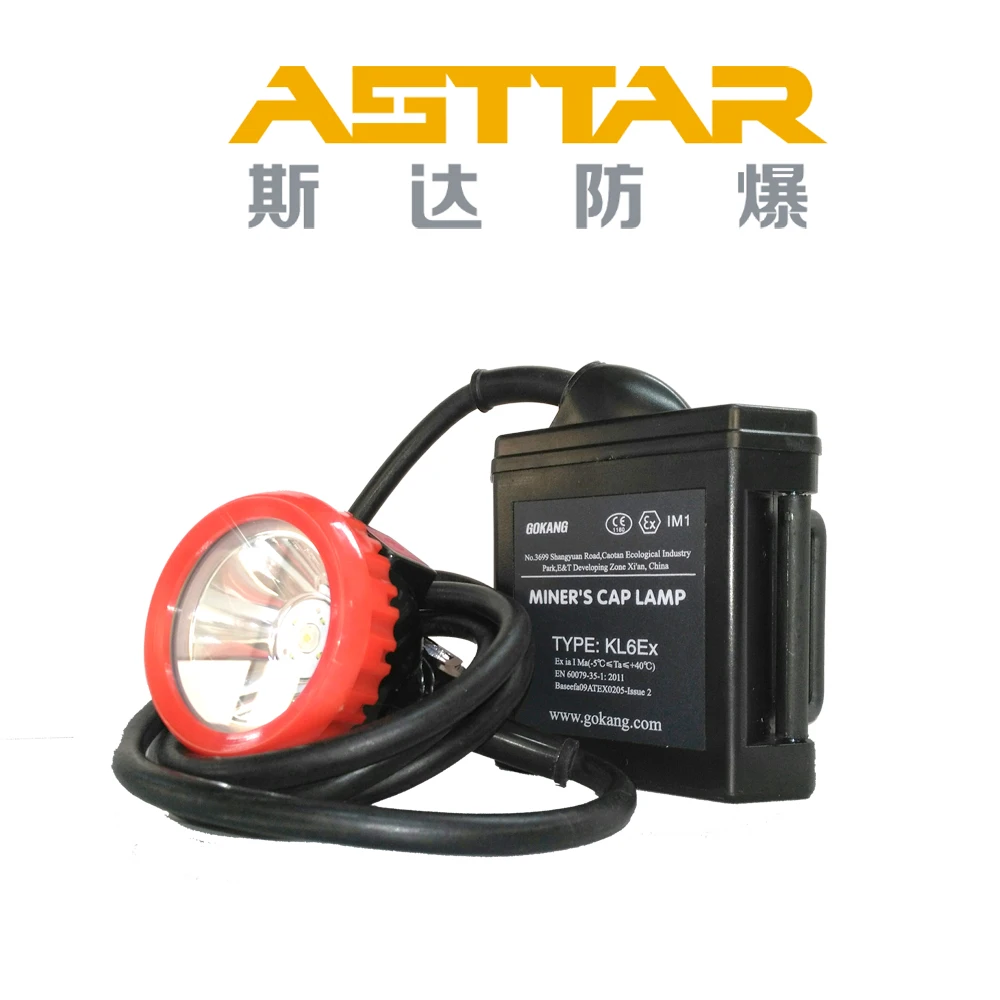

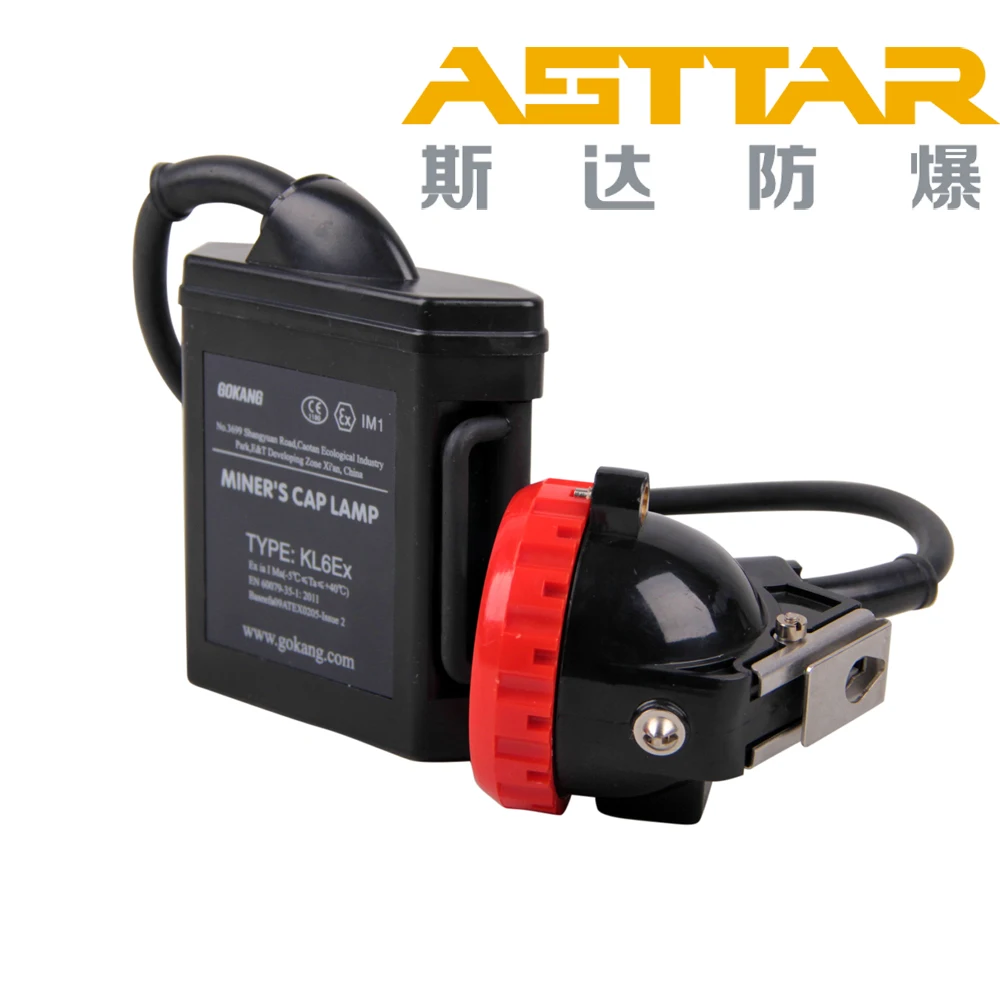

Gokang LED Miner Safety Cap Lamp Waterproof 5500LUX KL6Ex for Fishing Hunting Camping Outdoor
Product Description
Structure and features
1, Structure:

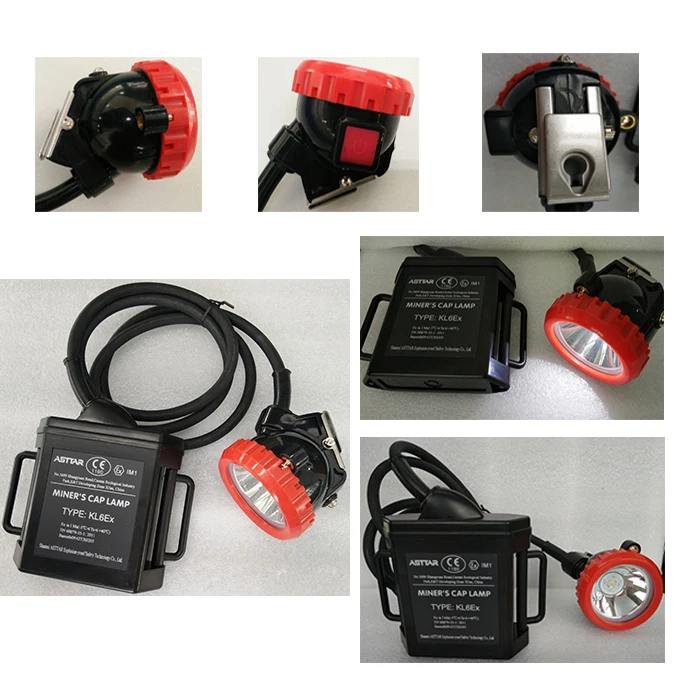

KL6Ex led cap lamp (miner’s cap lamp) consists of Li-ion batteries, protection circuit, charging circuit, LED light source, cable, headpiece shell and battery pack (made of flame-retardant, anti-static ABS) etc.
2, features:
(a) Short Circuit Protection - In the event of a short circuit in the headpiece or cable, the battery protective plate will cut off the power supply in 15ms. If, for any reason, this protection fails to operate, the current limiting resistance and quick-acting fuse will restrict the current to meet the requirements of the intrinsic safety standard.
(b) Over-Current Protection- In the case of an abnormal current increase, the battery protective plate will cut off the power supply in 15ms. If, for any reason, this protection fails to operate, the current limiting resistance and quick acting fuse will restrict the short circuit to meet the requirements of the intrinsic safety standard.
(c) In addition to the above battery protection, the battery cells have in-built PTC protection devices for over-current and over-heating.
Technical parameters:
Model
led cap lamp KL6Ex
Battery
Lithium mangantate
Rated capacity
6Ah
Rated Voltage
3.7V
Lighting time
>16h
Main lighting source
Operating current
0.28A
Max illumination (at 1m away from the lamp)
When lighting begins
>5000Lx
After lighting for 11h
>5000Lx
Rated power for LED auxiliary lighting source
0.2W
Life of cap lamp
>2yrs
Charging Voltage
(6-8)V
Charging time
<10h
Explosion-proof type
Ex ia I Ma
Protection grade
IP65
Dimensions of battery case
105*31*120mm
Production Certificate
ATEX Certificate No.
Baseefa09ATEX0205-Issue2

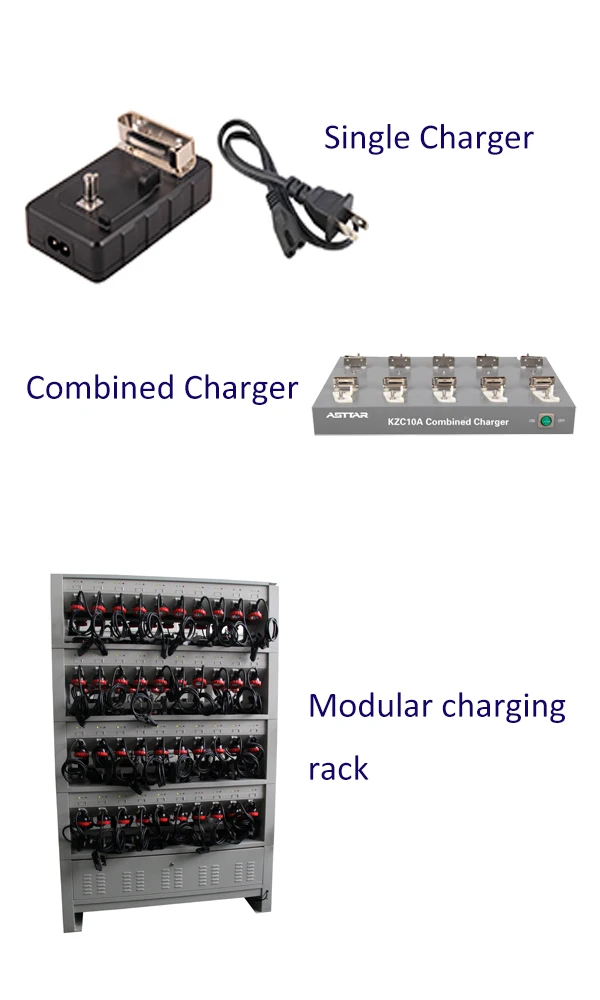

Matching information
Optional device
KZC1B Single charger
KZC10A Combined charger
KZC80A Modular charging rack
KZC100Z intelligent charging rack
Packaging information
Carton Size(paper carton)
423*328*218mm
Package quantity
12pcs
Gross weight
10KG
Miner's Lamp charger

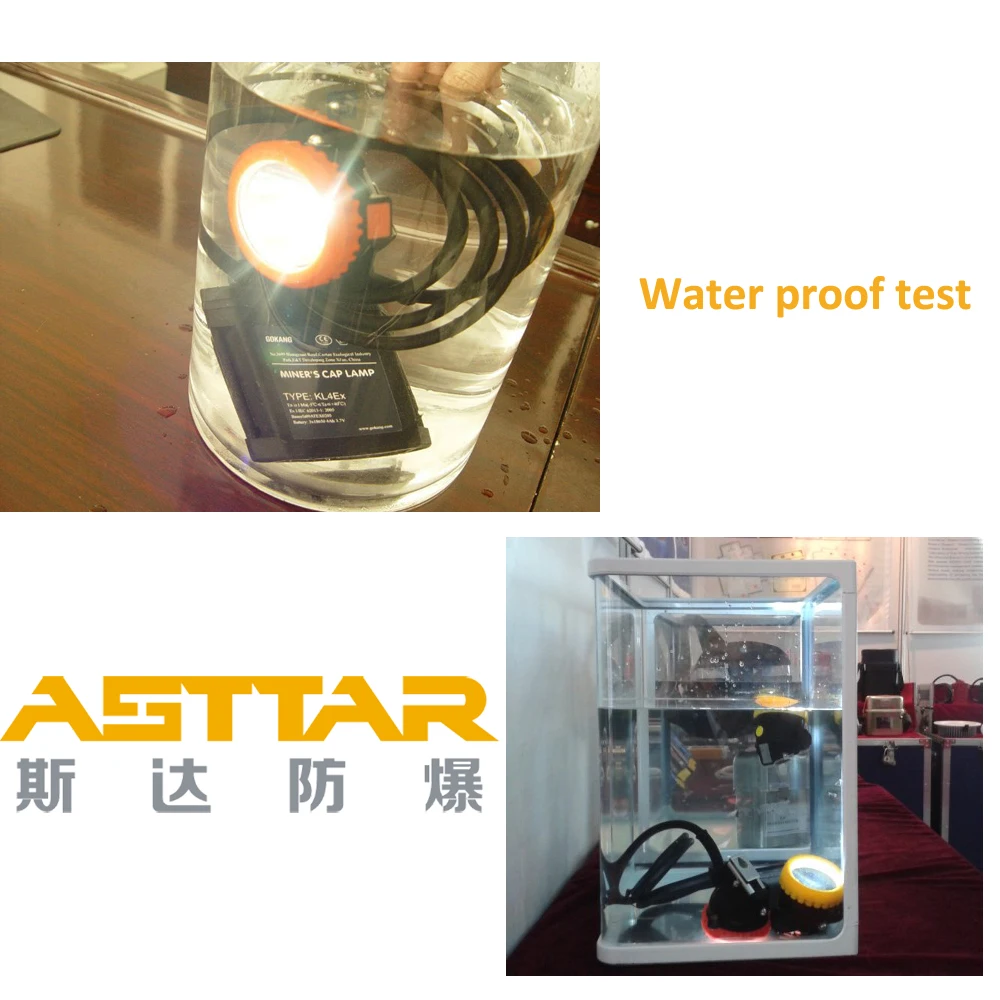

Water proof Test
Company Information
With ISO9001, ISO14001, ISO18000, CE authorized lab on respiratory devices for PPE directive, 21 years’ experience, ODM, OEM service provided, ASTTAR is specialized in developing and manufacturing of explosion-proof safety technology and products. We mainly export products of three categories:
