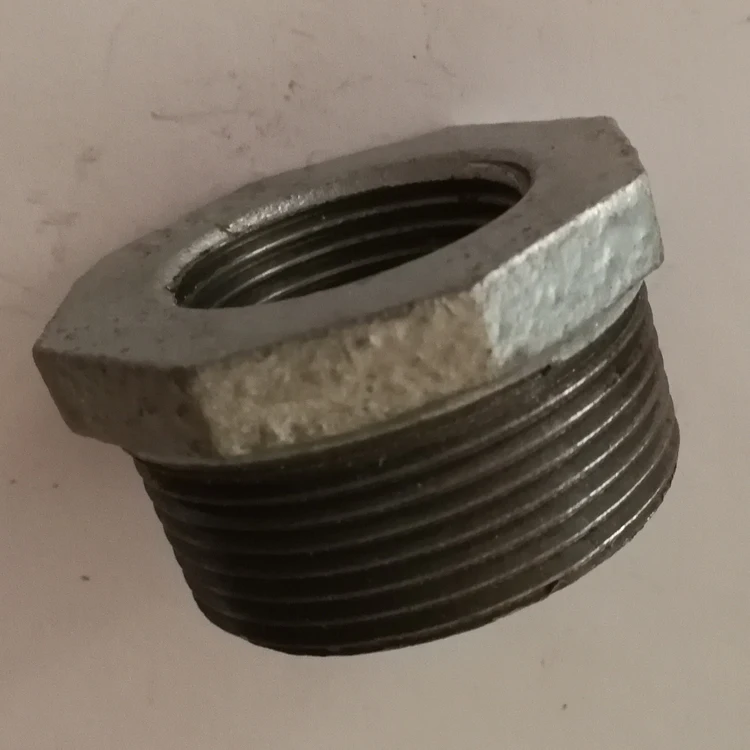

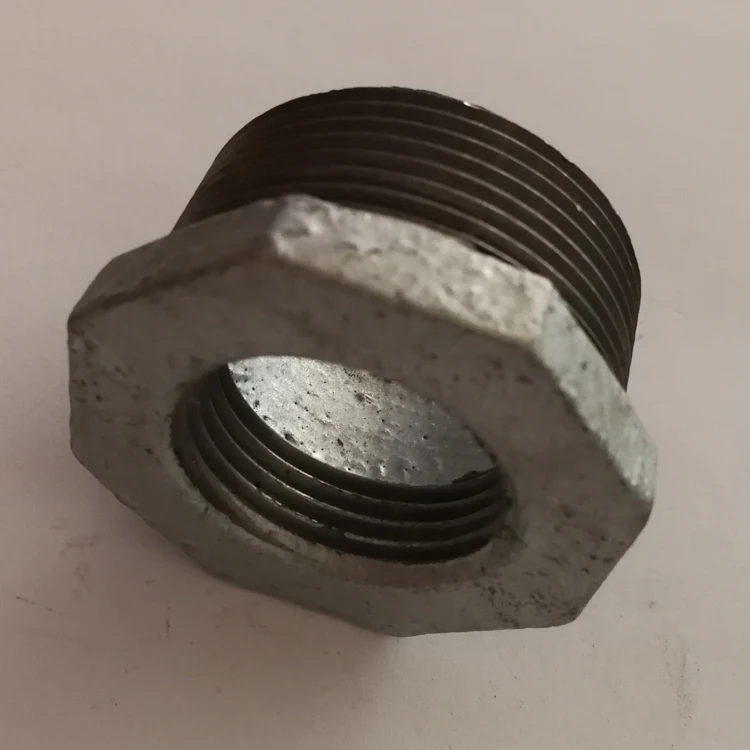

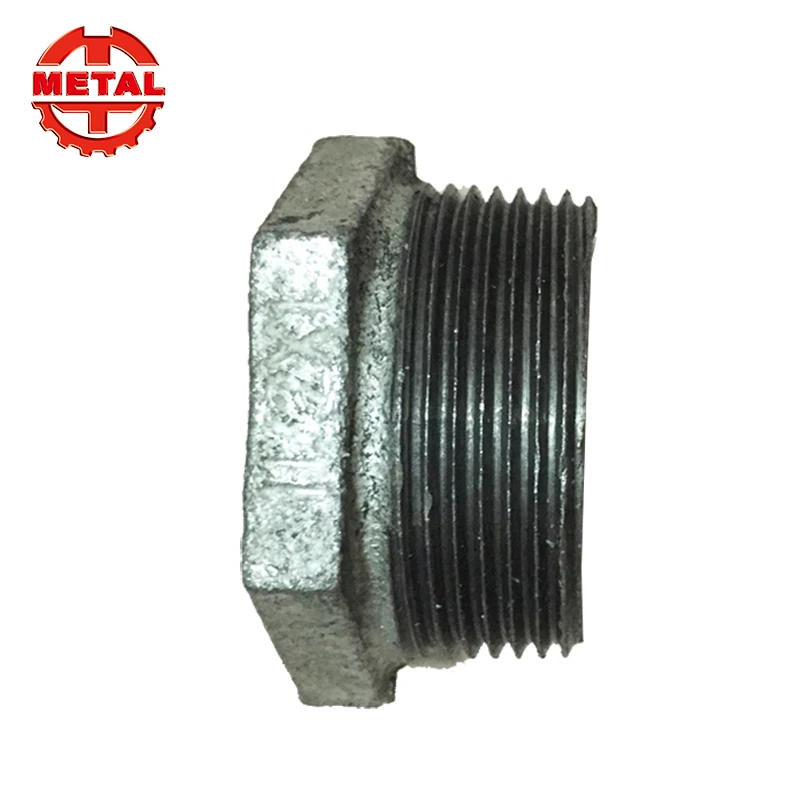

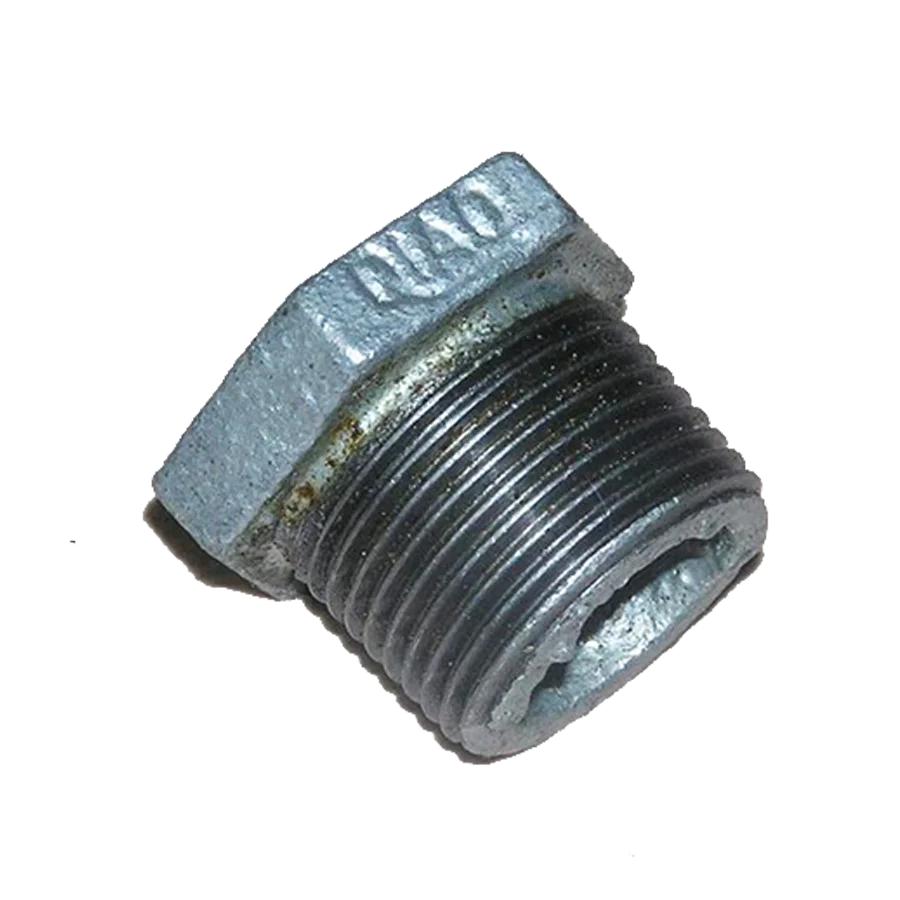

241 galvanized pipe fittings bushing

Share on (60764033356):


Price:RUB 3.72 - RUB 743.28

Quantity:


Product Overview

Description

241 galvanized pipe fittings bushing

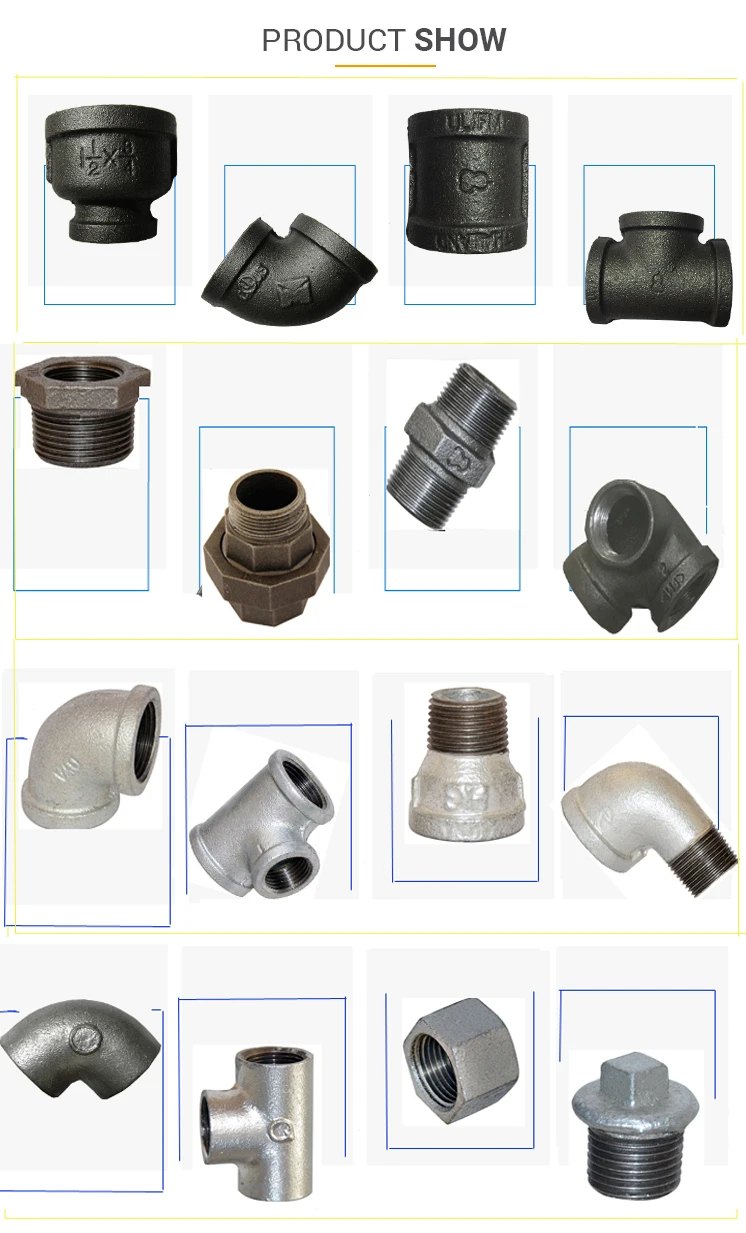

PRODUCTS SHOW.jpg

Malleable Iron Pipe Fitting Features:
Size
1/8"-6"
Finishing
Hot Dipped Galvanized, Electro Galvanized, Epoxy, Black
Threads
DIN, BS, NPT, G Thread, Metric
Shape
Banded, Beaded, Plain
Ribs
with Rib or without Rib
Brand
O,Q,HG,HE,BT
Pressure
Class 150, Class 300, PN10, PN16
Weight
Heavy, Standard, Medium, and Light
Usage
Convey Water, Oil, Gas, Steam and so on
Malleable Iron Materials
KTH 350~10, KTH 300~06, KTH 330-08 Black Heart
Malleable Iron Pipe Fitting Standards:
British standard
American standard
DIN standard
Materials:ISO5922
Materials:ANSI/ASME/A197-79
Material:DIN1692
Dimension:ISO49
Dimensions:ANSI/ASME B16.3-85
Dimensions:DIN2950
Threads:ISO7/1
Threads:ANSI/ASME B1.20.1
Thread:DIN 2999
Malleable Iron Pipe FittingTechnial Details:
Mechanical Properties
Tensile Strength ≥ 330MPa
Elongation ≥ 8%
Hardness < 163
Hydraulic Test
Working Pressure: Max 1.5MPa
Test Pressure: Max 2.5MPa
Temperature:
-20 ~ 120 °c





other types






 APPLICATION 2.jpgapplication.jpg







Malleable Iron Pipe Fittings Production:

Production Capacity:  60000 MT per Year

Lead Time:   Within 30 Days if enquiry not more than 10x20' Container

Factory Certificate:  ISO, SGS, ITS, BSI, Famous Brand Enterprise in Hebei, China






 1.Q:Are you a factory or trading company?

    A: Established in 1984, HEBEI METAL TRADING  CO.,LTD  is a comprehensive group enterprise which have our own factory ,exporting branch and overseas branch



2.Q:How does your factory do regarding quality control?

   A: Quality Assurance at HEBEI METAL TRADING  CO.,LTD starts with understanding the Customers Requirement and continues till the customer is completely satisfied with the delivery of products and services. Quality Control procedures are well defined and thoroughly implemented.



3. Q:Can I get some samples?

    A: Yes,free samples are available for you.



4. Q:  After sales service.

    A: Quality are promised. We have a dedicated after-sales department to be responsible for all subsequent work after delivery



5.Q: How To Order

   A:1.To specify british,or American or German threads.

       2.To specify galvanized or black

       3.To specify plain or banded or beaded

       4.To specify figure number,size and quantity in pieces
