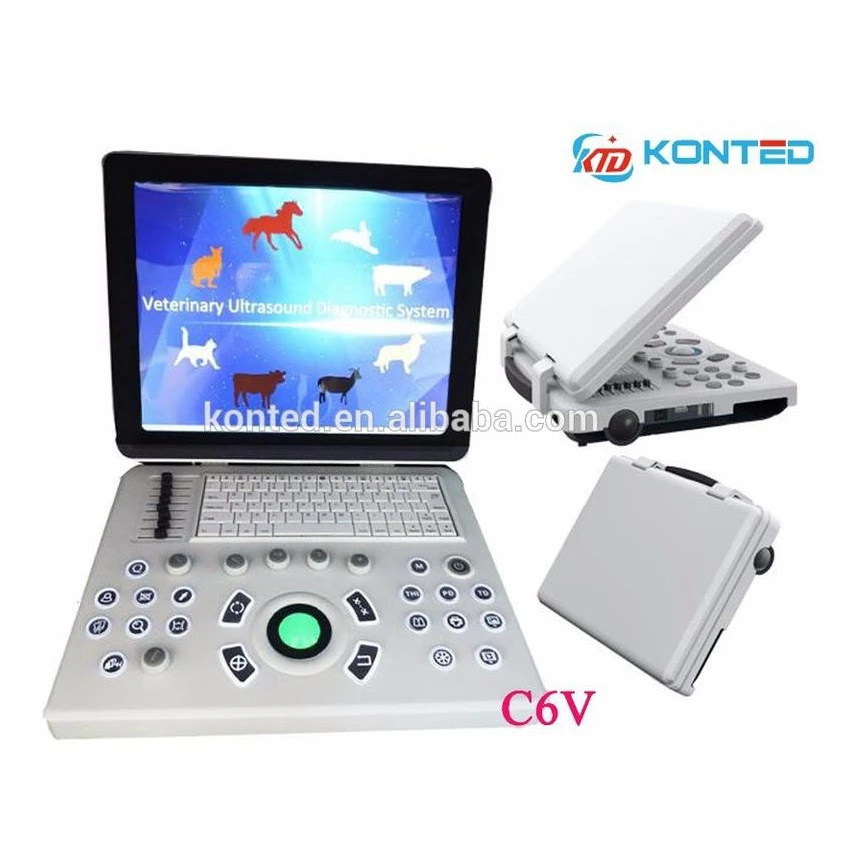

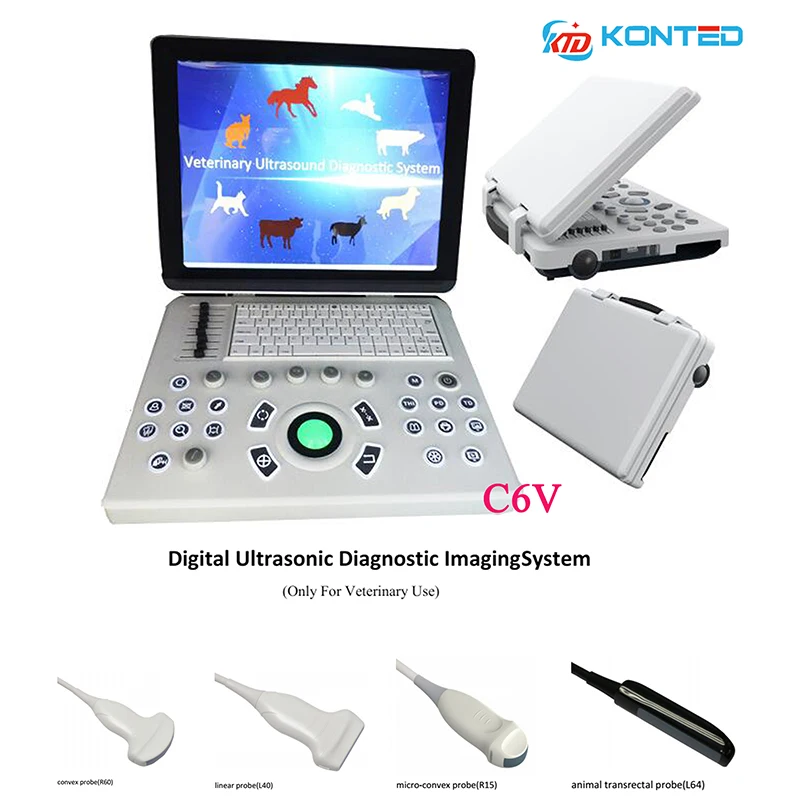

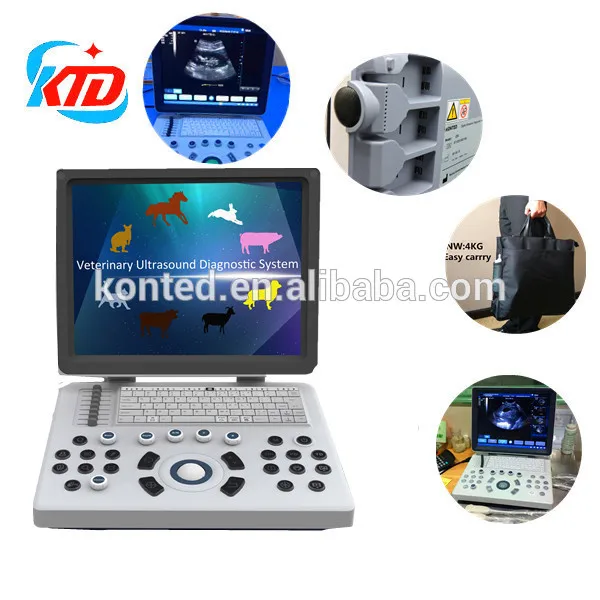

Equine/Cattle/Cow/Horse/Goat//Sheep/Pig/Dog/Cat Portable Veterinary Ultrasound Equipment/Machine/Scanner

Product Overview

Description

Equine/Cattle/Cow/Horse/Goat/Sheep/Pig/Dog/Cat Portable Veterinary Ultrasound Equipment/Machine/Scanner

   Pre-processing :

• Cloud processing technology


• Fine blood flow imaging, high sensitive


• Gain


• 8-segment TGC


• Dynamic range


• Persistence


• M soften


• Noise suppression

Post-processing:

• Image enhancement


• Gray-scale map


• Pseudo color map


• Interface to turn 180°


• Left/right reverse


• Up/down reverse

Technical Specifications

Technical Specification
Modes:	B, M ,2B ,B/M ,4B
Gray Level:	256
Display:	15”LCD monitor

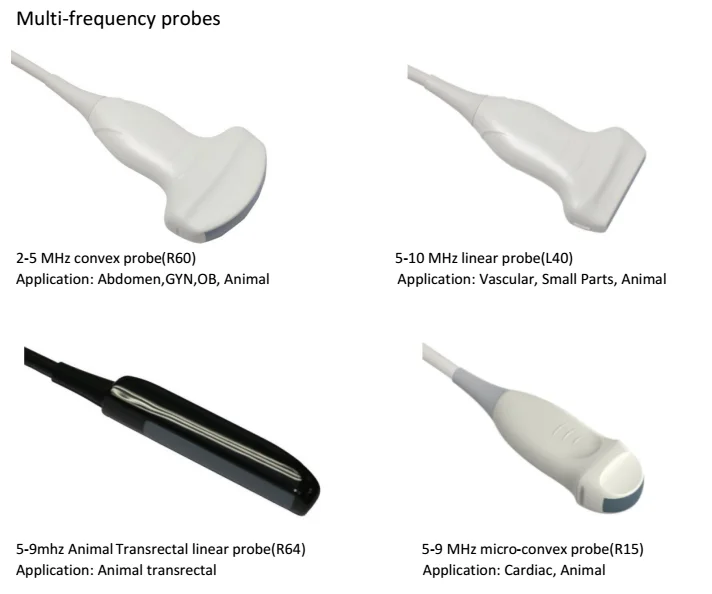

Transducer Frequency:	2-11Mhz
Digital Technology:	Wide-angle imaging
	Panoramic focusing technology
	Rolling M technology
Scanning Depth:	max 310mm

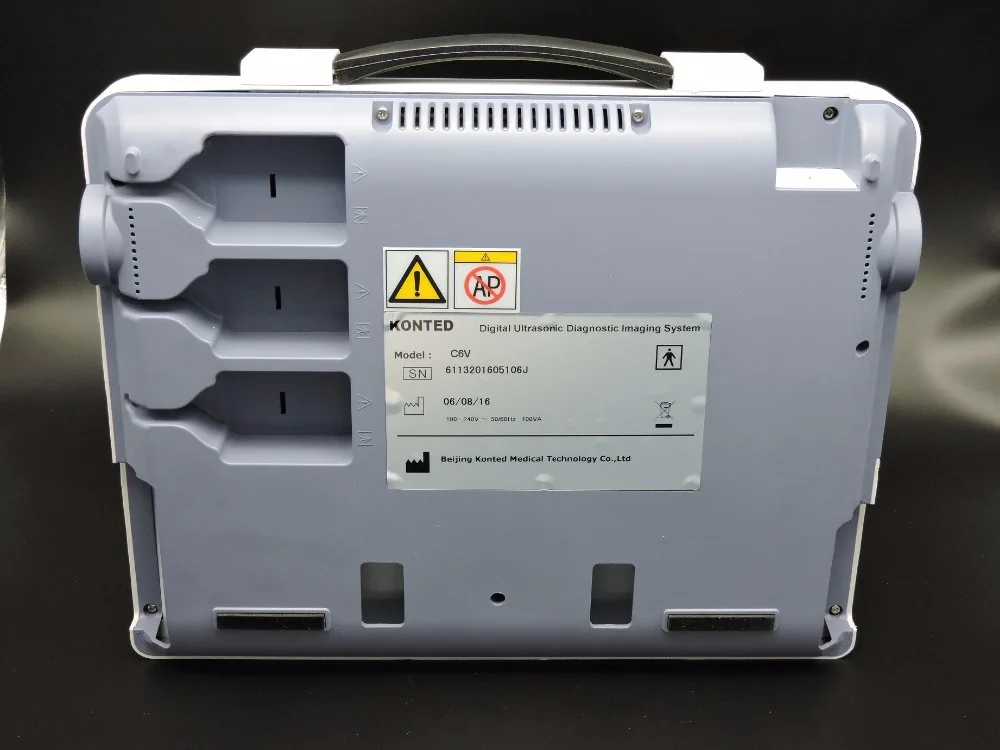

Probe ports:	3 active transducer connector ports
Peripheral ports:	2 USB ports, 1 networking port, 1power inlet,video
Power supply:	100-240V~ 50/60Hz <100VA
Measurement and Calculation
B mode:	Distance, angle, area, volume, trace length,distance ratio
M mode:	Distance, time, slope, heart rate
Application package:	Abdomen, OB, Gynecology, Cardiac, Small parts
Function
Cine loop:	334 frames movie playback stored
Zoom:	Pan zoom for the active imaging
Qopt:	One-key optimize
THI:	Tissue harmonic imaging
DICOM:	Supported
Print:	Report print for text&graph&image
Dimensions(main unit)	360mm(W)*360mm(L)*90mm(H)
Packing dimensions	415mm(W)*435mm(L)*140mm(H)
Net weight	About 4.5kg
Gross weight	About 5.5kg
